Interlogix SB Series Bedienungsanleitung

SB Series AIR Beam

Detectors Installation

Manual

EN SB Series AIR Beam Detectors Installation Manual

DE SB Serie AIR-Lichtschranken – Installationshandbuch

ES Manual de instalación de barreras IR de la serie SB

FR Séries SB Barrières à infrarouge actif Manuel d'installation

IT Manuale di installazione dei rilevatori raggi infrarossi AIR serie SB

NL SB-serie AIR-beamdetectoren Installatiehandleiding

PT Manual de Instalação dos Detectores de Feixes Infravermelhos AIR da

Série SB

P/N NT299-ML • REV A • ISS 31OCT12

2 SB Series AIR Beam Detectors Installation Manual

EN: SB Series AIR Beam Detectors

Installation Manual

Trademarks and

patents Interlogix, the SB Series AIR Beam Detectors name and logo are

trademarks of UTC Fire & Security.

Other trade names used in this document may be trademarks or

registered trademarks of the manufacturers or vendors of the

respective products.

Manufacture

UTC Fire & Security Americas Corporation, Inc.

1275 Red Fox Rd., Arden Hills, MN 55112-6943, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, Netherlands

Certification

European Union

directives 1999/5/EC (R&TTE directive): Hereby, UTC Fire & Security

declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

2002/96/EC (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see:

www.recyclethis.info.

Contact information www.utcfireandsecurity.com or www.interlogix.com

Customer support www.utcfssecurityproducts.eu

SB Series AIR Beam Detectors Installation Manual 3

Content

Introduction 4

General features 5

Detector layout 6

Accessories supplied 6

Installation 7

General guidelines 7

Detector mounting 7

Removing the infrared cover 8

Wiring 9

DIP switch settings 10

Cable diameter and length 11

Alarm and disqualification relay 11

Connecting the tamper detection contact 12

Configuration 13

Channel selection 13

Operating modes 14

Single module alignment and settings 15

Installing modules in columns 18

Connections 18

Setting “Slave” mode 20

Module numbering 20

“Master” module selection 21

“Master” module channel selection 22

Detection mode selection 22

Mono-detection of the bottom beam (optional) 23

Column alignment 25

Response time 26

Replacing the infrared cover 27

Final tests 28

Maintenance 29

Troubleshooting 30

Specifications 32

Default configuration 33

Dimensions 33

Accessories and spare parts 34

4 SB Series AIR Beam Detectors Installation Manual

Introduction

The SB250-N / SB2100-N two-beam detectors and the SB450-N / SB4100-N /

SB4200-N four-beam detectors generate an alarm when 1 or 2 beams are

interrupted, ignoring birds, small animals, dead leaves etc.

They consist of two identical detector modules equipped with detector cells

integrating both transmission and reception functions. These modules are

installed facing each other over the distance to be protected providing a non-

physical invisible detection zone.

Detectors are based on a system of pulsed infrared beams, and operate on four

user-selectable frequencies (channels), which allow avoiding any risk of

interference between detectors.

The SB450-N and SB4100-N barriers have 2 operating modes suitable for

different types of installation (see “Operating modes” on page 14):

• “AND” mode: Simultaneous obstruction of two adjacent cells

• “OR” mode: Obstruction of one of the cells

Refer to “Installing modules in columns” on page 17 for detailed information on

infrared barriers functionality in columns.

SB Series AIR Beam Detectors Installation Manual 5

General features

• Maximum outdoor range:

- SB250-N : 50 m

- SB2100-N : 100 m

- SB450-N : 50 m

- SB4100-N : 100 m

- SB4200-N : 200 m

The range of an infrared detector depends directly on visual range.

Maximum range of an infrared cell according to visibility:

- When visibility is 200 m, the range is 200 m.

- When visibility is 60 m (dense fog), the range is 100 m.

• Four user-selectable frequencies (channels) for distinguishing between

different detectors.

• SB250-N and SB2100-N detectors are equipped with one cell.

• SB450-N, SB4100-N and SB4200-N type detectors are equipped with two

cells dual-beam.

• 2 operating modes for SB450-N and SB4100-N: “AND” and “OR”.

• SB250-N, SB2100-N and SB4200-N have only 1 operating mode: “AND”.

6 SB Series AIR Beam Detectors Installation Manual

Detector layout

Figure 1: Detector layout

(1) 2 cells module, type SB450-N / SB4100-N

/ SB4200-N

(2) 1 cell module, type SB250-N / SB2100-N

(3) Top plate

(4) Infrared cover

(5) Dual-beam cell

(6) Adjustable support

(7) Terminal block

(8) Horizontal direction locking screw

(9) Chassis

(10) Vertical cell alignment

(11) Cover removal tampers

(12) Fixing staple for infrared cover

Accessories supplied

• 8X Ø3.9x13 screws for fixing to column

• 1X Installation manual

SB Series AIR Beam Detectors Installation Manual 7

Installation

General guidelines

See Figure 2 below.

To install the detectors correctly, certain rules must be followed.

• Do not place the detector on an unstable support (such as a mesh or a poorly

fixed post). See item 1.

• Do not position the module facing direct sunlight (item 2).

• Make sure that no vegetation interrupt the cells (item 3).

Figure 2: Potential causes of instability

Detector mounting

To attach the detectors to a metallic support, drill 4 holes measuring 3 mm and

use the sheet metal screws provided.

To fix the detectors to a wall, use appropriate screws and wall plugs for the type

of wall (we recommend at least Ø5 x 30 screws).

• Drill 4 holes and insert wall plugs.

• Position the holes in the adjustable support over the wall plugs.

Note: Rotate the module to be able to reach the screw holes in the adjustable

support (see Figure 3 on page 8).

8 SB Series AIR Beam Detectors Installation Manual

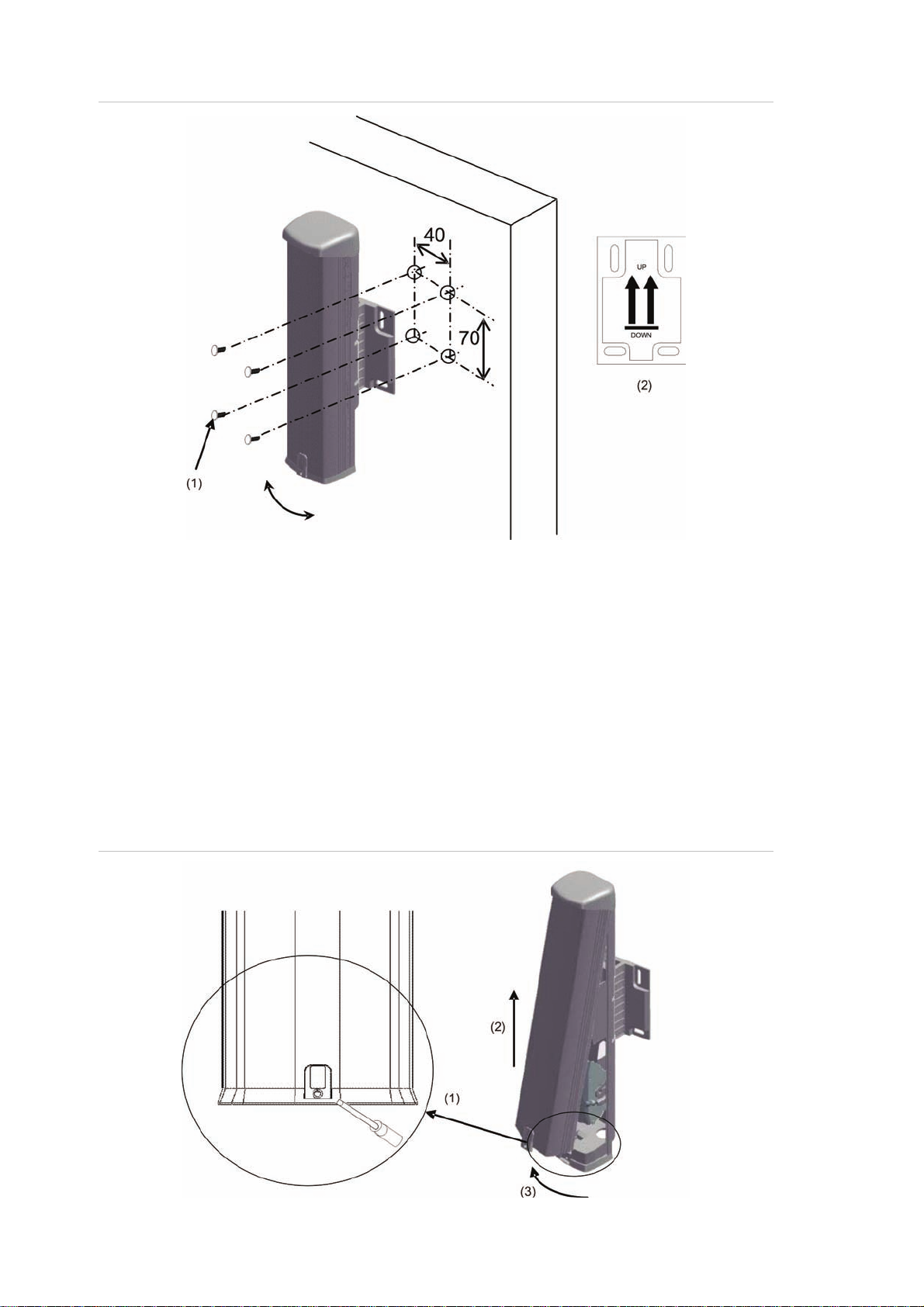

Figure 3: Wall mounting

(1) 4 screws (2) Rear view of the adjustable bracket

Removing the infrared cover

See Figure 4 below.

1. Remove the screw attaching the infrared cover, taking care not to lose the

staple (item 1).

2. Slide the cover upwards until it is stopped by the top plate (item 2).

3. Pull the cover outwards from the grooves in the chassis to remove it (item 3).

Figure 4: Removing the infrared cover

SB Series AIR Beam Detectors Installation Manual 9

Wiring

We recommend that different power supplies are used for the module and

heating.

Note: When using guillotine connectors, put the wire in the connector, and then

pull it out slightly so that it tightens.

Figure 5: Terminals and controls

Item Description Note

(1) Top cell

(2) Bottom cell

(3) DIP switches Channel selection (1 and 2)

Operating mode selection (3 to 5)

(4) Delay adjustment An adjustment of the response time of the intrusion alarm (50 to

800 ms)

(5) Selection button Select alignment mode

Select cells in alignment mode

(6) Alarm LED Intrusion alarm / disqualification (blinking)

Level of the signal in alignment

Table 1: Terminals

Terminal Description

1 “+” Power

2 “−” Power

3 “+” Heating

10 SB Series AIR Beam Detectors Installation Manual

Terminal Description

4 “−” Heating

5 NO intrusion relay

6 COM intrusion relay

7 NO disqualification relay

8 COM disqualification relay

9 A column synchronization [1]

10 B column synchronization [1]

[1] See “Installing modules in columns” on page 17.

DIP switch settings

Table 2: DIP switch 1 to 2 - channel selection

Switch 1 Switch 2 Function

OFF OFF Channel 1

ON OFF Channel 2

OFF ON Channel 3

ON ON Channel 4

See “Channel selection” on page 13 for more details.

Table 3: DIP switch 3 to 5 - operating modes

Switch 3 Switch 4 Switch 5 Function

OFF OFF ON Single module in “AND” mode

OFF OFF OFF Single module in “OR” mode

OFF ON OFF “Slave” mode with low beam enabled

OFF ON ON “Slave” mode with low beam disabled

ON OFF OFF “Master” mode with the mono detection column

ON OFF ON “Master” mode with double detection column

ON ON OFF Not used

ON ON ON Not used

See “Operating modes” on page 14 for more details.
