Intermatic Grasslin DTAV40E Bedienungsanleitung

Instruction Manual

20 memories time switches

page

Safety precautions ..................................................................... 2

Program structure ...................................................................... 3

reset

Symbols, keys ............................................................................. 5

Prog

Setting the timer ........................................................................ 6

Setting 24h or am/pm clock, time and weekday .....................7

Prog.

Pre-set programs ....................................................................... 9

P0x

prog

Selecting pre-set programs P01 to P03.................................... 10

P--

prog

User defined programs .............................................................. 11

del

Deleting programs ..................................................................... 15

+1h

Daylight Savings time .................................................................. 16

Automatic

Warranty ...................................................................................... 18

operation / fixed ON / fixed OFF .............................17

Safety precautions

· The connection and installation of electrical devices may only be

carried out by a qualified electrician.

· Interventions in and changes to the device result in the voiding of

the warranty claim.

· Observe your national regulations and the respective safety

provisions.

· Switch-off commands have priority over switch-on commands.

Set time: Format 24h or am/pm

24h blinking, using +/- to select, then OK

Set time: Hour

Hour blinking, using +/- to select, then OK

Set time: Minute

Minute blinking, using +/- to select, then OK

Set time: Day

Monday blinking, using +/- to select, then OK

Set Program: P01 / P02 /

P03 or P--

Using +/- to select, then OK

to set ON/OFF times

press Menu to terminate

programming

P01-03, P--

Set switching times:

First free memory location

blinks.

Press ''-''to go back one

memory location.

Press OK for setting the

switching times

Prog01

Set switching times:

First free memory location

blinks.

Press OK for setting the

switching times

First installation setting Review/adjust

OKMenu

Note:

P01-03

are pre-set

Press Reset Button

Set switching ON time: Hour

Hour blinking, using +/- to select, then OK

Set switching ON time: Minute

Minutes blinking, using +/- to select, then OK

Set switching ON time: Days

Mo-Su blinking, using +/- to select, then OK

Set switching OFF time: Hour

Hour blinking, using +/- to select, then OK

Set switching OFF time: Minute

Minutes blinking, using +/- to select, then OK/Menu

A maximum of 20 memory locations

can be occupied

10 switching ON times

10 switching OFF times

RUN

reset

+ - Menu OK

Res.

+1h

: Overview of daily switching program

: Setting of 24h or am/pm

: Summer/winter clock changes

: Weekday display

: Switching status display ON/OFF

+/-

: Adjustment keys: By pressing the key longer than 2 sec. you

can adjust the timer in steps of 5 units

Res.

: Reset

: By pressing the menu key programming is terminated and

the system reverts to automatic operation

: Confirmation of programming

OVR AUTO

Prog

Setting of this programmable timer is depending of the user preference to

use pre-set programs or defining own programming.

Using Pre-set programs (first time installation)

Using

Reset

key you can adjust the

following values:

24h or am/pm: see pg 6

Time (hour and

minutes): see pg 6

Week day: see pg 7

Pre-set programs

P01 to P03: see pg 7

User defined programming by Menu mode

Using

key you can adjust /

review the following values:

24h or am/pm: see pg 6

Time (hour and

minutes): see pg 6

Week day: see pg 7

Programs P--: see pg 7

+ - Menu O

Res.

+1h

+ - Menu O

Res.

+1h

OVR AUTO

Mode

OVR AUTO

Mode

Sequence to follow after selecting programming by pre-set programs or

Menu mode.

Set display format 24h or am/pm

Select 24h or am/pm (

+/-

)and con-

firm with

1 1 2

Set hour

Select hour (

+/-

)and confirm

with

1 1 2

+ - Menu O

Res.

+1h

OVR AUTO

Mode

+ - Menu O

Res.

+1h

OVR AUTO

Mode

Set week day

Select week day (

+/-

)and confirm

with

1 1 2

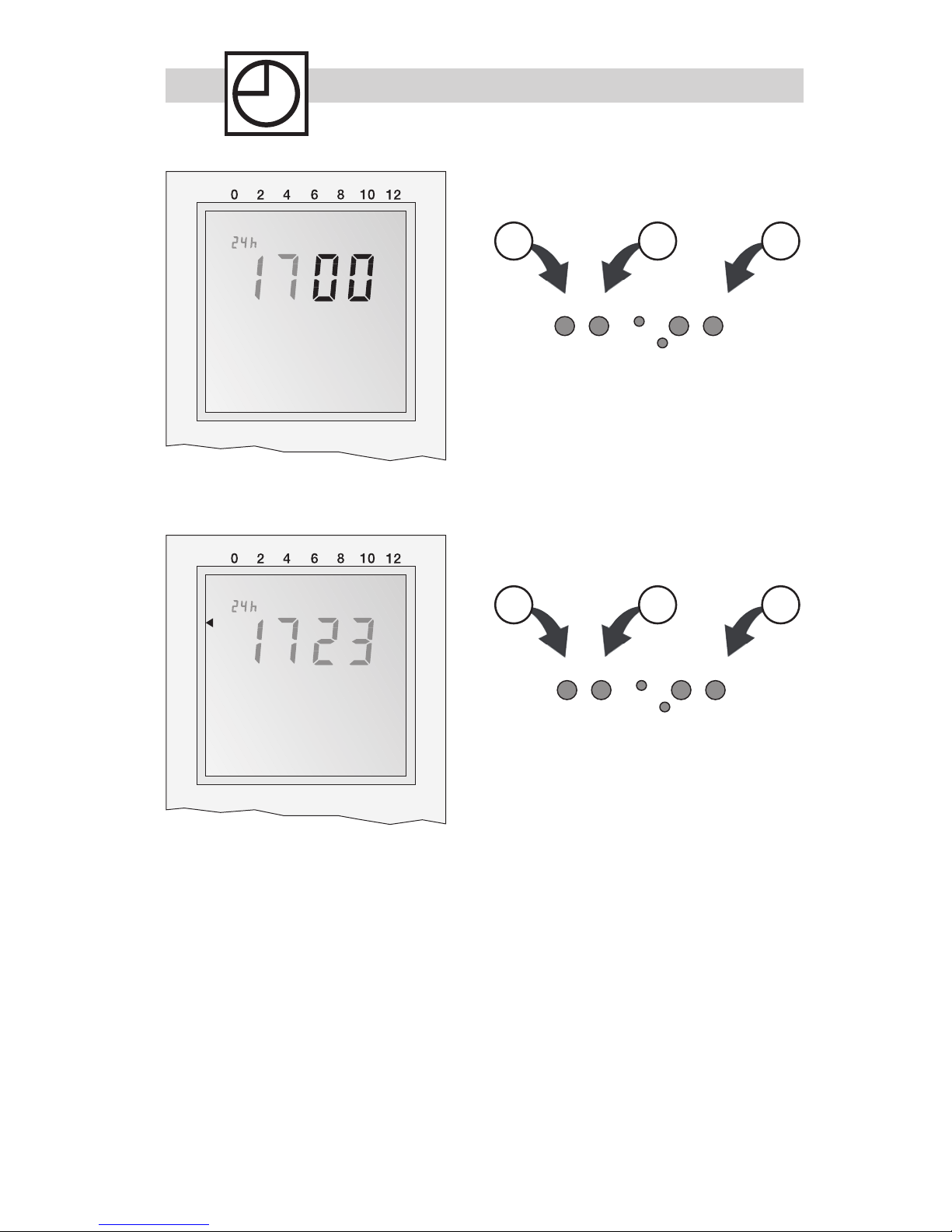

Set minutes

Select minutes (

+/-

)and confirm

with

1 1 2

+ - Menu O

Res.

+1h

OVR AUTO

Mode

+ - Menu O

Res.

+1h

OVR AUTO

Mode
