Trakker Antares®

2475 Vehicle-Mount

Terminal

Installation

Instructions

Intermec Technologies Corporation

6001 36th Avenue West

Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505

U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-668-7043

Canadian media supplies ordering information: 1-800-268-6936

Outside U.S.A. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing customers to

operate and/or service Intermec manufactured equipment and is not to be released, reproduced, or used for any

other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

2002 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, INCA (under license), MobileLAN, JANUS, IRL, Trakker Antares,

EZBuilder, TE 2000, Data Collection Browser, dcBrowser, Universal Access Point, UAP, Duratherm,

EasyCoder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are either trademarks or registered

trademarks of Intermec.

Throughout this manual, trademarked names may be used. Rather than put a trademark (or ) symbol in

every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and

to the benefit of the trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

Contents

iii

Contents

Preparing to Install the Terminal 5

Guidelines for Mounting the Terminal 5

Required Tools and Materials 6

Installing the Terminal and Connecting Devices 6

Attaching the Antenna 7

Installing the Terminal 7

Using the Rail Mount 10

Installing and Connecting the DC Power Supply 11

Connecting the External Power Supply 13

Attaching a Scanner 14

Connecting to Serial Devices 15

Charging the Backup Battery 16

Blank page

Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions

Preparing to Install the Terminal

The Trakker Antares®2475 vehicle-mount terminal is designed to be mounted on a

vertical or horizontal surface on a vehicle such as a forklift truck. You can also use the

rail mount accessory to mount the terminal to a rail on the vehicle. You use a DC power

supply that is connected to the vehicle’s battery to power the 2475.

You can also mount the 2475 in an office location to program, develop, and test

applications. You use an external power supply and adapter cable to power the 2475.

Make sure you have the necessary equipment to install the 2475 and connect it to your

network. You need the following equipment that ships with the terminal:

•2475 terminal

•Antenna

•Mounting bracket and hardware

•2475 DC power supply cable

You may also need the following equipment (sold and ordered separately) to install the

terminal:

•DC power supply kit (10 to 36 VDC kit or 15 to 96 VDC kit)

•External power supply and power supply adapter cable

•Rail mount accessory and hardware

•Scanner and scanner cables

•RS-232 serial communications cable

Before you install the terminal, you should follow the guidelines for mounting the

terminal.

Guidelines for Mounting the Terminal

Before you install the mounting bracket, read these guidelines:

•Mount the 2475 where the operator can easily see the screen and use the keypad. If

possible, you should mount the terminal in a location that avoids glare from

overhead lighting and sunlight.

•Route all cables to minimize exposure to damage. Make sure the cables will not be

pinched or rubbed by any moving parts on the vehicle. In some applications, you

may need to sheath the cable to prevent it from being pinched.

•Secure the power cables at least every 45 cm (18 in) throughout the length of the

cable run—use adjustable clamps or tie-wraps to secure the cables.

Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions

Required Tools and Materials

You need the tools and materials listed next to install your 2475. These tools and

materials are not supplied with the terminal.

•Common hand tools and mounting hardware

•Electric drill and drill bits

•Wire crimping and stripping tool

•Heatshrink tubing

•Heat gun

Installing the Terminal and Connecting Devices

The steps to install your 2475 depend on the mounting location and the accessories you

want to attach to the terminal.

To install the 2475

1. Attach the antenna to the 2475.

2. Install the terminal on a vehicle or on a surface in an office environment.

3. Install and connect the DC power supply or the external power supply (office

location only).

4. Attach a scanner.

5. Connect to serial devices.

6. Fully charge the backup battery.

These procedures are described in detail in the next sections.

Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions

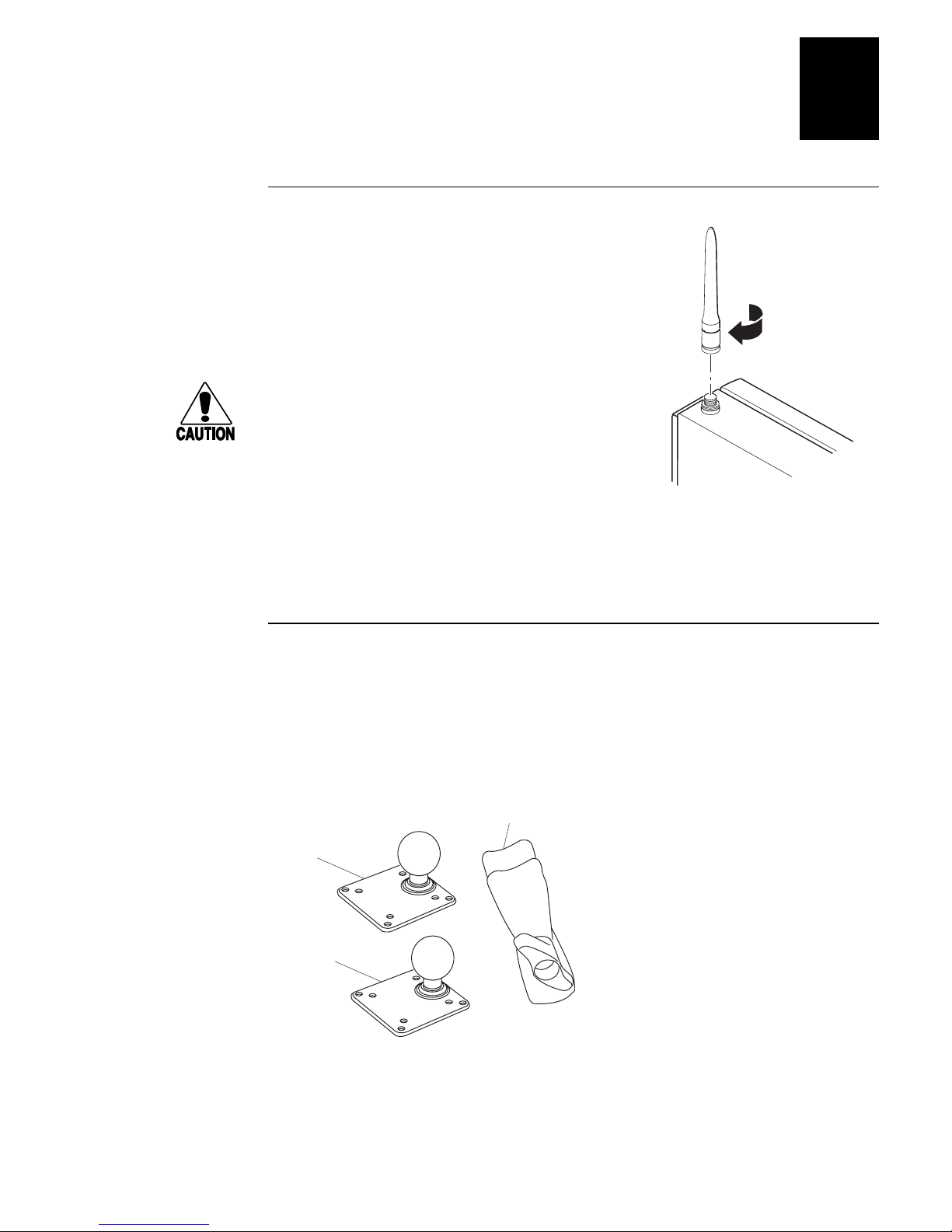

Attaching the Antenna

The antenna is shipped with the terminal. Remove the

antenna from the shipping box and attach the antenna

as shown.

You can also use an Intermec-approved accessory

antenna to improve RF communications. For more

information, see your Intermec sales representative.

Caution

Make sure all components with antennas are at least

0.3 m (1 ft) apart when power is applied. Failure to

comply could result in equipment damage.

Conseil

Assurez-vous que la distance entre tous les éléments

avec antennes soit d’au moins 0.3 mètres (un pied)

avant de faire la connexion avec l’alimentation

2475I009.eps

électrique, faute de quoi vous risquez d’endommager votre installation.

Installing the Terminal

Before you install the terminal, read the “Guidelines for Mounting the Terminal”on

page 5. You can use the mounting bracket to mount the 2475 on a vertical or horizontal

surface.

The mounting bracket ships in three separate pieces: two identical mounting plates and

one mounting arm.

Mounting

plate 1

Mounting

plate 2

Mounting

arm

2475I043.eps

Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions

To install the mounting bracket, you must complete these steps:

1. Attach one of the mounting plates to the 2475.

2. Install the other mounting plate and the mounting arm on a mounting surface.

3. Attach the 2475 to the mounting arm.

Each of these steps is described in the following procedures. You can also use the rail

mount accessory to mount the terminal to a rail on a vehicle. For help, see “Using the

Rail Mount”on page 10.

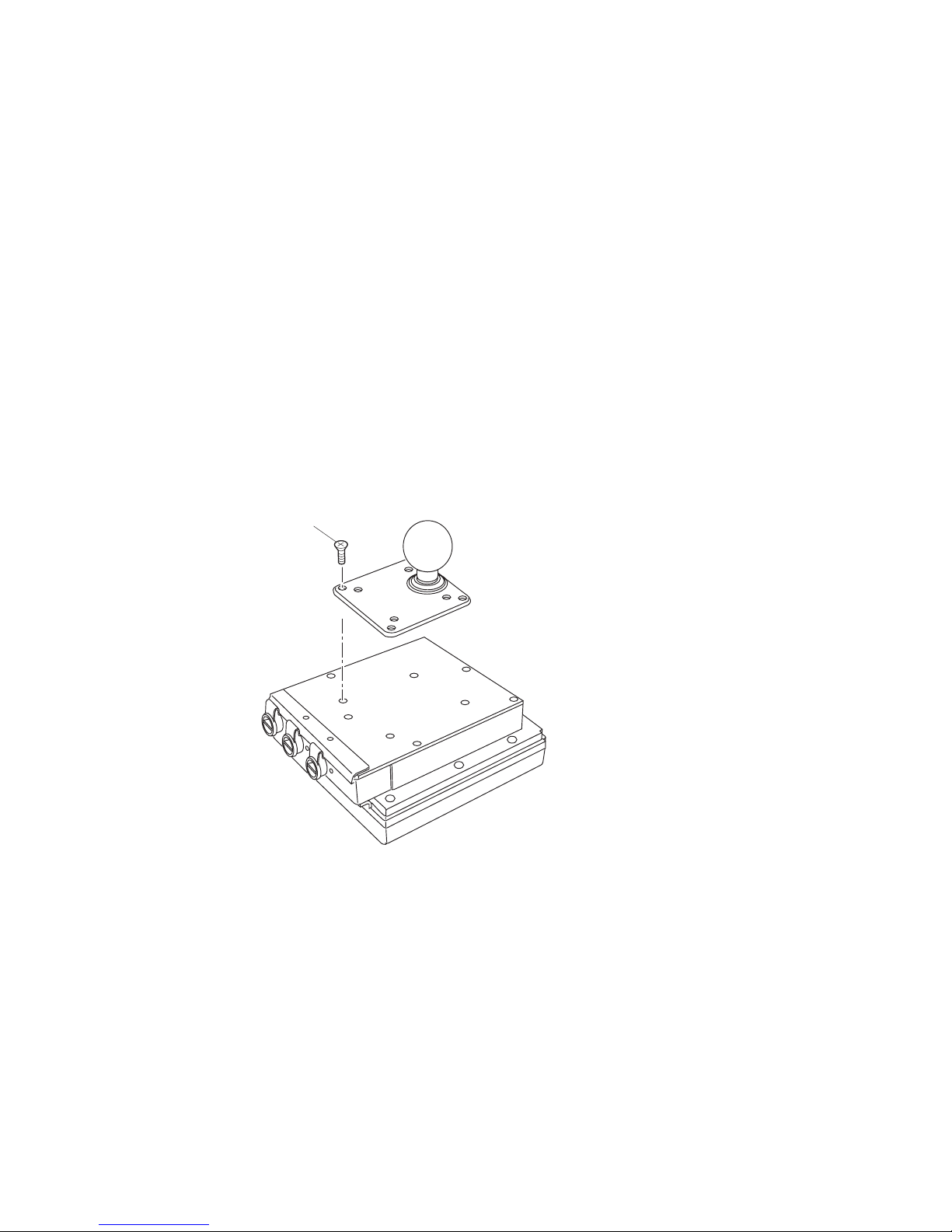

To attach a mounting plate to the 2475

1. Position the mounting plate so that the holes on the mounting plate align with the

holes on the back plate of the terminal. Make sure that the mounting plate ball is

oriented toward the top of the 2475 as shown.

2475I011.eps

Tapered head

screws (4 places)

2. Insert the four tapered head screws to attach the mounting plate to the terminal.

Tighten the tapered head screws with a Phillips #3 screwdriver.

Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions

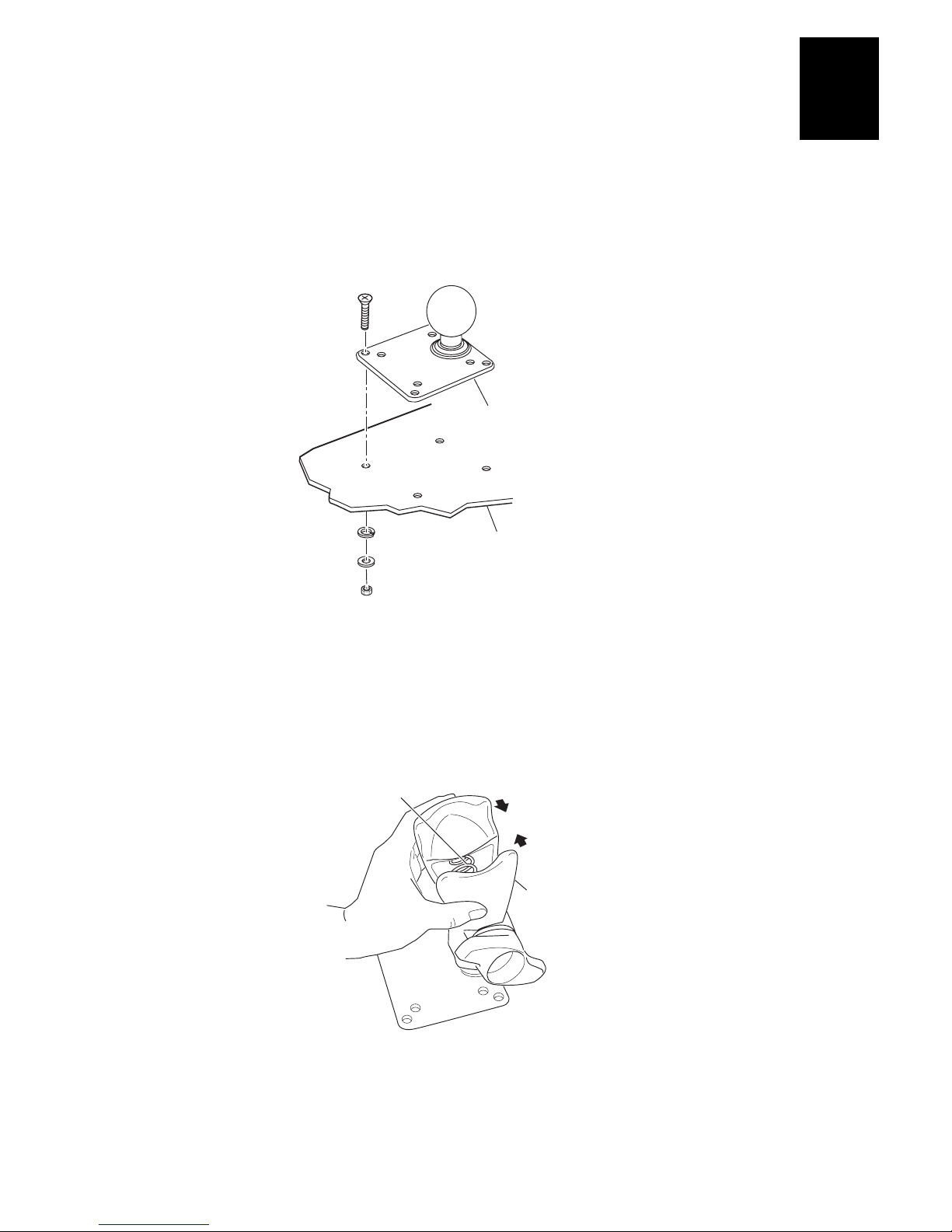

To install the other mounting plate and the mounting arm on the mounting surface

1. Using the mounting plate as a template, mark and drill the holes in the vertical or

horizontal mounting surface.

Mounting

surface

Mounting

plate

2475I004.eps

2. Attach the mounting plate using appropriate hardware (not provided) through each

of the holes in the mounting plate and the mounting surface.

3. Attach the mounting arm to the mounting plate on the vehicle.

a. Squeeze the top of the mounting arm. The top of the mounting arm contains the

spring.

Spring

Mounting

arm

2475I005.eps

b. Position the bottom of the mounting arm over the ball on the mounting plate,

and release the mounting arm.

Trakker Antares 2475 Vehicle-Mount Terminal Installation Instructions

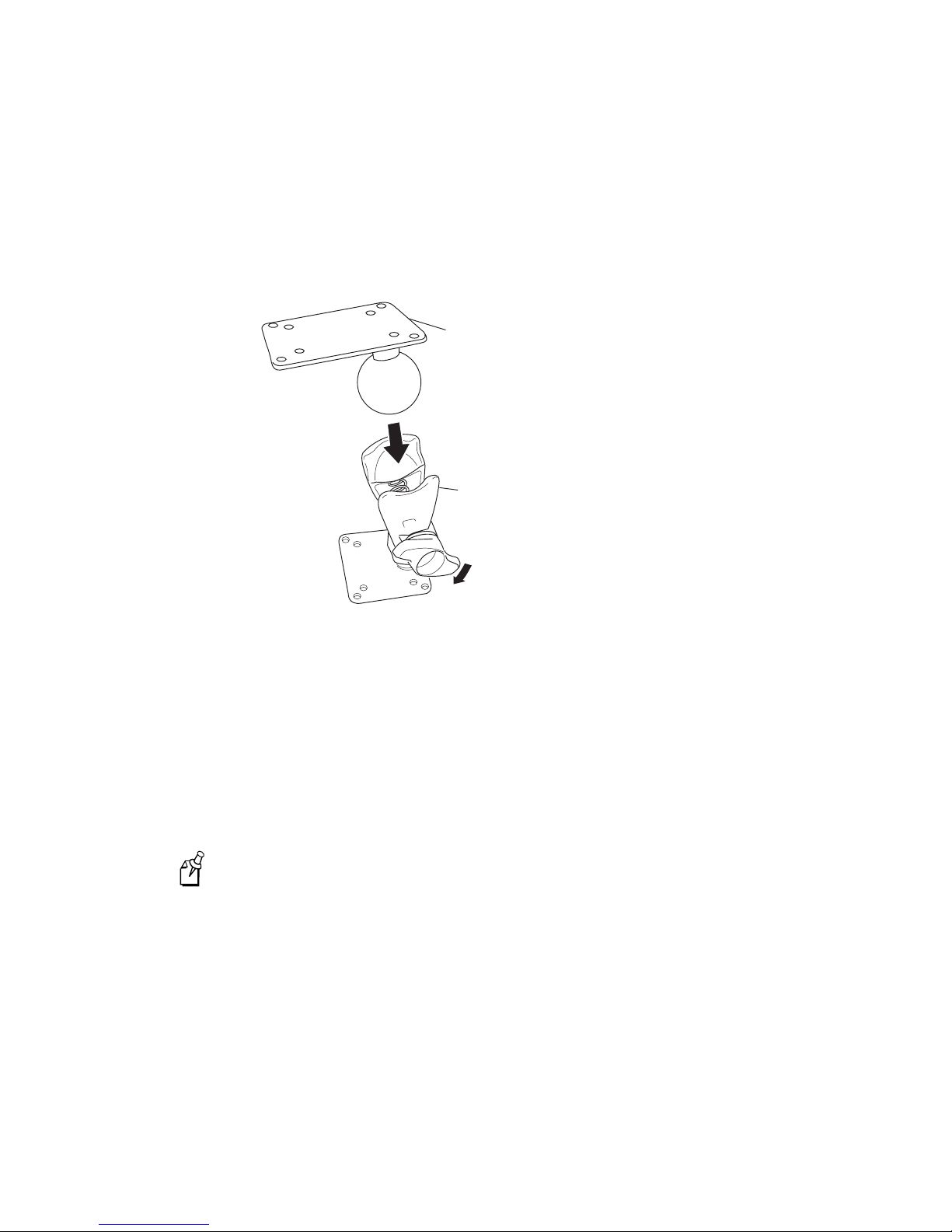

To attach the 2475 to the mounting arm

1. Attach the terminal and mounting plate assembly to the mounting arm, and adjust

the terminal to the best-possible viewing angle for the vehicle operator.

2. Tighten the knob to secure the terminal to the mounting arm.

Mounting

arm

Mounting

plate (2475

not shown

for clarity)

2475I008.eps

3. Periodically inspect the knob on the mounting arm to make sure it is still tight.

Check the mounting bracket assembly for any signs of fatigue, such as cracking,

which may develop over extended use in extreme (vibration) environments. Replace

any damaged hardware immediately to ensure continued, safe operation.

Using the Rail Mount

You can use the rail mount accessory (Part No. 072363) to attach the 2475 to a square

or rectangular rail on a vehicle.

Note: The rail mount can be installed on a rail that is up to 5 x 3.8 cm (2 x 1.5 in). Do

not install the rail mount on a rail that is larger than 5 x 3.8 cm (2 x 1.5 in).
