User’s Guide

ZSim v5.XX

for EasyCoder®

PF2/4i, PX4/6i,

PM4i and PD41

ii ZSim v5.XX User‘s Guide

Intermec Technologies Corporation

Worldwide Headquarters

6001 36th Ave. W.

Everett, WA 98203

U.S.A.

www.intermec.com

e information contained herein is provided solely for the purpose

of allowing customers to operate and service Intermec-manufactured

equipment and is not to be released, reproduced, or used for any

other purpose without written permission of Intermec Technologies

Corporation.

Information and speciﬁcations contained in this document are subject to

change without prior notice and do not represent a commitment on the

part of Intermec Technologies Corporation.

e word Intermec, the Intermec logo, Norand, ArciTech, Beverage

Routebook, CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder,

EasySet, Fingerprint, INCA (under license), i-gistics, Intellitag, Intellitag

Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work,

RoutePower, Sabre, ScanPlus, ShopScan, Smart Mobile Computing,

TE 2000, Trakker Antares, and Vista Powered are either trademarks or

registered trademarks of Intermec Technologies Corporation.

ere are U.S. and foreign patents as well as U.S. and foreign patent

applications pending.

ZSim v5.XX User‘s Guide iii

Contents

What is ZSim? ...............................................................................1

System Requirements.....................................................................1

ZSim v5.XX vs. v4.XX...................................................................1

Loading ZSim to Your Printer........................................................1

Conﬁguring ZSim – PF, PM and PX Printers.................................2

Navigating the ZSim Conﬁguration Menu ......................2

Conﬁguring ZSim – PD41 ............................................................3

Conﬁguring ZSim for the First Time .............................................4

Conﬁguring ZSim through text downloads......................4

Using the Conﬁguration Menu........................................7

Initial Setup Conﬁguration Menu .....................8

Conﬁguration Command Menu, Part 1 ............9

Conﬁguration Command Menu, Part 2 ..........10

Conﬁguration Command Menu, Part 3 ..........11

Understanding the Conﬁguration Commands .............................12

Allow Reverse..................................................12

Calibrate .........................................................12

Change Caret ..................................................12

Change Delimiter............................................12

Change Tilde...................................................12

Change Y-pos ..................................................12

Clear Permanent..............................................12

Default Start Adjust ........................................12

Default Stop Adjust.........................................13

Factory Defaults..............................................13

Feed Action.....................................................13

Input Port .......................................................13

Label Length ...................................................14

Label Width ....................................................14

Line Analyzer ..................................................14

Log to Card.....................................................14

LTS .................................................................14

Media Contrast ...............................................14

Media Type .....................................................15

Optimize Bar Code Magniﬁcation ..................15

Optimize Batch...............................................15

Optimize Image Magniﬁcation........................16

Paper Type.......................................................16

iv ZSim v5.XX User‘s Guide

Peel Oﬀ Length ...............................................16

Permanent Save ...............................................16

Print Conﬁguration Label ...............................17

Print Mode......................................................17

Redo Conﬁg....................................................17

Reset Tuning ...................................................17

Save Current ...................................................17

Select Character Set.........................................17

Simulation Resolution.....................................18

Units ...............................................................18

Use Last Saved.................................................18

X-Oﬀset ..........................................................18

Y-Oﬀset...........................................................18

Troubleshooting ZSim .................................................................19

Entering Passwords ......................................................................20

Modes............................................................................20

Selecting Characters.......................................................21

ZPL Commands Supported by ZSim...........................................22

ZSim v5.XX User‘s Guide v

INTERMEC PRINTER INTERPRETER

END USER LICENSE AGREEMENT

Important: Carefully read this Intermec Printer Interpreter License

Agreement (hereafter “License”) before installing or using the

Software. You may use the Software only if you agree to be bound

by the terms of this License. If you do not agree to the terms of this

License, you may NOT use the Software and you MUST return

the Software to Intermec for a refund. ANY INSTALLATION OR

USE OF THE SOFTWARE INDICATES YOUR AGREEMENT

TO BE BOUND BY THE TERMS AND CONDITIONS OF THIS

LICENSE.

1. Deﬁnitions

a. “System(s)” means Intermec branded bar code label printers.

b. “Software” means the Intermec ZSim printer interpreter(s)

computer program or any Revisions thereto. e Software is

written in Intermec Fingerprint programming language but has

been list protected. e Software may include programs written

by Intermec as well as programs written by others which have

been incorporated into the Software by Intermec. e Software

includes any disks or media on which it is recorded, any printed

Documentation or any “on-line” or electronic Documentation

provided to You.

c. “Documentation” means any materials accompanying the Software

which describe its functions and how to install and use the

Software.

d. “Revision” means any correction, modiﬁcation, update,

enhancement, or new version of the Software or Documentation

which Intermec provides to You. Intermec reserves the right to

charge additional fees for Revisions.

e. “You” or “Your” refers to the end user licensed to use the Software

under this License.

f. “Intermec” means Intermec Technologies Corporation, a

Washington U.S.A. corporation.

2. License e Software is licensed, not sold. Intermec hereby grants

You a limited, non-exclusive, non-transferable, revocable license to use

vi ZSim v5.XX User‘s Guide

the Software under the following conditions and limitations:

a. You may install and use the Software solely on Systems. You

may make copies of the Software only for installation and use on

Systems which You own or operate. You shall not copy, distribute,

sell, resell, loan, sublicense, install or use the Software for any other

purpose.

b. You shall not remove, deface or delete any of the intellectual

property rights notices including copyright or trademark legends

and other notices appearing on the original Software copy or

Documentation.

c. Your license to hold and use the Software pursuant to this

Agreement is restricted solely to You and shall not be assigned,

transferred, sublicensed, encumbered, or subjected to any security

interest without the advance written authorization of Intermec.

Any attempt to transfer, assign, sublicense or encumber the

Software shall be void and of no eﬀect.

d. e Software is protected under the copyright laws of the

United States and international copyright treaties, as well as

other intellectual property laws and treaties. You agree that if

any unauthorized copies are made, or if the Software is used

in violation of this License, Intermec shall have the right to

obtain an injunction against the unauthorized copying or use, in

addition to any other rights and remedies Intermec might have.

You acknowledge and agree that nothing in this Agreement gives

you any right, title or interest in the Software except the limited

license rights expressly granted herein. Some or all of the Software

may have been developed by an independent third party software

supplier which holds copyright or other proprietary rights to the

Software. You may be held responsible to any such supplier for any

infringement of such rights.

e. You agree that You will not export or import any portion of the

Software to any country that is not party to either: (i) e Berne

Convention of 1989, (ii) e Universal Copyright Convention,

(iii) e Buenos Aires Convention, or (iv) a treaty with the United

States of America (U.S.A.) which allows for the recognition of the

property rights claimed by Intermec or its suppliers in the Software.

Any export or import of the Software to such country in violation

of this section is prohibited and shall constitute a breach of this

License.

ZSim v5.XX User‘s Guide 1

What is ZSim?

ZSim is a Zebra™ interpreter program that allows you to use your legacy

Zebra programs on an Intermec EasyCoder PF2i, PF4i, PF4i Compact

Industrial, PM4i, PX4i, PX6i or PD41 printer with Fingerprint. All you

need to do is download the ZSim program onto your printer, conﬁgure

a few settings, and start sending Zebra commands. e ZSim program

comes either factory installed (not on PD41), stored on a CompactFlash

card, or as a Field Installer ﬁle for user installation (not described in this

manual).

System Requirements

ZSim v.5.XX requires Fingerprint ﬁrmware version 8.60 or later, with the

exception of the PD41 which requires at least version 10.0.0.

e printer must be equipped with a minimum of 8 MB of DRAM.

ZSim v5.XX vs. v4.XX

Version 5 of ZSim provides signiﬁcantly improved throughput for batch

printouts. Support for upgrade of ﬁrmware, conﬁguration and setup

using Wavelink Avalanche has been added (not described in this manual).

Loading ZSim to Your Printer

1 Turn oﬀ your printer.

2 Insert the ZSim CompactFlash card in the card slot on the back of

your printer. e card should slide easily into place. See illustration on

next page.

3Turn on your printer.

e download process starts automatically. Your printer screen will

display a series of messages .

2 ZSim v5.XX User‘s Guide

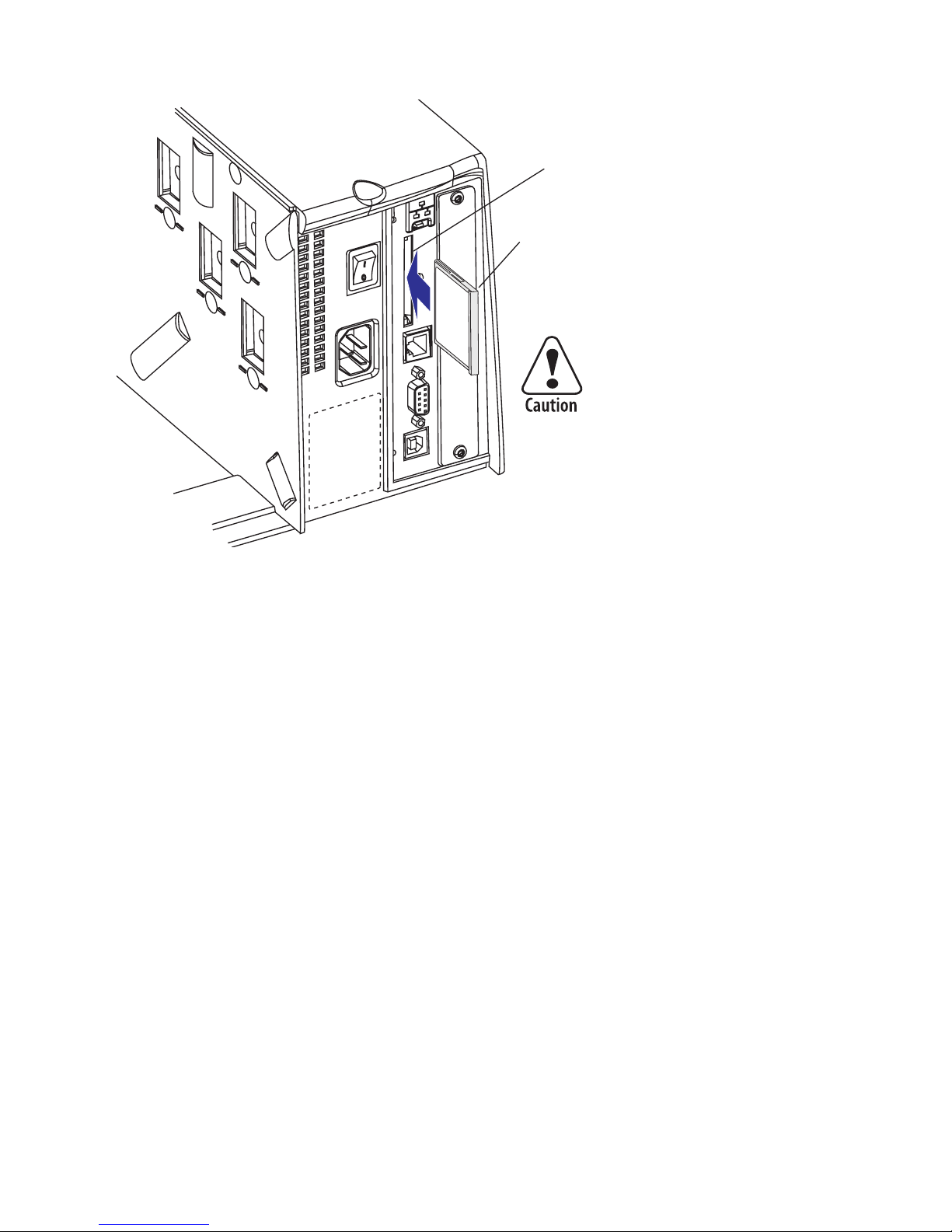

Memory card slot

ZSim CompactFlash card

Make sure you

insert the card

properly by

looking at the

arrows on the

card. Do not use

force to insert

the card.

4Turn oﬀ the printer and remove the ZSim card when the screen

prompts you.

Configuring ZSim – PF, PM and PX Printers

e ﬁrst time you turn on your printer after loading the ZSim program,

you will be prompted to go through a series of conﬁguration screens to

optimize the printer settings. After setting your initial conﬁguration, you

can access the ZSim Conﬁguration menu at any time by pressing Setup

and entering the password (1138).

Navigating the ZSim Configuration Menu

While you are going through the ZSim Conﬁguration menu, use the

following table to help you navigate. e menu tree consists of nodes and

entry points. e conﬁguration menu tree is implemented in the printer

through lead texts and prompts which appear in the display. ere are

Nodes and Entry points.

A Node is deﬁned by a text string terminated with a slash on the ﬁrst

display row. is means you still have level(s) below with new nodes or

just an Entry point.

ZSim v5.XX User‘s Guide 3

An Entry point is for input purpose, where you may enter some

parameter value or turn on/oﬀ a function. It is deﬁned by lead text on

the ﬁrst display row (without ending slash) and a cursor or the value

“on/oﬀ” on the second display row.

Key Description

Setup Open and close the ZSim or Fingerprint menu

ZSim password: 1138

Fingerprint password: 8311

F1 Move to the previous item/alternative on this level

F2 Cancel input

Move to the previous level in the menu

F3 Move to the next item/alternative on this level

F4 Move to the next level in the menu

F5 In online mode: displays communication parameters and memory status

Enter Accept input

Select the item in the menu

Move to the next level in the menu

Feed Feed one label

Pause Pause

C Backspace (input mode)

Set a function ON/OFF (menu)

Cut media, if cutter is mounted

. (Dot) Sign, switch between + and -

Configuring ZSim – PD41

Running ZSim on the PD41 works a bit diﬀerently since the printer

only has one key and no LCD display. Listed below are the standard key

functions:

Action Description

FEED Key press < 1 sec, when ZSim is idle

CALIBRATE& 1 < Key press < 4 sec, when ZSim is idle

CONFIG LABEL Terminates calibration

BREAK ZSIM 5 < Key press < 10 sec, when ZSim is idle

PAUSE-batch Key press < 1 sec when ZSim is printing, EXIT with same proc.

CANCEL-batch Key press > 1 sec when ZSim is in PAUSE-batch mode

4 ZSim v5.XX User‘s Guide

Configuring ZSim for the First Time

After you power on your printer, the ZSim menu takes you to the Initial

Setup Conﬁguration menu.

Note: For the EasyCoder PD41, the conﬁguration is generated

automatically since no menu is available. More information

can be found in the next section.

1Turn on your printer.

e printer steps through an initialization process that ends with

the printer displaying “Starting Up Please Wait!” before it tries to

ﬁnd the media. Once the printer ﬁnds the media length, the ﬁrst

Conﬁguration menu item appears:

Initial Setup

Enter=Start

2Step through the Initial Setup Conﬁguration menu changing any

incorrect values. You can view an illustration of the Initial Setup

Conﬁguration menu on the next page.

When you are through setting the values, the printer prints a

conﬁguration label and prompts you to save the conﬁguration. e

Ready light now turns on and the printer screen displays a message

similar to the following message:

ZSim 5.XX

Network

You are now in ZSim Online mode.

3Start sending Zebra commands to the printer.

Configuring ZSim through text downloads

Text ﬁle conﬁguration is the preferred method to conﬁgure a PD41

printer running ZSim. All parameters can be set by downloading a text

ﬁle to the printer, with the following format:

^ZX[ParamName,]ParamNo,ParamValue^FS

All commands required for setting the parameters are deﬁned in the table

below. It also contains a few commands for making easy setup changes.

Make sure you download and execute the commands one at a time, to

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Intermec Software Handbücher

Intermec

Intermec XMLLabel Bedienungsanleitung

Intermec

Intermec 761 Technisches Handbuch

Intermec

Intermec CK30 Handbuch

Intermec

Intermec 5020 Bedienungsanleitung

Intermec

Intermec PEN*KEY 6400 Bedienungsanleitung

Intermec

Intermec EasyCoder 201II Installations- und Betriebshandbuch

Intermec

Intermec PEN*KEY 6400 Betriebsanleitung

Intermec

Intermec Janus 2010 Bedienungsanleitung

Intermec

Intermec EasyCoder 501XP Bedienungsanleitung

Intermec

Intermec EasyCoder PD41 Handbuch

Intermec

Intermec Trakker Antares 2415 Bedienungsanleitung

Intermec

Intermec PEN*KEY 6100 Bedienungsanleitung

Intermec

Intermec 5055 Bedienungsanleitung

Intermec

Intermec 751B Bedienungsanleitung

Intermec

Intermec CK30 Handbuch

Intermec

Intermec 730 Bedienungsanleitung

Intermec

Intermec EasyCoder 301 Betriebsanleitung

Intermec

Intermec CK1 Serial Dock Bedienungsanleitung

Intermec

Intermec Janus 2010 Bedienungsanleitung

Beliebte Software Handbücher anderer Marken

COMPRO

COMPRO COMPROFM Bedienungsanleitung

Muratec

Muratec OFFICEBRIDGE ONLINE Bedienungsanleitung

Oracle

Oracle Contact Center Anywhere 8.1 Bedienungsanleitung

Adobe

Adobe 65007312 - Photoshop Lightroom Handbuch

Avaya

Avaya NULL One-X for RIM Blackberry Bedienungsanleitung

HP ProLiant BL420c Bedienungsanleitung

PS Audio

PS Audio PowerPlay Betriebsanleitung

Brady

Brady LOCKOUT PRO 3.0 Service-Handbuch

Avaya

Avaya Interaction Center Bedienungsanleitung

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Handbuch

Novell

Novell GROUPWISE 8 - INTERNET AGENT Bedienungsanleitung

Oracle

Oracle Application 9i Bedienungsanleitung

Acer

Acer RDM Bedienungsanleitung

Canon

Canon Vixia HF21 Bedienungsanleitung

Canon

Canon ZR950 Bedienungsanleitung

Samsung

Samsung Auto Backup Bedienungsanleitung

Polycom

Polycom Vortex EF2201 Montage- und Bedienungsanleitung

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Bedienungsanleitung
