Intermec TE 2000 Handbuch

TE 2000t

Installation and

Setup Instructions

ii TE 2000



Installation and Setup Instructions

Intermec Technologies Corporation

Worldwide Headquarters Cedar Rapids Technical Communications

6001 36th Ave. W. 550 Second Street SE

Everett, WA 98203 Cedar Rapids, IA 52401

U.S.A. U.S.A.

www.intermec.com

The information contained herein is proprietary and is provided solely for the purpose of allowing customers

to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for

any other purpose without written permission of Intermec.

Information and specifications contained in this document are subject to change without prior notice and do

not represent a commitment on the part of Intermec Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar, dcBrowser,

Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license), Intellitag, Intellitag

Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work, RoutePower, Sabre, ScanPlus, ShopScan,

Smart Mobile Computing, SmartSystems, TE 2000, Trakker Antares, and Vista Powered are either

trademarks or registered trademarks of Intermec Technologies Corporation.

Throughout this manual, trademarked names may be used. Rather than put a trademark (or )symbolin

every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion,

and to the benefit of the trademark owner, with no intention of infringement.

There are U.S. and foreign patents pending.

iiiTE 2000



Installation and Setup Instructions

Document Change Record

This page records changes to this document. The document was originally released as Revision A.

Revision Date Description of Change

D03/2005 Added information that pertain to the CK30 and CK31 Handheld Computers, the

CV60 Vehicle Mount Computer, and the Avalanche Management Console application.

Removed references to the 700 Monochrome Computer.

E02/2006 Added information about the SmartSystems application, removed references to iBrowse,

iLaunch, and SIP Designer applications.

iv TE 2000



Installation and Setup Instructions

Contents

vTE 2000



Installation and Setup Instructions

Contents

Before You Begin ix..............................................................

Safety Information ix......................................................

Global Services and Support ix...............................................

Warranty Information ix.............................................

Web Support ix....................................................

Telephone Support x................................................

Key Mappings x..........................................................

Quick Start xi..................................................................

Installing TE 2000 xi......................................................

Preparation xi............................................................

Using Intermec Settings to Configure Networking (700 Color, CK31, CV60) xii........

Distributing TE 2000 to Your Computer xii....................................

Wavelink Avalanche xiii..............................................

Microsoft ActiveSync xiii.............................................

Removable Storage (700 Color, CK30, CK31) xiii.........................

FTP Transfer (700 Color, CK30) xiv...................................

SmartSystems xiv...................................................

Minimum Settings Necessary for Usability xiv...................................

Exiting TE 2000 xvi.......................................................

About Using the TE 2000 Application on Intermec Computers 1..........................

Installing onto Your Desktop or Laptop 1.............................................

Starting the Installation 1...................................................

Installing into the SmartSystems Console 4.....................................

Installing the 700 Color Series Package 4.......................................

Installing the CK30 and CK31 Package 5......................................

Installing the CV60 Package 5...............................................

Completing the Installation 6................................................

Installing TE 2000 Onto Your Computer 6...........................................

700 Color Mobile Computers 6..............................................

CK30 and CK31 Handheld Computers 8......................................

CV60 Vehicle Mount Computers 10..........................................

Configuring TE 2000 on Your Computer 11..........................................

700 Color Mobile Computer 11.............................................

Starting the TE 2000 Application 12...................................

Minimum Settings Necessary for Usability 12.............................

Exiting TE 2000 13................................................

CK30 and CK31 Handheld Computers 13.....................................

Configuring the TE 2000 Data Stream 13...............................

Entering Server IP Address 14.........................................

Exiting the TE 2000 Application 15....................................

Restarting the TE 2000 Application 15..................................

Contents

vi TE 2000



Installation and Setup Instructions

CV60 Vehicle Mount Computers 15..........................................

Starting the TE 2000 Application 15...................................

Entering a Host IP Address 15........................................

Configuring the TE 2000 Data Stream 16...............................

Restarting the TE 2000 Application 17..................................

Exiting the TE 2000 Application 17....................................

Using Intermec Settings to Configure Computer Options 17..............................

700 Color Mobile Computer 17.............................................

CK31 Handheld Computers 18..............................................

CV60 Vehicle Mount Computer 18..........................................

Using Wavelink Avalanche 19......................................................

Installing a TE 2000 AVA Package onto Your Desktop 19.........................

Installing a Config AVA Package onto Your Desktop 22...........................

Configuring the Intermec Settings using Wavelink Avalanche 25....................

Updating the Computer from the Avalanche Console 27...........................

Enabling the Package on the Computer 29.....................................

Using Microsoft ActiveSync 29.....................................................

Establishing a Partnership 30................................................

If Upgrading the 700 Color Computer 30...............................

If Upgrading the CK30 or CK31 Computer 30...........................

Connecting Your Computer to Your Desktop or Laptop 31.........................

Using Microsoft ActiveSync to Copy Files 35...................................

Using Intermec SmartSystems 36...................................................

Before You Begin

viiTE 2000



Installation and Setup Instructions

Before You Begin

This section provides you with safety information, technical support

information, and sources for additional product information.

Safety Information

Your safety is extremely important. Read and follow all warnings and

cautions in this document before handling and operating Intermec

equipment. You can be seriously injured, and equipment and data can be

damaged if you do not follow the safety warnings and cautions.

This section explains how to identify and understand dangers, warnings,

cautions, and notes that are in this manual. You may also see icons that tell

you when to follow ESD procedures and when to take special precautions

for handling optical parts.

A warning alerts you of an operating procedure, practice, condition, or

statement that must be strictly observed to avoid death or serious

injury to the persons working on the equipment.

A caution alerts you to an operating procedure, practice, condition, or

statement that must be strictly observed to prevent equipment damage

or destruction, or corruption or loss of data.

Note: Notes either provide extra information about a topic or contain

special instructions for handling a particular condition or set of

circumstances.

Global Services and Support

Warranty Information

To understand the warranty for your Intermec product, visit the Intermec

web site at www.intermec.com and click Service & Support.TheIntermec

Global Sales & Service page appears. From the Service & Support menu,

move your pointer over Support, and then click Warranty.

Disclaimer of warranties: The sample code included in this document is

presented for reference only. The code does not necessarily represent

complete, tested programs. The code is provided “as is with all faults.” All

warranties are expressly disclaimed, including the implied warranties of

merchantability and fitness for a particular purpose.

Web Support

Visit the Intermec web site at www.intermec.com to download our current

manuals in PDF format. To order printed versions of the Intermec

manuals, contact your local Intermec representative or distributor.

Visit the Intermec technical knowledge base (Knowledge Central) at

intermec.custhelp.com to review technical information or to request

technical support for your Intermec product.

Before You Begin

viii TE 2000



Installation and Setup Instructions

Telephone Support

These services are available from Intermec Technologies Corporation.

Service Description

In the U.S.A. and Canada

call 1-800-755-5505

and choose this option

Order Intermec

products

SPlace an order.

SAsk about an existing order.

1 and then choose 2

Order Intermec

media

Order printer labels and ribbons. 1 and then choose 1

Order spare parts Order spare parts. 1 or 2 and then choose 4

Technical Support Talk to technical support about

your Intermec product.

2 and then choose 2

Service SGet a return authorization

number for authorized service

center repair.

SRequest an on-site repair

technician.

2 and then choose 1

Service contracts SAsk about an existing contract.

SRenew a contract.

SInquire about repair billing or

other service invoicing questions.

1 or 2 and then choose 3

Outside the U.S.A. and Canada, contact your local Intermec

representative. To search for your local representative, from the Intermec

web site, click Contact.

Key Mappings

More information about configuring TE 2000 terminal emulation and

about keypad remapping on your Intermec Computer is in the following

publications. These are available as PDF on the Intermec web site at:

www.intermec.com. These are also available as printed copies.

Manual Part #

700 Series Color Mobile Computer Quick Start Guide 962-054-053

700 Series Color Mobile Computer User’s Manual 961-054-031

CK30 Handheld Computer User’s Manual 073528

CK31 Handheld Computer Usere’s Manual 075205

CV60 Vehicle Mount Computer User’s Guide 961-054-033

TE 2000 Terminal Emulation Programmer’s Guide 977-055-008

The Intermec web site contains Intermec documents (in PDF) that you

can download for free. To order printed versions of the Intermec manuals,

contact your local Intermec representative or distributor.

Browse to www.intermec.com, click Service & Support >Manuals,then

in the Select a Product field, choose the product whose documentation

you want to download.

Quick Start

ixTE 2000



Installation and Setup Instructions

Quick Start

This section provides you with instructions on how you can install the TE

2000 application quickly.

Installing TE 2000

Installing or upgrading TE 2000 happens in two stages. First use the

Installation CD to set up a PC to distribute the TE 2000 application.

Then use the PC to send the TE 2000 application to your Intermec

computers.

Installation CD

You need the Intermec TE 2000 installation CD (P/N: 235-104-001) and

a license key to install the full version of TE 2000. Without a license key,

you can only install the demo version.

Insert the installation CD into a Windows PC that you are using to install

the TE 2000 application onto your Intermec computers. The setup

application should start automatically — if not, then browse to the CD

and open SETUP_TE2000.EXE manually. Below are the available TE

2000 installation CDs:

S235-104-001 (new license)

S235-167-001 (upgrade)

S235-168-001 (update)

From the first screen, you can view release notes and FAQ. From the

second screen, select either Licensed Installation ifyouhavealicensekey

or Evaluation Installation to install the demo version. The licensed

version prompts for information about your order, your 30-character

license key, and your acceptance of your Intermec license agreement.

From the Terminal Emulation Packages screen, clear (uncheck) the

packages you are not installing, then click Install to put files into the

default “\Program Files\Intermec\TE2000” folder on your PC. When the

installation is complete, you may remove the CD from your PC.

Preparation

On 700 Color, CK31, and CV60 computers, before you install TE 2000,

use the Intermec Settings applet to configure networking. If your

computer is already connected to the network, go to “Distributing TE

2000 to Your Computer”onpagex.

Quick Start

x TE 2000



Installation and Setup Instructions

Using Intermec Settings to Configure Networking (700 Color, CK31, CV60)

On your computer, access the Intermec Settings applet using the following

applicable instructions:

S700 Color

Tap Start >Settings >theSystem tab>theIntermec Settings icon.

SCK31

Tap Start >Intermec Settings.

SCV60

Tap Start >Settings >Control Panel >theIntermec Settings icon.

Tap (+) to expand the Communications branch, tap (+) to expand the

802.11 Radio branch, then set its options to match your network.

If using a controller such as the Intermec G4000, tap (+) to expand the

UDP Plus branch, then provide the IP address of the controller.

When finished setting parameters, select File >Save Settings to activate

the changes. Tap the Xin the upper right corner or select File >Exit to

close the applet.

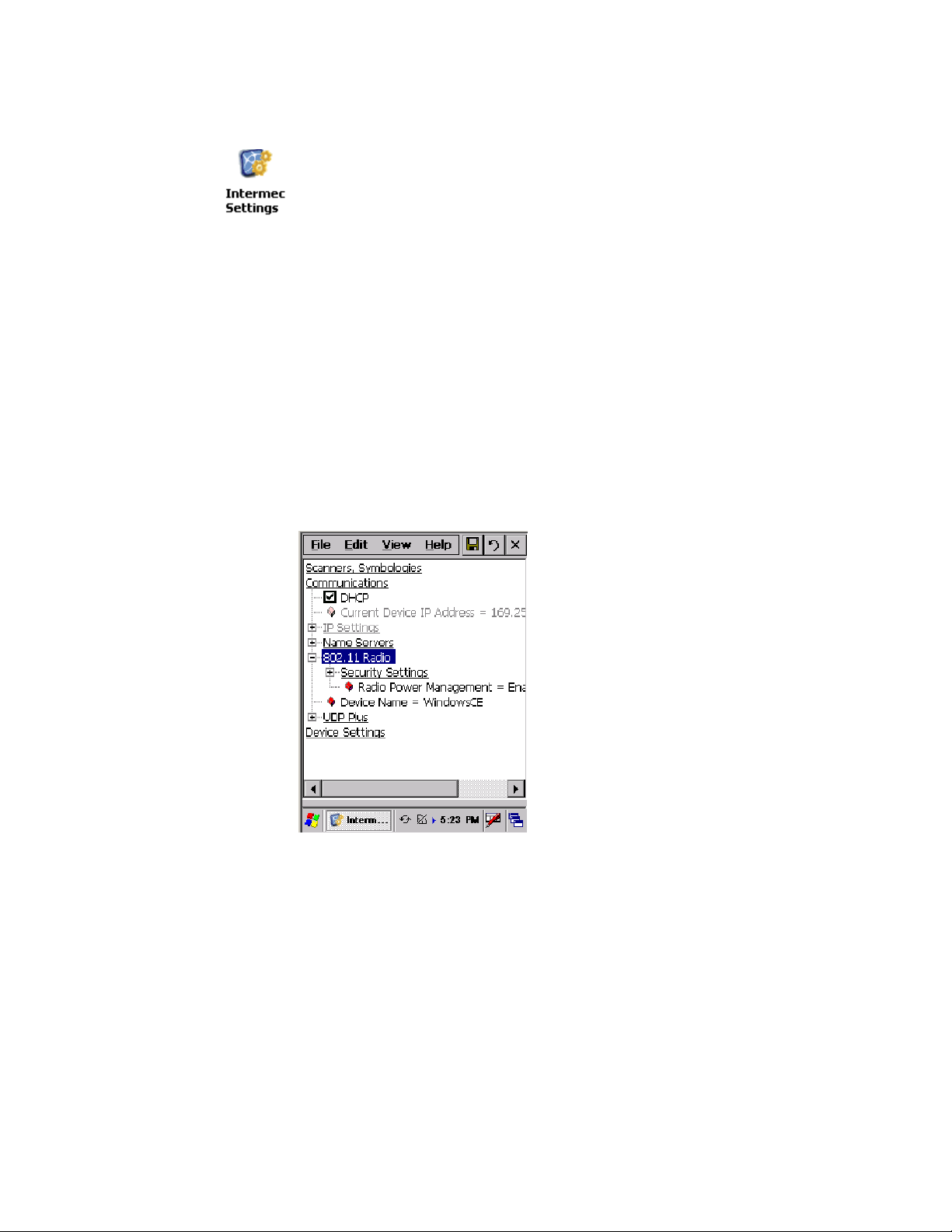

This is a sample screen from a 700 Color Computer.

Distributing TE 2000 to Your Computer

Depending on your computer, there are several ways to load TE 2000:

SWavelink Avalanche (page xi)

SMicrosoft ActiveSync (page xi)

SRemovable Storage Card (not available on CV60) (page xi)

SFTP Transfer (CV60 requires 3rd party FTP server) (page xii)

SSmartSystems (page xii)

Inhaltsverzeichnis

Andere Intermec Touch-Terminal Handbücher

Intermec

Intermec 5900 SERIES Bedienungsanleitung

Intermec

Intermec Trakker Antares 2420 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2475 Bedienungsanleitung

Intermec

Intermec 6540 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2480 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2475 Bedienungsanleitung

Intermec

Intermec Trakker Antares 241 Series Bedienungsanleitung

Intermec

Intermec Trakker Antares 2455 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2460 Bedienungsanleitung

Intermec

Intermec Data Collection PC 5020 Anleitungen und Rezepte

Intermec

Intermec CV41C Bedienungsanleitung

Intermec

Intermec Trakker Antares 2480 Bedienungsanleitung

Intermec

Intermec CV41 Bedienungsanleitung

Intermec

Intermec 1700 Series Bedienungsanleitung

Intermec

Intermec Trakker Antares 243X Bedienungsanleitung

Intermec

Intermec 243XHand-HeldTerminal 243X Bedienungsanleitung

Intermec

Intermec Trakker Antares 2460 Handbuch

Intermec

Intermec 1100 Series Bedienungsanleitung

Intermec

Intermec CK3 Series Bedienungsanleitung

Intermec

Intermec Trakker Antares 2480 Handbuch

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
