2INVACARE®XLT

©Invacare© Rea™ AB

Every effort has been made to ensure that the contents of

this publication are updated at the time of printing. As part of

the ongoing improvement of the products, Invacare Rea AB

reserves the right to modify existing models at any time.

Any use of this publication, or parts thereof, as well as any

reproduction of images, must have the written consent of

Invacare Rea AB

INVACARE®XLT

Contents

1. Frame (chassis)

2. Backrest

3. Push handles

4. Seat

5. Rear wheel

Parts of the wheelchair

6. Hand rims

7. Brakes

8. Castors

9. Anti tip device

10. Armrests

11. Jaw

12. Legrests

13. Footrest

14. Footbow

Product description 4

XLT models 5

Intended use 7

Upholstery and frame colours 8

Equipment and accessories 8

Technical data 9

Delivery check 10

Assembly 10

Adjustments 12

Footbow 12

Fixed legrests 13

Angle adjustable legrests 13

Calf pads/ footplates 14

Footrests one-piece 14

Seat 15

Backrest 16

Armrests/mudguard 19

Brakes 20

Rear wheel attachment 21

Camber 21

Rear wheel attachment xlt max 22

Castor wheels 23

Seat height tables 24

Accessories 33

Anti-tip devices 33

Trunk support 35

One-arm drive 36

Anti-tip device for one-arm drive 36

Assistant manoeuvred 37

Drumbrakes 37

Amputee legrest 38

External push handles 38

Foldable push handles 38

Head and neckrest 39

Pelvic belt 40

Transport as luggage 41

Transporting wheelchairs in vehicles 42

Restraint methods 44

Safety instructions/

Propelling techniques 45

Guarantee 47

Maintenance instructions 47

4INVACARE®XLT

Invacare® XLT is a wheelchair with many adjustment options and

accessories. To ensure that you benefit as much as possible from your

Invacare® XLT, and in order to do its options justice, the chair must be

tested and adjusted by competent personnel. We hope that you have also

received instructions for using your Invacare® XLT in everyday life.

The Invacare® XLT frame, footbow and backrest are manufactured

from high quality titanium. For the Swing version the legrest hangers

are made from aluminium. The cover for the seat cushion is made of

Jemima and the backrest cover is made of nylon.

This manual includes a description of the parts of the chair, simple

adjustment options, how to use the Invacare® XLT safely and how

to transport it. The manual must be read thoroughly before the chair

is used. Also included in this manual is a description of how the most

common accessories are fitted and also some slightly more advanced

settings.

As the Invacare® XLT has many different components and accessories,

the appearance of the accessories you have for your chair may differ

from those shown.

Product description

Invacare®XLT

INVACARE®XLT

XLT Models

XLT is available in four models.

1. XLT Active (75° knee angle)

The XLT Active front is designed to hold your

feet and lower parts of your leg steady. The

footbow is standard.

Seat angles 0-14° can be obtained, depending on

the size of castors and rear wheels and the row

of mounting holes used for the castors and rear

wheels.

2. XLT Dynamic (90° knee angle)

The XLT Dynamic is designed to hold your feet

steady. The total length of the wheelchair is very

compact. The footbow is standard.

Seat angles 0-14° can be obtained, depending on

the size of castors and rear wheels and the row

of mounting holes used for the castors and rear

wheels.

3. XLT Swing (80°, 90° and angle adjustable

legrests)

The XLT Swing is designed with a front offering

more space for the feet and lower parts of the

legs. The standard delivery includes collapsible

footrests.

Seat angles 0-14° can be obtained, depending on

the size of castors and rear wheels and the row

of mounting holes used for the castors and rear

wheels.

4. XLT Max (75°)

The XLT Max is designed for larger users and has

a user weight capacity of 180 kg.

Seat angles 0-14° can be obtained, depending on

the size of castors and rear wheels and the row

of mounting holes used for the castors and rear

wheels.

6INVACARE®XLT

On this page a number of points affecting your personal safety are

shown. Please read it carefully!

Invacare®is only responsible for product changes carried out by per-

sonnel who we authorise. We reserve the right to make any changes

to equipment and specifications without prior notice.

Failure to comply with instructions given may result in personal injury

and/or product damage.

• Check each of the following before using the wheelchair:

- that all parts are attached securely to the frame

- that all wheels and knobs are properly tightened

- that all brakes and anti-tip devices function correctly

• Never lift the wheelchair by the detachable armrests, footrests,

backrest bar or by the adjustable push handles.

• Always apply the brake before getting into or out of the chair.

• Never stand on the footplates when getting into or out of the chair,

because of the risk of tipping.

• Changing the seat angle can give an increased risk of tipping over.

• The hand rims may become hot due to friction, and this may cause

injury to your hands.

• Use extensively the anti-tip device

• Remember that the effectiveness of the carer-operated brake

is reduced in wet and slippery conditions, as well as when on a

slope.

• Be careful to ensure that the drive wheels are securely attached.

• Drive wheels are not to be detached while the user is sitting in the

chair.

• The more the backrest cover’s Velcro straps are slackened the

greater the risk of tipping the wheelchair becomes.

• Surfaces of the wheelchair like frame parts or upholstery can with

long time exposure to sun reach temperatures over 41 °C.

This symbol means warning.

NB!

Always lift the wheelchair by grabbing the

frame at the points shown in the picture.

Never lift the wheelchair by the removable

armrests, the footrests or the backrest bar.

Ensure that the backrest and push handles

are securely in place. Also read the chapter

Safety instructions/Propelling techniques.

LIFTING THE WHEELCHAIR

INVACARE®XLT

Intended use

Daily performance check

Check that the following parts are securely fitted on the wheelchair

and operational:

• Wheels

• Brakes

• Backrest

• Anti-tip device, if fitted

• Push handles, if fitted

• Footrests or footbow

• Pelvic belt, if fitted

• Neck-/headrest, if fitted

• Invacare® XLT is a manual wheelchair aimed for those who use the wheel-

chair for a longer period of time, i.e. several hours in a row.

• Invacare® XLT is designed for the user who can manoeuvre the wheelchair

him/herself, as well as for the user who requires assistance.

• Invacare® XLT is versatile and has accessories that makes it possible to

adjust the sitting posture so it stays comfortable for several hours.

• Invacare® XLT has many adjustment possibilities. With the right adjust-

ments, carried out by a professional, the wheelchair can be set up specifically

for a user and according to the requirements of a possible assistant.

• Invacare® XLT can be used both indoors and outdoors on level ground

and paved areas. We recommend the larger wheels when the wheelchair

is used on uneven ground.

• Note that there is an increased risk that the Invacare® XLT could tip

backwards, when being wheeled uphill, especially when the incline is more

than 8°. Or if the rear wheels are mounted in their formost position on

the rear wheel attachment. The effect of mounting the rear wheels in their

foremost position is that the chair will be easier to manoeuvre. However,

there is the increased risk of tipping backwards. Therefore the use of anti

tip devices to achieve better stability is strongly recommended.

• Invacare® XLT is designed to have a seat cushion on the seat. The seat

cushion improves the user's body posture and makes it possible to sit

comfortably for longer periods of time.

Invacare® XLT with a backrest, adjusted to a height of minimum•

40 cm, a neckrest and a pelvic belt can be used as a seat in a vehicle. For

other configurations the user must transfer to the normal seat in a car

or bus.

8INVACARE®XLT

EQUIPMENT AND ACCESSORIES

Backrest cover Black Nylon TR33

Seat cushion cover Black Jemima TR18 (standard)

Frame colours Black, Grey, Blue, Red, Blasted titanium and Orange

Backrest

Tension adjustable

Angle adjustable, fixed or height adjustable

Narrow back

Seat

Tension and depth adjustable seat

Seat cushions

Standard 5 cm, Flotech/Contour

Legrests

Footbow rigid**

Footbow rigid with footplate**

Footrest one piece, flipup, angle adjustable

Footrest, high mounted**

80° & 90° fixed legrest*

Angle adjustable legrest*

Fixed footplate*

Angle and depth adjustable footplate*

Armrests

Flip-up armrest with long or short pad

Height adjustable armrest "Rio", with long or short

pad

Hemi armrest

Comfort armrest***

Castors

75 - 125 mm Dynamic

75 - 180 mm Swing, Active

140 - 180 Max

Rear wheels

22", 24", 25", 26" pneumatic or puncture-proof

24", one-arm drive

Brake

User-brake (3 types)

Carer-operated drumbrake

One-arm brake

UPHOLSTERY AND FRAME COLOURS

Invacare® XLT has a wide range of accessories and options. Some of the accessories may not be available

in all countries and all accessories are not available for all models.

Others

Several types of handrims

Spoke guard

Headrest

Neckrest

Headrest with cheek support

Anti-tip device

Trunk Support

Reflectors Kit

Table Tray

Pump

Cane holder

Tool kit

Various push handles

Pelvic belt

Mudguard

Sideguard

Step tube

Brake lever extension

Mounting brackets for E-Motion and E-Fix

* for XLT Swing only

** for XLT Active, Dynamic and Max

*** for XLT Max only

INVACARE®XLT

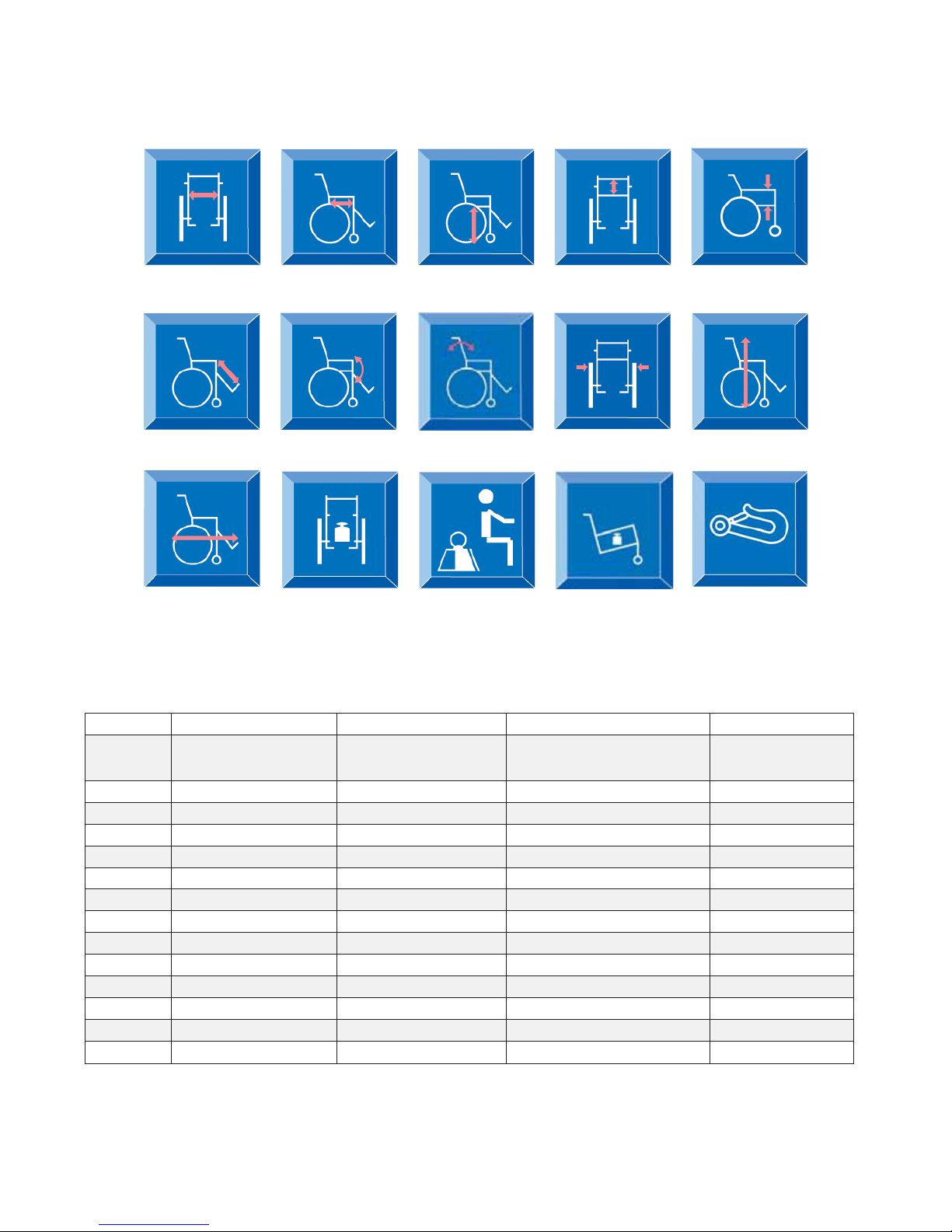

Technical data

* Fixed/Angle adjustable backrest

**Our wheelchairs are crash tested according to the ISO norm 7176-19 (Wheeled mobility devices for use as seats in motor vehicles) See the

chapter on Transport for more details. Wheelchair users should however transfer to the vehicle seat and use the vehicle installed restraint

system whenever it is feasible.

Crash test**

* without seat cushion

** with 0° camber

*** without rearwheels and accessories

Active Dynamic Swing Max

SW (cm) 35,5/38/40,5/43/45,5/48 35,5/38/40,5/43/45,5/48 33/35,5/38/40,5/43/45,5/48/50,5 50,5 55,5, 60,5 cm

SD (cm) 36-40/41-45/46-50 36-40/41-45/46-50 36-40/41-45/46-50 50, 55, 60 cm

SH (cm)* 40-52 40-50 39-52 44-52 cm

BH (cm)* 20-35 / 30-49 20-35 / 30-49 20-35 / 30-49 40-49 cm

AH (cm) 21-31 21-31 21-31

LL (cm)* 38-50,5 35,5-48,5 28-51 38-48 cm

SA (°) 0°-14° 0°-14° 0°-14° 0°-14°

BA (°) ±10° ±10° ±10° ±10°

W (cm)** Seat width + 20 cm Seat width + 20 cm Seat width + 20 cm Seat width + 21 cm

H (cm) 61-105 61-105 61-105 79-110 cm

L (cm) 83-103 73-88 82-123 93-108 cm

M (kg) 9,8 9,8 11,3 21 kg

ML (kg) 135 135 135 180kg

TW (kg)*** 6 6 6 13,3 kg

SW= Seat width SD= Seat depth

ML= Max user

weight

M=Weight

L= Lenght

H= Height

W= Width

BA= Bacrest

angle

SA= Seat angle

LL= Legrest

lenght

AH= Armrest

height

BH= Backrest

height

SH=Seat height

TW= Transport

weight

10 INVACARE®XLT

Assembly

1. Attach the rear wheels by pressing the button in

the centre of the hub whilst simultaneously sliding

the axle onto the rear wheel position attachment

of the positioning plate.

It is very important that you check that the

locking pin has actually locked the wheel into

position when the centre button has been

released. Take hold of the wheels and try to

detach them. This should NOT be possible.

3. Armrests

Insert the armrests by fitting them into the attach-

ments on the backrest frame and then swinging

them down into position.

Do not place your fingers on the seat frame.

When using detachable armrests, just push them down

into place in their receiver.

2. Unfold the backrest by grabbing the wire at the

lower back of the backrest and twisting it to

release the backrest locking pins. Pull the backrest

backwards/uppwards until it is fixed into place.

Check that it is fixed properly. The XLT Max does

not have a locking function. Just pull the backrest

upwards and check that it is fixed in place.

Be careful not to trap your fingers between the

frame and the backrest attachments.

Check that all components comply with the delivery note. Any damage incurred during transport should be

reported immediately to the delivery company. Retain all packaging until the transport company has inspected

the consignment and an agreement has been reached.

Delivery check

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Invacare Rollstuhl Handbücher

Invacare

Invacare Everyday HP Crossfire T6 Handbuch

Invacare

Invacare Aquatec Ocean Bedienungsanleitung

Invacare

Invacare A-6S Bedienungsanleitung

Invacare

Invacare REA Dahlia 30 Bedienungsanleitung

Invacare

Invacare Action Ampla Bedienungsanleitung

Invacare

Invacare Action3 NG Bedienungsanleitung

Invacare

Invacare Rea Dahlia 45 Bedienungsanleitung

Invacare

Invacare Fox Bedienungsanleitung

Invacare

Invacare Pronto Air Bedienungsanleitung

Invacare

Invacare P9000 XDT Handbuch

Invacare

Invacare Typhoon II Bedienungsanleitung

Invacare

Invacare Personal Back 10 Bedienungsanleitung

Invacare

Invacare Action 2000 Bedienungsanleitung

Invacare

Invacare top end terminator series Bedienungsanleitung

Invacare

Invacare Veranda 3000 series Bedienungsanleitung

Invacare

Invacare TDX-SP N Bedienungsanleitung

Invacare

Invacare Solara 3G Bedienungsanleitung

Invacare

Invacare AVIVA Storm RX Bedienungsanleitung

Invacare

Invacare Cruiser Plus Bedienungsanleitung

Invacare

Invacare rea Bellis Bedienungsanleitung

Invacare

Invacare Alu Lite Bedienungsanleitung

Invacare

Invacare Action 3 Junior Bedienungsanleitung

Invacare

Invacare P9000 XDT Installations- und Betriebshandbuch

Invacare

Invacare Kite Bedienungsanleitung

Beliebte Rollstuhl Handbücher anderer Marken

Otto Bock

Otto Bock Skippi plus Bedienungsanleitung

SORG

SORG LoopSORG 802 Bedienungsanleitung

Designability

Designability WizzyBug Montageanleitung

Vermeiren

Vermeiren RAPIDO Bedienungsanleitung

Excel

Excel G5 KIDS 0285 Bedienungsanleitung

M. Bartels

M. Bartels SA-3 Bedienungsanleitung

nino robotics

nino robotics NIno Bedienungsanleitung

Vermeiren

Vermeiren Turios Bedienungsanleitung

Nova

Nova TKW-12 Bedienungsanleitung

BCW

BCW Advantage Bedienungsanleitung

You-Q

You-Q Luca Bedienungsanleitung

interco

interco Ortolight Standard Bedienungsanleitung

Nova

Nova 7190L Bedienungsanleitung

Vermeiren

Vermeiren EZ1 Bedienungsanleitung

PaceSaver

PaceSaver Scout M-300 Bedienungsanleitung

Drive Medical

Drive Medical Silver Sport SSP218DDA-SF Bedienungsanleitung

Rehadapt

Rehadapt Light 3D Bedienungsanleitung

Excel

Excel Mobil Bedienungsanleitung
