INVENTOR MOB-GPC09AH Bedienungsanleitung

MOBILE AIR CONDITIONER

MOB-GPC09AH

CONTENTS

1SUMMARY 1

2WORKING PRINCIPLE 1

3 STRUCTURE 3

4OPERATING METHODS 4

Environmental temperature 6

Operation of wireless remote control 7

5 DRAINAGE METHOD 10

6ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE 12

7MAINTENANCE 14

Names and functions of wireless remote control 7

Guide for operation- General operation 9

MALFUCTION ANALYSIS 15

SAFE NOTE AND NOTICE 16

AFTER SALES SERVICE 17

Functions and operation methods of control panel

Guide for operation- Optional operation 9

Changing batteries and notices 9

Thank you for your selection, please read this instruction carefully before operating and keep it for consultation.

Mobile Air Conditioner is a type of small multifunctional and movable air conditioner that contains func

tions of COOL DRY and separate ventilation and it can be moved freely according to different location and

occasion.it is suitable for office and houses especially those with many rooms. This product also contains the ad-

vantages of compact configuration, excellent process, elegant appearance, convenient moving, low cost and low

noise.

Note:Please read this instruction carefully before operating the unit.This instruction is only for reference

the specification parameters are subject to be changed without notice.

evaporator

fluel

capillary

flue2

condenser

cool air

fan motor

heat air

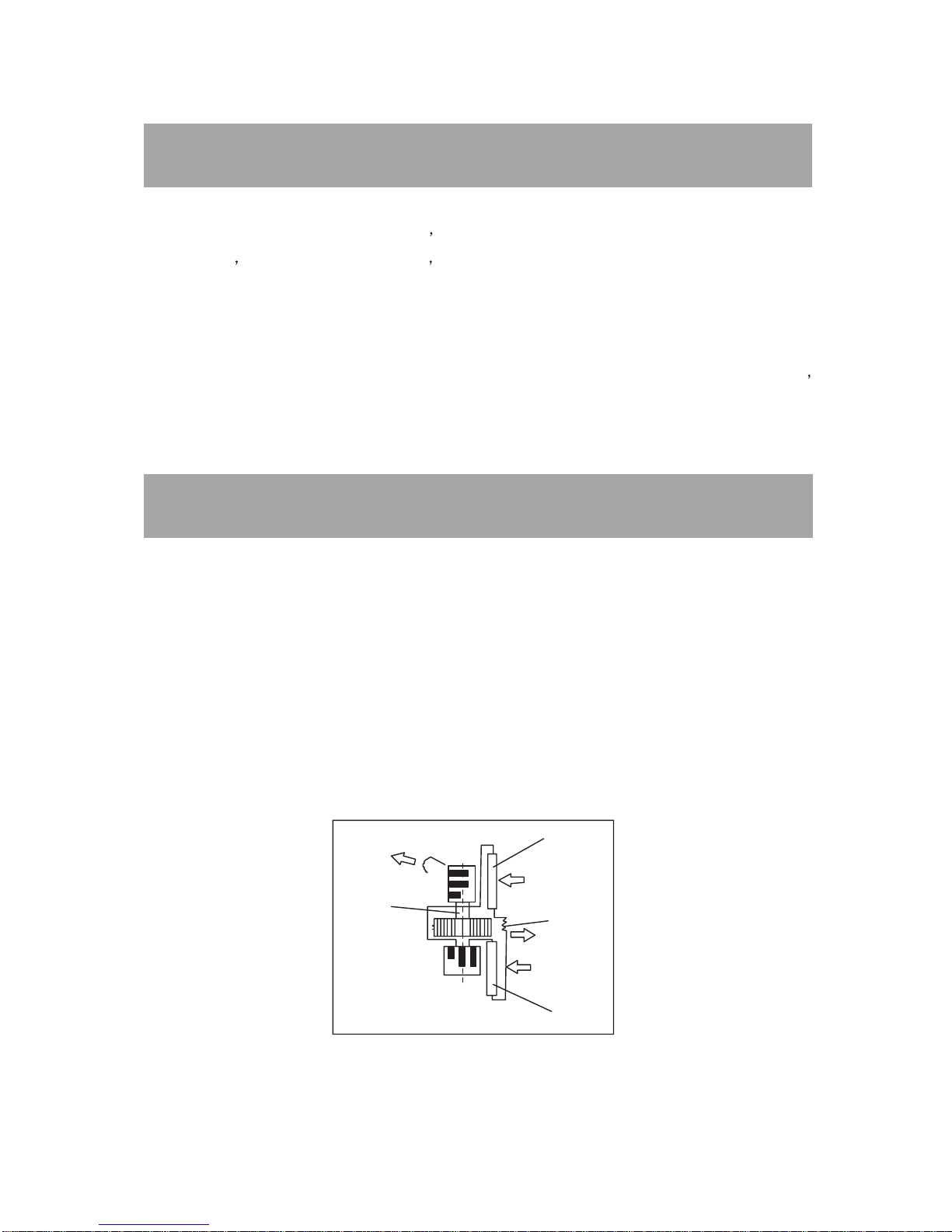

Under function of fan motor, indoor airflow changed into cooled air through evaporator then blew

out, while the indoor airflow changed into heated air though condenser then blew out. There are 2 flues

designed on structure of this unit: heated air is discharged from rear air outlet vent on back air conditio-

ner while cooled air from front air outlet vent of the unit.After guide louver, gentle and steady cooled ai-

rflow is produced to reach needed cooling effect.

Working principle

SUMMARY

WORKING PRINCIPLE

－1－

window or wall

discharge pipe

cooled air

Heated air

Cooling

Flow direction

of cooled air

Mobile AC

Heat air

1.5~2m

60 ~70

(Sector cooling area)

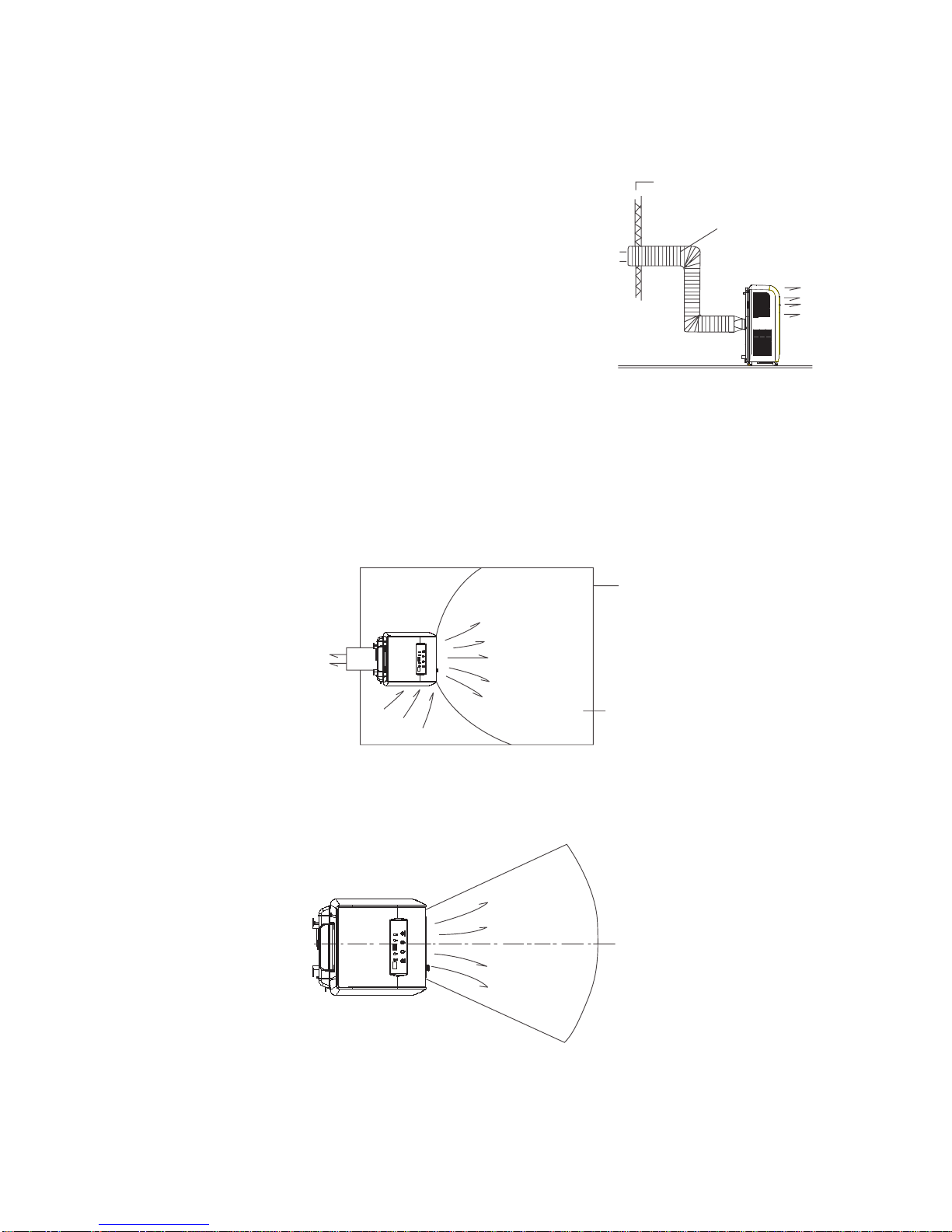

When only used as dehumidifier, remember to take off heat

discharge pipe from unit and install it onto unit when the unit is

used as air conditioner. Since partial indoor air will be heated

as heat air and discharged to outside by discharge pipe after cyc-

ling then outdoor air will enter to maintain balance air pressure,

thus the air conditioner will only lower temperature of partial re-

gional air of indoor room instead of turning entire indoor air to a

lower temperature.

Usage Location

1.Where room area is smaller than 15m , and wall (or building) has well heat insulation effect. As shown

in following figure, if unit is in shown location, the cooling effect will be better.

2.If room area is larger than20m , for example workshop or factory, the unit can only offer cooled air to

partial area(as shown in following figure),and people in this area can enjoy better cooling effect.

Room

region

－2－

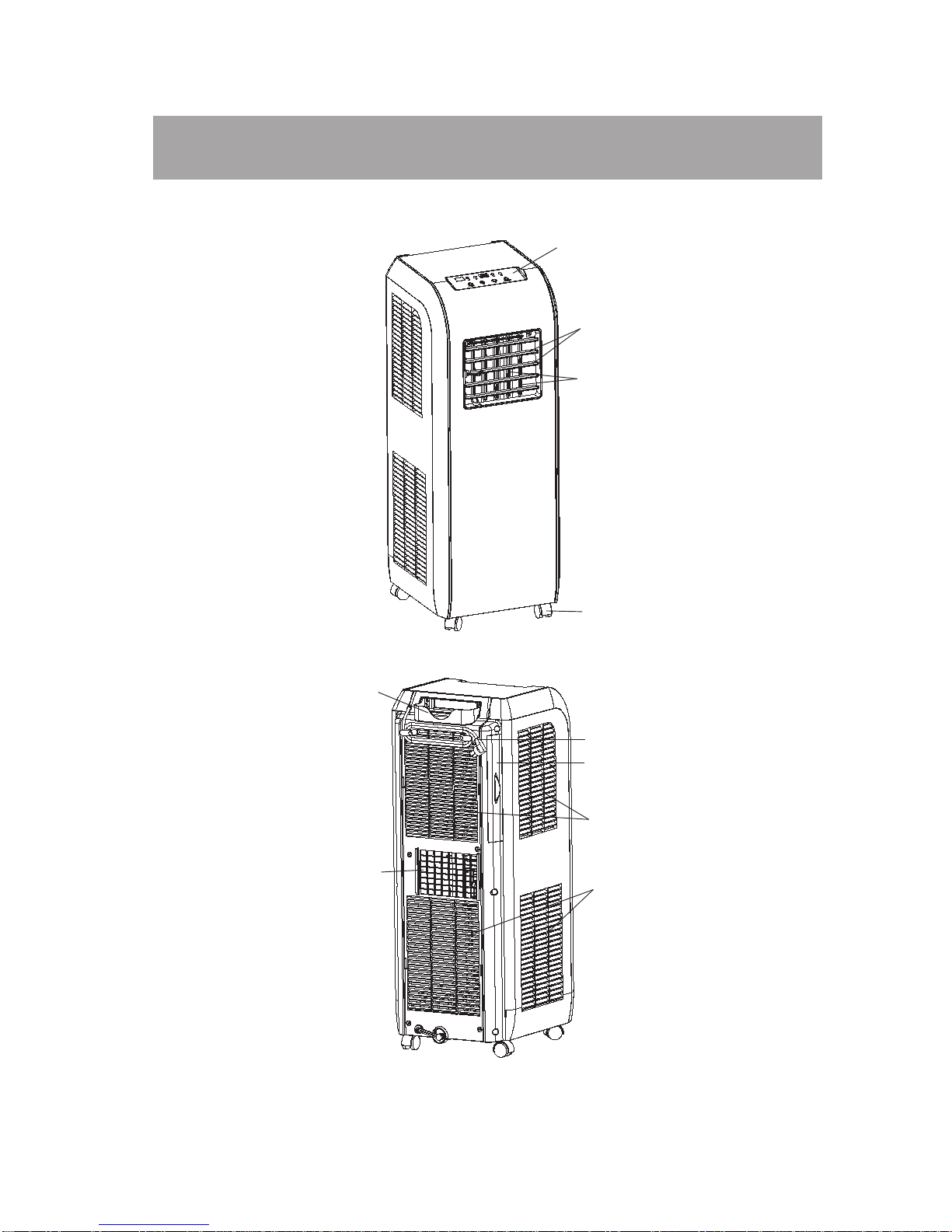

Rear

Air outlet vent

Upper air inlet grille

Lower air inlet grille

Control panel

Guide louver

Swing louver

Wheel

Power

Filters

Remote conrtoller box

cord

Front

STRUCTURE

－3－

Apply range for COOL and DRY

Disposal requirement

Power

The temp. range of this unit is 16 35 for cooli-

ng and ranges from for dehumidifying

on nameplate. Too high or too low of voltage will influence

the unit.

It is better to adopt power lead with pickup current above 10A to prevent

sudden drop of voltage when the unit is running.

It is necessary to exchange broken power hose by special power hose.

When it is necessary to change power hose or maintain, please contact the

seller and have them repaired by professional personnel.

Earth must be conducted reliably and should connect to special earthing

equipments in building to ensure well earth.

Do not replace fuse by steel or copper and capacity for fuse should be pro-

per. it is forbidden to fix power on blade or sharp objects to prevent creep-

age leaded by mangled wire.

Circuitry must be installed and fixed by professional personnel following

the

16 -35

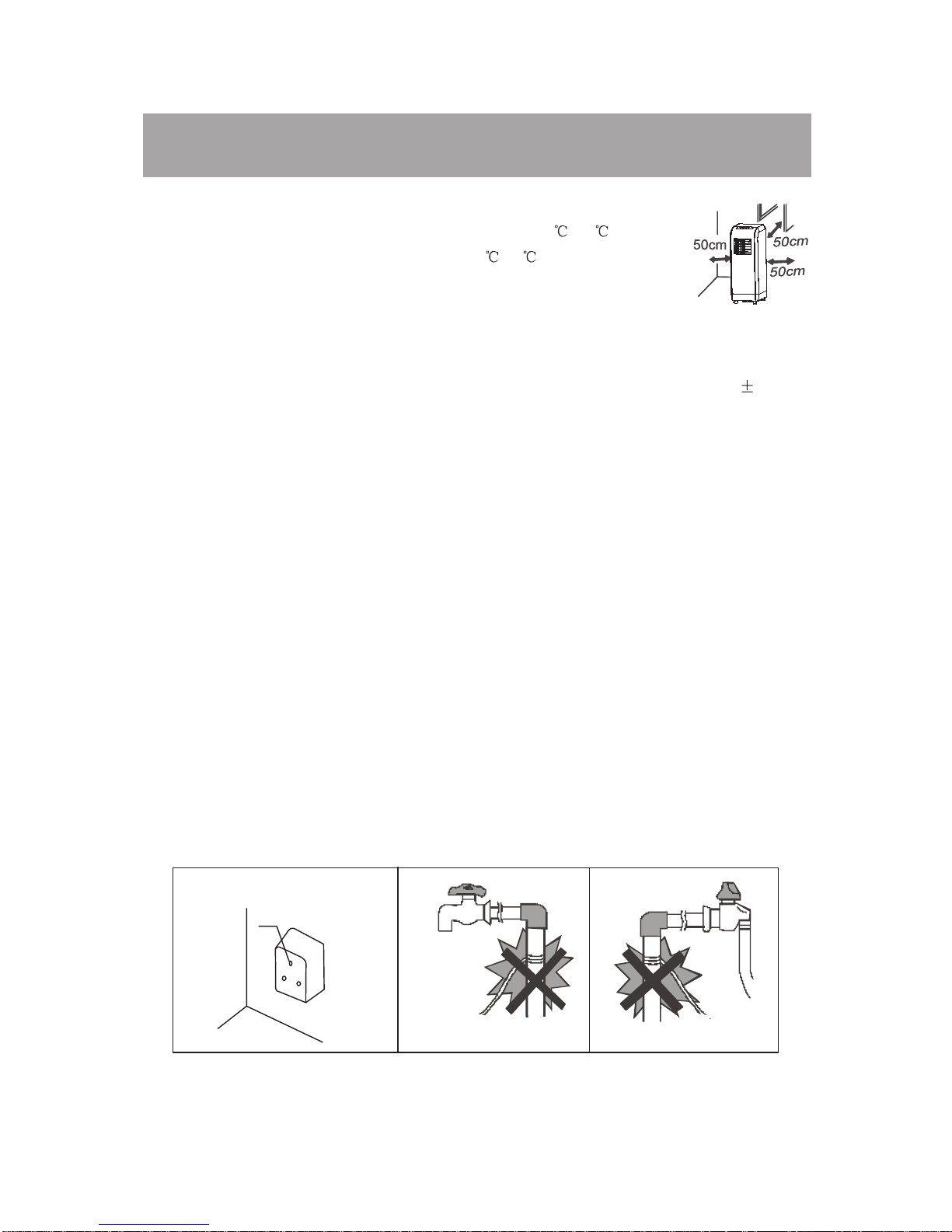

Place the unit on horizontal floor when using and ma-

intain a distance for above 50cm from walls,surface

of flammable objects or other obstructions.

national wiring regulations.Creepage protect switch with enough capa-

city and.

Check before connecting power:

The normal running fluctuation range of voltage of the unit is 10% of

value listed

OPERATING METHODS

10A solenoid heat tripping air switch must be contained in circuitry. It is forbidden to connect earth

wire to water pipe or gas pipe, plug off power plug or cut off power supply when the unit is not going

to be used.

Earth

Power must contain reliable earth wire

Gas pipe

Water pipe

－4－

Functions and operation methods of control panel

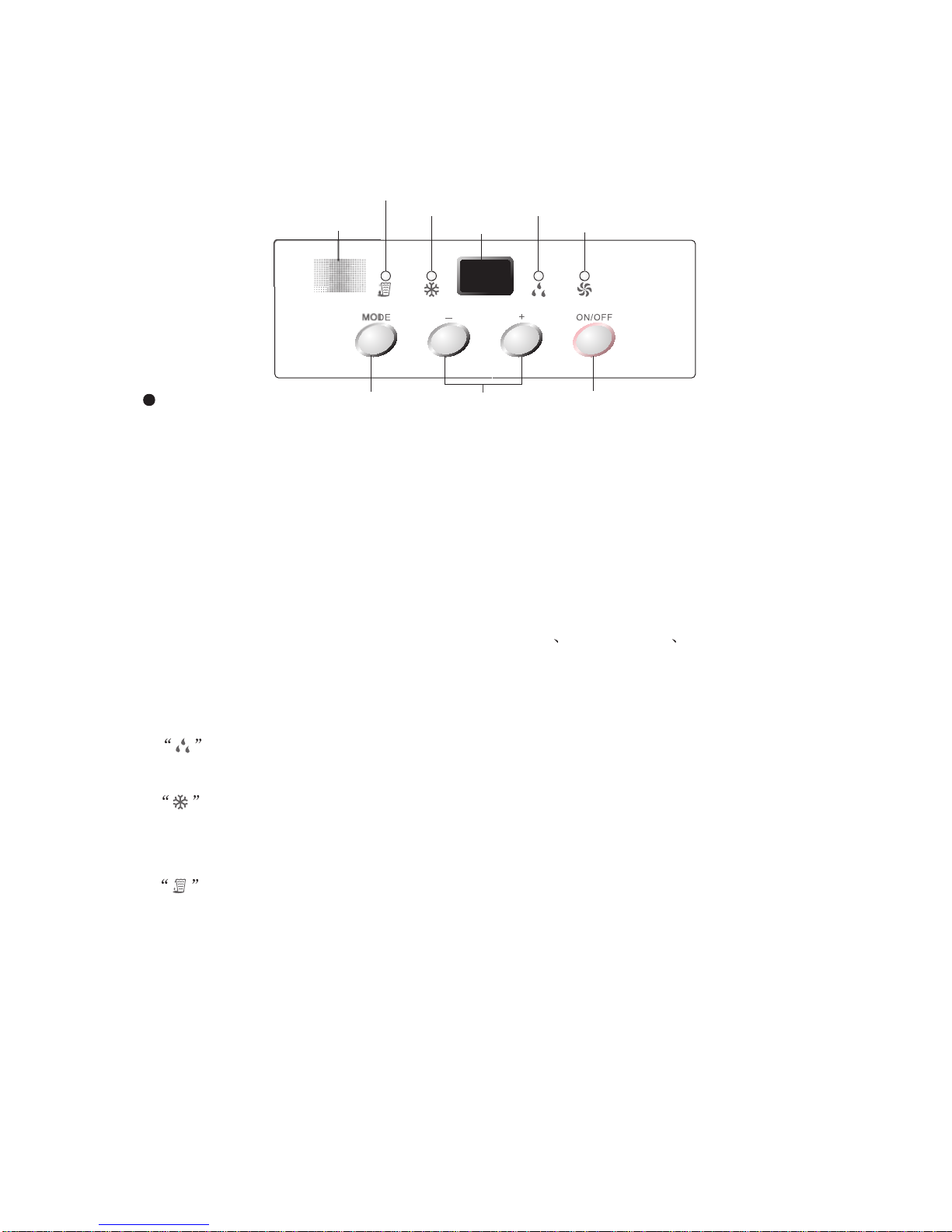

Receiver window

WATER FULL light

MODE button

LED screen

DRY mode light

FAN mode light

Temperature selection button ON/OFF button

COOL mode light

When pressing key is valid,buzzer makes a sound,indicated light indicates relevant state,system will last

for 2 seconds.

When the unit running in cool mode, it can decrease the temperature of the room, and make people very

comfortable.

When it twinkling, that means the water in the tank is full, We should drain off the water.

Panel control

3.MODE

In the state of running,press the key to enter the mode of COOL DEHUMIDIFY FAN.

4.Fan speed

Turn on or turn off the unit (press once to turn on unit and repress to turn off).

When working in FAN or COOL mode, the air conditioner can select 3 speeds and the initial speed is hi-

gh; when running in DRY, fan motor runs in Low speed.

5.Dry mode

When the unit running in the dry mode,it can decrease the humidity of the room.

ON/OFF

2."+","-" key

In COOL mode, press "-" once, the set temperature will decrease 1 (1 ), press "+" once, the set tem-

perature will incresae 1 (1 ). The set temperature can be selected from 16 -30 (61 -86).

℃

℃℃℃

Cool mode

Water full

℉

℉℉℉

-5-

No matter under what circumstance after electrified, the interval between twice start of compressor should not

be less than 3 minutes; after started, compressor will not stop by the change of temp. in 6 minutes.

Closed doors and windows can get better dry effect.Press ON/OFF to turn on the unit and MODE

is selected DRY,then cool and dry indicated lights are on and unit runs in dry mode.

When drying, indoor fan motor runs in low speed, compressor and outdoor fan motor run continuously, set te-

mperature will not be displayed and is not adjustable.Discharge pipe is unnecessary to be installed.

Press ON/OFF to turn on unit and select FAN by SPEED, indoor fan motor can run in 3 speeds of

High, Medium and low, set temperature will not be displayed and is not adjusable, High,Medium

or low symbol will be displayed in display window according to speed of indoor fan.

Environmental temperature

Usage environmental temperature of this unit is 16 35 .

1 Install heat discharge pipe well, select a location near door and window, connect the heat

discharge pipe to outside and note to leave an air return vent such as a window

or door to guarantee the indoor air return normal.

2 After press ON/OFF to turn on unit and pressed MODE to select cool mode,cool indicated

light on and unit runs in cooling way.

3 Press SPEED to select proper fan speed (High/Medium/Low).

4 turn on the switch firstly, approve to run in COOL mode ,then initial fan speed is high.

Dry

Compressor delay protect

FAN

while COOL is running, in order to raise cooling effect, please:

Draw up curtain to prevent sunshine from shining into the air conditioning room:

Prevent setting other heat source in the room.

Note

Cool

－6－
