INVENT3D Printer Unpacking Instructions
Before printing, read the Operating Instructions and Troubleshooting Guide in its entirety!

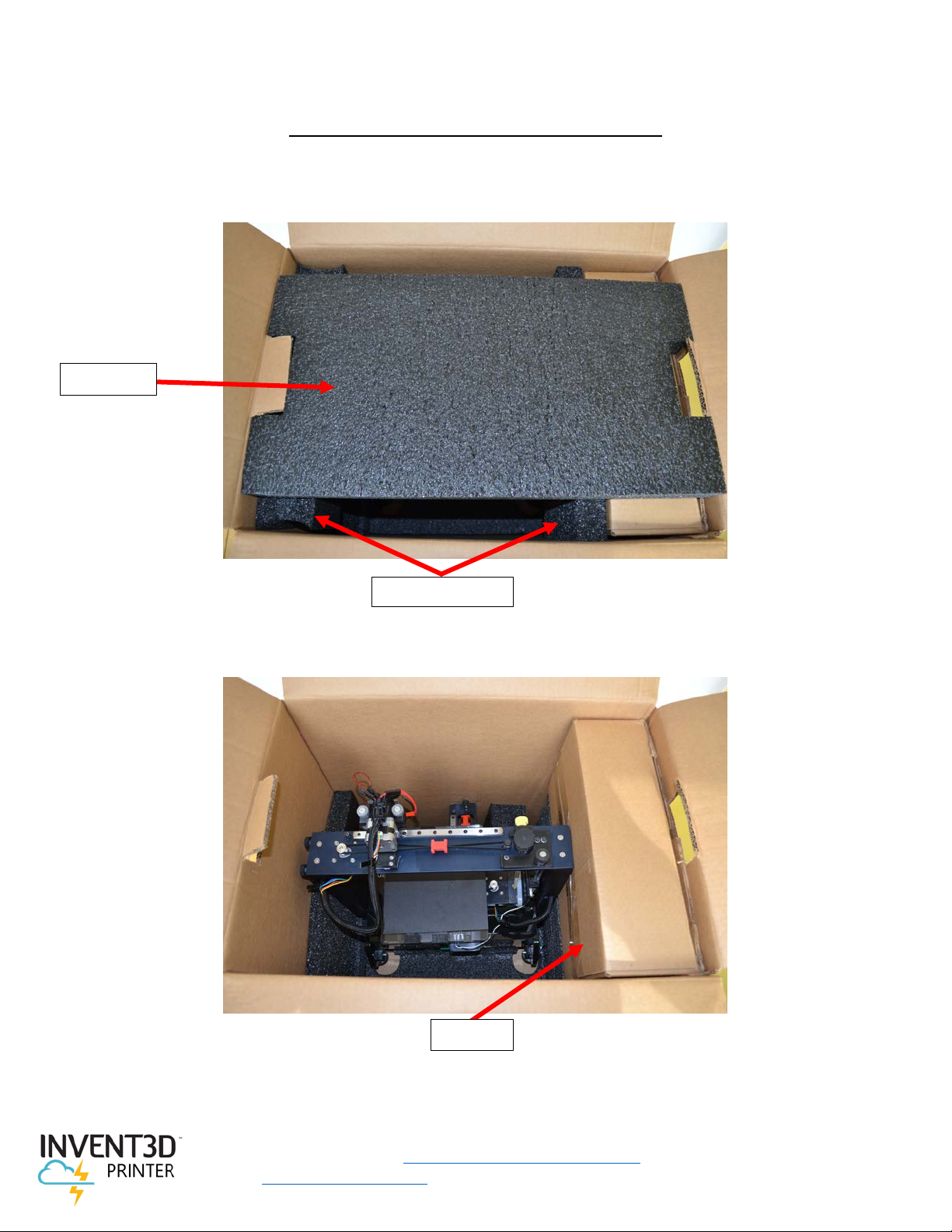

1. Remove the top foam cover and vertically lift out the two foam stabilizers.
2. Vertically slide the side box out. Side box contents are listed in Appendix A.
Top Cover
Foam Stabilizers
Side Box
Questions? Contact INVENT3D via on-line ticketing system at
http://support.inventorcloud.net/
Visit www.inventorcloud.net and click INVENT3D Printer for updates and documents
9/9/16
3. By grabbing both sides of the printer frame, lift the printer out of the box
4. Remove the two belt retainers and cut the white zip tie
Belt Retainers
White Zip Tie
Questions? Contact INVENT3D via on-line ticketing system at
http://support.inventorcloud.net/
Visit www.inventorcloud.net and click INVENT3D Printer for updates and documents
9/9/16
5. Loosen the yellow thumb screw and rotate the z-axis knob counter-clockwise to lift the print
platform. Once lifted, remove the foam insert from underneath
6. Remove the two black thumb screws and slide the left side channel off of the printer
7. Using the white thumb screws, attach the spool holder with the orientation show below
Black Thumbscrews
Z-axis Knob
Yellow Thumbscrew
Foam Insert
Questions? Contact INVENT3D via on-line ticketing system at
http://support.inventorcloud.net/
Visit www.inventorcloud.net and click INVENT3D Printer for updates and documents
9/9/16
8. Attach the side channel to the printer frame using only the bottom two holes. Make sure the wiring
is all contained within the channel as it was when it was first removed. Do not overtighten black
thumbscrews.
9. Attach the filament guide to the frame using the top two holes on the side channel and the
remaining black thumbscrews. Place the free end of the filament tube into the top of the extruder
drive as shown below.
10. Connect the power supply by attaching it to the power plug on the back of the printer. Once that is
complete, follow the procedure in the instructions on board leveling and z-axis calibration.
Appendix A: Side Box Contents
1. INVENT3D Welcome Guide
2. Printer Operating Instructions and Troubleshooting Guide
3. USB Cable (if printer is used for direct drive off of a printer)
4. Filament Guide with Filament Tube attached
5. 2 Black Thumbscrews
6. 2 White Thumbscrews
7. Spool Holder
8. Power Supply
9. Scraper
10. Test part (Printer operation validated at INVENT3D production facility. Test file on SD card.)
Filament Tube
Filament Guide
Top Black
Thumbscrews
Bottom Black
Thumbscrews
