Involight SONICWAVE1231 Bedienungsanleitung

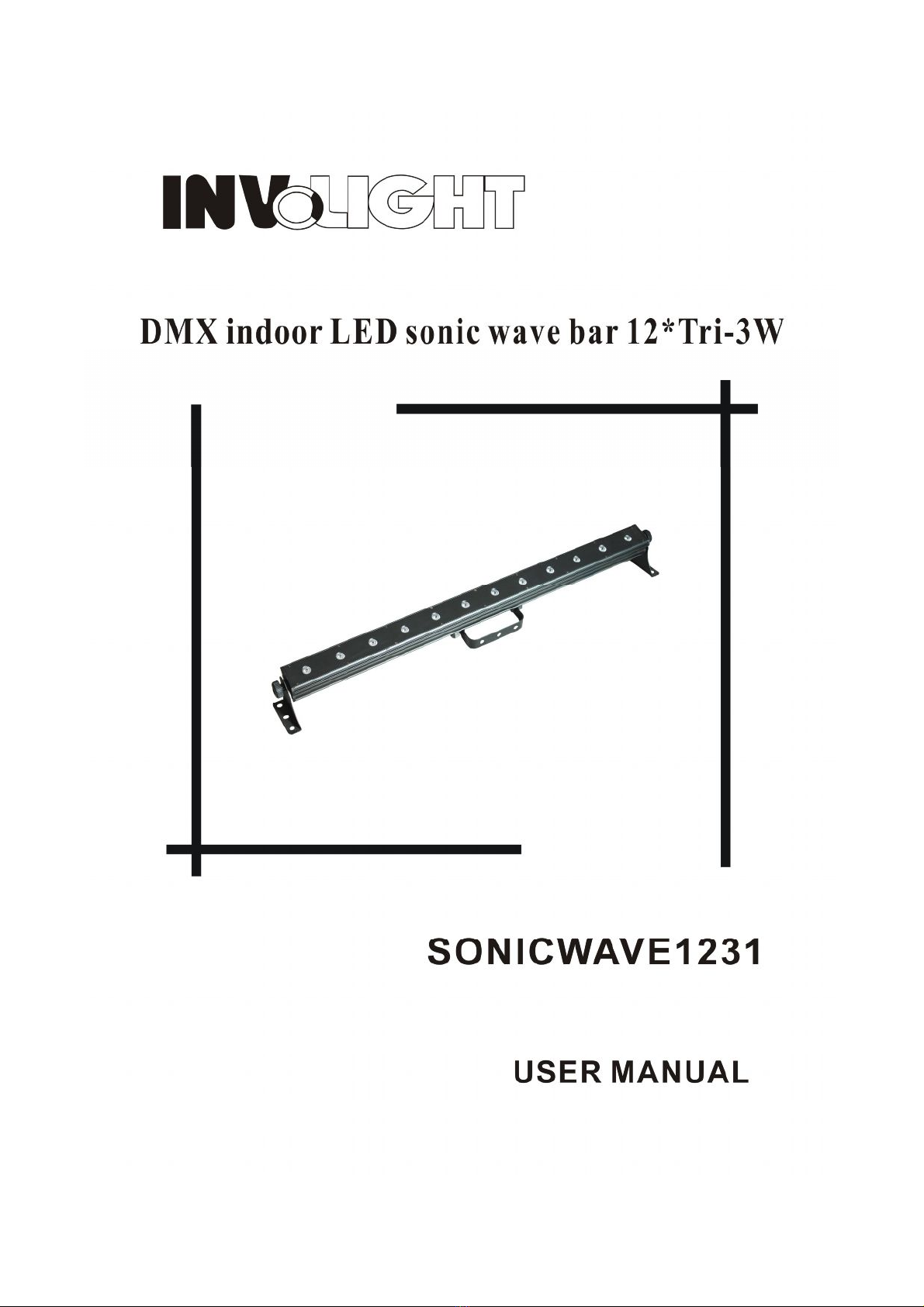

DMX indoor LED sonic wave bar 12*Tri-3W Manual

Our DMX indoor LED sonic wave bar 12*Tri-W have many and nice effects .Very good equaliser

and chasing effects with music .Please read the manual and operation .

A. SPECIFICATION:

1. Weight:4.2kg

2. Size:109*12*3cm

3. Power input: AC 120V/240V, 47Hz/63Hz

4. Wattage: 45W

5. LEDs:12 *tri-3W LEDs

6. Beam angle:30 degrees

7. Built-in programs, sound active, auto run, M/S mode, DMX mode, static colors

8. Selectable 3,4,6,7,9,12,18,36 DMX channels

9. Three sound active modes

10. Very good equalizer and chasing effects with music

11. LED display for easier operation

12. Inner box: 114.5*17.5*8.5cm

13. Master carton: 116.5*21.*13.5cm

14. 4 pcs/ctn

B.OPERATION:

1.Built-in program mode

--Press MODE button ,enter the built in program mode menu“Pr.××”

Press UP or DOWN button ,select the effects program Pr.01～Pr.35。

--Press SETUP button ,enter setup program run speed menu “SP××”

Press UP or DOWN button ,setup the speed value SP01～SP100（FL）

--Press SETUP button ,enter setup program run speed flash menu “FS××”

Press UP or DOWN button ,setup flash value FS00～99

2.Auto run mode

-- Press MODE button ,enter auto run mode menu “AUTO”

-- Press SETUP mode ,enter setup auto run mode speed menu “SP××”

Press UP or DOWN button ,setup speed value SP01～SP100（FL）

-- Press SETUP button ,enter setup auto run mode flash menu “FS××”

Press UP or DOWN button ,setup flash value FS00～99

3.DMX mode

-- Press MODE Button ,enter DMX control run mode menu “d.×××”

Press UP or DOWN button ,setup DMX address value d.001～d.512

-- Press SETUP button ,enter setup DMX mode menu xxch

Press UP or DOWN button ,setup DMX mode 3ch、4ch、6ch、7ch、9ch、12ch、18ch、36ch。

CHANNEL numbers 3、4、6、7、9、12、18、36

DMX mode 1：3ch

CHANNEL VALUE FUNCTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

DMX mode 2：4ch

CHANNEL VALUE FUNCTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CH4 0-255 MASTER

DIMMER

DMX mode 3：6ch

CHANNEL VALUE FUNCTION SECTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CHANNEL VALUE FUNCTION SECTION

CH4 0-255 RED

CH5 0-255 GREEN

CH6 0-255 BLUE

DMX mode 4：7ch

CHANNEL VALUE FUNCTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CH4 0-255 MASTER

DIMMER

0-6 CH1~ CH4

DIMMER

7-13 PR.01

14-20 PR.02

21-27 PR.03

28-34 PR.04

35-41 PR.05

42-48 PR.06

49-55 PR.07

56-62 PR.08

63-69 PR.09

70-76 PR.10

77-83 PR.11

84-90 PR.12

CH5

91-97 PR.13

98-104 PR.14

105-111 PR.15

112-118 PR.16

119-125 PR.17

126-132 PR.18

133-139 PR.19

140-146 PR.20

147-153 PR.21

154-160 PR.22

161-167 PR.23

168-174 PR.24

175-181 PR.25

182-188 PR.26

189-195 PR.27

196-202 PR.28

203-209 PR.29

210-216 PR.30

217-223 PR.31

224-230 PR.32

231-237 PR.33

238-244 PR.34

245-251 PR.35

252-255 Sound Mode

CH6 0-255 Sound Sensitivity+speed

CH7

0-15 NO FUNCTION

Sound Mode :S1

16-84 Strobe(R\G\B DIMMER、

PR.XX)

Sound Mode :S1

85-169

Strobe(R\G\B DIMMER、

PR.XX)

Sound Mode :S2

170-255 Strobe(R\G\B DIMMER、

PR.XX)

Sound Mode :S3

DMX mode 5：9ch

CHANNEL VALUE FUNCTION SECTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CH4 0-255 RED

CH5 0-255 GREEN

CH6 0-255 BLUE

CH7 0-255 RED

CH8 0-255 GREEN

CH9 0-255 BLUE

DMX mode 6：12ch

CHANNEL VALUE FUNCTION SECTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CH4 0-255 RED

CH5 0-255 GREEN

CH6 0-255 BLUE

CH7 0-255 RED

CH8 0-255 GREEN

CH9 0-255 BLUE

CH10 0-255 RED

CH11 0-255 GREEN

CH12 0-255 BLUE

DMX mode 7：18ch

CHANNEL VALUE FUNCTION SECTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CH4 0-255 RED

CH5 0-255 GREEN

CH6 0-255 BLUE

CH7 0-255 RED

CH8 0-255 GREEN

CH9 0-255 BLUE

CH10 0-255 RED

CH11 0-255 GREEN

CH12 0-255 BLUE

CH13 0-255 RED

CH14 0-255 GREEN

CH15 0-255 BLUE

CH16 0-255 RED

CH17 0-255 GREEN

CH18 0-255 BLUE

DMX mode8：36ch

CHANNEL VALUE FUNCTION SECTION

CH1 0-255 RED

CH2 0-255 GREEN

CH3 0-255 BLUE

CH4 0-255 RED

CH5 0-255 GREEN

CH6 0-255 BLUE

CH7 0-255 RED

CH8 0-255 GREEN

CH9 0-255 BLUE

CH10 0-255 RED

CH11 0-255 GREEN

CH12 0-255 BLUE

CH13 0-255 RED

CH14 0-255 GREEN

CH15 0-255 BLUE

CH16 0-255 RED

CH17 0-255 GREEN

CH18 0-255 BLUE

CH19 0-255 RED

CH20 0-255 GREEN

CH21 0-255 BLUE

CH22 0-255 RED

CH23 0-255 GREEN

CH24 0-255 BLUE

CH25 0-255 RED

CH26 0-255 GREEN

CH27 0-255 BLUE

CH28 0-255 RED

CH29 0-255 GREEN

CH30 0-255 BLUE

CH31 0-255 RED

CH32 0-255 GREEN

CH33 0-255 BLUE

CH34 0-255 RED

CH35 0-255 GREEN

CH36 0-255 BLUE

4.Sound active mode

-- Press MODE button ,enter sound active mode “SOUN”

Press SETUP button ,enter setup sound active mode and sensitivity menu “S×.××”

Press UP or DOWN button more than 2 seconds then release ,switch over sound active mode S1.××、

S2.××、

Press UP or DOWN button ,setup the go on direction of sound active sensitivity value S1.00～S1.31、

S2.00～S2.31、S3.00～S3.31 & S1.××、S2.××

5.Slave mode

-- Press MODE button ,enter slave mode “SLAV”

*The running effect program of master light is the same with all slave light

6.Static color mode

-- Press MODE button ,enter static color mode “CL.××”

Press UP or DOWN button ,changing over static color CL.r-，CL.g-，CL.b-
