Involve Audio Y4
Quick Start Guide
Involve Audio Pty. Ltd. © 2023
Involve Audio Pty Ltd
These are quick setup instructions and should help you quickly get your Y4 system
setup and going, for more detail please read the full instruction manual.
1. Unpack from box
2. Assemble Y Speakers
3. Position speakers around the room
4. Connect Speakers and Devices to the Y4 Amplier
5. Connect Power to the Y4 Amplier
6. Turn ON the Y4 with the Power Switch on the rear fo the amplier
7. Calculate and set SweetSpot Delay Distance to suit your room
8. Set Sub-Woofer Mode according to your setup
9. Set listening mode to SST Involve for optimum sound experience
10. Play some music and adjust Rear Speaker and Sub-Woofer levels to your
preference

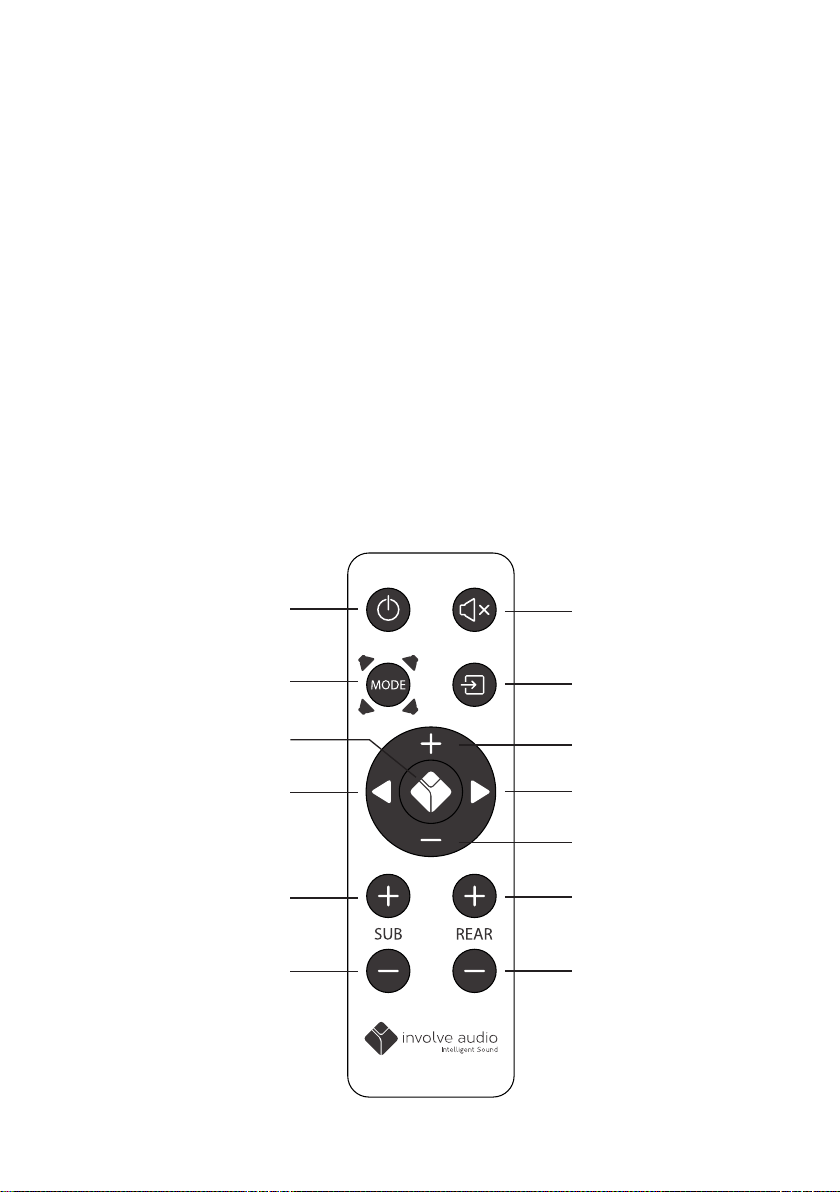

Quick Start Guide
Standby
ON/OFF
INPUT
VolumeUP
(Settings UP)
SETTINGS
(press to enter or exit
Settings)
Settings NEXT
Volume DOWN
(Settings DOWN)
Settings
PREVIOUS
MUTE
Rear Speaker
Volume UP
Rear Speaker
Volume DOWN
SUB
Volume UP
SUB
Volume DOWN
MODE
Y4 Quick Start Guide V1.0
13.5mm Aux IN
2OPTICAL IN x2
3RCA IN x2
4POWER SWITCH
5RCA Line OUT
6Y Speaker - REAR LEFT
7Y Speaker - FRONT LEFT 14 Y Speaker - REAR RIGHT
13 Y Speaker - FRONT RIGHT
12 SUB A (Mono/Left/Front)
11 30V POWER IN
9USB 5V Power Out x2
10 Air Flow vents, don’t cover
8SUB B (Mono/Right/Rear)
SUB B
REAR
LINE OUT
R
L
PRE SUB
SUB A FRONT
MONO/LEFT/FRONT
1
R
L
2
AUX IN OPTICAL IN RCA IN POWER
REARFRONT
RIGHT SPEAKERS
MONO/RIGHT/REAR
USB POWER
MODEL:
SERIAL:
Y43-01W
IAY43-01-1910-001
MAX 2.0A
involve audio
Intelligent Sound
Involve Audio Pty Ltd
U.S.Patent #: US9111528B2
Int. Patent #: W02011/069205A1
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
AUSTRALIAN DESIGNED
AND MANUFACTURED
“involve” and the involve logo are trademarks of Involve Audio Pty Ltd
Computer programs embodied in this equipmet Copyright Involve Audio 2014
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
LEFT SPEAKERS
14 5
6 7 8 12 13 14
10 11
3
9
2
6.35mm
Headphone Socket
(with mute switch)
Volume/Control Knob
- press & hold to enter
or exit Settings
- turn to change Volume
and settings Values
Standby ON/OFF Display
Top
Function Button
Bottom
Function Button
Involve Audio Pty Ltd
x2
x2
involve audio
intelligent sound
Y Speaker B - FR/RL
(Front Right / Rear Left)
12
involve audio
intelligent sound
Y Speaker A - FL/RR
(Front Left / Rear Right)
12
Y4 Quick Start Guide V1.0
x2 x2
involve audio
intelligent sound
Y Speaker B - FR/RL
(Front Right / Rear Left)
12
involve audio
intelligent sound
Y Speaker A - FL/RR
(Front Left / Rear Right)
12
Involve Audio Pty Ltd
Front Left
Y Speaker A
Rear Left
Y Speaker B
Front Right
Y Speaker B
Rear Right
Y Speaker A
Stereo Sub-Woofer Front/Rear Sub-Woofer
Speaker Positioning
Left Right Front
Rear
Y4 Quick Start Guide V1.0
SUB B
REAR
LINE OUT
R
L
PRE SUB
SUB A FRONT
MONO/LEFT/FRONT
1
R
L
2
AUX IN OPTICAL IN RCA IN POWER
REARFRONT
RIGHT SPEAKERS
MONO/RIGHT/REAR
USB POWER
MODEL:
SERIAL:
Y43-01W
IAY43-01-1910-001
MAX 2.0A
involve audio
Intelligent Sound
Involve Audio Pty Ltd
U.S.Patent #: US9111528B2
Int. Patent #: W02011/069205A1
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
AUSTRALIAN DESIGNED
AND MANUFACTURED
“involve” and the involve logo are trademarks of Involve Audio Pty Ltd
Computer programs embodied in this equipmet Copyright Involve Audio 2014
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
LEFT SPEAKERS
Rear Left Y
Speaker B
Front Left Y
Speaker A
Front Right Y
Speaker B
Rear Right Y
Speaker A
Y Speakers in upright positionY Speaker connectors
10-Pin 6-Pin
(FR/RL Y Speaker model shown
FL/RR connectors are mirrored)
FR/RL
Speaker B
FL/RR
Speaker A
Mono/Right/Rear Sub-Woofer Mono/Left/Front Sub-Woofer
Involve Audio Pty Ltd
Setting up SweetSpot™ (SST™)
Delay Distance
(Metres)
0m
0.4m
0.5m
0.6m
0.8m
0.9m
1.0m
1.2m
1.4m
1.6m
Delay Distance
(Feet, Inches)
0’
1’ 4”
1’ 8”
2’
2’ 8”
3’
3’ 3”
3’ 11”
4’ 7”
5’ 3”
SST™ REAR/FRONT
Setting Value
0
0.4
0.5
0.6
0.8
0.9
1.0
1.2
1.4
1.6
Close Distance
Close Distance
Far Distance
Far Distance
Front Left Y Speaker
Rear Left Y Speaker
Front Right Y Speaker
Rear Right Y Speaker
Delay Distance = Far Distance - Close Distance
