InWin A1 PLUS Bedienungsanleitung
User Manual

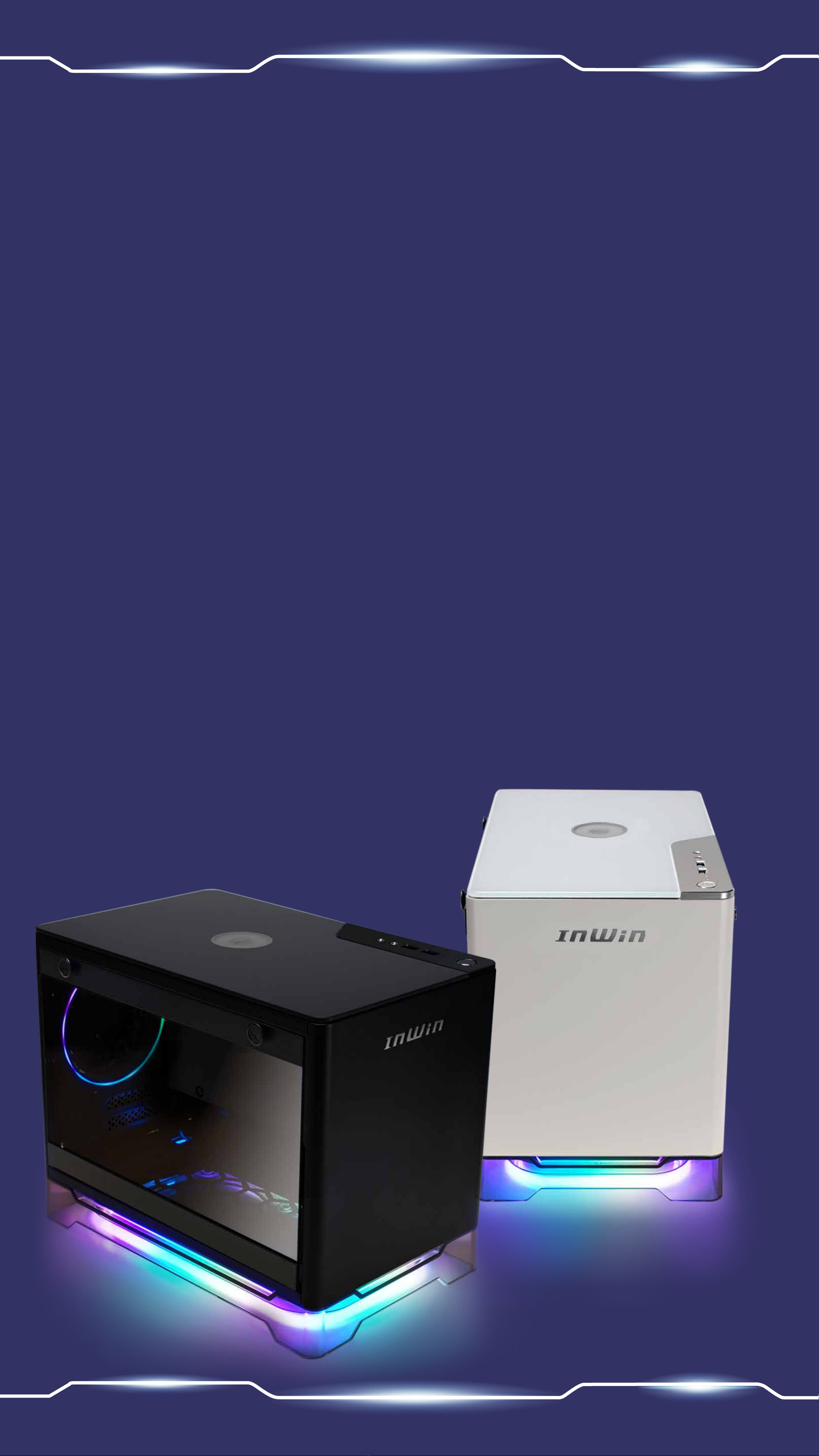

The A1 PLUS offers upgrades to the beloved A1 chassis.
The A1 PLUS retains its distinguished classy aesthetics
with the return of quality materials such as: tempered glass,
aluminium and steel. Minimalism never looked so exquisite!
The A1 PLUS features addressable RGB lighting,
that offers diversified color schemes by customizing
each individual light. The square structure provides
hassle-free installation, and the capacity to house powerful
hardware despite its compact size.
An InWin 650W, 80 PLUS Gold PSU is prebuilt within
the A1 PLUS with cables already managed. The A1 PLUS
also comes with two Sirius Loop addressable RGB fans,
and an enhanced Qi 1.2 10W charging panel
to charge your mobile devices!
Product Story
Specifications
A1 PLUS CASE
Model
Part Number
Colors
Case Type
Case Materials
M/B Compatibility
Expansion Slots
Maximum Compatibility
Front Ports
Internal Drive Bays
Thermal Solution
Compatibility
Power Supply
Compatibility
Product Dimensions
(H x W x D)
with screw & handle height
Product Dimensions
(H x W x D)
Package Dimensions
(H x W x D)
Net Weight
Gross Weight
A1 PLUS
IW-A1PLUS-BLACK
IW-A1PLUS-WHITE
Black, White
Mini ITX Tower
SECC, Tempered Glass
Mini-ITX
PCI-E x 2
VGA Card Length: 320mm
CPU Heatsink Height :160mm
2 x USB 3.0
HD Audio
2 x 2.5"
1 x 120mm Side Fan
1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Bottom Fans
InWin 650W PSU Included ATX12V V2.4
273 x 224 x 357mm
231 x 210 x 343mm
344 x 295 x 414 mm
7.1 kg/ 15.7lbs
7.9 kg/ 17.5lbs
■InWin products comply with RoHS regulation.
■Specifications may vary based on different regions.
InWin 650W 80PLUS Gold PSU
■InWin products comply with RoHS regulation.
■Specifications may vary based on different regions.
1
1
2
0
3
0
Model
Total Power
Material
Type
PFC
Efficiency
MTBF (Hours)
AC Input
Fan
Operating Temperature
Range(°C)
Full Protection
Safety Certifications
Dimensions(L x W x H)
Warranty
Connectors
IW-GD650PS
650W
SECC
ATX12V V2.4
Active PFC
80 PLUS Gold
> 100,000
100 ‒ 240Vac. 50-60Hz
120mm
0~40°C
OCP/OVP/UVP/SCP/OTP/OPP
TUV/cTUVus/BSMI/CB/CE/FCC/EAC/RCM
/KCC/CCC
140 x 150 x 86 mm
5 Years
Motherboard 24-pin
CPU 4+4-pin
PCIE 6+2 pin
Peripherals
SATA
Floppy Power
■InWin products comply with RoHS regulation.
■Specifications may vary based on different regions.
InWin Sirius Loop Fans
Model
Fan Size
Materials
Rated Voltage
Rated Power
Rated Current
ADD RGB Rated Voltage
ADD RGB Rated Power
ADD RGB Rated Current
Speed Mode
Air Flow
Air Pressure
Connector
Noise Level
Bearing Type
Life Expectancy
Sirius Loop ASL120
120 x 120 x 25mm
PBT
DC 12V
1.2W
0.1A
DC 5V
1.25W
0.25A
PWM 500-1800 RPM
50 CFM
1.67mm/ H2O
4-Pin
27 dB(A) Max.
Long Lifespan Sleeve Bearing
>30,000 hrs
Package Content
A1 PLUS Chassis
InWin 650W 80PLUS Gold PSU
InWin Sirius Loop fans x 2
Fan RGB One-Click Controller x 1
QR Code Card
Accessory Bag
Accessories Bag
b. 2.5” HDD Screws X 10
a. Hexagon Head Screws X 8
c. Graphic Card Holder X 1
d. Cable Ties X 5
f. LED 3-Pin Header X 3
g. Fan RGB One-Click Controller X 1
e. Anti-Slip Strips X 4
a b
d
c
e f g
Case Structure
1. Tempered Glass
2. Logo
3. SECC Front/ Side Panel
4. Power Button
5. HDD/Power LED indicator
6. USB 3.0 Ports
7. Audio Ports (Earphone and Microphone)
7
6
5
4
2
3
1
a. 2.5 Drive Bay
b. Side Fan Mounting Area
c. Rear Fan/ Radiator Mounting Area
d. Bottom Fan Mounting Area
e. Motherboard Mounting Area
f . CPU Cooler Installation Cut-Out Hole
g. PCI-E Expansion Slot
h. Extra PCI-E Supporting Mounting Hole
i. Power Supply Area
j. Fan Dust Filter
k. Wireless Mobile Device Charging Area
ab
c
g
j
e
f
d
h
i
k
Installation Guide
Please follow the related chapters to assemble
Opening the Chassis
For the side panel, please pull
the two tool-less tabs and lift up.
01
Motherboard
Installation
Parts Required: Hexagon Head
Screws
02
Expansion Card
Installation
Parts Required:
Hexagon Head Screws,
Graphics Card Holder
03
