IOptron SMARTSTAR CUBEPROTM 8200 Technisches Datenblatt



SmartStar®CubePro™GOTOAltAzMountwithGPS

#8200



FEATURES

•Alt‐AzimuthMount–TheCube™‐‐Theonlymountofitskindforultimaterotation

•IncludestheGoToNovaTMController.Themostintuitivecontrolleronthemarket.

•130,000objectdatabasewith256user‐definedobjects

•ThelargestLCDscreenonthemarketwith8linesand21‐characterHandControlwithbacklit

LEDbuttons.

•USBPortforPCLaptopcontrolandfirmwareupgrades(ASCOMprotocol)

•Metalworm&gearforincreasedstability&performance

•Drivemotorwith9‐speedsettingforprecisetracking

•Dual‐axisServomotor

•Standard‐equipmentACadaptor(OptionalDCadaptoravailable)

•1‐inchfullheighttripodwithmetalhinges

•Built‐in32‐ChannelGPS

•12lb.payload

PACKAGECONTENTS

•TelescopeMount(withbuilt‐inGPS)

•ACAdaptorwithcord

•#8401HandController

•ControllerCable

•Tripod

•Tripodbolt(withblackshaft)andTrayLock

•TripodTray

•1.5kgCounterweight

ONLINECONTENTS(clickunder“Support”menu)www.iOptron.com

•Manuals(youwillneedtorefertothemanualfordetailsonset‐upandoperation).

•Tipsforsetup

•Handcontrollerfirmwareupgrades(checkonlineforlatestversion)

•Reviewsandfeedbackfromothercustomers



QuickSet‐up

Note:Thisisabriefoutlineforgettingstarted.Pleaserefertothefullmanualatwww.iOptron.comfor

details.



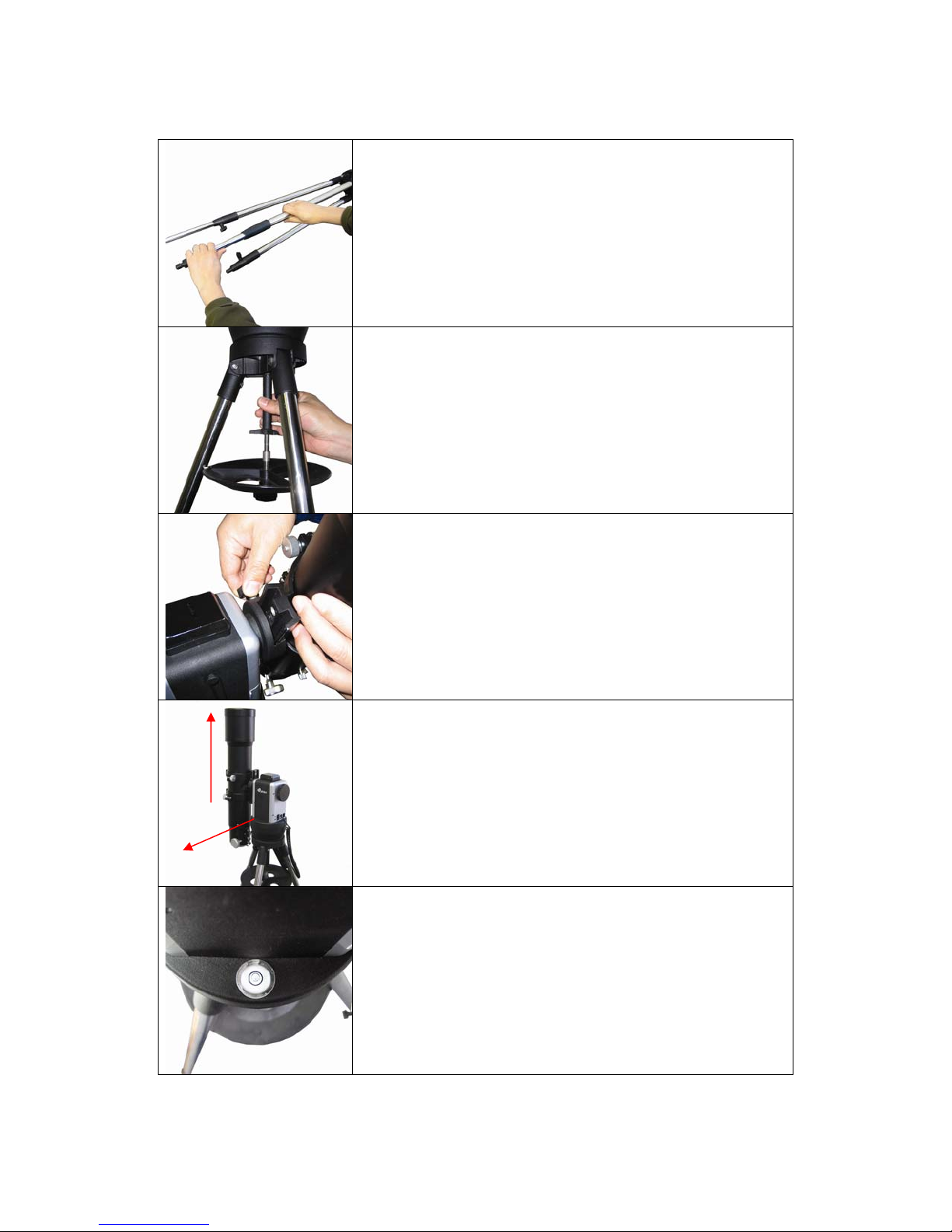

Step 1.

Extend tripod legs to full extension.

Step 2.

Attach mount to tripod using the long bolt (#7). Slide

tray on bottom of shaft. Then screw on round black

knob (#9).

Step 3.

Attach telescope to mount using dovetail lock (#2).

Step 4.

Set telescope to PARK POSITION. (1) Position the

mount so that the “S” is facing south. (2) The telescope

tube should be pointed directly up at the zenith. If it is

not perfectly straight then loosen the altitude lock (#4)

to adjust telescope.

Step 5.

Level the mount using the bubble on side of mount by

adjusting tripod legs. It is also suggested to use

additional levels to assure very precise level.

1)South

2)Up



Step 6.

Plug in power plug and hand controller.



Step 7.

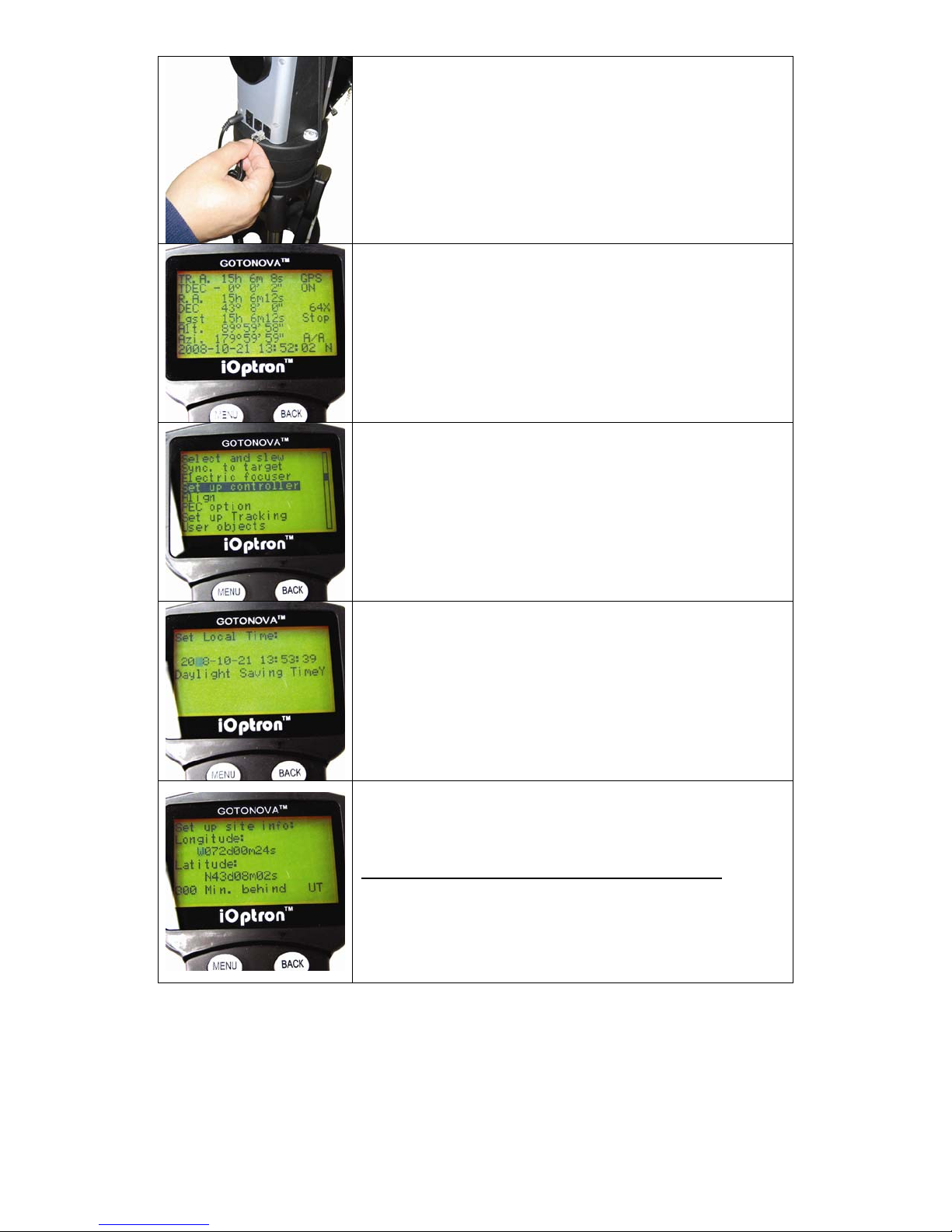

Turn on and wait for controller lights to come on. (For

GPS signal wait for controller to say “G_OK”—not

“G_ON”).

GPS provides Latitude, Longitude, and current time

only.



Step 8.

Go to:

Set up controller. Press ENTER.



Step 9.

Go to:

Set up Local Time. Press ENTER.

Enter date and day-light savings (Y-yes. N-no).

Then press ENTER

(Note: use numbered keypad to change numbers)



Step 10.

Go to:

Set Up Site. Press ENTER.

Enter time zone: (add or subtract 60 minutes per time zone)

Enter minutes “behind” UT or “ahead” of UT

•New York City is 300 minutes “behind” UT

•Los Angeles is 480 minutes “behind” UT

•Rome is 60 minutes “ahead” of UT

•Sydney is 600 minutes “ahead” of UT



Step 11. Select and Slew to an object

The mount is now ready to GOTO and track objects.

Go to: Menu>Select and Slew

Press ENTER.

Step 12.

Select a category (ex. “planets, sun, moon”). Then

select an object (ex. “moon”). Then press ENTER.

The telescope will automatically slew to the object and

lock on. It will automatically begin to track once it locks

on to the object.

Step 13. Sync to Target (Use this to center and

synchronize the object from Step 12 into the memory).

Go to: MENU>Sync. To Target. Press ENTER. Next

use the arrow keys to slew to the object until it is

centered in your eyepiece. Then press ENTER again

on the hand controller.

To slew to other objects repeat steps 11 and 12. You

do not need to repeat step 13 except for adjustments.

(Refer to the online manual for 1-star and 2-star alignments. Sync to

Target is the same as 1-star Alignment except that you choose the

object to align to.)

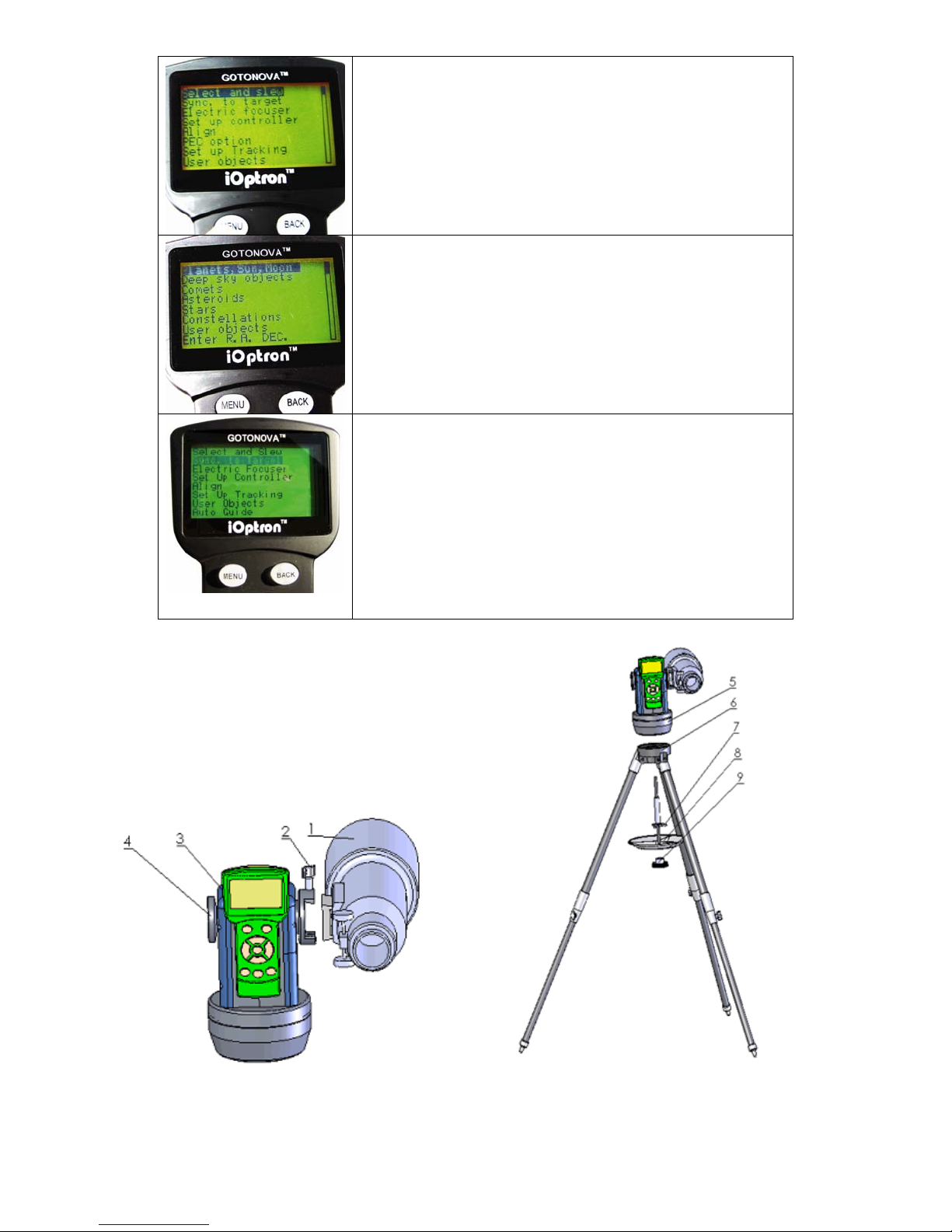

AssemblyTerms

 

*ToinstallcounterweightremoveAltitudeLock(#4).Screwbarontothreads.Thenplacecounterweightontoendofbar.Secure

thecounterweightbytighteningdownwithscrew.

1. Telescope tube

2. Dovetail lock

3. Hand held controller

4. Altitude lock

5. Mount

6. Tripod

7. Inner support /Tripod bolt.

8. Tray

9. Tray lock

10. Counterweight (not shown)*
