IP Power 9828

User Manual

Version: 1.00

Firmware Version: 1.09

Date Released: March . 2019

- 2 -

Warning: Any changes made to this equipment without permission may cause damages to the device!

IMPORTANT NOTICE

1. IP Power 9828 was designed for indoor use, we carry no responsibility for possible damages

caused by outdoor use, especially in the rain.

2. Please use the power adapter provided by the dealer, we carry no responsibility for the

possible damage from using power adapters not provided by us. .

4. Do not shake the IP Power 9828 in any fashion

5. Please contact the dealer If IP Power 9828 is not working properly.

retrieval system, or transmitted in any form or by any means, electronic, mechanical,

photocopying, recording or otherwise, without the prior written consent of us.

All trademarks and products mentioned in this document are the properties of us.

 - 3 -
Table of Content
WELCOME...........................................................................................................5
Introduction .................................................................................................................................................. 5
Features :....................................................................................................................................................... 6
Specification.................................................................................................................................................. 6
Minimum System Requirements................................................................................................................. 7
Package Contents ......................................................................................................................................... 7
INTERFACE DESCRIPTION................................................................................8
Outlook.......................................................................................................................................................... 8
SETTING UP YOUR DEVICE...............................................................................8
Before Starting.............................................................................................................................................. 8
Hardware Connection.................................................................................................................................. 9
Software Installation...................................................................................................................................10
Network Connecting by LAN...................................................................................................................10
Internet Setup............................................................................................................................................12
Using IP Service .......................................................................................................................................13
WEB INTERFACE..............................................................................................14
Connect to your Device..............................................................................................................................14
Device name :...............................................................................................................................................16
Device Name & Display / Hide the left setting section : ..........................................................................16
Information :................................................................................................................................................17
Date and Time : .......................................................................................................................................17
Current Usage & Temperature :..............................................................................................................18
IO Control :..................................................................................................................................................18
Control......................................................................................................................................................19
Schedule....................................................................................................................................................24
Ping...........................................................................................................................................................27
Network :......................................................................................................................................................31
LAN Network Settings : ...........................................................................................................................31
Application Settings : ..................................................................................................................................34
Email.........................................................................................................................................................34
DDNS .......................................................................................................................................................39

 - 4 -
Communication ........................................................................................................................................40
IP SERVICE.............................................................................................................................................43
System Setting : ...........................................................................................................................................45
Management .............................................................................................................................................45
System Information ..................................................................................................................................49
System Log...............................................................................................................................................49
Firmware...................................................................................................................................................50
CONTROLLING THE DEVICE...........................................................................51
CGI HTTP Commands.............................................................................................................................51
Telnet Control..............................................................................................................................................53
FAQ :..................................................................................................................54

- 5 -

Welcome

Introduction

IP Power 9828 is a new generation of the Power Distribution Unit (PDU) & Remote Power

Control (RPC) system.

With embedded web server and HTTPS protection , 9828 supports higher grade security as

working on Internet. User can control power easily and more safely through the web browser in

Windows , Android or iOS system , like Internet Explorer (IE) , Google Chrome , Safari web

browser or control through APP in Android or in iOS system .

With 2 buttons on device front , it allows user to direct control manually to each port ON/OFF with

fingertip without web browser / APP , also allows remote control power on/off up to 2 separate

devices via network .

As support SSL & SNMP, user can use public email like Gmail / Hotmail / Yahoo Mail to get the

email as the ON/OFF status changed . User can also control by e-mail without doing port

forwarding / port mapping and search the other IP Device in webpage directly and quick .

9828 supports Auto Ping , Time Scheduler which is more suitable for factory / commercial /

office / home automation . User can get the device status in LOG information or in remote IP

address which sent to get LOG message from 9828 ( SYSLOG ) . .

For system integrator, there are several popular developing tolls like HTTP/CGI command ,

Telnet , SNMP , Modbus TCP/IP & BACnet TCP/IP .

The various applications of the 9828 includes:

Power Management, Server Management, Internet Controllable Timer,

System Integration, Remote Power Control in Remote locations ………….. etc.

User Friendly . Convenience & Powerful ,

- 6 -

Product Overview

Features :

1. 2 ports Remote power controller for power On, Off and Reboot by the magnetic Latching

Relay ( See note )

2. 2 Buttons Control : Direct manual hardware control each outlet without working on Web

browser .

3. 2 Network ports ( RJ45) : one for Internet and another for HUB ( by pass)

4. Current meter for total Amp ( 2 ports total ) .

5. Web Server built-in design, directly control by web browser in Windows , Android or

iOS system like Internet Explore (IE) , Google Chrome and so on .

6. Support HTTPS , SSL , TCP/ IP , DHCP, DDNS , SMTP , Telnet , SNMP , Modbus/TCP

and BACnet/IP .

7. Power Surge protection & FUSE embedded in .

8. SYSLOG : Support Log function & send to assign IP address

9. Time Schedule - can pre-set a suitable time to turn power on / off automatically .

10. Auto Ping for network control & segment management automatically

11. High grade components for long stability and performance

12. Back Up for quick setup for multiple devices like Time Schedule, Network Setting.

13. Support public e-mail -- @gmail.com , @yahoo.com , @hotmail. com ..........etc.

E-mail Control & Advice :

- Receive e-mail with IPs device boot up.

- POP3 Control–Control each outlet ON/OFF via E-mail. No need to do Port Forwarding .

14. Specific software developed by Aviosys and provided free of charge :

- SDK Available : HTTP Command

- Windows software “ IP Power Center “ : Control Multiple Aviosys IP Power devices

in one software

- CNT software ( Cross Network Technology )- allows user eliminate set up work on

any Router without port forwarding , simply Plug & Play .

- Support MQTT protocol.

15. Support APP for Android or iOS system :

- Android APP -- name “IP Power “ free download in Google Play .

-iOS APP -- name “IPPOWER+ “ free download in Apple App Store

Specification

- 7 -

⚫Power input : 15A / 90-120VAC , 10A / 210-240VAC , 50-60Hz.

⚫Maximum loading of each output: 10Amp

⚫Maximum of Total loading : 10Amp

⚫Fuse protection : 10Amp

⚫Dimensions: 200 x 140 x 35 mm ( L x W x H )

⚫Weight: g

⚫Enclosure –Matel case in deep Gray color

⚫Operation Temperature : -10 ~ 60 ℃or 14 ~104(℉)

⚫Note : Use the magnetic “Latching Relay “(a KEEP relay ) , operation temperature

can go up to 85°C (185 °F) with MTBF 100K times , longer electrical life

expectancy . It keeps device operating temperature at low state and maintain there

without going higher even all 4 port at ON state simultaneously , plus lower power

consumption forenergy savings purpose. When power is turned OFF, all contacts

are available for other circuit functions and maintains its position, the circuit will be

in the same state when power is turned ON again.

Minimum System Requirements

⚫Network & Web Browser & Internet Connection

⚫Ethernet Cable & Power Cord

Package Contents

⚫9828 Unit

⚫Online CD note : www.aviosys.com/cd

- 8 -

Interface Description

Outlook

Front :

Switch 1& 2 for

Buttons Control outlets

The two buttons are for emergency safety switch

The default function is Toggle ( Switch ON / OFF ) .

But the buttons function can be setup as 6 modes :

OFF, ON, Shut down on Lan , Wake on Lan , Toggle or

None .

Disable , . Please go to webpage “I/O Control “→

“Control “→“Advanced ”→“Emergency safety switch

setting ”

Main Net 1

LAN 10/100 Mbps network for Internet

Net 2

HUB for bypass the signal of Net 1 ( LAN 10/100 Mbps network )

LED 1 & 2

Display the 2 outlets as ON or OFF

Back :

Outlet 1 & 2

IEC320 ,

Maximum Current : 10Amp ( for total two ports / single port )

Power input

15A / 90-120VAC , 10A / 210-240VAC , 50-60Hz.

Power Switch

Turn ON / OFF the power of 9828 devices.

Right Side :

Reset

Please keep pressing the button for 7 seconds and then

release .You will hear 3 short beep sound which show the reset

Successfully . After reset , all the settings , like IP, password and

so on , will be back to Default .

Setting up your device

Before Starting

*Before setting up the device make sure of the following:

1.) All the package contents are all included if anything is missing please contact the dealer

where the device was purchased from.

2.) Check the power input cable is working correctly.

3.) Check all cables to make sure there are no problems with it.

- 9 -

Hardware Connection

Before hardware connection, please make sure that there is no more than 2 net

work card ( include dynamic network card ) . If there are morn than two network

card in your PC. You may not get the IP address of 9828

The default setting of 9828 `s IP is by DHCP assigned by Router. The connection sequence is

different as connect to Router or connect to PC directly. Please refer following procedure :

A. 9828 ------- Router ------- PC ( with Web browser )

1.) Connect the Ethernet cable (RJ45) to the 9828 to your local area network.

2.) Then connect the power cable into the power input port of the 9828.

3.) Connect the device that you would like to control to the output plug on the top of the 9828.

4.) Switching the power source to ON status , this switch is located at the rear of 9828.

5.) After power on for around 45 seconds , there is a short beep sound for 9828 which means

the system reboot successfully

B. 9828 ------------- PC ( with Web browser )

If you select to connect to PC directly , please connect the RJ45 cable to 9828 after 1 minutes as

power on of the 9828 device . power hear the beep sound of 9828 DO NOT connect the RJ45 as

power ON

If you select to connect to you PC to 9828 directly :

1.) Connect the power cable to 9828 and press the power switch to ON

2.) After 9828 power on for around 45 seconds , there is a short beep sound for 9828 which

means the system reboot successfully

3.) Then Connect the Ethernet cable (RJ45) to the 9828 to your PC.

6.) Execute the software IPEDIT.exe to get the IP as 192.168.1.169

7.) Please make sure the IP address of you PC is also 192.168.1.X / XX/XXX or you may not

- 10 -

Software Installation

Please go to our webpage www.aviosys.com/cd to get the software and manual of your product.

Under windows system, we offer two software :

1. IP Edit ( Required to search IP address )

2. IP Power Center ( For multiple IP Power devices control purpose )

Download the required software –IPEdit.exe - by clicking on the download button.

Network Connecting by LAN

LAN connect by IP search software “ IPEDIT “

IP Edit is a search tool designed to search, configure, or access the IP Power 9828 from a local

network computer.

IP Power 9828 Default Login / Password

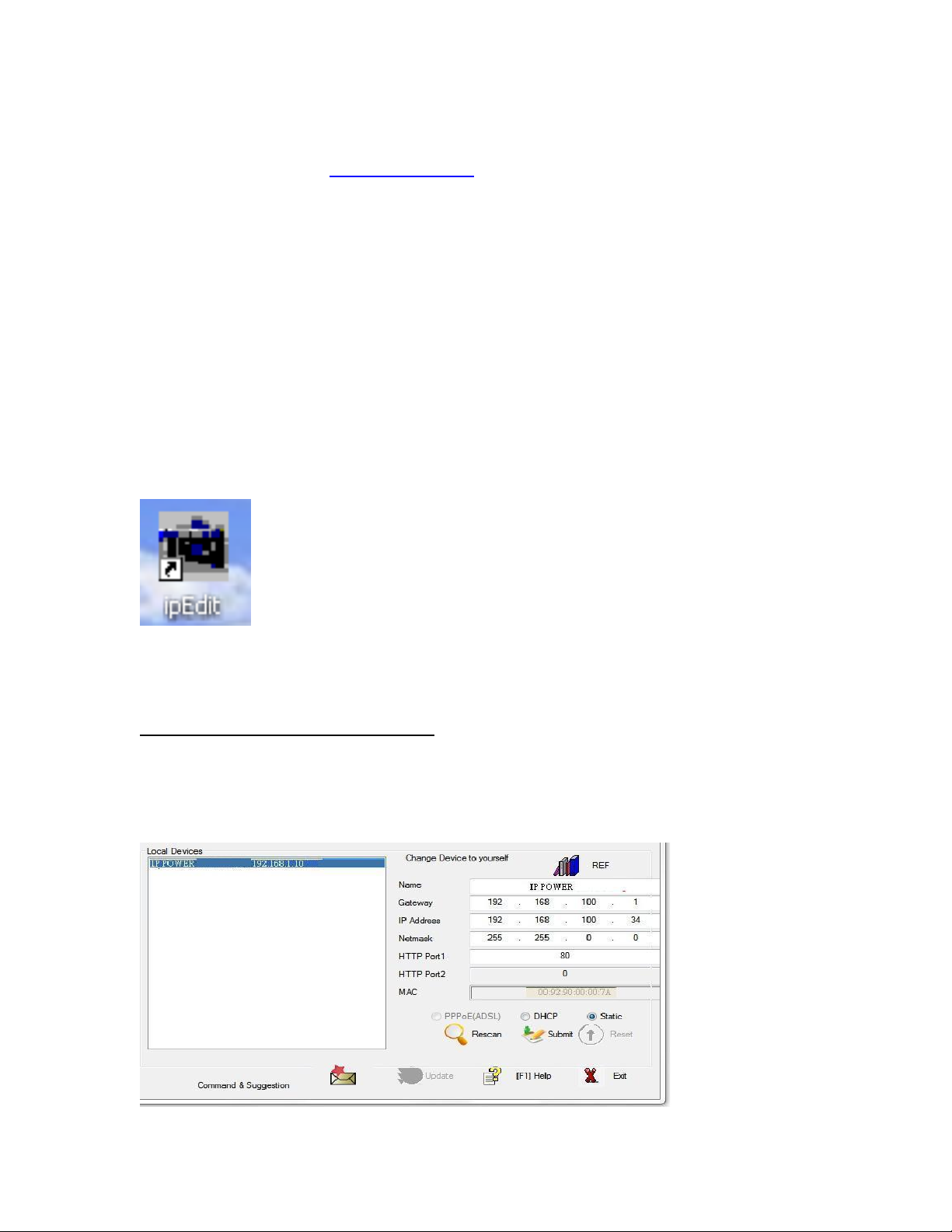

Please use our IP Search tool “IPEDIT.exe “ to get the IP address of 9828 .

1.) In the local devices section user will see user device shows up if connection is correct.

Andere Handbücher für 9258

Inhaltsverzeichnis

Andere IP Power Schalten Handbücher

IP Power

IP Power 9828-P Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
