READ & SAVE THESE INSTRUCTIONS

Heavy-Duty Demolition Breaker Hammer

Owner’s Manual

WARNING: Read carefully and understand all ASSEMBLY AND OPERATION

INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety

precautions may result in serious personal injury.

Item #61475

Page 2 of 19

Thank you very much for choosing an Ironton™product!

For future reference, please complete the owner’s record below:

Serial Number/Lot Date Code: ________________________________

Purchase Date: ____________________________________________

Save the receipt, warranty, and this manual. It is important that you read

the entire manual to become familiar with this product before you begin

using it.

This breaker hammer is designed for certain applications only. Northern

Tool and Equipment is not responsible for issues arising from

modification or improper use of this product such as an application for

which it was not designed. We strongly recommend that this product not

be modified and/or used for any application other than that for which it

was designed.

For technical questions, please call 1-800-222-5381.

Page 3 of 19

Table of Contents

Intended Use..........................................................................................................................................4

Packaging Contents..............................................................................................................................4

Technical Specifications......................................................................................................................4

Important Safety Information...............................................................................................................4

Specific Operation Warnings...............................................................................................................6

Grounding..............................................................................................................................................6

Extension Cords....................................................................................................................................7

Main Parts of Demolition Breaker Hammer........................................................................................9

Assembly Instructions........................................................................................................................10

Before Each Use..................................................................................................................................10

Operating Instructions........................................................................................................................11

After Each Use.....................................................................................................................................12

Maintenance ........................................................................................................................................12

Troubleshooting..................................................................................................................................13

Parts Diagram......................................................................................................................................14

Parts List..............................................................................................................................................15

Replacement Parts..............................................................................................................................17

Limited Warranty.................................................................................................................................18

Page 4 of 19

Intended Use

The Ironton Pro Demolition Hammer Kit delivers over 34 ft. lb. of impact energy to break up the

hardest surfaces. The balanced ergonomic design and a 360° side handle make it easy to switch

between vertical and horizontal applications for breaking up foundations and footings. Anti-vibration

control lets you use this lower wall breaker hammer longer with less fatigue.

Packaging Contents

Hammer

Handle

2 Chisels

Owner’s Manual

Technical Specifications

Property

Specification

Motor

110V, 60Hz, 15A

Impact Energy

55 J

Impact Rate

1,400 BPM

Important Safety Information

⚠WARNING

Read and understand all instructions. Failure to follow all instructions may result in serious injury

or property damage.

The warnings, cautions, and instructions in this manual cannot cover all possible conditions or

situations that could occur. Exercise common sense and caution when using this tool. Always be

aware of the environment and ensure that the tool is used in a safe and responsible manner.

Do not allow persons to operate or assemble the product until they have read this manual and

have developed a thorough understanding of how it works.

Do not modify this product in any way. Unauthorized modification may impair the function and/or

safety and could affect the life of the product. There are specific applications for which the product

was designed.

Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger

industrial equipment. There are certain applications for which this equipment was designed. This

product will be safer and do a better job at the capacity for which it was intended. DO NOT use

this equipment for a purpose for which it was not intended.

Industrial or commercial applications must follow OSHA requirements.

⚠WARNING

WORK AREA SAFETY

Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.

Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas

Page 5 of 19

may put you dangerously close to cutting tools and rotating parts.

Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence

of flammable liquids, gases, or dust. The product can create sparks, which may ignite the

flammable liquids, gases, or dust.

Do not allow the product to come into contact with an electrical source. The tool is not insulated

and contact will cause electrical shock.

Keep children and bystanders away from the work area while operating the tool. Do not allow

children to handle the product.

Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your

work area. Some of these hazards may be hidden from your view and may cause personal injury

and/or property damage if contacted.

⚠WARNING

PERSONAL SAFETY

Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use

the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of

inattention while operating the tool may result in serious personal injury.

Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing

and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving

parts. Air vents on the tool often cover moving parts and should be avoided.

Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety

goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in

dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,

and hearing protection when appropriate. This applies to all persons in the work area.

Do not overreach. Keep proper footing and balance at all times.

Remove keys or wrenches before connecting the tool to an air supply, power supply, or turning on

the tool. A wrench or key that is left attached to a rotating part of the tool may cause personal

injury.

Secure the work with clamps or a vise instead of your hand when practical. This safety precaution

allows for proper tool operation using both hands.

⚠CAUTION

DEMOLITION BREAKER HAMMER USE AND CARE

Do not force the hammer. Products are safer and do a better job when used in the manner for

which they are designed. Plan your work, and use the correct product for the job.

Check for damaged parts before each use. Carefully check that the product will operate properly

and perform its intended function. Replace damaged or worn parts immediately. Never operate the

product with a damaged part.

Do not use a product with a malfunctioning switch. Any power tool that cannot be controlled with

the power switch is dangerous and must be repaired by an authorized service representative

Page 6 of 19

before using.

Disconnect the power/air supply from the product and place the switch in the locked or off position

before making any adjustments, changing accessories, or storing the tool. Such preventive safety

measures reduce the risk of starting the tool accidentally.

Store the hammer when it is not in use. Store it in a dry, secure place out of the reach of children.

Inspect the tool for good working condition prior to storage and before re-use.

Use only accessories that are recommended by the manufacturer for use with your product.

Accessories that may be suitable for one product may create a risk of injury when used with

another tool. Never use an accessory that has a lower operating speed or operating pressure than

the tool itself.

Keep guards in place and in working order. Never operate the product without the guards in place.

Do not leave the tool running unattended.

Specific Operation Warnings

⚠WARNING

To reduce the risk of injury always wear eye protection

Wear ear protection with Hammer. Exposure to noise can cause hearing loss.

Wear heavy duty anti vibration gloves.

Be sure the bit is secured in place before operation.

Hold power tools by insulated gripping surfaces, when performing an operation where the cutting

tool may contact hidden wiring or its own cord.

When drilling or screwing into walls, ceilings, etc., make sure beforehand that you will not damage

any hidden electric cables. During this work you should not touch any metal parts of the machine;

only touch the machine by the plastic housing.

Always be sure you have a firm footing.

Hold the tool firmly with both hands.

Be sure no one is below you when using the tool in high locations.

Do not point the tool at anyone in the area when operating. The bit could fly out and seriously

injure someone.

Burn hazard. Do not touch the bit or parts close to the bit immediately after operation; they will be

extremely hot.

Grounding

⚠WARNING

This machine must be grounded while in use to protect the operator from electrical shock. This

unit is equipped with an electrical cord that has an equipment grounding conductor and a

grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed

Page 7 of 19

and grounded in accordance with ALL local codes and ordinances.

DO NOT MODIFY THE PROVIDED PLUG. If it will not fit the receptacle, have the proper

receptacle installed by a qualified electrician.

CHECK with a qualified electrician or service person if you do not completely understand the

grounding instructions, or if you are not sure the tool is properly grounded.

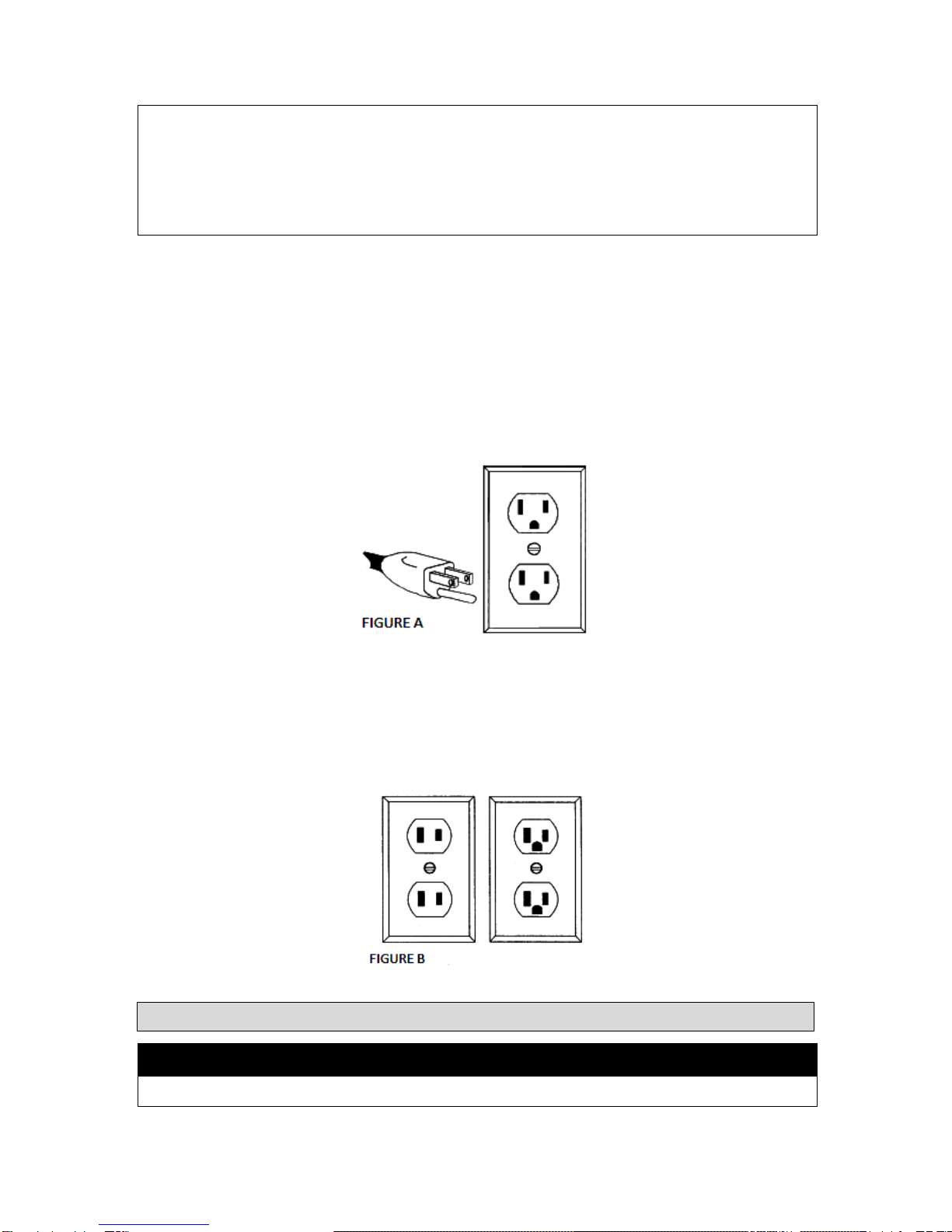

Grounded Tools: Tools with 3-Prong Plugs

Tools marked with Grounding Required have a 3-wire cord and 3-prong grounding plug. The plug

must be connected to a properly grounded outlet. If the tool should electrically malfunction or break

down, grounding provides a low resistance path to carry electricity away from the user, reducing the

risk of electric shock. (See Figure A.)

The grounding prong in the plug is connected through the green wire inside the cord to the grounding

system in the tool. The green wire in the cord must be the only wire connected to the tool’s grounding

system and must never be attached to an electrically live terminal.

Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance

with all codes and ordinances. The plug and outlet should look like those in the following illustration.

Double Insulated Tools: Tools with Two-Prong Plugs

Tools marked Double Insulated do not require grounding. They have a special double insulation

system which satisfies OSHA requirements and complies with the applicable standards of

Underwriters Laboratories, Inc., the Canadian Standard Association, and the National Electrical Code.

(See Figure B.)

Double insulated tools may be used in either of the 120 volt outlets shown in the following illustration.

Extension Cords

⚠WARNING

USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When

Page 8 of 19

using an extension cord, be sure to use one heavy enough to carry the current your product will

draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause

overheating.

Be sure your extension cord is properly wired and in good condition. Always replace a damaged

extension cord or have it repaired by a qualified person before using it. Protect your extension

cords from sharp objects, excessive heat and damp or wet areas.

Grounded tools require a 3-wire extension cord. Double Insulated tools can use either a 2- or 3-

wire extension cord.

As the distance from the supply outlet increases, you must use a heavier gauge extension cord.

Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in

loss of power and possible tool damage.

The smaller the wire’s gauge number, the greater the capacity of the cord. For example, a 14-

gauge cord can carry a higher current than a 16-gauge cord. Minimum extension cord wire size is

shown in the following table:

Minimum Wire Size Of Extension Cords

Nameplate AMPS

Cord Length

25'

50'

100'

150'

0-6

18 AWG

16 AWG

14 AWG

6-10

18 AWG

16 AWG

14 AWG

12 AWG

10-12

16 AWG

14 AWG

12 AWG

12-16

14 AWG

12 AWG

NOT RECOMMENDED

When using more than one extension cord to make up the total length, make sure each cord

contains at least the minimum wire size required.

If you are using one extension cord for more than one tool, add the nameplate amperes and use

the sum to determine the required minimum cord size.

If you are using an extension cord outdoors, make sure it is marked with the suffix W-A (Win

Canada) to indicate it is acceptable for outdoor use.

Make sure your extension cord is properly wired and in good electrical condition. Always replace

a damaged extension cord or have it repaired by a qualified electrician before using it.

Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.

Page 9 of 19

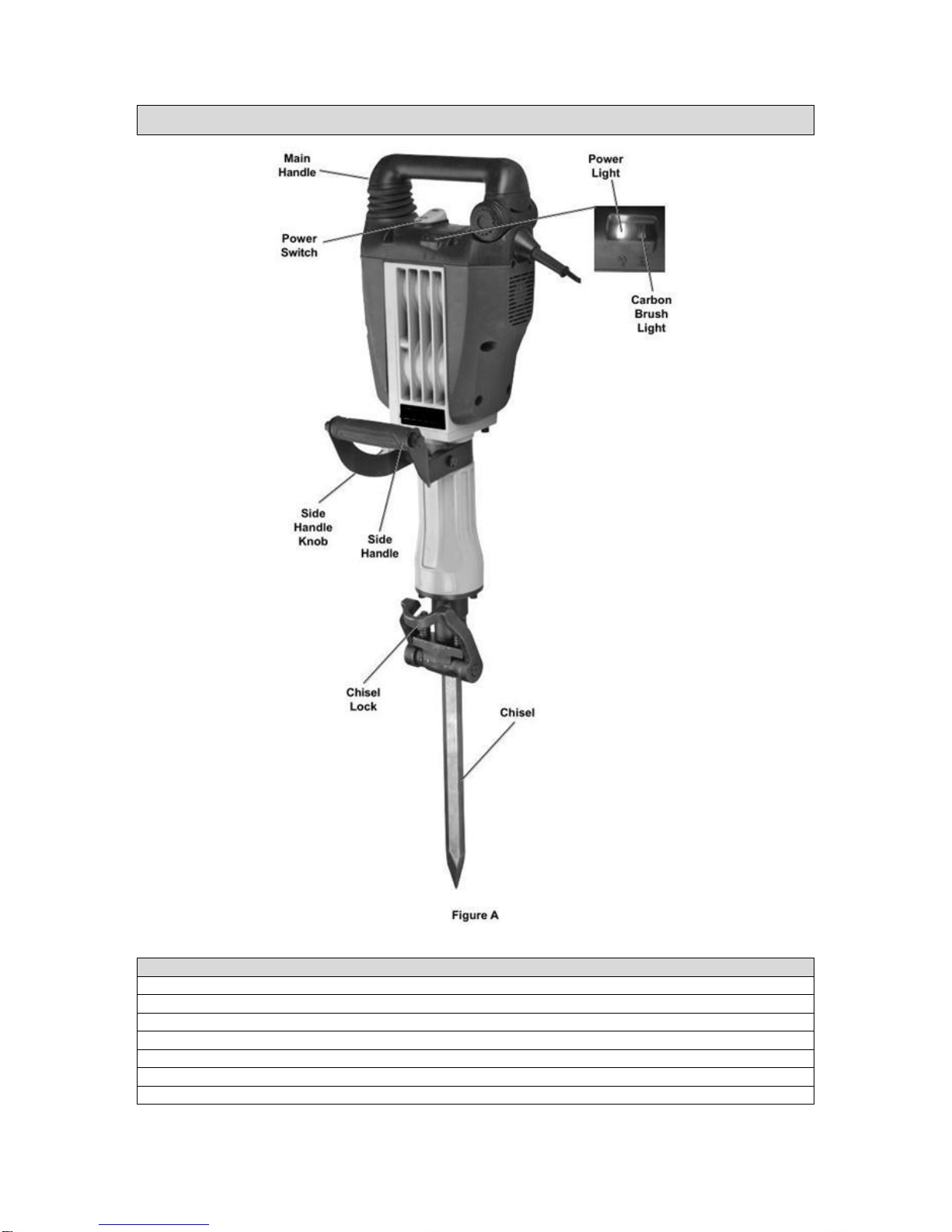

Main Parts of Demolition Breaker Hammer

Subassembly

Main Handle

Power Switch

Power Light

Side Handle Knob

Side Handle

Chisel Lock

Chisel

Page 10 of 19

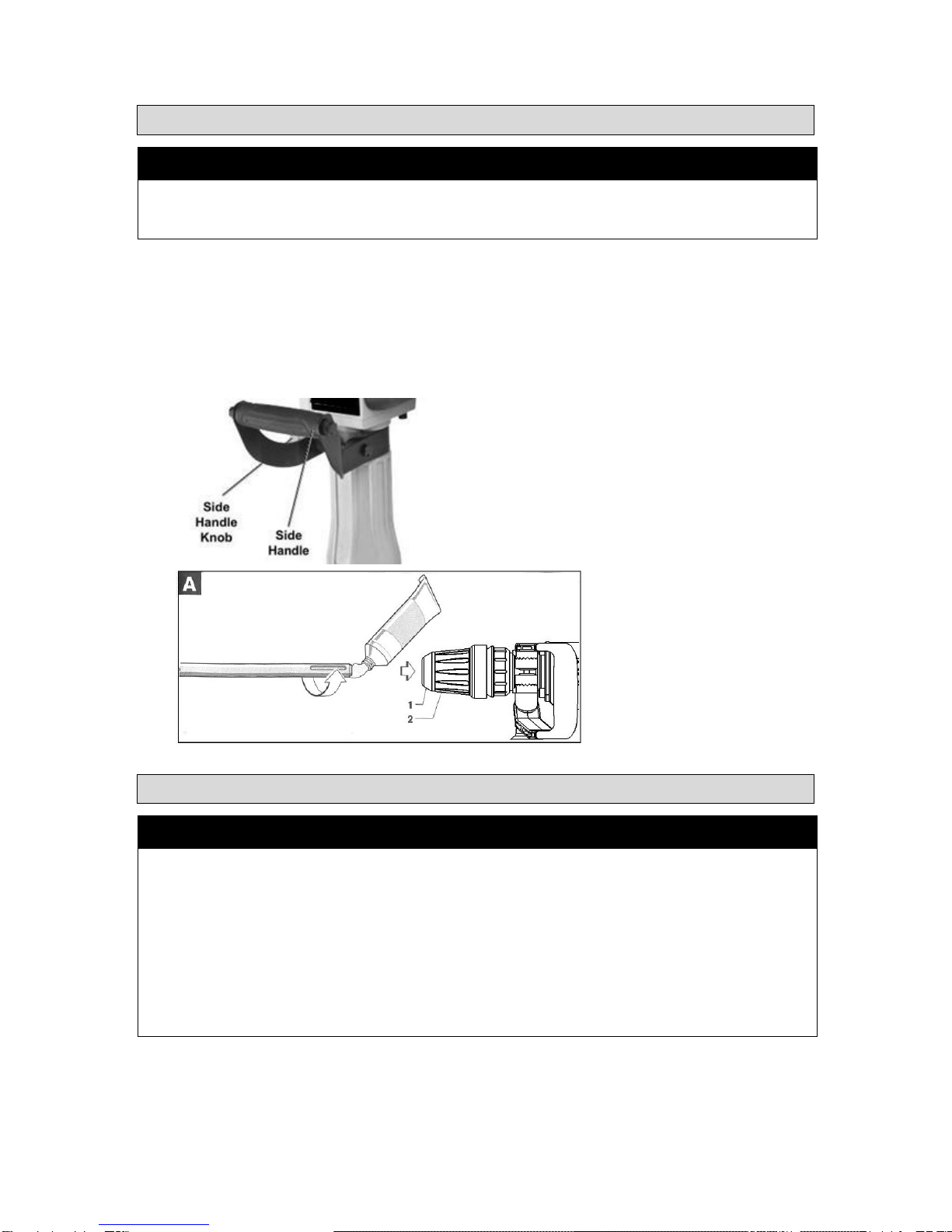

Assembly Instructions

⚠WARNING

Make sure that the trigger is in the OFF position and unplug the hammer from its electrical outlet

before performing any procedure in this section.

Adjusting the Side Handle

1. Loosen the side handle knob.

2. Twist the side handle into the desired position.

3. Tighten the side handle knob.

Before Each Use

⚠WARNING

Be sure the bit is secured in place before operation.

When drilling or screwing into walls, ceilings, etc., make sure beforehand that you will not damage

any hidden electric cables. During this work you should not touch any metal parts of the machine;

only touch the machine by the plastic housing.

Be sure no one is below you when using the tool in high locations.

Always remove the plug from the power source before installing or removing a bit or accessory

from the chuck.

Inhaltsverzeichnis

Andere Ironton Krafthammer Handbücher

Ironton

Ironton 45998 Bedienungsanleitung

Beliebte Krafthammer Handbücher anderer Marken

Kraissmann

Kraissmann 2000 AH 45 Bedienungsanleitung

Sumake

Sumake ST-2212/R Bedienungsanleitung

Makita

Makita HM1214C Bedienungsanleitung

Sumake

Sumake ST-2231/R Bedienungsanleitung

Stanley

Stanley STHM10 Bedienungsanleitung

RODCRAFT

RODCRAFT RC5030 Bedienungsanleitung

Villager

Villager VLN 1315 Bedienungsanleitung

Hitachi

Hitachi H 65SC Bedienerhandbuch

Hitachi

Hitachi H 65SB2 Bedienungsanleitung

socomec

socomec MDO 6000 TS Stücklistenhandbuch

Hitachi

Hitachi H 45MR Handbuch

Atlas Copco

Atlas Copco PB 6S Einrichtungshandbuch

Pattfield Ergo Tools

Pattfield Ergo Tools PA-1700SH Bedienungsanleitung

Coleman

Coleman Powermate 024-0075SP Bedienungsanleitung

Makita

Makita HR3210C Kurzanleitung

WilTec

WilTec JH95A Bedienungsanleitung

Master

Master MH 10-SE Bedienungsanleitung

Stark

Stark RH 1300 DB Bedienungsanleitung
