Installation Instructions and

Homeowner’s Manual

INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

Freestanding

Direct Vent

Fireplaces

IRFSDV24

IRFSDV34

10004000

0102 Rev. 0

WARNING!

IF THE INFORMATION IN THIS

MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE OR EXPLOSION

MAY RESULT CAUSING PROPERTY

DAMAGE, PERSONAL INJURY

OR LOSS OF LIFE.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE.

INSTALLER/CONSUMER

SAFETY INFORMATION

PLEASE READ THIS MANUAL

BEFORE INSTALLING AND

USING APPLIANCE

Installation and service must

be performed by a qualified in-

staller, service agency or

the gas supplier.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier

from your neighbor's phone. Follow

the gas suppliers instructions.

• If you cannot reach your gas

supplier call the fire department.

410 Admiral Blvd. Mississauga,

Ontario, Canada. L5T2N6

www.majesticproducts.com / www.vermontcastings.com

The VermontCastings,

Majestic Products Company

Irving Oil

10004000

Installation Instructions ................................................................................................................3

Important Curing/Burn Information.....................................................................................3

Locating Your Fireplace .................................................................................................... 3

Clearance to Combustibles ................................................................................................3

Fireplace Dimensions.........................................................................................................4

Gas Specifications .............................................................................................................5

Preparation......................................................................................................................... 5

Gas Line Installation...........................................................................................................5

Installation of Remote Switch for RN/RP gas valve ...........................................................6

General Venting Information.........................................................................................................7

Termination Clearance.......................................................................................................8

General Information on Assembling Vent Pipes ................................................................9

Vertical Sidewall Installations...........................................................................................10

Vertical Sidewall Applications ..........................................................................................10

Sidewall Venting Graph....................................................................................................11

Vent Pipe Assembly .........................................................................................................12

Below Grade Installations (Snorkel).................................................................................13

Vertical Through-the-Roof Applications ...........................................................................14

Venting Components...................................................................................................................16

Crimped End ....................................................................................................................16

Twist Lock ........................................................................................................................17

Operating Instructions ................................................................................................................18

General Glass Information ...............................................................................................18

Window Frame Assembly Removal .................................................................................18

Glass Cleaning.................................................................................................................18

Log Set & Lava Rock Material Installation .......................................................................18

Maintenance.....................................................................................................................19

Cleaning Procedures........................................................................................................19

Flame Adjustment & Characteristics ................................................................................19

Fan FK24 .........................................................................................................................20

Optional Remote Control..................................................................................................21

Optional Gold Trim Kit......................................................................................................21

Optional Frame Window Trim Kits ...................................................................................21

Lighting Instructions .........................................................................................................22

RFN/RFP Remote Control Instructions ..............................................................................23

Trouble Shooting the Gas Control System.........................................................................25

Replacement Parts.......................................................................................................................26

Replacement Parts Pictorial............................................................................................ 28

PLEASE READ

THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.

Thank you and congratulations on your purchase of a Irving Oil fireplace.

IMPORTANT: Read all instructions and warnings carefully before starting installation.

Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

TABLE OF CONTENTS

Irving Oil

10004000

A - *Flat on wall B - *Room divider C - Island

D - Cross corner E - Flat on wall corner

* A & B must maintain a 12” (305 mm) clearance between the wall and

side glass of fireplace.

There is a minimum vertical rise required for the

venting which varies depending on the application.

The maximum horizontal run also has restrictions.

Becomefamiliarwiththeventinginstructionsstarting

on page 9, before starting the installation.

This gas fireplace should be installed by a qualified

installer in accordance with local building codes and with

current CSA-B149 (.1 or .2) Installation codes for Gas

Burning Appliances and Equipment. For USA Installations

follow local codes and/or the current National Fuel Gas

Code. ANSI Z223.1. If the unit is being installed in a

mobile home the installation should comply with the

current CAN/USA Z240.4 Code.

FOR SAFE INSTALLATION AND OPERATION PLEASE

NOTE THE FOLLOWING:

1 . This fireplace gives off high temperatures and should

be located out of high traffic areas and away from

furniture and draperies.

2. Children and adults should be alerted to the hazards

of fireplace high surface temperatures and should

stay away to avoid burns or ignition of clothing.

3. CAUTION: Due to high glass surface temperature

children should be carefully supervised when in

the same room as fireplace.

4. Under no circumstances should this fireplace be

modified. Parts removed for servicing should be

replaced prior to operating this fireplace again.

5. Installation and any repairs to fireplace must be

performed by qualified installer, service agency or gas

supplier. A professional service person should be

contacted to inspect fireplace annually. More frequent

cleaning may be required due to excess lint and dust

from carpeting, bedding material, etc.

6. Control compartments, burners and air passages in

this fireplace should be kept clean and free of dust

and lint. Make sure that the gas valve and pilot light

are turned off before you attempt to clean this

fireplace.

7. The venting system (chimney) of this fireplace should

be checked at least once a year and if needed your

venting system should be cleaned.

Keep the area around your fireplace clear of combusti-

ble materials, gasoline and other flammable vapour

and liquids. This fireplace should not be used as a

drying rack for clothing, nor should Christmas stockings

or decorations be hung on or around the fireplace.

9. Under no circumstances should any solid fuels (wood,

coal, paper or cardboard etc.) be used in this

fireplace.

10. The flow of combustion and ventilation air must not be

obstructed in any way.

11. When the fireplace is installed directly on carpeting,

vinyl tile or any combustible material other than wood,

this fireplace must be installed on a metal or wood panel

extending the full width and depth of the fireplace.

12. This fireplace requires adequate ventilation and

combustion air to operate properly.

13. This fireplace must not be connected to a chimney flue

serving a separate solid fuel burning fireplace.

14. When the fireplace is not in use it is recommended

that the gas control valve be left in the OFF position.

IMPORTANT:

PLEASE REVIEW THE FOLLOWING CAREFULLY

Remove any plastic from parts before turning the

fireplace ON.

It is normal for fireplaces fabricated of steel to give

off some expansion and/or contraction noises

during the start up or cool down cycle. Similar

noises are found with your furnace heat exchanger

or car engine. It is not unusual for your gas fireplace

to give off some odor the first time it is burned. This

is due to the curing of the paint and any undetected

oil from the manufacturing process.

Please ensure that your room is well ventilated-

open all windows.

It is recommended that you burn your fireplace for

at least ten (10) hours the first time you use it. If the

optional fan kit has been installed, place the fan

switch in the “OFF” position during this time.

INSTALLATION & OPERATING INSTRUCTIONS

LOCATING YOUR FIREPLACE

Fig. 1

Adequate clearances as listed below must be main-

tained for servicing and proper operation.

Back.................................... 0”

Side..................................... 12”

Floor.................................... 0”

Top...................................... 36”

Corner................................ 0” to Back Edges

Vent Pipe............................ 1”

CLEARANCE TO COMBUSTIBLES

12" (305mm)

Irving Oil

10004000

IRFSDV24 IRFSDV34

A 23 in (584 mm) A 26-14 in (667 mm)

B 28-3/4 in (730 mm) B 31-1/2 in (800 mm)

C 16-5/8 in (422 mm) C 19-3/8 in (492 mm)

D 27-3/8 in (695 mm) D 30 in (762 mm)

E 9-1/2 in (241 mm) E 10 in (254 mm)

F 13-7/8 in (352 mm) F 15-1/2 in (394 mm)

G 4 in (102 mm) G 4-1/2 in (114 mm)

H 23 in (584 mm) H 26-1/4” (667 mm)

I 11-1/2 in (292 mm) I 13-1/8 “ (334 mm)

J 16-5/8 in (422 mm) J 19-1/2” (495 mm)

K 6” (152 mm) K 6-3/8 in (162 mm)

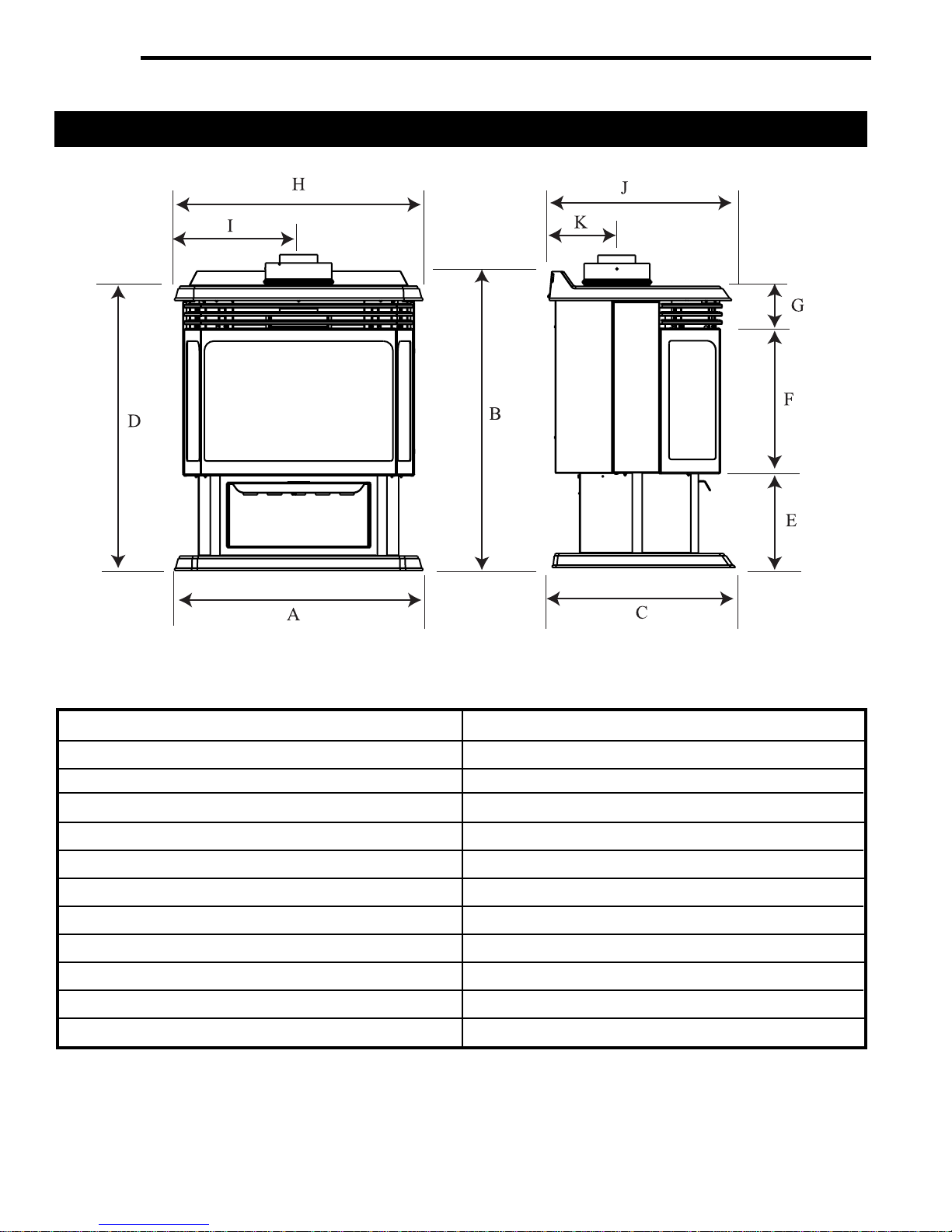

FIREPLACE DIMENSIONS

Irving Oil

10004000

Max. Max.

Input Input

Model Fuel Gas Control BTU/h BTU/h

IRFSDV24RN Nat Millivolt Hi/Lo 20,000 14,000

IRFSDV24RP Prop Millivolt Hi/Lo 20,000 15,000

IRFSDV34RFN Nat Radio Frequency 30,000 21,000

IRFSDV34RFP Prop Radio Frequency 30,000 22,500

Natural LP (Propane)

Input Minimum 5.5” wc 11” wc

Input Maximum 14” wc 13” wc

Manifold Pressure 3.5” wc 10” wc

1/2" Gas Supply

1/2" X 3/8" Reducer

3/8" Nipple

3/8" X 3/8" Shut Off Valve

3/8" Union

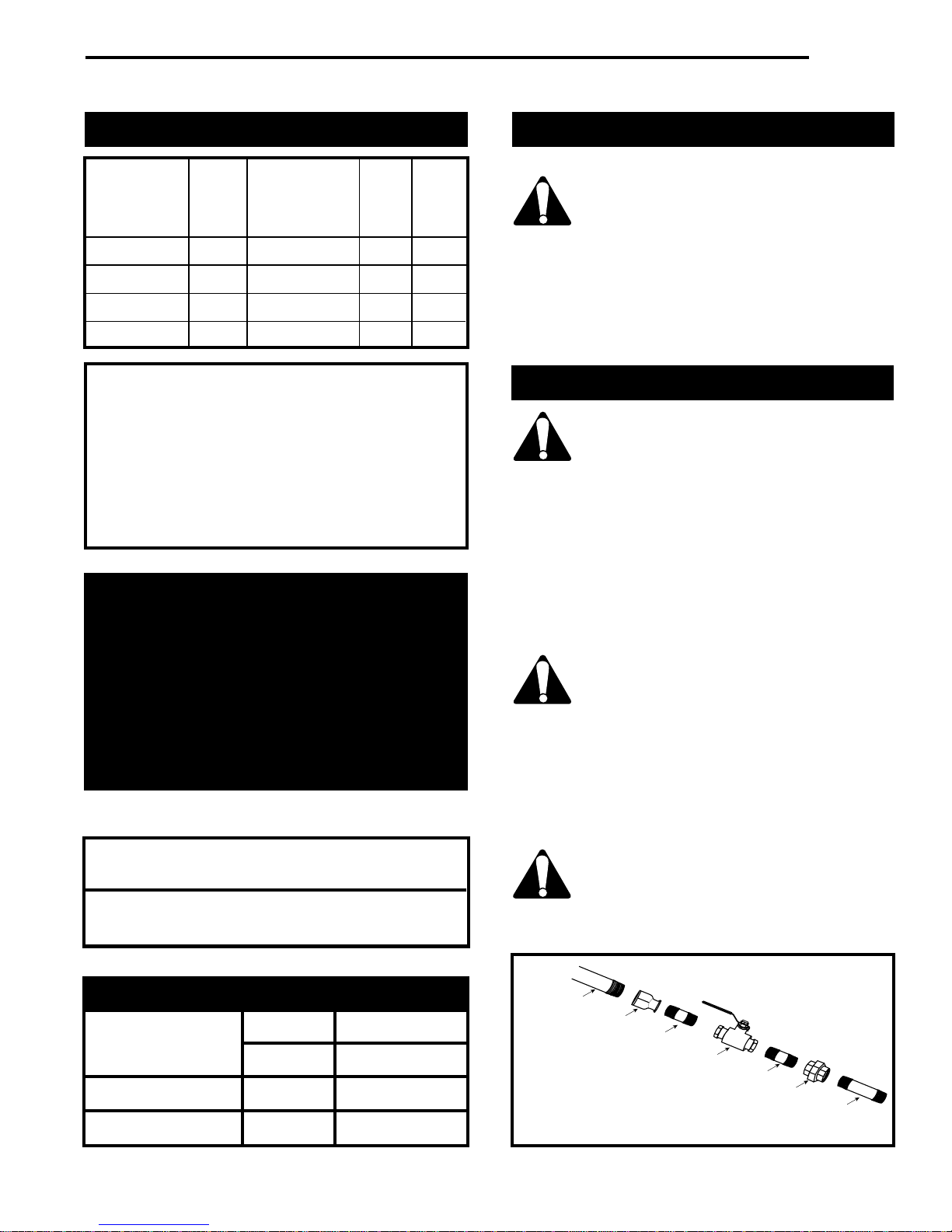

TYPICAL GAS LINE CONNECTION

GAS SPECIFICATIONS

IRFSDV24/IRFSDV34

CERTIFIED TO

ANSI Z21.88b-1999 / CSA 2.33b-M99

Vented Gas Fireplace Heaters

GAS INLET AND MANIFOLD PRESSURES

PREPARATION

GAS LINE INSTALLATION

The use of wall paper adjacent to this

fireplace is not recommended, as the

high heat given off by this fireplace may

adversely affect the binders in the

adhesive used to apply the wallpaper.

Before beginning, remove the window frame assembly

from the fireplace. Also check to make sure there is not

hidden damage to the fireplace. Take a minute and

plan out the gas, vent and electrical supply. See

Window Frame Assembly Section.

When purging the gas line, the front

glass must be removed.

The gas pipeline can be brought in through the rear of

the fireplace as well as the bottom. Opening is provided

on the bottom behind the valve to allow for the gas pipe

installation and testing of any gas connecion. It is most

convenient to bring the gas line in from the rear right

side of the valve, as this allows fan installation or

removal without disconnecting the gas line.

The gas line connection can be made

with properly tinned 3/8” copper tubing,

3/8” rigid pipe or an approved flex con-

nector. Since some municipalities have

some additional local codes, it is always

best to consult your local authority and

the CSA-B149 (.1 or .2) installation code.

For USA Installations consult the current

National Fuel Gas Code, ANSI Z223.1.

Always check for gas leaks with a mild

soap and water solution. Do not use an

open flame for leak testing.

The gas control is equipped with a

captured screw type pressure test point,

therefore it is not necessary to provide a

1/8” test point up stream of the control.

This appliance may be installed in an aftermarket

permanently located, manufactured (mobile) home,

where not prohibited by local codes.

This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is not

convertible for use with other gases, unless a

certified kit is available and used.

Fig. 2

Input ratings are shown in BTU per hour and

are certified without deration for elevations up

to 4,500 feet (1,370 m) above sea level.

For elevations above 4,500 feet (1,370 m) in

USA, installations must be in accordance with

the current ANSI Z223.1 and/or local codes

having jurisdiction.

In Canada, please consult provincial and/or

local authorities having jurisdiction for install-

ations at elevations above 4,500 feet (1,370 m).

CFM186

Irving Oil

10004000

The remote ON/OFF switch can not be fitted to units

using the Honeywell Radio Frequency control valve.

If the fireplace has been fitted with the Radio

Frequency Control Valve, the ON/OFF function is

controlled by the remote handset. (See the Comfort

Control Valve Operating Instruction Section).

Install on/off switch assembly on either the rear right or

left side of the Fireplace.

1. Remove the screw at the back of the cabinet top

either on the left or the right side of the fireplace.

2. Position switch assembly onto the back of the

fireplace, then fasten two screws as shown in Fig. 5.

3. Attach wiring under the clips on the rear casing

(Fig. 5) and install wiring through the rear opening

of the fireplace before connecting to the valve as

shown in Fig. 4.

When using copper or flex connector use only ap-

proved fittings. Always provide a union when using

black iron pipe so that gas line can be easily

disconnected for burner or fan servicing (see Fig. 2)

See gas specification for pressure details and ratings.

The fireplace valve must not be

subjected to any test pressures

exceeding 1/2 psi. Isolate or disconnect

this or any other gas appliance control

from the gas line when pressure testing.

INSTALLATION OF REMOTE

SWITCH FOR RN/RP GAS VALVE

Fig. 4

PILOT

ADJ

Screw

(through existing hole)

Screw

On/off switch

assembly

Clips

Wiring for milli-volt

gas valves

Fig. 5

TPTH TP TH

ON/OFF SWITCH OR

MILLIVOLT THERMOSTAT

VALVE

THERMOPILE

Irving Oil

10004000

Canadian Installations US Installations

A = Clearance above grade, veranda, porch, 12 inches (30cm) 12 inches (30 cm)

deck, or balcony

B =

Clearance to window/door that may be opened

6 in (15cm) for appliances<10,000 Btuh

6 in (15cm) for appliances < 10,000

(3kW), 12 in (30cm) for appliances >

Btuh (3kW), 9 in (23cm) for appliances

10,000 Btuh (3kW) and < 100,000 Btuh > 10,000 Btuh (3kW) and < 50,000

(30kW), 36 in (91cm) for appliances > Btuh (15kW), 12 in (30cm) for appli-

100,000 Btuh (30 kW) ances > 50,000 Btuh (15kW)

C = Clearance to permanently closed window

D = Vertical clearance to ventilated soffit

located above the terminal within a hori- 18” (458 mm) 18” (458 mm)

zontal distance of 2 feet (610mm) from the

center line of the terminal

E = Clearance to unventilated soffit 12” (305 mm) 12” (305 mm)

F = Clearance to outside corner see next page see next page

G = Clearance to inside corner see next page see next page

H = Clearance to each inside of center line

extended above meter/regulator assembly

I = Clearance to service regulator vent outlet 3 feet (91cm) 3 feet (91cm)

J = Clearance to non-mechanical air supply 6 in (15cm) for appliances <10,000 6 in (15cm) for appliances < 10,000

inlet to building or the combustion air inlet Btuh (3kW), 12 in (30cm) for appli-

Btuh (3kW), 9 in (23cm) for appliances

to any other appliance ances > 10,000 Btuh (3kW) and <

> 10,000 Btuh (3kW) and < 50,000 Btuh

100,000 Btuh (30kW), 36 in (91cm) for (15kW), 12 in (30cm) for appliances >

appliances > 100,000 Btuh (30 kW) 50,000 Btuh (15 kW)

K = Clearance to a mechanical air supply inlet 6 feet (1.83m) * 3 feet (91 cm) above if within

10 feet (3 m) horizontally

L = Clearance above paved sidewalk or a 7 feet (2.13m)† 7 feet (2.13m)†

paved driveway located on public property

M = Clearance under veranda, porch, deck 12 inches (30cm) ‡ 12 inches (30cm) ‡

or balcony

N= Clearance above a roof shall extend a minimum of 24” (610mm) above the highest point when it passes through the roof surface,

and any other obstruction within a horizontal distance of 18” (450mm).

1 In accordance with the current CSA-B149 Instalation Codes.

2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes.

† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single

family dwellings and serves both dwellings.

‡ Only permitted if veranda, porch, deck, is fully open on a minimum 2 sides beneath the floor.

Note: 1. Local codes or regulations may require different clearances.

2. The special venting system used on Vermont Castings Majestic Products Company’s Direct Vent Fireplaces

are certified as part of the appliance, with clearances tested and approved by the listing agency.

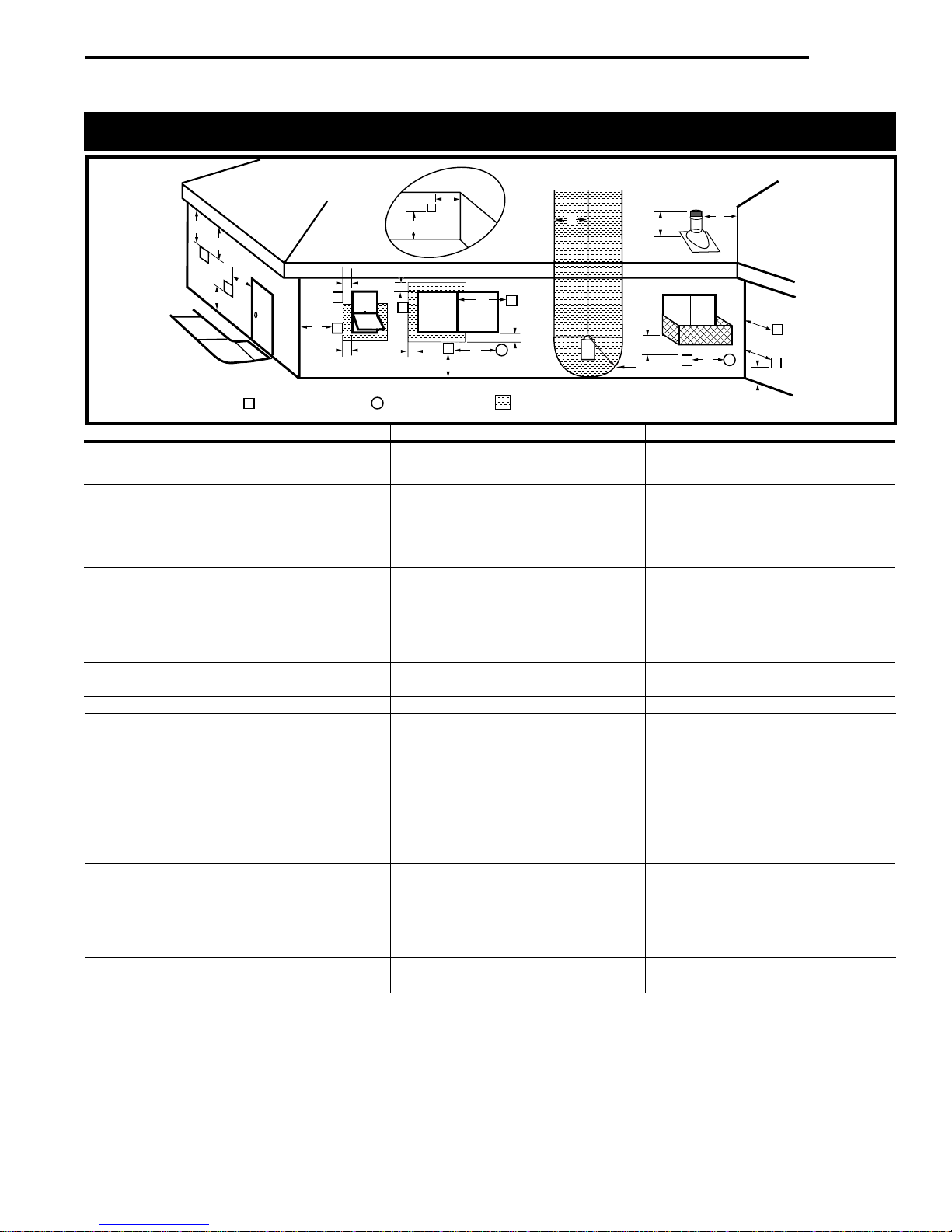

GENERAL VENTING INFORMATION–TERMINATION LOCATION

3 feet (91cm) within a height of 15

feet above the meter/regulator

assembly

3 feet (91cm) within a height of 15

feet above the meter/regulator

assembly

12 inches (305 mm) recommended to

prevent window condensation 12 inches (305 mm) recommended

to prevent window condensation

AJK

VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED

Fixed

Closed

Fixed

Closed

Operable

Operable Fixed

Closed

INSIDE

CORNER DETAIL

CFM145a

Irving Oil

10004000

584-15

Outside Corner

Inside Corner

Termination Clearances

Termination clearances for buildings with combustible and noncombustible exteriors.

A =

Combustible

6"(152mm)

Noncombustible

2"(50mm)

B =

Combustible

6"(152mm)

Noncombustible

2"(50mm)

Balcony -

with no side wall

G =

Combustible

24"(610mm)

Non-Combustible

18"(457mm)

Balcony -

with perpendicular side wall

H = 24"(610mm)

J = 20"(508mm)

Recessed Location

C = Maximum depth of 48"

(1219mm) for recessed

location.

D = Minimum width for back wall

of a recessed location.

Combustible 38"(965mm)

Noncombustible 24"(610mm)

E = Clearance from corner in

recessed location.

Combustible 6"(152mm)

Noncombustible 2"(50mm)

CDC

Combustible &

Non-Combustible

Fig. 8 Fig. 9 Fig. 10

Fig. 6 Fig. 7

Irving Oil

10004000

Before joining elbows and pipes apply a bead of high

temperature sealant to the crimped end of the elbow or

pipe. Join the pipes using a 2” (50mm) overlap and

secure the joints with three (3) sheet metal screws

(Fig. 11). Wipe off excess sealant.

There are polished brass decorative

rings available to hide the exposed

piping joints. Wrap the brass ring over

the joint fitting the stud into the notch

and tighten down the 3/8” nut.

GENERAL INFORMATION ON ASSEMBLING

THE VENT PIPES IN DIRECT VENT APPLICATIONS

CANADIAN INSTALLATIONS:

The venting system must be installed in accordance

with the current CSA-B149 (.1 or .2) installation code.

USA INSTALLATIONS:

The venting system must conform with local codes

and/or the current National Fuel Gas code ANSI

Z223.1.

Fig. 11

Screw Holes

Fig. 12

CRIMPED END PIPES TWIST LOCK PIPES

When using twist-lock pipe it is not necessary to use

sealant on the twist lock joints.

The only areas of the venting system that need to be

sealed with high temperature silicone sealant are the

collars on the fireplace and termination, and the sliding

joint of any telescopic vent section used in the system.

To join the twist lock pipes together, simply align the

beads of the male end with the grooves of the female

end, twisting the pipe until the flange on the female

end contacts the external flange on the male end.

It is recommended that you secure the joints with three

(3) sheet metal screws, however this is not mandatory

with twist lock pipe.

To make it easier to assemble the joints we suggest

putting a lubricant (Vaseline or similar) on the male

end of the twist lock pipe.

BEAD LOCATION

1" FROM CRIMPED END OF PIPE

1''

Screw Holes

NOTE: Only venting components manufactured by The Vermont Castings Majestic Products Company may be used.

Irving Oil

10004000

VERTICAL SIDEWALL APPLICATIONS

Since it is very important that the venting system

maintain its balance between the combustion air intake

and the flue gas exhaust, certain limitations as to vent

configurations apply and must be strictly adhered to.

The graph, on page 11, showing the relationship

between vertical and horizontal side wall venting will

help to determine the various lengths allowable.

Minimum clearance between vent pipes and

combustible materials is one 1” (25mm) on top, bottom

and sides unless otherwise noted.

When the vent termination exits through

foundations less than 20” below siding outcrop,

the vent pipe must flush up with the siding.

It is always best to locate the fireplace in such a

way that minimizes the number of offsets and

horizontal vent length.

The horizontal vent run refers to the total length of

vent pipe from the flue collar of the fireplace to the

face of the outer wall.

Horizontal plane means no vertical rise exists on

this portion of the vent assembly.

VERTICAL SIDEWALL INSTALLATIONS

• The maximum number of 90°elbows per side wall

installations is three (3).

• For IRFSDV24 and IRFSDV34 models the

maximum horizontal run off a minimum 12” vertical

rise is 3’ (see Fig. 15).

• If a 90˚ elbow is used in the horizontal vent run

(level height maintained) the maximum horizontal vent

length is reduced by 36 inches, (Fig. 14). This does not

apply if the 90˚ elbows are used to increase or redirect

a vertical rise (Fig. 16).

Example: According to the chart the maximum

horizontal vent length is 20’ and if a 90˚ elbow

is required in the horizontal vent it must be

reduced to 17’.

In Fig. 14, Dimension A plus B must not be

greater than 17’ (5.2m).

• The maximum number of 45°elbows permitted per

side wall installation is two (2). These elbows can be

installed in either the vertical or horizontal run.

• For each 45°elbow installed in the horizontal run,

the length of the horizontal run MUST be reduced by

18” (45cm). This does not apply if the 45°elbows are

installed on the vertical part of the vent system.

• The maximum number of elbow degrees in a system

is 270°(Fig. 13).

Example: In Figure 13

Elbow 1 = 90°

Elbow 2 = 45°

Elbow 3 = 45°

Elbow 4 = 90°

Total angular variation = 270°

Fig. 14

7.5 ft.

2286mm

A + B = 17 ft.

Fig. 16

20 FT

(610cm)

7.5FT (2286m)

PIPE STRAPS

EVERY 3'

(92cm)

PIPE STRAPS

EVERY 3'

(92cm)

FIRESTOP/ZERO

CLEARANCE SLEEVE

Fig. 13

Fig. 15

3 FT

(92cm)

IRFSDV24

x = 12”

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Irving Kamin im Innenbereich Handbücher

Irving

Irving IRHEDV32 Bedienungsanleitung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
