ISAFE MOBILE CHALLENGER 2.0 Bedienerhandbuch

CHALLENGER 2.0

Quick Start Manual

and

Safety Instructions

Schnellstartanleitung

und

Sicherheitshinweise

Template: TEMPMD01REV00 2

Document No. 1009DI02REV02

Version: 2015-02-05

i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 10

97922 Lauda-Koenigshofen

Germany

Tel. +49 9343/60148-0

info@isafe-mobile.com

www.isafe-mobile.com

English

This document contains information and safety regulations which are to be

observed without fail for safe operation of the mobile phone CHALLENGER

2.0 under the described conditions. Non-observance of this information and

instructions can have serious consequences and / or may violate regulations.

More detailed instructions on the use of the phone can be found at

www.isafe-MOBILE.com or directly at i.safe MOBILE GmbH.

Please read the manual and these safety instructions before using the

phone. In case of contradicting information, the text of these safety instruc-

tions shall apply.

In case of any doubt, the German version shall apply.

The current EC declaration of conformity, EC and IECEx certificates of con-

formity, safety instructions and manual can be found at www.isafe-

mobile.com, or requested from i.safe MOBILE GmbH.

Reservation: Technical Data is subject to change without notice. Changes,

errors and misprints may not be used as a basis for any claim for damages.

i.safe MOBILE GmbH cannot be held responsible for any data or other loss

and direct or indirect damages caused by any improper use of this phone.

Ex-Specifications

The CHALLENGER 2.0 is a mobile phone suitable for use in potentially explo-

sive atmospheres classified as Zone 2 in accordance with directives 94/9/EC

(ATEX 95) and 99/92/EC (ATEX 137).

Ex-markings

ATEX II 3G Ex ic IIC T4 Gc

EPS 14 ATEX 1 662 X

2004

Temperature range: -20 ... +60°C

Manufactured by: i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 10

97922 Lauda-Koenigshofen

Germany

English

EC Declaration of Conformity

The EC declaration can be found at the end of this manual.

Faults and Damages

If there is any reason to suspect that the safety of the phone has been com-

promised, it must be withdrawn from use and removed from any ex-

hazardous areas immediately.

Measures must be taken to prevent any accidental restarting of the phone.

The safety of the phone may be compromised, if, for example:

malfunctions occur.

the housing of the phone or the battery shows damage.

the phone has been subjected to excessive loads.

the phone has been stored improperly.

markings or labels on the phone are illegible.

It is recommended that a phone which shows or which is suspected of faults

and damages is returned i.safe MOBILE GmbH for inspection.

Ex-relevant Safety Regulations

Use of this phone assumes that the operator observes the conventional safe-

ty regulations and has read and understood manual, safety instructions and

certificate.

The following safety regulations must also be complied with:

Inside ex-hazardous areas the phone must be closed. The battery cover

has to be fixed by the two screws and the covers of the interfaces have to

be closed.

To ensure the IP-protection, it has to be ensured that all gaskets are pre-

sent and functional. The screws at the top and the bottom of the back of

the phone need to be covered by the black gaskets, so that the screw

heads are not visible. There must be no large gap between the two halves

of the housing.

The battery may only be exchanged or charged outside ex-hazardous are-

as.

English

The phone may only be charged outside ex-hazardous areas using the

appropriate charger or other equipment approved by i.safe MOBILE

GmbH.

Use only the appropriate battery type BPC02A.

It is not allowed to carry spare batteries into ex-hazardous areas.

The phone may be charged only at temperatures in between 0°C ... 45°C.

The phone must not be exposed to abrasive acids or bases.

The phone must not be taken into zones 0, 1, 20, 21 or 22.

Only accessories approved by i.safe MOBILE GmbH may be used.

Further Safety Advises

Do not touch the screen of the phone with sharp objects. Dust particles

and nails may scratch the screen. Please maintain the screen clean. Re-

move dust on the screen with a soft cloth gently, and do not scratch the

screen.

Charge the phone under indoor conditions only.

Do not put the phone in environments with excessive temperatures, as

this could lead to heating of the battery, resulting in fire or explosion.

Do not charge the phone near any flammable or explosive substances.

Do not charge the phone in environments with much dust, humidity, or

excessively high or low temperatures (the permitted charging tempera-

ture range is 0 ... 45°C).

Do not use the phone in areas where regulations or legislatives prohibit

the use of a mobile phone.

Do not expose the phone, battery or charger to strong magnetic fields,

such as are emitted from induction ovens or micro-waves.

Do not attempt to open or repair the phone. Improper repair or opening

can lead to the destruction of the phone, fire or explosion. Only author-

ized personnel are allowed to repair the phone.

Only use accessories approved by i.safe MOBILE GmbH.

Please do not directly connect the poles of the battery, to avoid short-

circuiting the battery.

Power off the phone in hospitals or other places where the use of mobile

phones is prohibited. This phone may affect proper work of medical

equipment, such as pacemakers, so always keep a distance of at least 15

cm between the phone and these devices.

Observe all corresponding laws that are in force in the respective coun-

tries regarding the use of mobile phones while operating a vehicle.

English

Please power off the phone and disconnect the charging cable before

cleaning the phone.

Do not use any chemical cleaning agents to clean the phone or the

charger. Use a damp and anti-static soft cloth for cleaning.

Do not discard old and abandoned lithium batteries into the trash, send

them to designated waste disposal locations or return them to i.safe

MOBILE GmbH.

The user alone is responsible for any and all damages and liabilities caused

by malware downloaded when using the network or other data-exchange

functions of the phone. i.safe MOBILE GmbH cannot be held responsible

for any of those claims.

Warning

i.safe MOBILE GmbH will not assume any liability for damages caused by

disregarding any of these advices or by any inappropriate use of the phone.

Maintenance / Repair

Thank you for using the CHALLENGER 2.0. If there is a problem with the

phone, please contact your vendor or consult the service center. If your

phone is in need of repair, you can either contact the service center or your

vendor.

Battery

The battery is inserted into the back of the phone. The battery is not fully

charged when the phone is purchased, but it contains enough energy to

power on the phone. To obtain best battery performance and battery life, let

the battery discharge completely before charging it completely for the first

three charging cycles.

Installing the Battery

Turn the mobile phone upside down, open the screws and remove the bat-

tery cover. Install the battery by inserting the teeth at the top of the battery

into the corresponding notches of the phone.

When installing the battery cover, insert the teeth at the bottom of the cover

into the corresponding notches of the mobile phone, then press the battery

cover down and secure it by turning the two screws. Ensure that the battery

is safely in place before installing the battery cover and powering on the

phone.

English

Charging the Battery

Connect the USB-cable with the USB connector at the bottom of the phone.

Connect the other side of the USB cable with the socket of the Power Supply.

After charging, remove the USB-cable from the charger.

Battery Use

In actual use, the standby time and talk time of the phone varies with the

network status, working environment and usage.

When the power of the battery is lower than normal, the phone will prompt

you to charge it. Please charge the battery; otherwise you may lose any files

which are not saved.

If you do not charge for a long time, the phone will be powered off automat-

ically.

Warning

The phone may only be charged at ambient temperatures in a range from

0°C…45°C. Please do not use charging equipment if the temperature exceeds

this range.

Installation of the SIM Cards

The phone features two SIM card slots. The slots are accessible after removal

of the battery. If you have installed two SIM cards, you can choose your pri-

mary card in <Settings> → <Dual SIM settings>.

Warning

Do not try to insert or remove any of the SIM cards when any external power

supply is connected, otherwise the SIM cards or the phone may be damaged.

Installation of the Micro-SD Card

The slot for the Micro-SD card is accessible after removal of the battery.

Open the Micro-SD card holder, and insert the Micro-SD card into the slot,

then close the Micro-SD card holder.

English

Keys and Special Features

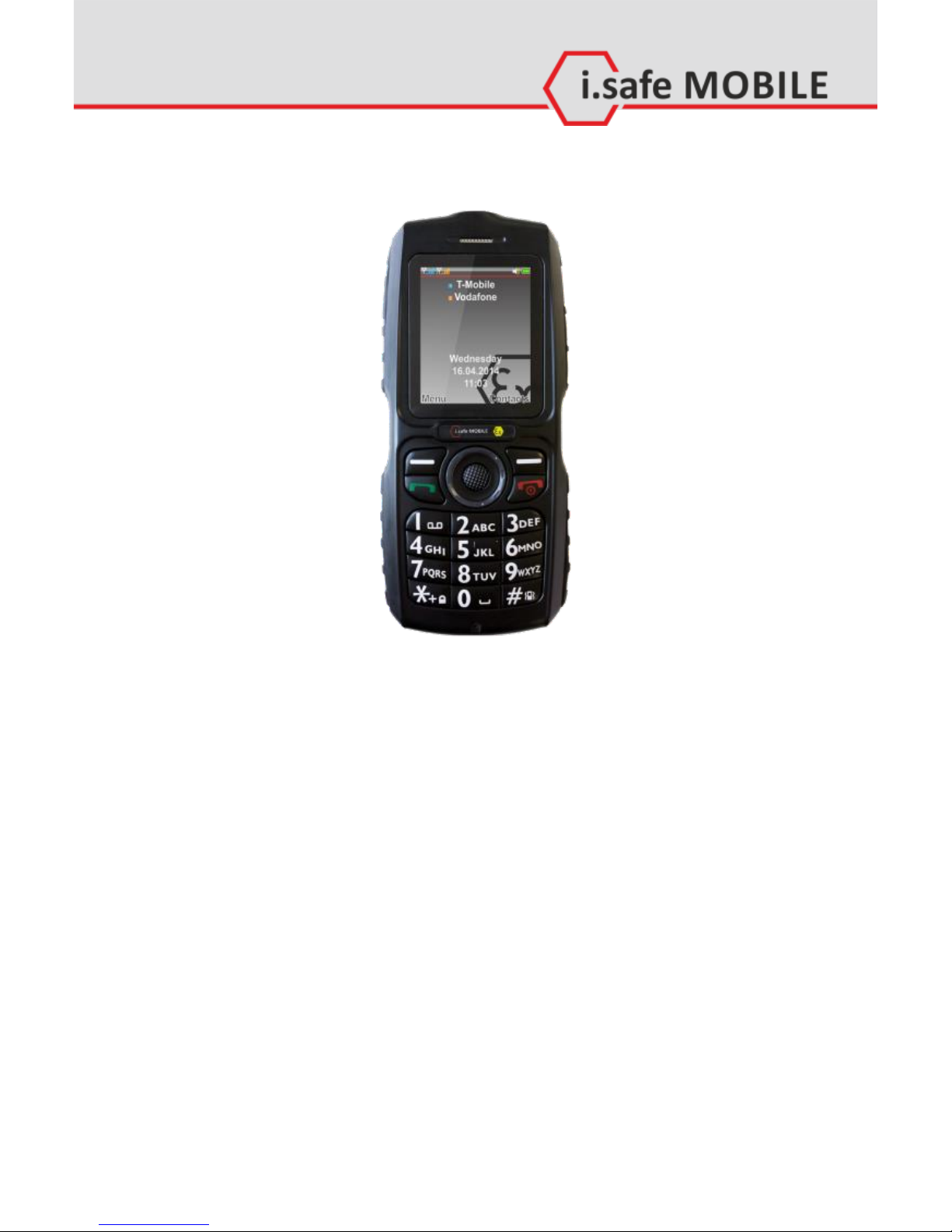

(see figure on page 2)

(1) Power: Lock the phone.

Long press to power up or down the phone.

(2) Send: Bring up the call log.

Answer a call when the phone is ringing.

(3) Contacts: Context sensitive key.

Opens the Phonebook while on the home screen.

(4) Menu:Context sensitive key.

Enter settings while on the home screen.

(5) OK: Confirm the selected item or function.

(6) Navigation: 4-way navigation through menus.

(7) Keypad: Use for text or number entry.

(8) Torch: Turn the torch on or off.

(9) Volume: Adjust the volume.

(10) Battery: Use these screws to open the battery compartment.

(11) Camera: Not installed in CHALLENGER 2.1.

(12) USB: USB connector for charging and data-transfer.

Security Settings

To change security relevant settings, the phone may ask for a password. The

standard password is 1122.

Recycling

The crossed-out wheeled-bin symbol on your product, battery, literature, or

packaging reminds you that all electrical and electronic products, batteries,

and accumulators must be taken to separate collection at the end of their

working life. This requirement applies in the European Union. Do not dispose

of these products as unsorted municipal waste.

Always return your used electronic products, batteries, and packaging mate-

rials to dedicated collection points. This way you help prevent uncontrolled

waste disposal and promote the recycling of materials.

More detailed information is available from the product retailer, local waste

authorities, national producer responsibility organisations, or your local

i.safe MOBILE GmbH representative.

English

The content of this document is presented as it currently exists. i.safe

MOBILE GmbH does not provide any explicit or tacit guarantee for the accu-

racy or completeness of the content of this document, including, but not

restricted to, the tacit guarantee of market suitability or fitness for a specific

purpose unless applicable laws or court decisions make liability mandatory.

i.safe MOBILE GmbH reserves the right to make changes to this document or

to withdraw it any time without prior notice.

Deutsch

Dieses Dokument enthält Informationen und Sicherheitsvorschriften die für

einen sicheren Betrieb des Mobiltelefons CHALLENGER 2.0 unter den be-

schriebenen Bedingungen unbedingt zu berücksichtigen sind. Nichtbeach-

tung dieser Informationen und Anweisungen kann gefährliche Folgen haben

oder gegen Vorschriften verstoßen.

Lesen Sie die Bedienungsanleitung und diese Sicherheitshinweise bevor Sie

das Telefon benutzen!

Im Falle widersprüchlicher Informationen gelten die deutschen Anweisungen

in diesen Sicherheitshinweisen.

Die gültige EG-Konformitätserklärung, EG und IECEx Baumusterprüfbeschei-

nigung, Sicherheitshinweise und Bedienungsanleitung können unter

www.isafe-mobile.com heruntergeladen oder bei der i.safe MOBILE GmbH

angefordert werden.

Vorbehalt: Technische Änderungen behalten wir uns vor. Änderungen, Irr-

tümer und Druckfehler begründen keinen Anspruch auf Schadensersatz.

Für Datenverluste oder andere Schäden gleich welcher Art, die durch den

unsachgemäßen Gebrauch des Mobiltelefons entstanden sind, übernimmt

die i.safe MOBILE GmbH keine Haftung.

Ex-Spezifikationen

Das Mobiltelefon CHALLENGER 2.0 ist geeignet für den industriellen Einsatz

in explosionsgefährdeten Bereichen der Zone 2 nach Richtlinien 94/9/EG

(ATEX 95) und 99/92/EG (ATEX 137) und dem IECEx-System.

Ex-Kennzeichnungen

ATEX II 3G Ex ic IIC T4 Gc

EPS 14 ATEX 1 662 X

2004

Temperaturbereich: -20 ... +60°C

Hersteller: i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 10

97922 Lauda-Koenigshofen

Germany

Andere Handbücher für CHALLENGER 2.0

Inhaltsverzeichnis

Sprachen:

Andere ISAFE MOBILE Handy Handbücher

ISAFE MOBILE

ISAFE MOBILE M53A01 Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE M53A01 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE M120A01 Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE M360A01 Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS330.1 Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE M53A01 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE innovation 2.0 Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE CHALLENGER 2.0 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS540.1 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS120.2 Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS910.1 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS930.2 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS330.1 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS530.2 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE innovation 2.0 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS740.2 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE Challenger 1.0 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS655.RG Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE IS310.2 Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE IS530.2 Gebrauchsanweisung

ISAFE MOBILE

ISAFE MOBILE IS170.2 i Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE IS530.M1 Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE EXECUTIVE 2.0 Bedienerhandbuch

ISAFE MOBILE

ISAFE MOBILE IS530.M1 Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

LG Thrive Bedienungsanleitung
