iSolutions Xperior 700SZ Spot Bedienungsanleitung

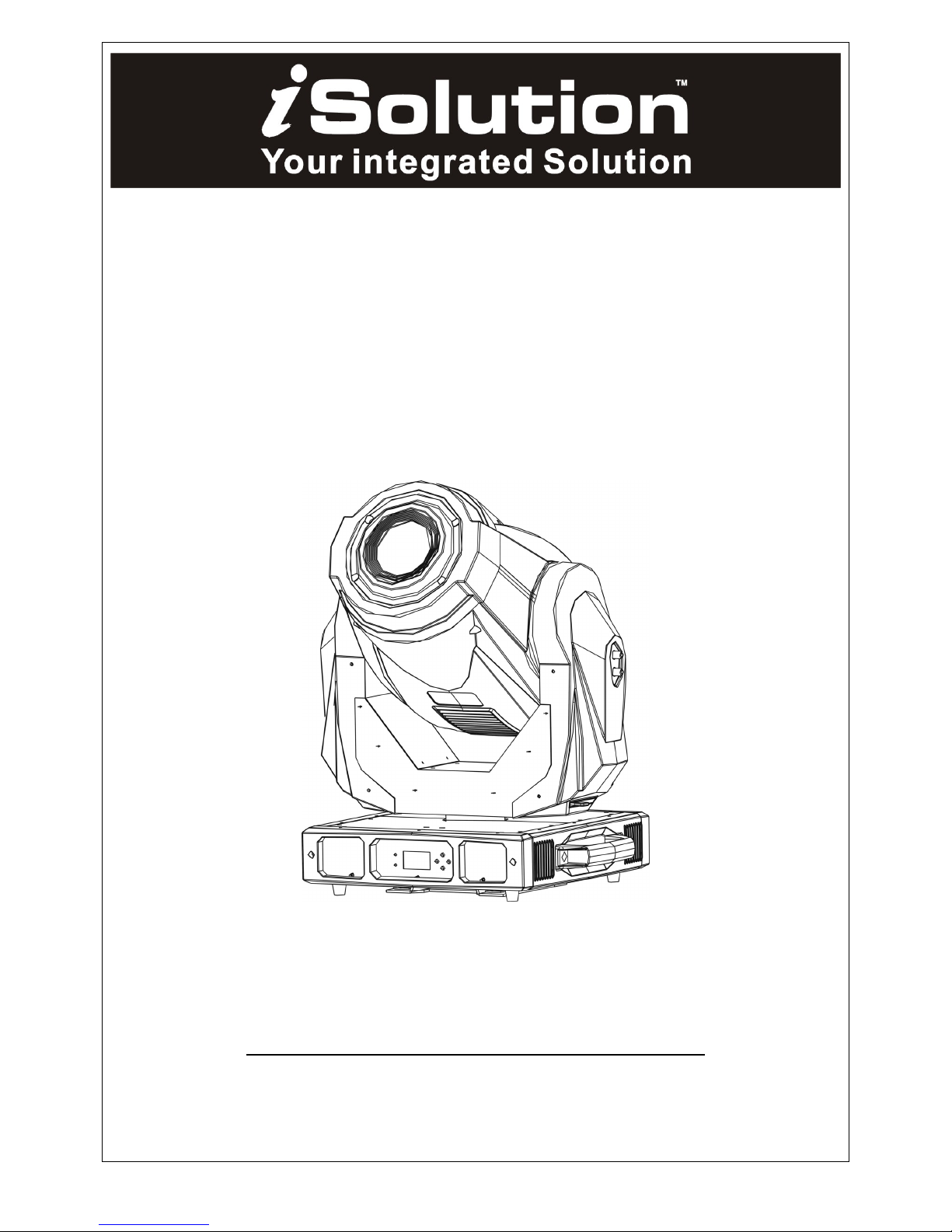

XperiorTM 700SZ Spot
User Guide
Please read these instructions carefully before use
XP-700 SZ
1-
TABLE OF CONTENTS
1. Safety Instruction...................................................................................... 2
2. Installation ................................................................................................. 2
3. Technical Specification ............................................................................ 5
4. Description ................................................................................................ 8
4.1 Description of the fixture...................................................................... 8
4.2 Control Panel....................................................................................... 8
5. Gobo and Lamp......................................................................................... 9
5.1 Inserting/Exchanging rotating gobos ................................................... 9
5.2 Lamp.................................................................................................. 10
6. How To Set The Unit ................................................................................11
6.1 Power On Display...............................................................................11
6.2 Main Function .................................................................................... 12
6.3. Home Position Adjustment ............................................................... 22
6.4. Error Information............................................................................... 26
7. Control By Universal DMX Controller ................................................... 27
7.1 Connection ........................................................................................ 27
7.2 Channel Mode Setting ....................................................................... 28
7.3 Address Setting ................................................................................. 28
7.4 DMX 512 Configuration ..................................................................... 28
8. Update Software...................................................................................... 35
9. Troubleshooting...................................................................................... 35
10. Maintenance and Cleaning................................................................... 37
XP-700 SZ
2-
1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be
sure that they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
yUnpack and check carefully that there is no transportation damage before using the
unit.
yThe unit is for indoor use only. Use only in a dry location.
yDo install and operate by qualified operator.
yDo not allow children to operate the fixture.
yUse safety chain when fixing the unit. Handle the unit by carrying its base instead of
head only.
yThe unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces.
yBe sure that no ventilation slots are blocked, otherwise the unit will be overheated.
yBefore operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
yIt’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
yMaximum ambient temperature TA: 40 . Don’t operate it wh℃en the temperature is
higher.
yDon’t connect the device to any dimmer pack.
yDuring initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, and it will decrease gradually
within 15 minutes.
yMake sure there are no flammable materials close to the unit while operating to avoid
fire hazard.
yExamine the power wires carefully, replace them immediately if there is any damage.
yUnit’s surface temperature may reach up to 85 . Don’t touch the housing bare℃-handed
Please read carefully the instruction manual, which includes
important information about the installation, usage and maintenance.
XP-700 SZ
3-
during its operation, and allow about 15 minutes for cooling the unit down before
replacing bulb or maintenance as it could be very hot.
yAvoid any inflammable liquids, water or metal objects entering the unit. Once it
happens, cut off the mains power immediately.
yDo not operate in dirty or dusty environment, do clean fixtures regularly.
yDo not touch any wire during operation as there might be a hazard of electric shock.
yAvoid power wires together twist other cables.
yThe minimum distance between light output and the illuminated surface must be more
than 2.5 meters.
yDisconnect mains power before fuse/lamp replacement or servicing.
yReplace fuse/lamp only with the same type.
yIn the event of serious operating problem, stop using the unit immediately.
yNever turn on and off the unit time after time.
yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
yDo not open the unit as there are no user serviceable parts inside.
yNever try to repair the unit by yourself. Repairs carried out by unskilled people can lead
to damage or malfunction. Please contact the nearest authorized technical assistance
center if needed.
yDisconnect the mains power if the fixture is has not been used for a long time.
yDo use the original packing materials before transporting it again.
Caution
yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
yHot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.
yDo replace the bulb once it is damaged, deformed or life-expired.
yDo not look directly at the light while the bulb is on.
yNever touch bulb with bare fingers, as it is very hot after using.
yDo not start on the unit without bulb enclosure or when housing is damaged.
Product Items
yUser manual
y2 x Omega clamps
XP-700 SZ
4-
2. Installation
Unpacking the fixture (for flight case pack only)
1.Stop the flight case via the brake sheet above the wheels.
2.Unlock the lock modules (1) and open the cover board.
3.Prop the cover board with lid bracket.
4.Take out the fixture.
5.Unlock the lock module (2) take out omega clamps.
Installation:

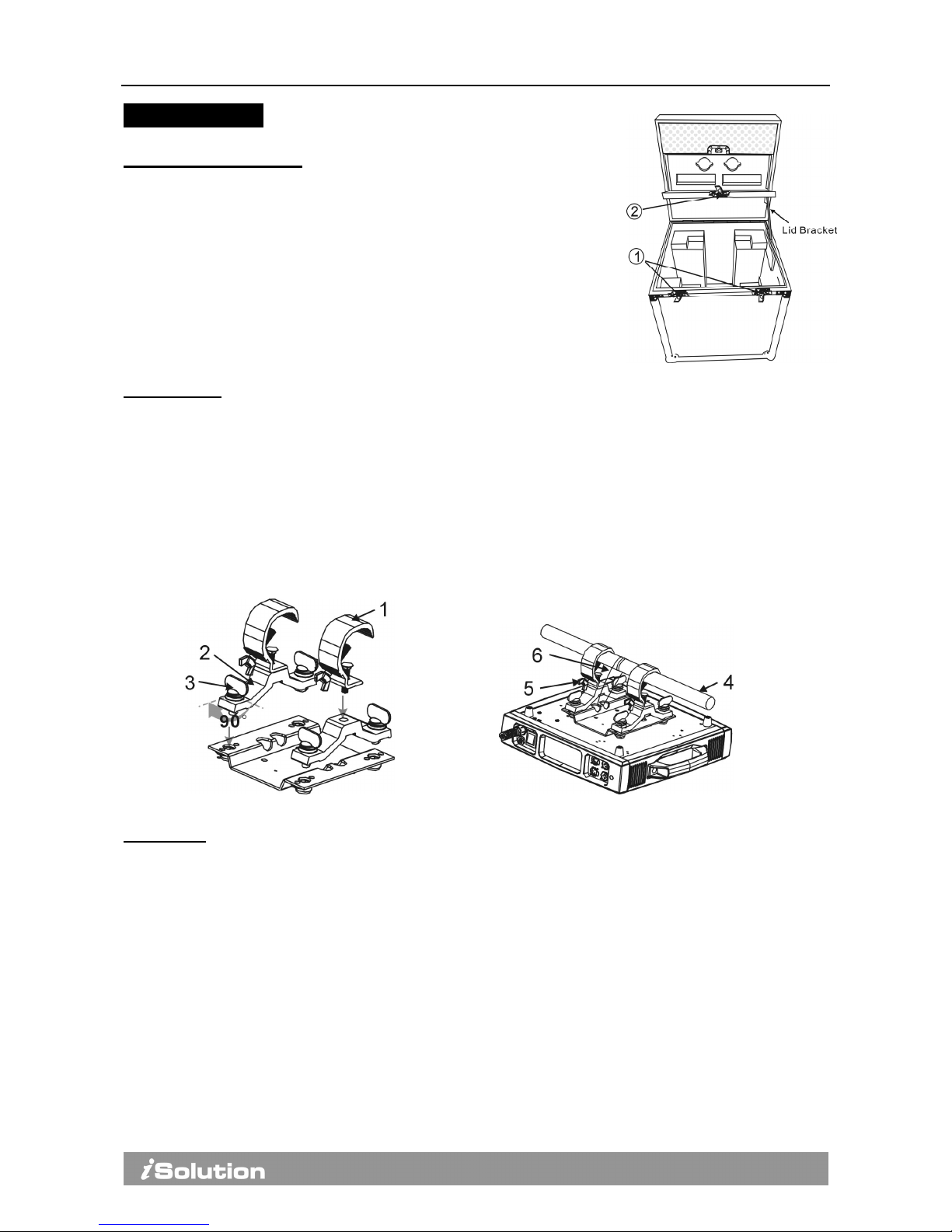

1. Bolt each clamp (1) to the Omega holder with screw and lock nut through the hole in the
holder.
2. Fasten the omega holders (2) on the bottom of the base by inserting quick-lock
fasteners (3) into the holes of the base and tighten fully clockwise.
3. Hang the fixture to the support (4) through clamp and fasten the screws (5). Fasten the
safety cable (6) through the bottom of the base and over the support.
Fig.1 Fig.2
Attention:
yAlways ensure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight.
yAlso always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
yAlways ensure that the unit is firmly fixed to avoid vibration and slipping while
operating.
yThe equipment must be fixed by professionals. And it must be fixed at a place where is
out of the touch of people and has no one pass by or under it.
XP-700 SZ
5-
3. Technical Specification
Power supply
- AC 100V~240V 50/60Hz
Power Consumption
- 881W (230V)
- 919W (120V)
Fuse
- T 15 A
Lamp
- Philips MSR Gold 700/2 mini FastFit
Battery backup display
- Setting DMX address or other functions without connecting to mains power.
- Battery for LCD display charges automatically when the fixtures connects to the mains
power.
- No need to change battery.
Wireless control (for the unit with wireless receiver built-in only)
- Wirelessly controlled by W-DMX (option).
- Each W-DMX is sending out 512 channels of DMX.
- License free band of 2.45 GHz
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
- Beam angle: 15°~35°
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Shutter/Dimmer
- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.
Color wheel
XP-700 SZ
6-
- Color wheel: 7 dichroic colors + open.
- Rainbow effect in both directions.
- Easy calibration and maintenance by magnetic home positioning.
CMY
- CMY speed adjustable.
- Optional multiple preset colors and macros available.
Gobo wheel
- Gobo size: Ø26.8mm (Ø24mm for image)
- Gobo Wheel 1: 7 rotating, indexable, easily replaceable gobos + open.
- Gobo Wheel 2: 8 metallic gobos + open.
- Easy calibration and maintenance by magnetic home positioning.
- Module design for easy assembly and service.
Prism
- 3 facets prism with rotating effect.
Frost
- Variable, separate effect.
Focus
- Focus effect.
Iris
-Motorized, stepless.
Zoom
- Motorized linear zoom for smooth adjustment of beam size and beam sharpness.
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Weight
- 23.2kgs
Dimension
- 447× 369×597 mm
XP-700 SZ
7-

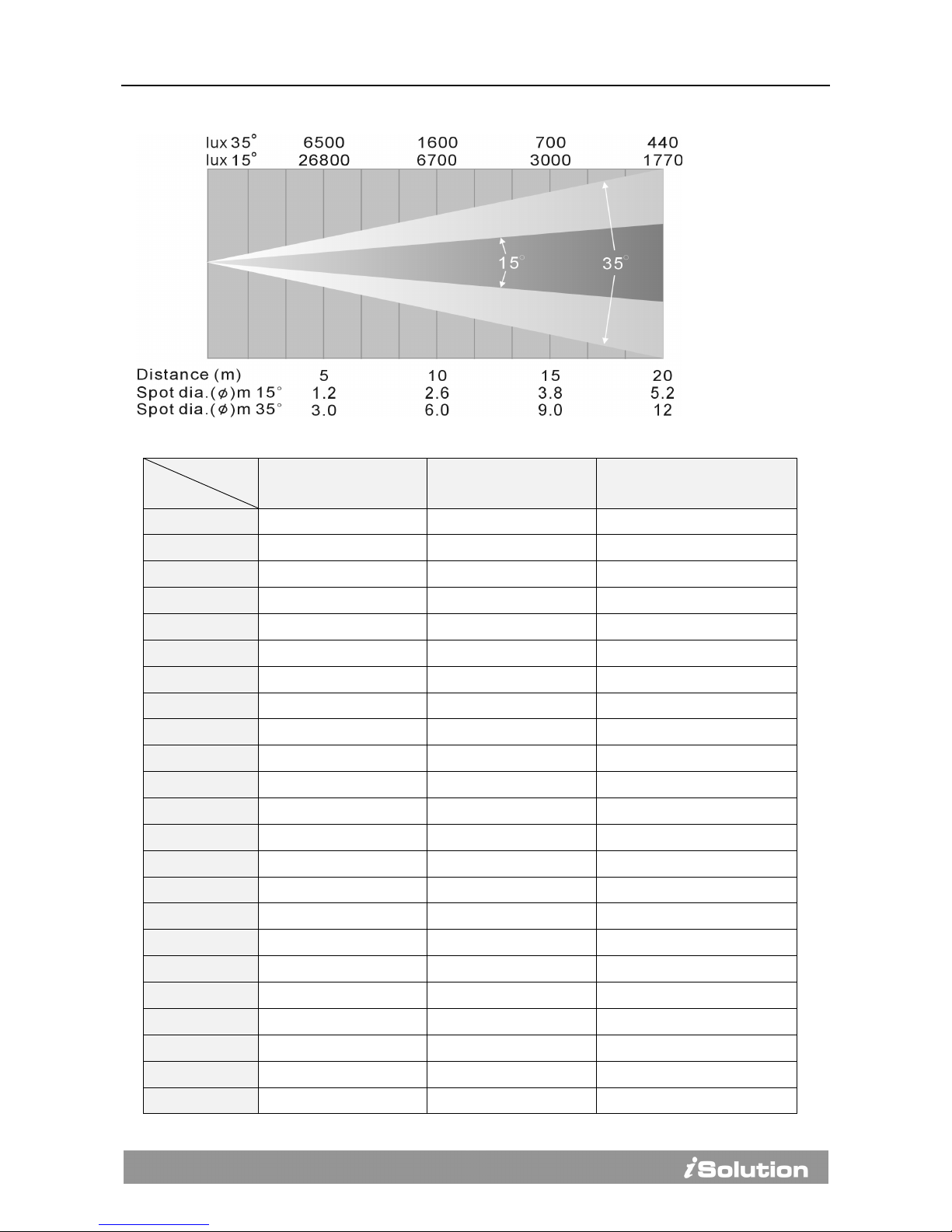

Photometric diagram
DMX Channels
Mode
CH
Mode 1
22-CH
Mode 2
22-CH
Mode 3
25-CH
1 Pan Shutter Pan
2 Pan Fine Dimmer Pan Fine
3 Tilt Cyan Tilt
4 Tilt Fine Magenta Tilt Fine
5 Pan /Tilt Speed Yellow Pan /Tilt Speed
6 Shutter Color Function
7 Dimmer Gobo 1 Pan/Tilt Macro
8 Color R-Gobo 1 Pan/Tilt Macro Speed
9 Cyan R-Gobo 1 Fine Color
10 Magenta Gobo 2 Cyan
11 Yellow Prism Magenta
12 Preset Color R-prism Yellow
13 Gobo 1 Iris Preset Color
14 R-Gobo 1 Focus CMY Speed
15 Gobo 2 Zoom Color Macro
16 Prism Pan Gobo 1
17 R-Prism Pan Fine R-Gobo 1
18 Iris Tilt R-Gobo 1 Fine
19 Frost Tilt Fine Gobo 2
20 Zoom Pan/Tilt Speed Prism
21 Focus Frost R-Prism
22 Function Function R-Prism Fine
23 Frost
XP-700 SZ
8-
24 Iris
25 Zoom
26 Focus
27 Shutter
28 Dimmer
29 Dimmer Fine
4. Description
4.1 Description of the fixture
The head can be locked for transportation protection-the tilt lock button (4) is pressed and
the pan lock/unlock lever (6) is in lock position. To unlock the head, press the tilt unlock
button (5) and move the pan lock/unlock lever (6) to unlock position.
Caution: The head and arm must be unlocked before operation!
4.2 Control Panel

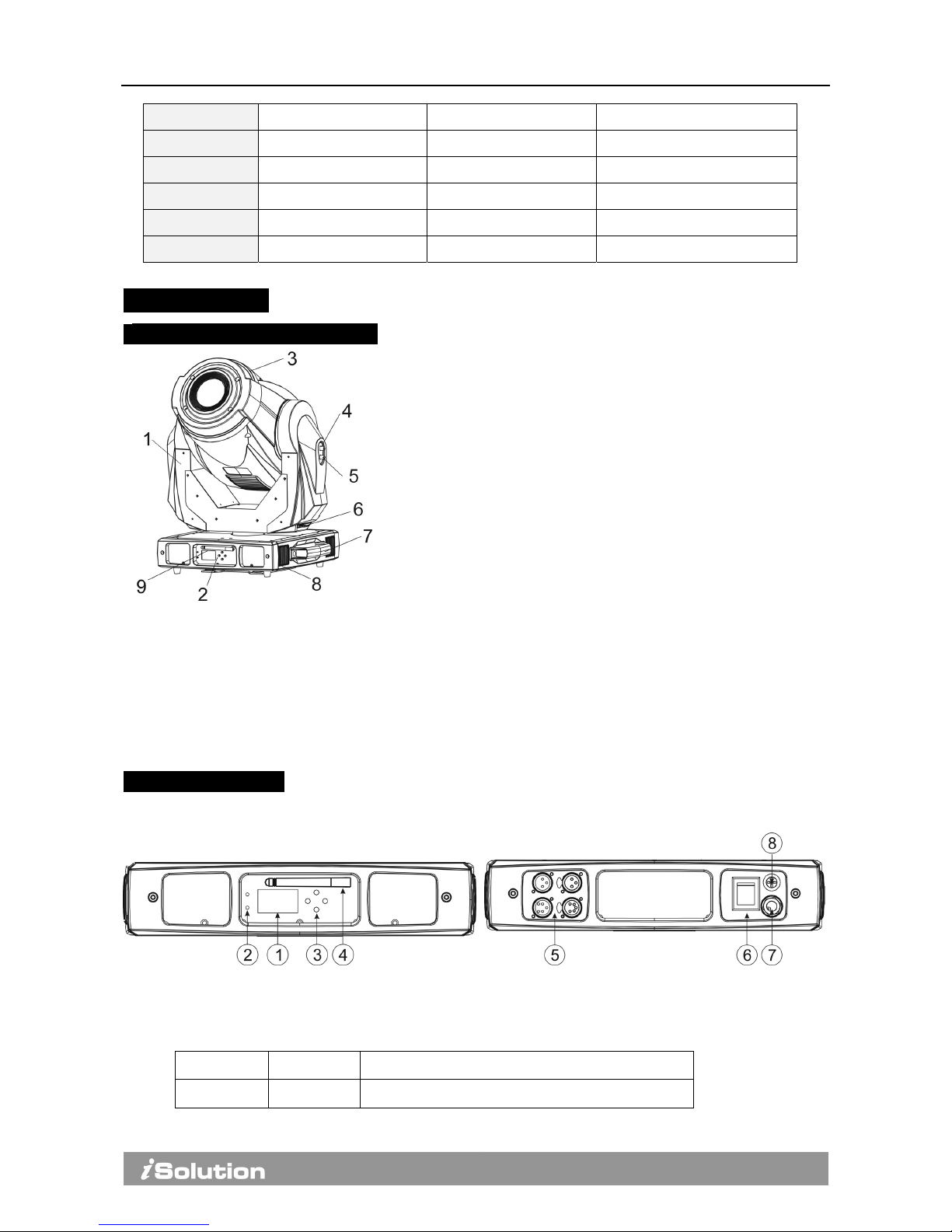

Front view Rear view
○
1 Monitor (Batter Back-up display):
○
2LED
POWER On Power on
DMX On DMX input present
1.Arm
2.Front panel
3.head
4.Tilt lock button (Black)
5.Tilt unlock button (Gray)
6.Pan lock
7.Handle
8.Base
9.
A
ntenna
(
for XP-700SZ WT onl
y)
XP-700 SZ
9-
○
3Button
MENU To enter into move backward or leave the menu
UP To go backward to move up in the menu
DOWN To go to move down in the menu
ENTER To perform the desired functions
○
4 Antenna (for XP-700SZ WT only)
Receive wireless signal from a wide range
○
5 DMX input/output:
For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together
○
6 Power Switch:
Turns On/Off the power
○
7 PowerCable:
To connect to the mains supply
○
8 Fuse (T 15 A):
Protect the unit from damage of overcurrent.
5. Gobo and Lamp
5.1 Inserting/Exchanging rotating gobos
GOBO WHEEL 1 (replaceable) GOBO WHEEL 2
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
