Itec CADUAL4KDOCK Bedienungsanleitung

P/N: CADUA L4KDOCK

User guide • Gebrauchsanweisung • Mode d’emploi

Manual de instrucciones • Manuale • Uživatelská příručka

Instrukcje obsługi • Užívateľská príručka • Vartotojo vadovas

Handleiding

USB-A/USB-C Dual Display

Docking Station

EN Please read the entire instruction manual carefully. Detailed man-

ual is available on our website www.i-tec.cz/en/ in the tab „Manuals,

drivers“. In case of any issues, please contact our technical support at:

[email protected]

DE Bitte lesen Sie das gesamte Handbuch sorgfältig durch. Die ausführ-

liche Gebrauchsanweisung ist auch auf unserer Webseite www.i-tec.cz/de/

unter „Benutzerhandbücher, Treiber“ bei diesem

Produkt zu finden.

Wenn

Sie Probleme haben, kontaktieren Sie bitte unser Support-Team unter:

[email protected]

FR Veuillez lire attentivement le manuel dans son intégralité. Un manuel

détaillé est disponible sur notre site www.i-tec.cz/fr/ sous l'onglet

"Manuels, pilotes". Si vous avez des problèmes, veuillez contacter notre

équipe support à [email protected]

ES Por favor, lea atentamente todo el manual. El manual detallado está dis-

ponible en nuestro sitio web, www.i-tec.cz/es/ bajo la pestaña "Manuales y

controladores" de este producto. Si tiene algún problema, póngase en con-

tacto con nuestro equipo de soporte en [email protected]

IT Leggere attentamente tutto il Libretto d’uso. Il Libretto d’uso è a disposi-

zione anche sulla scheda “Manuali e strumenti” del nostro sito web:

www.i-tec.cz/it/. In caso di pro

blemi rivolgersi al supporto tecnico:

[email protected]

CZ Prosíme o pečlivé přečtení celého manuálu. Podrobný manuál je

k dispozici na našem webu

www.i-tec.cz

v záložce „Manuály, ovladače“

u tohoto produktu. V případěproblémůse můžete obrátit na naši

tech-

nickou podporu: [email protected]

PL Upewnij się, że uważnie przeczytałeśinstrukcji obsługi.

Szczegółowy

podręcznik jest dostępny na naszej stronie internetowej www.i-tec.cz/pl/

w zakładce "Instrukcje, ste

rowniki". W razie jakichkolwiek problemów,

skontaktuj się

z naszym serwisem pod adresem: support@itecproduct.com

SK Prosíme o dôkladné prečítanie celého manuálu. Podrobný manuál je

k dispozícii tiež na našom webe www.i-tec.cz v záložke „Manuály, ovla-

dače“ pri tomto produkte. V prípade problémov sa môžete obrátiťna našu

technickú podporu: [email protected]

LT Prašome įdėmiai perskaityti visąvadovą. Išsamų

vadovągalite rasti

mūsųsvetainėje

www.i-tec.cz/en/

šio produkto skyrelyje „Manuals,

drivers“. Iškilus problemoms galite susisiekti su mūsųtechnine pagalba:

[email protected]

NL Wij vragen u vriendelijk om de volledige handleiding zorgvuldig door

te lezen. Een gedetailleerde handleiding van dit product is beschikbaar op

onze website www.i-tec.cz/nl/

onder het tabblad "Handleidingen en dri-

vers". Mochten

er zich problemen voordoen kunt u contact opnemen met

ons supportcenter via [email protected].

ENGLISH................................................... 06–09

DEUTSCH.................................................. 10–13

FRANÇAIS................................................. 14–17

ESPAÑOL...................................................18–21

ITALIANO................................................... 22–25

ČESKY........................................................26–29

POLSKI...................................................... 30–33

SLOVENSKY.............................................. 34–37

LIETUVOS................................................. 38–41

NEDERLANDS........................................... 42–45

WEEE......................................................... 46–47

Declaration of Conformity........................ 48–49

FCC...................................................................50

USB-A/USB-C Dual Display

Docking Station

Quick Start / USB-A/USB-C Dual Display Docking StationEN

INTRODUCTION

Thank you for purchasing the i-tec Docking Station, our product allows you

to connect your favourite devices via a single USB cable to a laptop or tablet

with a USB-C or USB-A port. The docking station provides 2x HDMI port and

2x Display Port (only 2 graphics outputs can be active at the same time),

1x Ethernet GLAN RJ-45 port, 6x USB-A 3.0 port, 2x Audio port (earphones

and microphone), 1x input for external power supply and On/Off switch.

An advantage is the ability to connect a docking station to a USB-A 3.0

or USB-C port on your laptop / tablet.

PACKAGE CONTENTS

• i-tec USB-A 3.0 / USB-C Docking Station

• Cable USB-C 3.1 to USB-C (90 cm)

• Cable USB-C 3.1 to USB-A (90 cm)

• Power adapter (output DC: 20V/2A, DC cable 110 cm)

• Quick Start

DESCRIPTION

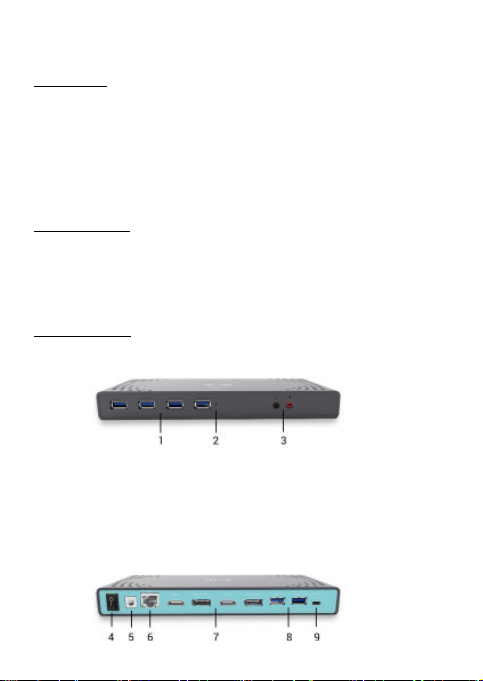

Front panel:

4x USB-A 3.0 port for connecting USB 3.1/3.0/2.0 devices and high-

speed data transmission up to 5 Gbps; supports USB Hot Swapping

function

LED indication

Separated microphone input and earphone output, 1x 3.5 mm Audio

out 5.1, 1x 3.5 mm Mic in

Rear panel:

On/Off switch for the docking station switching on and off

Power supply input – external power adapter (output: DC 20V/2A)

Quick Start / USB-A/USB-C Dual Display Docking Station EN

1x Ethernet GLAN RJ-45 port for fast network and Internet access with

Gigabit Ethernet connection, it supports speeds of 10 / 100 / 1000 Mbps

Graphic interface: 2x HDMI and 2x Display Port. Docking station

supports up to two monitors.

Resolution:

- 1 monitor connected via 2 DP cables: 1x DP + 1x DP supports up to 5K

5120 x 2880/60 Hz, a graphics card on your computer must support

5K resolution

- 2 monitors connected at the same time: 1x DP + 1x DP supports up to 4K

4096 x 2160/60 Hz; 1x DP + 1x HDMI supports up to 4K 4096 x 2160/60 Hz;

1x HDMI + 1x HDMI supports up to 4K 4096 x 2160/60 Hz

2x USB-A 3.0 port for connecting USB 3.1/3.0/2.0 devices and high-speed

data transmission up to 5 Gbps; supports USB Hot Swapping function

USB-C port for connecting to a laptop with the USB-C or USB-A

interface, both connecting cables are included

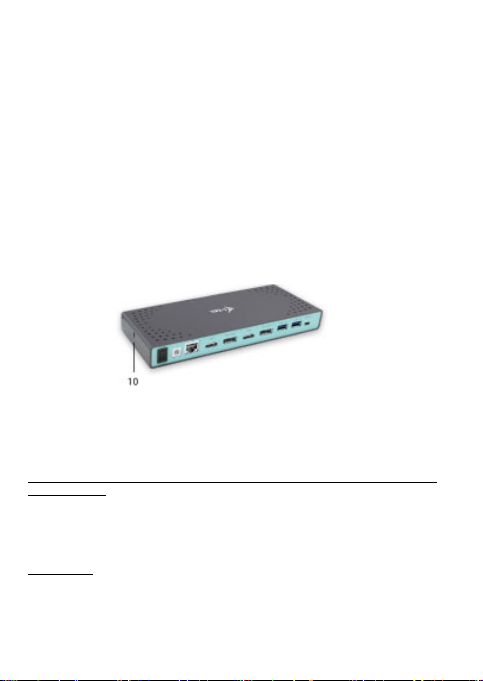

Side panel:

10.

Kensington lock

• Chipset: DisplayLink DL6950, VIA Vl813

• Product dimensions: 223 x 88 x 27 mm

• Product weight: 338 g

INSTALLATION IN WINDOWS 7/8/8.1/10 AND HIGHER, MACOS, LINUX

AND OTHERS

The HUB is installed automatically, no need install drivers. Plug the HUB via

USB-C 3.1, gen. 1 cable into available USB-C port of your notebook/PC and

follow the on-screen instructions. The HUB will be installed and displayed in

Device manager as “Generic USB Hub” and “Generic USB SuperSpeed Hub”.

CHARGING

The HUB supports charging of the connected USB mobile equipment such

as smartphones (including iPhone and Samsung phones), e-book readers,

multi-media players, GPS navigators, and tablets (e.g., Asus, Toshiba, Go-

Clever, Prestigio, Emgeton, Sencor). Using the original cable connect the

equipment to be charged to the USB port of the HUB.

Quick Start / USB-A/USB-C Dual Display Docking StationEN

SYSTEM REQUIREMENTS

Hardware requirements: Laptop/tablet with a free USB-A or USB-C port

Operating system: Windows 7/ 8/ 8.1/ 10 32/64 bit, macOS X, Linux Ubuntu

14.04/16.04, Android 6 or later. Windows 10 – automatic installation of OS

drivers. Other operating systems – manual installation of drivers. Firmware

updates automatically.

For routine work on multiple monitors

• Processor: Intel Core i5 2+GHz / AMD Trinity or higher

• RAM: 4GB

• Graphic processor: Intel HD 4000, ATI Radeon HD7xxx, NVidia GeForce

5xxM or higher

• Port USB 3.0/USB-C

Video playback

• Processor: Intel Core i7 2+GHz/AMD Richland A10-575x/AMD Kaveri

A10-7400P or higher

• RAM: 8GB

• Graphic processor: Intel HD 4000, ATI Radeon HD 8650, NVidia

GeForce 7xxM or higher

• Port USB 3.0/USB-C

To play Ultra HD 4K/5K videos, your computer must be able to decode this

video with its graphics processor. Especially in less powerful laptops, they

can handle 4K/5K video playback, but the result is not ideal (interruption,

video tearing).

DRIVER INSTALLATION IN WINDOWS 7/8/8.1/10 (32/64 BIT)

ATTENTION! Do not connect the docking station to your laptop/tablet until

you have installed the appropriate drivers. Drivers must only be installed

before ﬁrst use. Before installation, make sure that your system has

installed the latest drivers for your device and updated BIOS.

For Windows 7/ 8/ 8.1, download the drivers from our website

www.i-tec.cz/en on the “Download” tab of this product. Run the installation

from the downloaded ﬁle, select the installation language, and follow

the instructions on the screen.

In Windows 10, the docking station can be connected directly, drivers are

automatically installed from the system when connected to the Internet.

Quick Start / USB-A/USB-C Dual Display Docking Station EN

Note: In Windows 7/8/8.1/10, install the drivers as the “Administrator” user.

The screen may blink while the drivers are being installed, this is a standard

process. Once the installation is complete, we recommend restarting the

notebook/tablet.

DRIVER INSTALLATION IN MACOS X

ATTENTION! Do not connect the dock to your mac until you install the

appropriate drivers. Drivers must only be installed before ﬁrst use. We

recommend that you have the latest macOS operating system installed.

Download drivers from our website www.i-tec.cz/en on the “Download” tab

of this product.

SAFETY INSTRUCTIONS

• Do not expose to extreme temperatures and air humidity.

• Use the device on ﬂat surfaces – you will prevent it from slipping and

falling to the ground.

• Save the user manual for a possible use later.

In cooperation with the service department:

• Check functionality after falling to water or to the ground.

• Check functionality when the cover is broken.

• Send the device back if it does not work in accordance with the user

manual.

FREQUENTLY ASKED QUESTIONS

Available on our website www.i-tec.cz/en on the “FAQ” tab of this product.

Quick Start / USB-A/USB-C Dual Display Docking Station

EINLEITUNG

Wir bedanken uns für den Kauf von i-tec Docking Station, die es Ihnen

ermöglicht, Ihre Lieblingsgeräte an Notebook oder Tablet-PC mit USB-C

oder USB-A Port mit Hilfe von USB Anschluss anzuschließen. Vorhandene

Anschlüsse: 2x HDMI Port und 2x Display Port (gleichzeitig können nur

2 Graﬁkausgänge aktiv sein), 1x Ethernet GLAN RJ-45 Port, 6x USB-A 3.0

Port, 2x Audio Port (Kopfhörer und Mikrofon), 1x Eingang für externe DC

Versorgung und On/Off Schalter. Zum Vorteil gehört die Möglichkeit, die

Docking Station an den USB-A 3.0 oder USB-C Port Ihres Notebooks/Tablet-PCs

anschließen zu können.

LIEFERUMFANG

• i-tec USB-A 3.0/USB-C Docking Station

• USB-C 3.1 Kabel auf USB-C (90 cm)

• USB-C 3.1 Kabel auf USB-A (90 cm)

• Versorgungsadapter (DC Ausgang: 20V/2A, DC Kabel 110 cm)

• Quick Start

BESCHREIBUNG

Vorderseite:

4x USB-A 3.0 Port für den Anschluss Ihrer bestehenden USB

3.1/3.0/2.0 Geräte und hohe Datenübertragungsgeschwindigkeit (5

Gbps), Unterstützung der USB Hot Swapping Funktion

LED-Kontrollleuchte

Separater Mikrofoneingang und Kopfhörerausgang, 1x 3.5 mm Audio out

5.1, 1x 3.5 mm Mic in

Hinterseite:

Inhaltsverzeichnis

Sprachen:

Andere Itec Dockingstation Handbücher

Itec

Itec U3HDMI4K Bedienungsanleitung

Itec

Itec C31HDMIDPDOCKPD100UK Bedienungsanleitung

Itec

Itec THUNDERBOLT 2 Bedienungsanleitung

Itec

Itec MYSAFE USB 3.0 ALUBASIC MYSAFEU312 Bedienungsanleitung

Itec

Itec C31METAL4KDOCKPDUK Bedienungsanleitung

Itec

Itec CANANOTDOCKPD Bedienungsanleitung

Itec

Itec C31QUATTRODOCKPD Bedienungsanleitung

Itec

Itec U3METALDOCK Bedienungsanleitung

Itec

Itec TB3HDMIDOCKX Bedienungsanleitung

Itec

Itec C31TRIPLEDOCKPDIT Bedienungsanleitung

Itec

Itec C31DUALDPDOCKPD65W Bedienungsanleitung

Itec

Itec CADUA4KDOCKPDL Bedienungsanleitung

Itec

Itec C31TRIPLEDOCKPD Bedienungsanleitung

Itec

Itec CATRIPLEDOCKVGAPD Bedienungsanleitung

Itec

Itec C31TRIPLE4KDOCKPDPRO Bedienungsanleitung

Itec

Itec C31TRAVELEASYDOCKPD Bedienungsanleitung

Itec

Itec C31FLATDOCKPDPRO Bedienungsanleitung

Itec

Itec USB4DUAL4KDOCKPD Bedienungsanleitung

Itec

Itec CADUA4KDOCKPDLUK Bedienungsanleitung

Itec

Itec USB-C Dual Display Bedienungsanleitung

Itec

Itec CAQUATTRODOCKPDPRO Bedienungsanleitung

Itec

Itec C31TRAVELDOCKPD Bedienungsanleitung

Itec

Itec CATRIPLEDOCKPDPRO Bedienungsanleitung

Itec

Itec C31FLATDOCKPDV2 Bedienungsanleitung

Beliebte Dockingstation Handbücher anderer Marken

Sony

Sony Dream Machine XDR-DS12iP Bedienungsanleitung

Acer

Acer USB Type-C Dock II Bedienungsanleitung

ATEN

ATEN UC-2000 Bedienungsanleitung

Xcellon

Xcellon HDD-202 Bedienungsanleitung

Dok

Dok CR09 Bedienungsanleitung

Philips

Philips BTM630/12 Bedienungsanleitung

IOGear

IOGear Travel Pro GUD3C09 Bedienungsanleitung

RKI

RKI SDM-E2 Bedienungsanleitung

iHome

iHome iP15 Bedienungsanleitung

VITURE ONE

VITURE ONE MOBILE DOCK Bedienungsanleitung

Lindy

Lindy 42984 Bedienungsanleitung

CipherLab

CipherLab 8001 Bedienungsanleitung

Pyle

Pyle PIPDSP2 Bedienungsanleitung

Avol

Avol AS2350 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Philips

Philips DC190/79 Bedienungsanleitung

Targus

Targus DOCK315EUZ Bedienungsanleitung

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Bedienungsanleitung
