ITON XJ-WB60 Bedienungsanleitung

XJ-WB60

DISCLAIMER AND COPYRIGHT NOTICE

Information in this document, including URL references, is subject to change without notice.

This document is provided “As if” with no whatsoever, including any warranty of merchantability, noninfringement, fitness for any purpose,

or any warranty otherwise arising out of any proposal, specification or samples.

All liability, including liability for infringement of any proprietary rights, relating to use of information in this document is disclaimed. No

licenses express or implied, by estoppel or otherwise, to any intellectual property rights are granted herein.

The Bluetooth logo and symbol belong to the Bluetooth SIG Inc.

The Wi-Fi Alliance Member Logo is a trademark of the Wi-Fi Alliance.

All trade names, trademarks and registered trademarks mentioned in this document are property of their respective owners, and are

hereby acknowledged.

TGW206-16 Module

1.3 1.

summary..................................................................................................................................................................... 3

1.2 function............................................................................................................................................... 3

1.1.1 1.1.1Product characteristics......................................................................................................3

1.1.2 1.1.2Application scenario..........................................................................................................3

1.2 1.2describe.........................................................................................................................................

Catalogue

3 Functional

block diagram.................................................................................................................................... 3

2. 2.

PIN Foot definition............................................................................................................................................... 4

2.1 2.1modelg r o u p PIN Interface diagram.................................................................................4

2.2 2.2Pin function................................................................................................................................. 4

3. 3.

Module characteristics and specifications..................................................................................................5

3.1 3.1WiFi RF specification................................................................................................................. 5

3.2 3.2BLE RF specification...................................................................................................................5

3.3 3.3Module electrical parameters................................................................................................ 6

4. 4.

Reference application and PCB Layout........................................................................................................ 6

4.1 4.1Application schematic reference......................................................................................... 6

4.2 4.2PCB Layout reference resources.......................................................................................... 6

5.5.

reference resources PCB encapsulation......................................................................................................... 7

5.1 5.1Package size: .............................................................................................................................. 7

5.2 5.2Recommended pads.................................................................................................................7

6.6.

Revision history.................................................................................................................................................... 8

1.summary

1.2 function

1.1.1Product characteristics



802.11b/g/n，Wi-Fi+Bluetooth LE5. 0 combo, supports STA, soft AP and sniffer



Open source self controllable risc-v CPU, 1-160mhz adjustable, 276KB SRAM



Ultra low power consumption: sleep power consumption is only 0.5ua, networking standby power

consumption is only 40ua (dtim10)



Super fast connection: cold start fast connection only 70ms



Ultra long distance: maximum transmission power dBm, sensitivity - 98dbm, more than one wall



High security: support safe startup, safe debugging, AES 128 / 192 / 256 encryption engine, WPA3, MD5,

SHA-1 / 224 / 256, PKA

(RSA / ECC) encryption engine



Support the coexistence of Wi Fi and Bluetooth le

1.1.2 Application scenario



Intelligent lighting



Smart switch



Smart socket



Smart home appliances



Monitoring and remote control

1.2 describe

XJ-WB60 is an intelligent new generation of highly integrated Wi Fi and Bluetooth Le chip. The wireless

subsystem includes 2.4G RF, Wi Fi 802.11b/g/n and ble baseband / MAC design. The microcontroller

subsystem includes a low-power 32-bit RISC CPU, cache and memory. The power management unit

provides flexible settings to realize low power consumption mode and supports multiple security functions.

1.3 Functional block diagram

(Bluetooth LE5.0 Only support BT/BLE 1M)

15.05

2.Pin pin definition

1. 1ModulePIN Interface diagram

2.2Pin function

NO Name IO Type Description Configurable Functions

CHIP_EN I/O Chip enable pin (active high)

GPIO5 I/O GPIO5 SDIO,SPI, I2C, UART, PWM0, ADC,ACOMP

GPIO2 I/O GPIO2 SDIO, SFLASH, SPI, I2C, UART, PWM2

GPIO11 I/O GPIO11 SPI, I2C, UART, PWM1, ADC,

GPIO12 I/O GPIO12 SPI, I2C, UART, PWM2, ADC, ACOMP

GPIO14 I/O GPIO14 SPI, I2C, UART, PWM4, ADC, ACOMP, DAC

GPIO17 I/O GPIO17 SPI, I2C, UART, PWM2,

VCC

Power supply. 3.3V is required

GND

Ground connections

10 GPIO0 I/O GPIO0 SDIO, SFLASH, SPI, I2C, UART, PWM0

11 GPIO8 I/O GPIO8 (Boot option). SPI, I2C, UART, PWM3

12 GPIO1 I/O GPIO1 SDIO, SFLASH, SPI, I2C, UART, PWM1

13 GPIO3 I/O GPIO3

SDIO, SPI, I2C, pwm3, user communication

serial port RXD

14 GPIO4 I/O GPIO4

SDIO, SPI, I2C, pwm4, ADC, acomp, user

communication

Serial port TXD

15 RXD I/O UART RX This serial port can only be used as a

serial port for burning and log output

16 TXD I/O UART TX

Description: 1.The standard transparent firmware uses gpio3 (user communication serial port RXD) and gpio4 (user communication

serial port TXD) as communication serial ports with MCU.

2.The module supports up to five PWM outputs, and only one GPIO port can be set for thePWM of the same group.

Module characteristics and specifications

3.1WiFi RF specification

Product Name TGW206-16 Module

Standard IEEE 802.11b/g/n

Frequency Band 2.4~2.4835GHz ISM Band

Modulation Type DSSS,OFDM(WIFI)

Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,65,72.2Mbps

Spread Spectrum

IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)

IEEE802. 11g/n: OFDM (Orthogonal Frequency Division Multiplexing)

RX Sensitivity

11b-1Mbps: -98dBm

11b-11Mbps: -91dBm

11g-54Mbps: -77dBm

11n HT20-MCS0: -92dBm

11n HT20-MCS7: -73dBm

Maximum Input Level

11b: 5dBm

MCS0: -4dBm

MCS7: -13dBm

Output Power

11b: 11.92dBm

11g: 14.89dBm

Interfac

11n: 15.05dBm

e UART

Power Supply DC3. 3V

Operating Temperature -30℃ to +85℃

Size: 24mm×16mm×2.75mm

3.2 Ble RF specification

Parameter Conditions Minimum Typical Maximum Unit

Frequency range 2402 2480 MHz

RX sensitivity 1 Mbps

-93

dBm

Initial carrier frequency offset -24

24 KHz

Output power BLE 1M

dBm

4.06

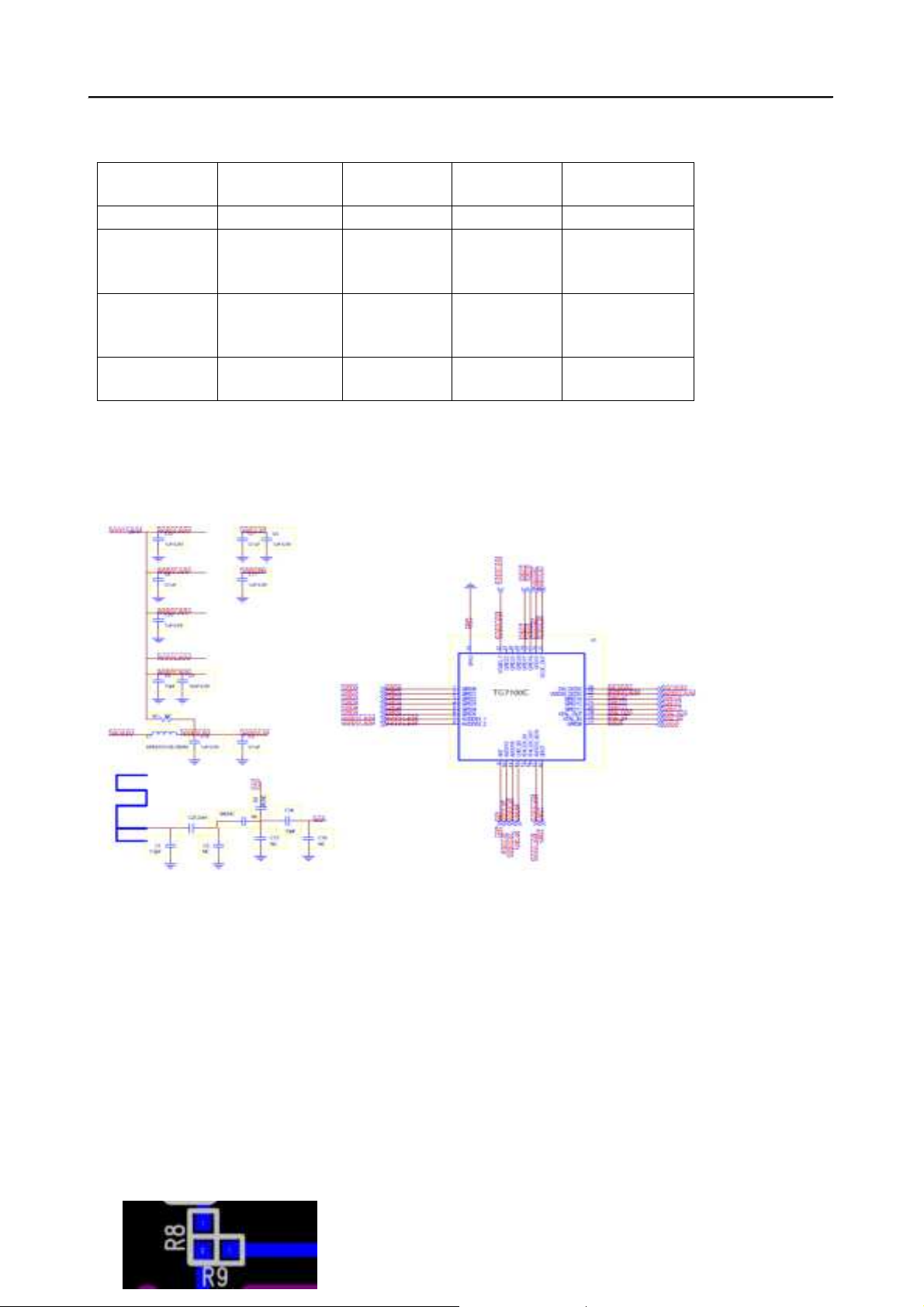

3.3 Module electrical parameters

parameter minimum

value

Typica

l value

Maxi

mum

Com

pany

VDD 2.2 3.3 3.6

Distribution

network

current

120

Working

electric

current

Standby

current

4.Reference application and PCB layout

4.1Application schematic reference

4.2PCB layout reference

4.2.1

Keep clearance at the module antenna

4.2.2

The module is far away from strong interference sources

4.2.3

The capacitance shall be increased at the power supply, and the wiring shall be short and

thick

4.2.4

The module can be pasted on the PCB board or welded on the PCB board with 2.0 rows of pins

4.2.5

PCB can use on-board antenna or IPEX base to connect external antenna (as shown below). This version is

on-board antenna

 

Onboard antenna: R8 (0r) / R9 (NC)

 

PEX sub external antenna: R8 (NC) / R9 (0r)

4.2.6

The module layout is recommended as follows:

5.Reference PCB package

5.1 Package size:

5.2 Recommended pads

edit

ion

Modifica

tion:

Modifi

ed by:

date

V0.

one

First edition

Zhong

Yongwu

2020.08.09

V0.

two

Update series naming Zhong

Yongwu

2020.10.27

V0.

three

Update GPIO function description

MJ 2022.01.13

Revision history

FCC Caution:

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

IMPORTANT NOTE:

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

Integration instructions for host product manufacturers according to KDB 996369 D03

OEM

Manual v01

2.2 List of applicable FCC rules

CFR 47 FCC PART 15 SUBPART C has been investigated. It is applicable to the modular.

2.3 Specific operational use conditions

This module is stand-alone modular. If the end product will involve the Multiple

simultaneously transmitting condition or different operational conditions for a

stand-alone modular transmitter in a host, host manufacturer have to consult with

module manufacturer for the installation method in end system.

2.4 Limited module procedures

Not applicable

2.5 Trace antenna designs

Not applicable

2.6 RF exposure considerations

To maintain compliance with FCC’s RF Exposure guidelines.

2.7 Antennas

This radio transmitter FCC ID: has been approved by Federal

Communications Commission to operate with the antenna types listed below, with the

maximum permissible gain indicated. Antenna types not included in this list that have a

gain greater than the maximum gain indicated for any type listed are strictly prohibited

for use with this device.

Antenna Description

Antenna

Type

Frequency Range (MHz)

Maximum antenna

gain(dBi)

BT/WiFi Antenna

PCB

2402-2480MHz/2412-2472MHz

2.0dBi

2.8 Label and compliance information

The final end product must be labeled in a visible area with the following"

Contains FCC ID: 2AXSO-XJ-WB60”

2.9 Information on test modes and additional testing requirements

Host manufacturer is strongly recommended to confirm compliance with FCC

requirements for the transmitter when the module is installed in the host.

2AXSO-XJ-WB60

2.10 Additional testing, Part 15 Subpart B disclaimer

Host manufacturer is responsible for compliance of the host system with module

installed with all other applicable requirements for the system such as Part 15 B
