ITWell XPDA-S PCI Bedienungsanleitung

Mobile POS XPDA-S PCI

Technical Manual

Revision: V2.0E

January 2012

ITWell Co.,Ltd.

#505 Gayang Techno Town, 1487 Gayang-Dong, Gangseo-Gu, Seoul

Tel +82 2 360 2345 | Fax +82 2 720 1916

www.itwell.co.kr

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •2/28

XPDA-S PCI ITWell Confidential

Index

1. Overview ...............................................................................5

2. Overall Features ....................................................................5

3. Device ...................................................................................6

3.1 Hardware Description.................................................................. 6

3.1.1 Platform ............................................................................................................ 6

3.1.2 Operating System.............................................................................................. 6

3.1.3 Display............................................................................................................... 7

3.1.4 Keypad............................................................................................................... 8

3.1.5 Magnetic Card Reader ...................................................................................... 8

3.1.6 Printer ............................................................................................................... 9

3.1.7 Smart Card Reader.......................................................................................... 10

3.1.8 USIM................................................................................................................ 11

3.1.9 SAMs ............................................................................................................... 11

3.1.10 Expansion Slot............................................................................................... 12

3.1.11 Audio............................................................................................................. 13

3.1.12 Battery........................................................................................................... 13

3.1.13 Barcode Scanner ........................................................................................... 15

3.1.14 GPS ................................................................................................................ 15

3.2 General Description ................................................................... 16

3.2.1 Dimension ....................................................................................................... 16

3.2.2 Weight............................................................................................................. 16

3.2.3 Operating Temperature .................................................................................. 16

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •3/28

XPDA-S PCI ITWell Confidential

4. Communication ...................................................................17

4.1 Modem...................................................................................... 17

4.2 USB............................................................................................ 18

4.3 WiFi ........................................................................................... 18

4.4 Bluetooth................................................................................... 18

4.5 RFID........................................................................................... 19

5. Accessories ..........................................................................19

5.1 Optional Accessories.................................................................. 20

5.1.1 Cradle .............................................................................................................. 20

5.1.2 AC Power Adapter........................................................................................... 21

5.1.3 Battery Pack .................................................................................................... 21

5.2 Included Accessories.................................................................. 22

5.2.1 Others ............................................................................................................. 22

6. Support ...............................................................................22

6.1 SDK and APIs ............................................................................. 22

6.2 Testers....................................................................................... 22

6.3 Maintenance ............................................................................. 22

6.4 Quick Starting............................................................................ 23

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •4/28

XPDA-S PCI ITWell Confidential

Version History

Version Date Description of Changes Author

V0.92E April 28, 2010 2nd Draft K Han

V1.0E April 29, 2010 3rd Draft K Han

V1.1E April 30, 2010 4th Draft K Han

V1.2E August 19, 2010 Janus V2.0 Specification K Han

V1.3E July 13, 2011 Added CDMA Modem ports

description K Han

V2.0E January 16, 2012 CPU type, RFID, Modem and Cradle

specification have been changed K Han

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •5/28

XPDA-S PCI ITWell Confidential

1Overview

XPDA-S PCI is a secure all-in-one mobile computer that satisfies PCI PED security

standard and EMV. Based on Windows CE.net 5.0, XPDA-S PCI has integrated printer,

barcode scanner, and secure PIN-PAD with smart card reader and magnetic stripe

reader. Complex business applications that need to collect data and perform real-

time communication is easy and fast with XPDA-S PCI. In addition, PCI PED certified

PIN PAD will allow you process credit card securely and effortlessly. As, printer,

barcode scanner, GSM and PIN PADs are all integrated in to a single device, there is

no need to purchase additional accessories or device to handle printing or payment.

2Overall Features

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •6/28

XPDA-S PCI ITWell Confidential

3Device

3.1Hardware Description

3.1.1 Platform

Characteristics XPDA-S PCI

CPU Marvell Xscale 806Mhz PXA320

Memory Flash 512MB (1GB optional)

Memory RAM 256MB

External Memory Micro SD(T-Flash) up to 32GB

USIP Innova Card secure module

MAXIM secure chip provides a secure logic for XPDA-S PCI. It means that XPDA-S

PCI can protect customer’s precious information and data within XPDA-S PCI using

MAXIM secure module.

3.1.2 Operating System

Operating System WinCE.net 5.0 Professional

WinCE 5.0 is used and spread out all over the world. It is compatible with various

applications and development languages.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •7/28

XPDA-S PCI ITWell Confidential

3.1.3 Display

Characteristics XPDA-S PCI

Type TFT Transmissive color (QVGA)

Screen Size 3.5 inch(89 mm)

Display Area 53.28(W) X 71.04(H)

Number of Colors 262K(262,000 Colors)

Touch Screen Analog Resistance Type

Resolution(W X H) 240 X 320

Viewing Direction 12 o’clock

Backlight White LED

The XPDA-S PCI’s Transmissive LCD can be used by a finger and a stylus pen as well.

Also, Transmissive LCD is brighter than Transflective LCD under sunlight.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •8/28

XPDA-S PCI ITWell Confidential

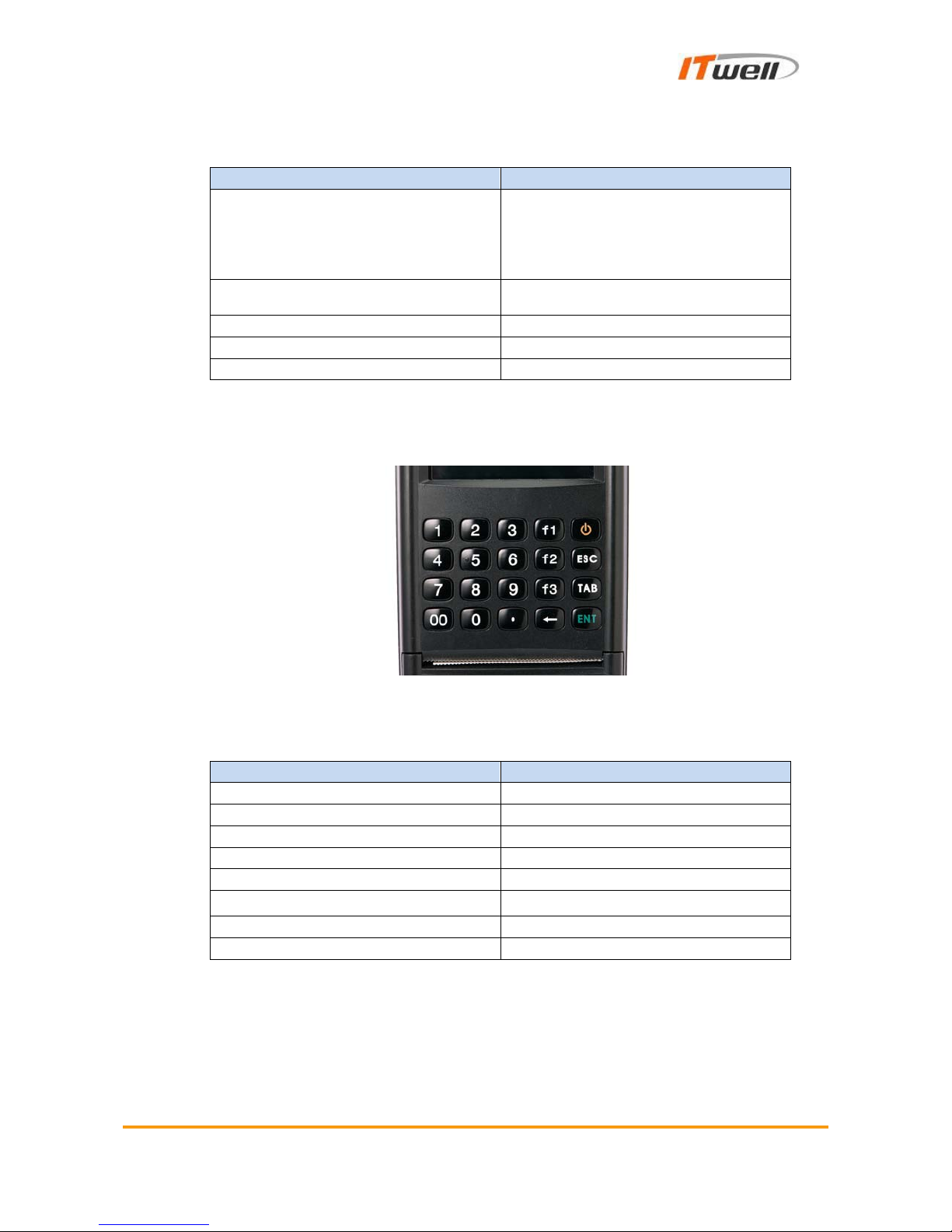

3.1.4 Keypad

Characteristics XPDA-S PCI

Number of Keys

-12 Numeric Keys

-3 Programmable keys(F1,F2 and F3)

-TAB, ESC and Enter

-Power

-Backspace

Triggers -1 programmable Trigger(set TAB as default)

-2 Scanner Triggers(left and right)

Type Plastic hard keys

Backlit No

Braille bumps Point on 5

The XPDA-S PCI numeric key pads are PIN Entry key pad for PIN when it needs to

be encrypted.

3.1.5 Magnetic Card Reader

Characteristics XPDA-S PCI

Reader Type Manual

Tracks ISO Track 1,2 and 3

Card format accepted ISO7811

Read Direction Bi-directional

Reading Method F2F(FM)

Card Thickness Plastic 0.76±0.08mm

Jitter Card Less than 18%

Card Swiping Speed 20 to 120cm/sec

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •9/28

XPDA-S PCI ITWell Confidential

For more MSR information,

Track used Track 1(ISO 1 IATA) Track2(ISO2 ABA) Track3 ISO3(MINTS)

Reading Density 210 BPI 75 BPI 210 BPI

Reading Capacity 79 Characters 40 Characters 107 Characters

Reading Bits 7-bit code 5-bit code 5-bit code

3.1.6 Printer

Characteristics XPDA-S PCI

Type of Print Thermal

Color Black and white

Length of Print 58mm

Loading and Opening System Easy loading and Easy opening system

Printing Speed 70 mm/sec

Printing Column -English Alphabet/Number: 32 Column

- Asian Character: 16 Column

Resolution 203dpi/8dots per mm

Maximum roll size

-Paper Width: 58mm

-Max roll Diameter: 24mm

-Max roll length: 6~7meter

Fonts -English Characters

-Chinese simplified

Character Size -ASCII 12X24(as a default setting)

-Chinese Simplified 24X24(as a default setting)

Dot Matrix Buffer

5000 dot lines

Keep printing about 200 lines of 24X24

Chinese characters once.

Barcodes -1D barcode types will be supported soon

Images YES(up to 384 dots)

Black Mark Detection YES

Paper Detection YES

Life Span 30Km

Every basic font can be programmed to double the size in height and width,

underline, margined in the center, right and left, and bold at the same time. For

more information, please refer to the API document.

Secure Mobile POS XPDA-S PCI

Technical Manual V2.0E •10/28

XPDA-S PCI ITWell Confidential

-Pull up the cover to open the lid of printer.

-Load the paper roll with correct direction.

3.1.7 Smart Card Reader

Characteristics XPDA-S PCI

ISO Standard ISO 7816 EMV level 1 certified

Contact Principle Friction Technology

Switch Blade contact, Normal open

Durability Up to 100,000 inserted

Rate of 600 inserts per hour

Material -Data Contact: Copper alloy

-Insulation: Thermoplastic, UL94V-0

Card Insertion Force 15N Maximum

Card Withdraw Force 1n Minimum

Normal Contact Force 0.2N ~ 0.6N

Contact Retention Force 0.3Kg Minimum

The smart card reader is located on the right side of XPDA-S PCI as shown below.

The card needs to be inserted with the card facing up.
