iWantit iMOO11 Bedienungsanleitung
mini dock for iPod/iPhone
iMOO11
instruction manual
Thank you for purchasing your new
iWantit mini dock for iPod/iPhone.
We recommend that you spend some
time reading this instruction manual
in order to fully understand all the
operational features it oers.
Read all the safety instructions carefully
before use and keep this instruction
manual for future reference.
iMOO11_IB_110829_Zell.indd 1 29/08/2011 1:30 PM
iMOO11_IB_110829_Zell.indd 2 29/08/2011 1:30 PM
contents
unpacking ................................................................................................................................................. 4
product overview ..................................................................................................................................... 5
power source............................................................................................................................................. 6
connections............................................................................................................................................... 8
insert your iPod/iPhone ........................................................................................................................... 9
charging your iPod / iPhone ( only with mains adapter).....................................................................10
connecting to the audio device.............................................................................................................11
hints and tips ..........................................................................................................................................12
specication............................................................................................................................................ 12
safety warnings ...................................................................................................................................... 13
iMOO11_IB_110829_Zell.indd 3 29/08/2011 1:30 PM
4
unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it
please do so according to any local regulations.

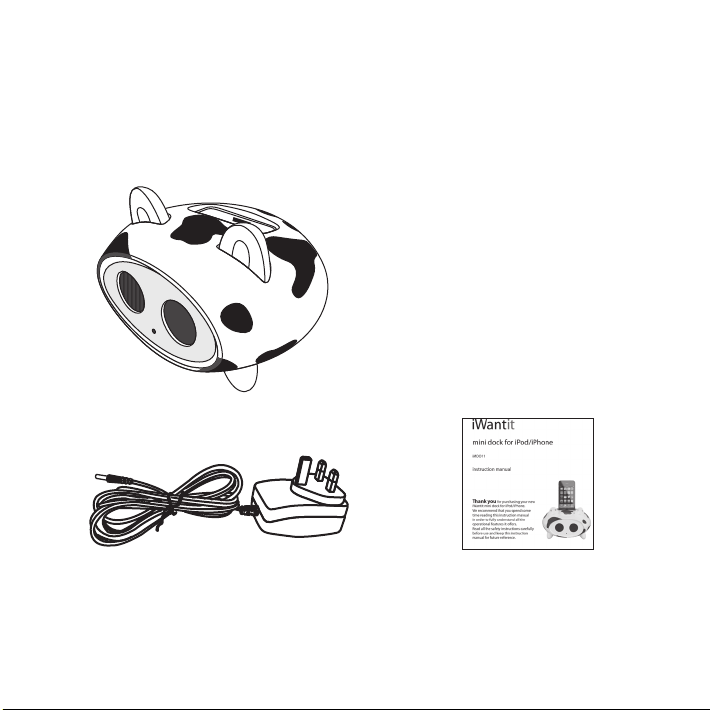

The following items are included:
If items are missing or damaged, please contact Partmaster(UK only).
Tel: 0844 800 3456 for assistance.
Main Unit
Mains Adapter x 1
P.N.: AD120602000UK
Instruction Manual
P.N.: iMOO11-002
iMOO11_IB_110829_Zell.indd 4 29/08/2011 1:30 PM
5
product overview
Front View Rear View
1. SKIP : (iPod mode)
Switch to left to skip to the
previous song.
Switch to left and hold to
rewind.
SKIP : (iPod mode)
Switch to right to skip to the
next song.
Switch to right and hold to fast
forward
2. Speaker
ON
OFF
DC IN
AUX IN
1 2
4 5 6 7
3
SKIP SKIP VOL VOL
3. Volume Control Button
VOL–: Switch to left to decrease
the volume.
VOL+: Switch to right to increase
the volume.
4. LED Indicator
5. On / O Button
6. Mains Socket
7. AUX IN Socket
iMOO11_IB_110829_Zell.indd 5 29/08/2011 1:30 PM
6
power source
mains power
Before using, connect the power cable of the
mains adapter (included) to the DC IN 6V socket
at the rear of the unit and to the mains socket.
battery power
This unit requires 4 x AA batteries (not
included).
1. Open the battery compartments on the
rear panel and insert batteries into the
compartment, following the polarity
indicators inside the compartment.
2. Reattach the compartment cover.
When the batteries are completely exhausted, the power indicator will turn o.
• The battery life of this unit is approximately 8 hours for alkaline type
batteries.
• When the batteries become weak, the sound becomes weak and distorted.
ON
OFF
DC IN
AUX IN
AA 1.5V+
AA 1.5V+
AA 1.5V+
AA 1.5V+
iMOO11_IB_110829_Zell.indd 6 29/08/2011 1:30 PM
7
handling the batteries
• Improper or incorrect use of batteries may cause corrosion or
battery leakage, which could cause re, personal injury or damage to
property.
• Use only the types of the batteries which are indicated in this manual.
• When the batteries are exhausted, the unit will not function. Replace
both batteries at the same time with new ones.
• Do not install new batteries with used ones and do not mix dierent
types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them
in accordance with local regulations.
• If you are not going to use the unit for along time, remove the
batteries to avoid damage from battery leakage and corrosion.
iMOO11_IB_110829_Zell.indd 7 29/08/2011 1:30 PM
8
connections
ON
OFF
DC IN
AUX IN
iPod /
iPhone
dock adapter
(not included)
3.5mm AUX IN Cable
(not included)
another audio device
SKIP SKIP VOL VOL
iMOO11_IB_110829_Zell.indd 8 29/08/2011 1:30 PM
9
insert your iPod/iPhone
1. Switch the On/O button at the rear of the unit to the ON position.
2. Insert the Universal iPod dock adapter (not included) into the iPod dock until
it sits rmly in place.
3. Carefully insert your iPod / iPhone into the iPod / iPhone dock.
When the iPod / iPhone is connected, it will automatically start charging the
iPod / iPhone battery until it is fully charged.
Supporting iPhone / iPod version:
• iPhone: 4, 3 GS, 3G
• iPod Classic: 5th Generation
• iPod Nano: 6th, 5th, 4th, 3rd, 2nd
4. If the iPod / iPhone is connected, the unit will start playback (it will take
around 10 seconds for the unit to identify the iPod / iPhone).
5. Select your desired music and play the connected iPod / iPhone as usual.
6. Switch the SKIP / button to left/right to select the previous or next
song.
7. Switch and hold the SKIP / button to left/right to select backward or
fast forward.
iMOO11_IB_110829_Zell.indd 9 29/08/2011 1:30 PM
10
charging your iPod / iPhone ( only with mains adapter)
1. Your iPod / iPhone has an internal non-removable battery. The battery may
need to be charged if it has not been used for a while.
2. You can automatically charge the iPod / iPhone through the unit when is
docked.
• If you charge the iPod / iPhone while playing music photos or videos, it may take a longer
time.
• 1st, 2nd, 3rd and 4th generation iPods and iPod mini cannot be charged by this unit.
• Charging function will only work when using the mains adapter as the power source. iPod
/ iPhone will NOT charge when using battery power.
• Re-dock the iPod / iPhone if playback is intermittent when just switching on from charging
mode.
iMOO11_IB_110829_Zell.indd 10 29/08/2011 1:30 PM
