JackaJay USER GUIDE
4
1. Introduction
1.1 Purpose of this document
1.2 Scope
This document serves as a user guide manual for the JackaJay, JackaHD
and ERS Lift System. It aims to acquaint users with the necessary
information that would help in the operations and installation of the
product as delivered by Jacka Industries.
It summarizes the history of its development, operation, and
maintenance through the following:
The scope of this guide revolves around providing users with information
as regards purchase requirements and commitments, outline of product
function / operations and associated troubleshooting and help guides.
To identify the project owner, client, users, and developers
where necessary.
To identify current and planned operating sites / client
implementations.
List relevant documents. Cross references to an appendix, if
necessary.
JackaJay USER GUIDE
5
Warranty information is as follows:
Jacka Industry Pty Ltd goods come with guarantees that cannot be
excluded under the Australian Consumers Law (ACL). You are entitled
to a replacement or refund for a major failure and for compensation
of any other reasonable and foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Any operation of the JackaJay lift system, other than as directed, will
void all warranty claims.
Any unintended use, regarding extreme conditions including but not
limited to, the submerging of any components of the camper trailer, not
including wheels, in water will void all warranty claims.
Any major water leaks or insurance claims must be registered with Jacka
Industries Pty Ltd to maintain current Warranty offer.
Any warranty claims will need to be inspected by authorized personnel
and deemed claimable within Jacka Industries Pty Ltd procedures.
1.3 Warranty
Recreational warranty commences 5 years from purchase date.
See Appendix A for denition.
While, Commercial warranty commences 1 year from purchase
date. See Appendix A for denition.
JackaJay USER GUIDE
6
2 Describing the System
2.1 Key Features
2.2 Environment
2.3 Installation
The JackaJay lift system provides a user-friendly process to raise and
lower the roof of their camper trailer, thereby reducing risk and possible
substantial damages. The key aspects of the JackaJay lift system are:
The JackaJay lift system has been designed for installation and use in
only wind-up model camper trailers. Any other installation or application
of use must be approved and documented by Jacka Industries Pty Ltd.
Environment of use is as directed by manufacturer user manuals and /
or any exposure of the camper trailer to adverse weather or situational
conditions. Any occurrence as outlined that requires the removal of
JackaJay system and serviced, will void all warranty. Adverse weather
and situational conditions include, severe water leaks that cause pooling
on the camper oor, submerging of any part of the camper trailer oor
in water causing damage to electrical components of the JackaJay
system etc.
For all installation directions and procedures, please refer to the
JackaJay Installation Guide outlined in the Appendix at the end of this
document.
Fault detection system to assist the user to locate and correct
faults in operation and / or mechanical wear and damage.
4.3-inch touch screen control
Under Voltage protection due to discharged power supply.
Low Power and low noise function.
No- Drop roof locking safety feature.
The JackaJay lift system is specically designed for the raising and
lowering of wind-up camper trailer roofs.
JackaJay USER GUIDE
7
3 Starting and Stopping the System
3.1 First-time Users
All operations of the JackaJay lift system are controlled via the
touchscreen of the controller, often found in the front boot section,
passenger side, of the camper trailer.
The Lift and Lower function can be operated in either one of the
following options:
Manual Mode: This is a JOG function that can be operated from
the HOME page. This is done by touching either the Lift or Lower
Buttons for less then 2 seconds.
You can operate in a JOG function as many times as you want.
Additionally, all Fault functionalities are present and the Lift
and Lower stop points still function. Hence you are not able to
overdrive the lift system.
Automatic Mode: This is a fully automatic mode that can be
operated from the HOME page, by touching either the Lift or
Lower button for longer then 2 seconds, while moving through
the automatic operation prompts.
JackaJay USER GUIDE
8
3.1.1 Turning the System ON and OFF
3.2 Controller / Push button ON
and OFF indication
The JackaJay controller is turned ON
and OFF via a small button found to
the left side of the controller’s touch
screen.
The user must conrm that correct
supply voltage of (12V DC) is
available with correct polarity,
before powering ON the controller.
When the controller is OFF, the button will be ushed with the front of the
control box and the Blue backlit LED will be OFF.
When ON, the button will be slightly pressed in from the front of the
control box and the Blue backlit LED will be ON.
Take note that the LCD touchscreen has a time out function and will go
blank after 5 minutes. This IS NOT an indication that the controller has
been turned OFF.
If the LED touchscreen has Timed Out and goes blank, touch the
touchscreen; if the controller is ON the screen will come back ON.
If the screen does not turn ON, check the Push button indicators, as
explained above. If the controller is not being used, ensure that the
controller has been turned OFF.
DO NOT turn ON the controller if the battery connection has not been completed.
If the JACKAJAY power supply cable is required to be disconnected from the
battery, you must ensure that the JackaJay controller is turned OFF.
JackaJay USER GUIDE
9
3.3 LCD Touch Screen Interface operation
The LCD user interface has been designed to provide clear and easy
operation of the lift system as well as direct feedback on the ongoing
operation and current status.
The User interface is divided into 2 Main pages –
HOME Page:
2 large BLUE buttons at the top for Lift and Lower operations.
Live supply battery voltage indication.
Controller status feedback text box.
Automatic Operations Page:
Displays all 4 corners of the camper trailer.
Once each corner reaches it’s Lift or Lower point, a text will
prompt the user of the status
If a FAULT occurs, a text will prompt you what has occurred and
the required actions.
BACK button: This will return you to the HOME page for further
operations and / or directions.
JackaJay USER GUIDE
10
3.5 Stopping and Suspending the system
3.6 Fault Detection
At all times during any of the system functions, the process can be
halted either by removing your nger from the Lift or Lower buttons, if in
a JOG function, or pressing the STOP button, if you are in the automatic
operation page.
The JackaJay controller is programmed with 2 smart detection systems to
prevent damage to the camper. These are set to detect abnormalities
during operation and ultimately to STOP any function that can damage
the lift system or camper trailer. If a Fault is detected the cause must be
investigated.
3.4 Starting the system

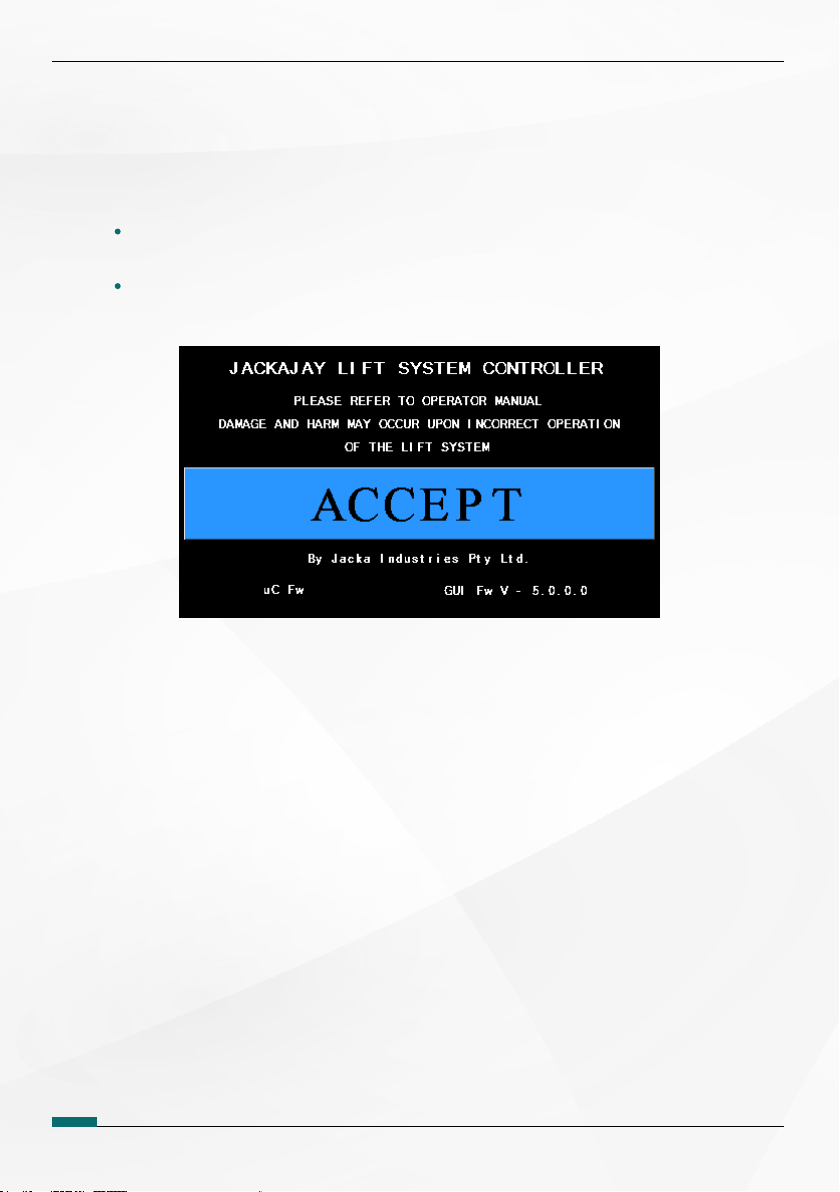

When turning the JackaJay controller ON. The rst page that is displayed
outlines the following:
The rights and responsibilities of the user, and clear safety
precautions that must be adhered too and ACCEPTED.
Software version details.
Andere Handbücher für JackaJay
2
Inhaltsverzeichnis
Andere Jacka Industries Hebesystem Handbücher
Beliebte Hebesystem Handbücher anderer Marken
morse
morse 82H-124 Bedienungsanleitung
Braun
Braun NL955 Series Bedienungsanleitung
haacon
haacon 1889.10 Bedienungsanleitung
Protekt
Protekt AT 252 Bedienungsanleitung
R. Beck Maschinenbau
R. Beck Maschinenbau HS 600 Bedienungsanleitung
Nova Technology International, LLC
Nova Technology International, LLC NAS Series Bedienungsanleitung
Genie
Genie Z-60/34 Bedienungsanleitung
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Bedienungsanleitung
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Bedienungsanleitung
Custom Equipment
Custom Equipment Hy-Brid 3 Series Programmierhandbuch
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Programmierhandbuch
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Programmierhandbuch
