SERIES 24

MODELS 24A-AF, 24B-BF-BP

HOT WATER SANITIZING UNDERCOUNTER

DISHMACHINE

FROM SERIAL NO. 23000

INSTRUCTION MANUAL

INCLUDES:

-Warranty Policy -Specifications

-Installation Requirements -Care and Cleaning

-Operating Instructions -Troubleshooting

-Illustrated Parts -Optional Drain Pump

-Service Agencies -Wiring Diagram

Highway 25E

P.O. Box 1060

Barbourville, KY 40906

1-888-800-JSMC(5762)

FAX (606) 523-9196

September 21, 1998 P/N 7610-100-35-00 Rev A

INDEX

WARRANTY Inside Front Cover

SPECIFICATIONS 2

CONCEALED DAMAGE 4

GENERAL INSTRUCTIONS (Installation) 5

INSTALLATION CHECKLIST 9

GENERAL INSTRUCTIONS(Operation) 10

GENERAL INSTRUCTIONS (Preventive Maintenance) 11

REMOVAL of RINSE and/or WASH HEAD ASSEMBLIES

(General Instructions) 12

TIMER for SERIES 24 DISHWASHERS 14

FUNCTION of SWITCHES, CIRCUIT BREAKER

and INDICATING LIGHTS 15

THERMOSTAT ADJUSTMENT 16

RINSE TANK HEATER SYSTEM 17

WASH TANK HEATERSYSTEM 19

WATER LEVEL CONTROL 20

SERVICE NSTRUCTIONS(lncomingWaterSolenoidValve) 21

BEWARE of COUNTERFEIT PARTS 22

TROUBLESHOOTING GUIDE 23

PICTORIALS:

FRONT VIEW 26

BACK VIEW 27

LEFT SIDE VIEW 28

RIGHT SIDE VIEW 29

PAN STRAINER, VACUUM BREAKER, DOOR SWITCH

and LATCH ASSEMBLY, INCOMING PLUMBING 30

RINSE TANK, WASH ASSEMBLY, WASH or RINSE

THERMOSTAT, WASH or RINSE THERMOMETER 31

BOOSTER TANK HEATER ELEMENT, ELEMENT

GASKET, THERMOSTATIC OVERLOAD 32

PUMP and MOTOR ASSEMBLY 33

DRAIN VALVE, CUTAWAY VIEW, PANEL 34

WIRING DIAGRAMS 35

PUMP DRAIN OPTION 40

FUNCTIONAL BREAKDOWN of the FOUR MAIN PARTS of the

24BP and 24AP PUMP DRAIN SYSTEM 46

GENERAL INSTALLATION INSTRUCTIONS of MACHINE DRAIN LINE 48

PARTS LIST for the PUMP DRAIN SYSTEM 53

COMPLETE PARTS LIST for SERIES 24 54,55

PARTS DISTRIBUTORS Inside Back Cover

NOTE: All dimensions from floor can be increased 1" with adjustable feet supplied.

Power/Connections

Overall Product, in P

lace

Performance/Capacities

Model

24(F) 24B(F)

WASH PUMP MOTOR

Model Model

Horsepower ELECTRIC HEAT WASH 1/2 1/2 OPERATING CAPACITY 24(F) 24B(F)

KW 1.0 1.0 Racks per Hour 21 21

ELECTRIC HEAT RINSE

Dishes per Hour 525 525

KW N/A 6.2 Glasses per Hour 525 525

STANDARD RACK SIZE

Electrical Ratings 19 3/4 x 19 3/4 11

Model Volts Cycle* Phase

Amps OPERATING CYCLE

Wash Time-Seconds

121

24,24F 115 60 24B,24BF 115/208-230 60

*50 cycle available

1 (2

wire)

1 (3

wire)

15.5

34.9@

208v

37.8@

230v

Rinse Time-Seconds

Total Cycle-Seconds

WASH TANK CAPACITY

Gallons

15 145

5.65

145

5.65

Water Requirements

RINSE TANK CAPACITY

Gallons

N/A

Inlet Temperature—"F 180 140 WASH PUMP CAPACITY

Gal. per Hour 52.3 52.3 GalIons per Minute 60 60

Plow Pressure PSI 20 20 THERMOMETERS

Flow GPM 7.1 7.1 Wash-°F 140-160

140-160

Inlet—IPS 1/2" V2” Rinse-°F 180-195

180-195

Drain—O.D. 1/2" ½” SHIPPING WEIGHT -Pounds

(Gravity Feed Drain)

BASIC MODELS (Approx.) 200 200

CARTON SIZE (W x D x H) 30"x30"x38"

All specifications subject to change without notice.

MODEL

(No Booster)

•Total automatic cycle is 2 minutes 25

seconds

•Up to 50% more wash time than other

undercounter dishwashers

•Door activated cycle start switch

•Electric wash tank heater with low water

protection maintains proper wash

temperature

•Simplified controls for ease of operation

•Automatic fill

•Automatic drain

•Manual wash switch for deliming

• 100% fresh water rinse eliminates

problems of rinse water contamination

associated with re-circulating rinse

machines

• (18-8) 304 series stainless steel con-

struction. 18 gauge material is used for

extra durability and years of reliable

service

•No switches or wiring in door

•One dish rack and one combination cup,

bowl and silver rack included

• 115 v/60 Hz/1 phase only

•Optional pumped drain

MODEL 24B

•Same Standard Features as above except

the Model 24B includes a6.2 KW built-in

booster heater

•Built-in booster is sized to raise incoming

water 40°-50°F

• 208-230 v/60 Hz/1 phase only

•Optional pumped drain

MODEL 24F and MODEL 24BF

•Same Standard Features as above except

"F" models include (18-8) 304 series 18

gauge stainless steel top and side

panels for free standing installations

•Optional pumped drain

Dimensions

Height w/Top 36 1/4" ± 1/2"

Height w/o Top 341/2 a V1/2"

Width 24"

Depth 24"

Minimum Distance from

Wall to Machine 2 1/2"

Standard Table Height 34 1/2"

Maximum Clearance tor Dishes 14"

Legend

A. Electrical Connection.

B. Water Inlet -1/2" Female Pipe

Thread. 2 1/2" High.

C. Drain Connection -1 1/2" O.D.

D. Vented on Back. Cover underside of

countertop or table that will be affected

by moisture with suitable protective

material.

E. Rinse agent feeder connection.

F. Detergent feeder connection.

G. Maximum wall drain height with pumped

drain option.

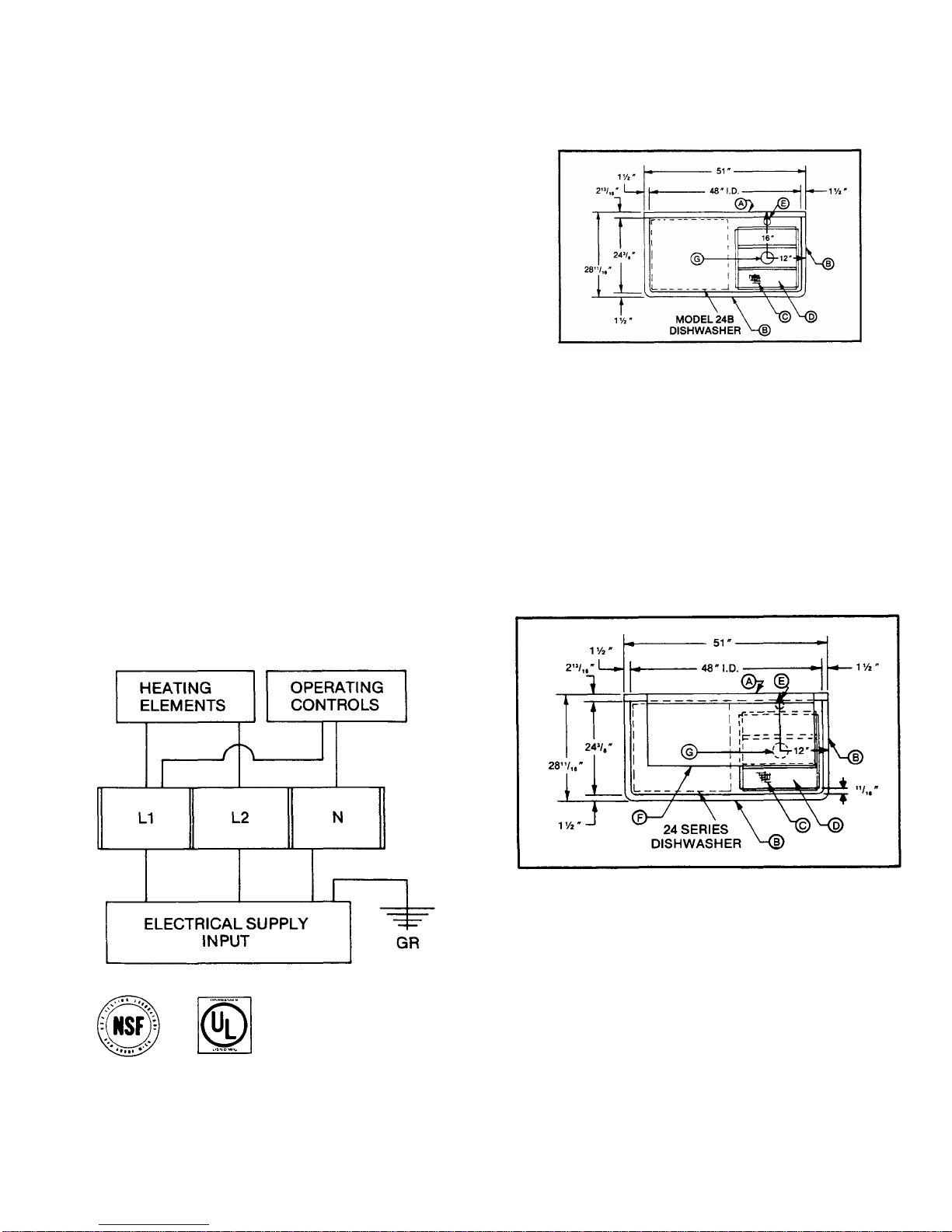

MODEL 24 TABLE PACKAGE OPTIONS

GENERAL INFORMATION 24.1 PACKAGE

•The system combines the 24 or 24B dishwasher with a standard

Dishtable.

• 42" wall mounted overshelf in 1-X package.

•The Dishtable and overshelf are constructed of 18-8 304 series 16

gauge stainless steel.

•Heavy duty pre-rinse spray.

•20"x20"x6" deep pre-rinse sink with molded scrap basket and rack

slide.

•C33/16"high backsplash.

•Left and right side panels for machine.

NOTES:

A. 633/16" High Backsplash, 33/4" " Turnback

at 45°.

B. 3" High, 1 1/2"Dia. Rolled Edge.

C. Scrap Basket & "H" Bars.

D. 20 " x20 " x6" Deep Pre-Rinse Sink. Drain Connection 25 1/2 ± 1/2"from Floor.

E. Heavy Duty Pre-Rinse 13/16" Hole Size.

F. Slanted Wall Mounted Overshelf. 20" x42" Long.

G. 3 1/2" Hole for Drain, Basket Assembly.

16 GA. s/s N.S.F.

CONSTRUCTION 24-1X PACKAGE

ELECTRICAL

CONNECTION DETAILS MODEL 24B ONLY

CONCEALED DAMAGE

IMPORTANT: FOR YOUR PROTECTION, PLEASE READ AND OBSERVE THE FOLLOWING:

This merchandise has been thoroughly inspected and carefully packed before leaving our warehouse.

If it is found that the shipment has concealed damage, PLEASE DO NOT RETURN IT TO US, but notify and file a

claim with the carrier at once, as follows:

CONCEALED LOSS OR DAMAGE:

Concealed loss or damage means loss or damage which does not become apparent until the merchandise has

been unpacked. The contents may be damaged in transit due to rough handling even though the carton may not

show external damage. When the damage is discovered upon unpacking, notify the carrier within forty-eight (48)

hours by phone and in writing, asking them to send their agent to fill out an inspection report. Save the cartons so

he may see them and be sure to note in the report any black marks, creases, tears, crushed corners or any other

marks indicating rough handling.

DO NOT RETURN DAMAGED MERCHANDISE TO US. FILE YOUR CLAIM AS ABOVE.

GENERAL INSTRUCTIONS

(INSTALLATION)

REFER TO SPECIFICATION SECTION FOR FURTHER DETAILS.

Note: Read the following instructions carefully. Proper installation of your Jackson

Dishwasher will assure proper machine operation.

Uncrating 24:

1. Remove wooden blocks from carton.

2. Slide carton sleeve upward over top of dishwasher, set to one side.

3. Remove bolts holding wooden base to machine and screw in adjustable feet supplied. (Feet are

inside of dishwasher.)

4. Set dishwasher in place, ready for installation

Note: NSF base cradle must be field installed on all 'F' and 'P' models. Cradle goes under

machine and must be sealed in place using silicone sealant.

Installation Instructions:

1. The dishwasher can be leveled to the proper height by adjusting the feet on the four corners. The

front of the unit must be 1/4"to 1/2"higher than the back.

2. Refer to the dimensional data sketch for connections.

3. The drain from the machine is a GRAVITY DRAIN SYSTEM and should have the proper drop from

the machine to an open floor drain, vented to atmosphere. The drain connection is located to the left

rear of the machine when facing the machine's door. The drain fitting is I 1/2" OD tube size, 7" from

floor.

4. IMPORTANT —PLEASE READ —Located on the back upper left corner of the unit is a steam

equalizing vent. This vent in no way should be blocked or prevented from allowing steam to be

vented to the outside of the unit or from under the cabinet in which the unit is installed. Never pipe

the steam downward toward the floor. (SEE PAGE 5 IF IT IS BEING INSTALLED UNDER A

COUNTER.)

5. The electrical connections should be made to the terminal board located at the center front. The

terminals are marked L1, L2, and Neutral. Install proper circuit breaker and conduit size to conform

with local and/or national codes (standards). USE COPPER WIRE ONLY (#8 AWG).

Installation of Top and Sides on 'F' and 'P' Models:

1. Insert rear barrier with angle facing out. Install prior to placing top on uit.

2. Place top on unit, making sure front lip is under flange, but does not interfere with latch or switch

mechanism. Place studs in holes on back of unit. Use 1/4-20 nuts.

NOTE: For 'P' models, omit steps 1 and 2.

3. Remove kickplate. Open door and place side panel lip at door opening. Work panel under top by

pushing with palm of hand. Put self-tapping screws in four places. Both side panels are installed in the

same way. Note: If unit being installed is an 'F' model, do not put the bottom rear self-tapping screw in

each panel until step 4.

4. 'F' models require a back panel. For installation, slide back panel behind lip of side panels and secure

with the two remaining self-tapping screws.

Installation of Model 24 Top and Table gasket:

These instructions are to be used for applying the adhesive backed sponge rubber strip to the top of the

machine prior to setting the table in place.

Included with the Model 24 table is a 6 foot length of 1/4"thick x1" wide sponge rubber adhesive backed

stripping.

Instructions for applying gasket:

1. Place one end of the stripping along the complete

side of the leg support flange and cut it off.

2. Repeat the same procedure along the other side.

3. Place the remaining piece along the front edge, fit it

in between the side pieces and cut it to length.

4. Remove the backing and set the strips in place.

Instructions for installation under a porous

counter top:

1. If possible, a hole should be cut through the counter

top directly above the equalizing vent. A piece of 1

1/4"OD pipe is then inserted through the hole into the

vent opening and piped to the outside.

2. If cutting a hole in the counter is not possible, then a

piece of stainless steel 36" wide by 36" long bend in

the middle at 90 should be centered directly over the

vent to allow the steam to condense on it when it

comes out of the vent.

3. It is very important that this vent be kept open and

cool air allowed to circulate around the unit.

Installation of Model 24 Dishwasher Under Dishtable:

1. On the end of the table, locate bracket #4 opposite the sink end.

2. A square rubber gasket #3 is supplied and should be secured to top frame of dishwasher with

caulk or suitable adhesive.

3. Place dishtable #2 where it is to be installed and support the machine's end.

4. Slide dishwasher #1 underneath dishtable #2 so that the outside of machine is positioned against

the guide bracket #4. Make sure dishtable and dishwasher are in desired permanent location.

5. Using the two holes in bracket #4 as a guide, drill two holes 9/64"diameter in the side panel of

machine. Note: Drill through first thickness of metal only.

6. Using the self-tapping screws supplied, screw them through bracket #4 and into the side panel of

machine until screws are tight.

Removal of Pan Strainer for Cleaning: (Wash and rinse head assemblies must be removed prior to

removing strainer.)

1. Turn machine off and drain by depressing drain switch and releasing.

2. Remove holding pin from rinse feed pipe, remove rinse head assembly by pulling forward.

3. Remove holding pin from upper pump housing, wash head may now be lifted out.

4. Pan strainer now accessible, lift out and clean thoroughly.

5. Clean around pump intake with bristle brush.

6. Replace stainer pan.

7. Re-install wash and rinse head assemblies.

8. Clean strainer pan daily or as needed to insure proper machine operation.

Installation of Wash Head and Rinse Arm Assemblies: (Items disassembled for shipment)

1. Line holes up on wash head assembly to match slots in pump housing.

2. Insert wash head assembly down into upper pump housing as far as

possible.

3. Insert retaining pin to secure wash head to pump housing.

1. Line up stud to match with slot in nipple.

2.Insert rinse arm assembly into female receptical

protruding through back of machine.

3. Insert lanyard pin to secure rinse arm assembly

properly.

4. Make certain end plugs are secured properly in

rinse tubes.

INSTALLATION CHECKLIST

Please check off the following items as they are completed. All items must be completed and checked off

before proceeding to machine operation.

In the event that installation information is needed, please call one of Jackson Products authorized

service agencies, dealership where purchased or Jackson Products Company Technical Assistance

(813) 985-8144.

1. Is machine pitched up 11/4-11/2inch in front than rear?

2. For gravity drain systems —is machine's gravity drain connected to a open floor drain "vented to atmosphere"?

3. Is machine service voltage at L1 and L2 208-230 volts?

4. Is machine service voltage at L1 and neutral 104-120V?

5. Is machine properly grounded?

6. Is machine service breaker properly sized to total amp load as specified on data plate?

7. Is machine supplied with 140°F hot water at 20 PSI flow pressure with capacity of 52.3 gallons per hour?

8. Is water supply line to machine a minimum of 1/2inch?

9. Is a pressure reducing valve installed on inlet water line for pressures greater than 20 PSI flow?

10. Is equalizing vent vented to atomopshere?

11. Is pump intake strainer installed?

12. Is lower rinse spray arm installed?

13. Is wash spray head installed?

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Jackson Spülmaschine Handbücher

Jackson

Jackson Hot Water Sanitizing Undercounter Dishmachines... Bedienungsanleitung

Jackson

Jackson TEMPSTAR Einrichtungshandbuch

Jackson

Jackson Avenger HT Bedienungsanleitung

Jackson

Jackson DELTA Series Einrichtungshandbuch

Jackson

Jackson Enodis 300X Bedienungsanleitung

Jackson

Jackson AJ-44 Bedienungsanleitung

Jackson

Jackson TempStar Series Einrichtungshandbuch

Jackson

Jackson CONSERVER XL2 Einrichtungshandbuch

Jackson

Jackson ECOLAB WH-44 Series Bedienungsanleitung

Jackson

Jackson CONSERVER XL-E Einrichtungshandbuch

Jackson

Jackson 100 B/PRB Bedienungsanleitung

Jackson

Jackson DynaTemp Bedienungsanleitung

Jackson

Jackson DishStar Series Gebrauchs- und Pflegehandbuch

Jackson

Jackson Door-type Dishmachine TEMPSTAR GPX Bedienungsanleitung

Jackson

Jackson CJ-20 Bedienungsanleitung

Jackson

Jackson Conserver XL-E Series Einrichtungshandbuch

Jackson

Jackson Hot Water Sanitizing Undercounter Dishmachines... Bedienungsanleitung

Jackson

Jackson 200B Bedienungsanleitung

Jackson

Jackson DISHSTAR HT-E Bedienungsanleitung

Jackson

Jackson Rack Conveyor Dishmachine Stücklistenhandbuch

Jackson

Jackson AJ-44TE Bedienungsanleitung

Jackson

Jackson DishStar Series Einrichtungshandbuch

Jackson

Jackson Potwashers PT-14 Bedienungsanleitung

Jackson

Jackson AVENGER HT-E Einrichtungshandbuch

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung
