Jacuzzi Bellavista 6 Bedienungsanleitung

Bellavista™6

PURE AIR®II BATH

MODEL NUMBER:

Y850 – RH pump

EXTERIOR DIMENSIONS:

72" long x 42" wide x

26" high

INTERIOR DIMENSIONS:

43½" long x 23½" wide

OPERATING GALLONS:

90 gallons

In Italy, it means beautiful view. To you, a wonderful place to regain relaxed,

revitalized perspective. A truly “bella”—beautiful—experience: the Bellavista™

Pure Air®Bath.

WHIRLPOOL BATH FEATURES:

• Exclusive 360º Balanced Air Flow™ system

• 800 watt heated air blower

• All-in-one electronic control panel

• Thermal lumbar comfort™ (TLC)

• Drain-assist purge system

• PrO3

™ Ozone Sanitation System standard

Bellavista™6 |PURE AIR®II BATH

Detail:

The Bellavista™ Pure Air®bath features a gracefully curving proﬁle, and scalloped edge

detailing. Air channels evenly distributed around the bottom and up the back of the tub—in

collaboration with Jacuzzi’s patented 360º Balanced Air Flow system—create uniform warmth.

The result—no cold spots.

Bellavista™6

PURE AIR® II BATH

Technical Speciﬁcations

DIMENSIONS

72” L x 42” W x 26” H

(1829 mm) L x (1067 mm) W x (660 mm) H

DRAIN/OVERFLOW

A: 20” (508 mm) B: 11-3/4” (298 mm)

CUTOUT

Template Provided P/N P187000

TOTAL WEIGHT

1130 lb (513 kg) / 54 lb/sq. ft. (264 kg/m2)

OPERATING GALLONAGE

90 U.S. Gal. (341Liters)

Min. 75 Gal. (284 Liters)

Max. 98 Gal. (371 Liters)

PRODUCT WEIGHT

130 lb (59 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 120 VAC, 15 AMP, 60 Hz.

HEATER

No water heater is available on this unit. Blower has integral air heater.

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR17000 10/07

Y850

Bellavista™ 6 Pure Air® II Bath, Right Hand

(

Includes a required drain/actuator kit in chrome)

• Center Drain Location

• Accessories / Hardware:

Trim Kit Rotary: #BN21

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

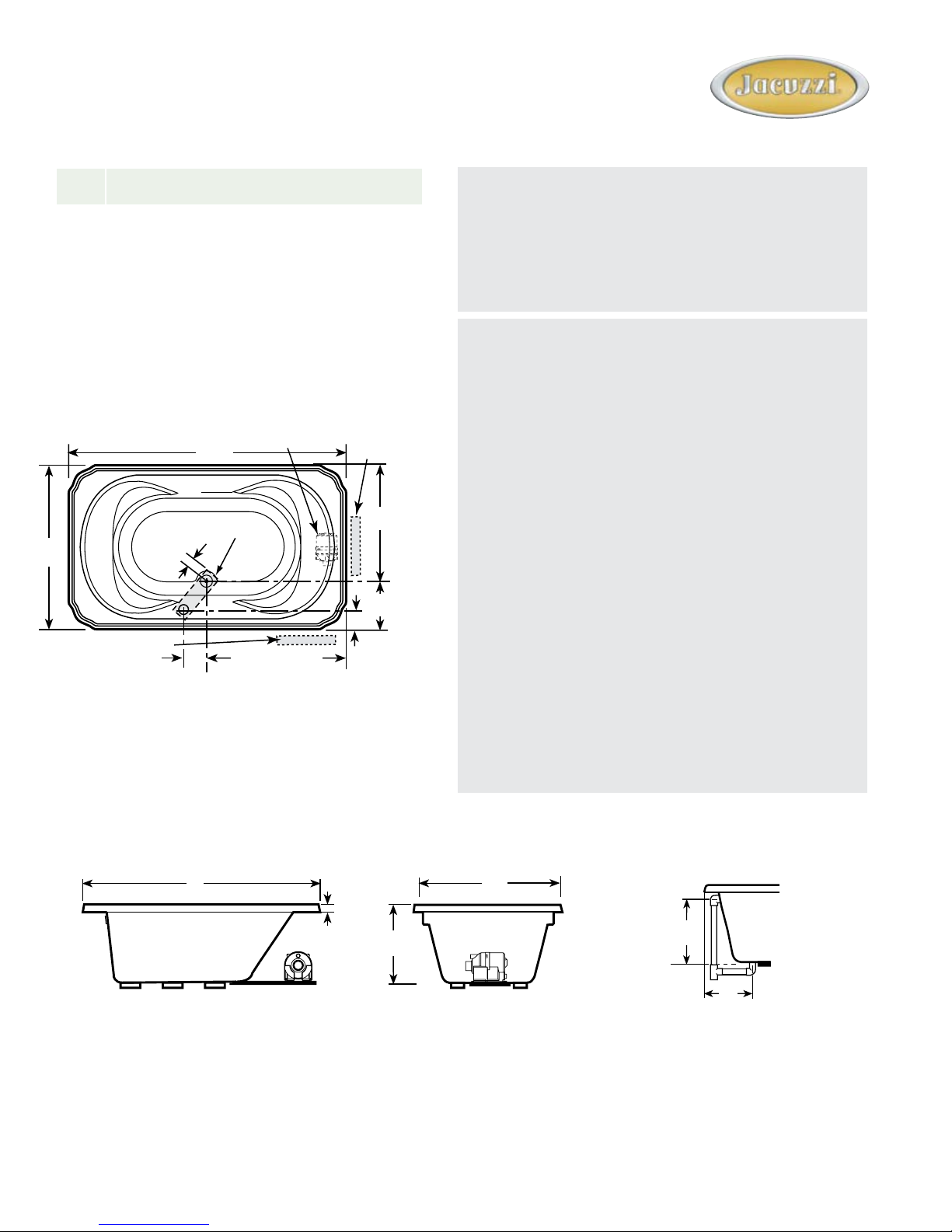

42"

72"

10-1/2" 35-13/16"

11-3/4"

30-1/8"

18" x 4"*

Blower 12" H x 18" L

Service Access

Optional Service Access

END VIEW

SIDE VIEW

(51 mm) (Blower)

DRAIN/OVERFLOW

Product Shown: Bellavista™ 6 Pure Air® II Bath

Right Hand Shown, Model: Y850

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
