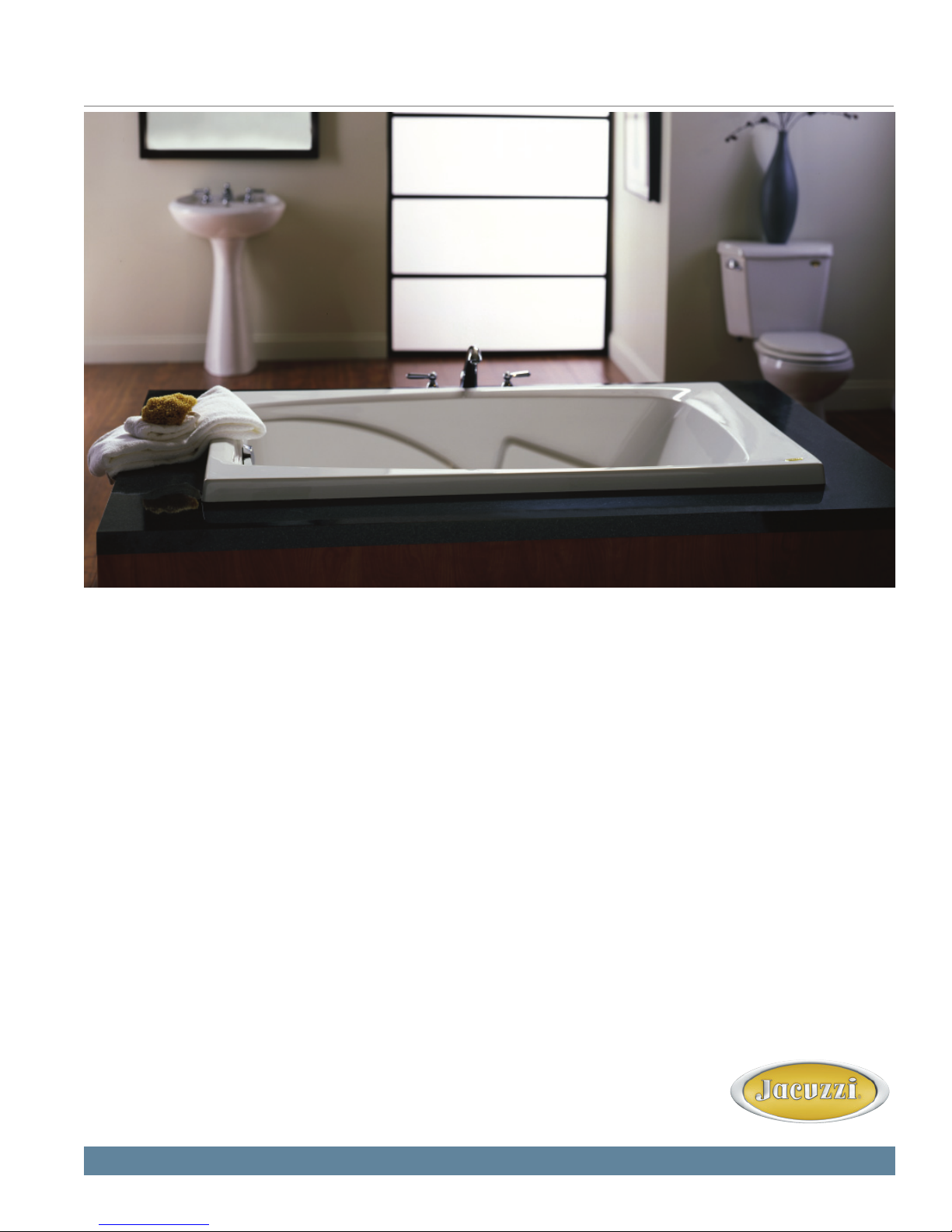

cetra®536 whirlpool bath and soaking bath

from the ancient hymns of the greek gods comes cetra—Italian for “lyre”.

Like its namesake, the Cetra®whirlpool

bath is an undeniable classic—

an uncomplicated, sculptural form,

perfect for settings from traditional

to contemporary.

features:

• 4 fully adjustable TheraPro™ jets

• 2 AccuPro™ lumbar jets

• 2 AccuPro™ foot jets

• Sculpted armrest

• Contoured backrest

• Energy-efﬁcient, self-draining pump

• Patented Fixed Air Flow System

• Slip-resistant bottom

• Exclusive Tru-Level™ self-leveling base system

• Drain included on whirlpool baths

cetra®536

whirlpool bath

model number: N875 – LH, N880 – RH

exterior dimensions:

60" long x 36" wide x 21¼" high

interior dimensions:

41½" long x 22" wide

# of Jets/type of Jets:

4 TheraPro™ Jets,

2 AccuPro™ Lumbar Jets,

2 AccuPro™ Foot Jets

operating gallons:

48 gallons

cetra®536

soaking bath

model number: N885

exterior dimensions:

60" long x 36" wide x 21¼" high

interior dimensions:

41½" long x 22" wide

Cetra®536 Whirlpool Bath

Model: N875, N880

Cetra® 536 Bath

Model: N885

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Electrical Components and Electrical Speciﬁcations do not apply to non-jetted baths.

Ordering Information

Product Code:

N875 Cetra® 536 Whirlpool Bath

Left Hand

N880 Cetra® 536 Whirlpool Bath

Right Hand

N885 Cetra® 536 Bath

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

Trim Kit: 1 X TheraPro™ Jet Rings #D095

Trim Kit: 2 X AccuPro™ Jet Rings #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

60” L x 36” W x 21-1/4” H

(1524 mm) L x (914 mm) W x (540 mm) H

Drain/Overﬂow

A: 18-1/2” (470 mm) B: 9” (229 mm)

Cutout

58” x 34-1/4”

Total Weight

N875, N880: 742 lb (337 kg) / 50 lb/sq. ft. (242 kg/m2)

N885: 707 lb (321 kg) / 47 lb/sq. ft. (230 kg/m2)

Operating Gallonage

48 U.S. Gal. (181 Liters)

Max. 55 U.S. Gal. (208 Liters)

Product Weight

N875, N880: 92 lb (42 kg)

N885: 57 lb (26 kg)

Skirt Mounting

Optional U-Frame

Electrical Speciﬁcations Models N875, N880 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional) Models N875, N880 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

60"

36"

18"

12" x 4"*

Motor

12" H x 18" L

Service Access

Opt. Service Access

5-3/4"

END VIEW

SIDE VIEW

#FR28 07/07

DRAIN/OVERFLOW

Product Shown: Cetra® 536 Whirlpool Bath Left Hand Model: N875

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
