Prepare the area where you will be installing your speaker system.
Following are some tips you may want to consider:

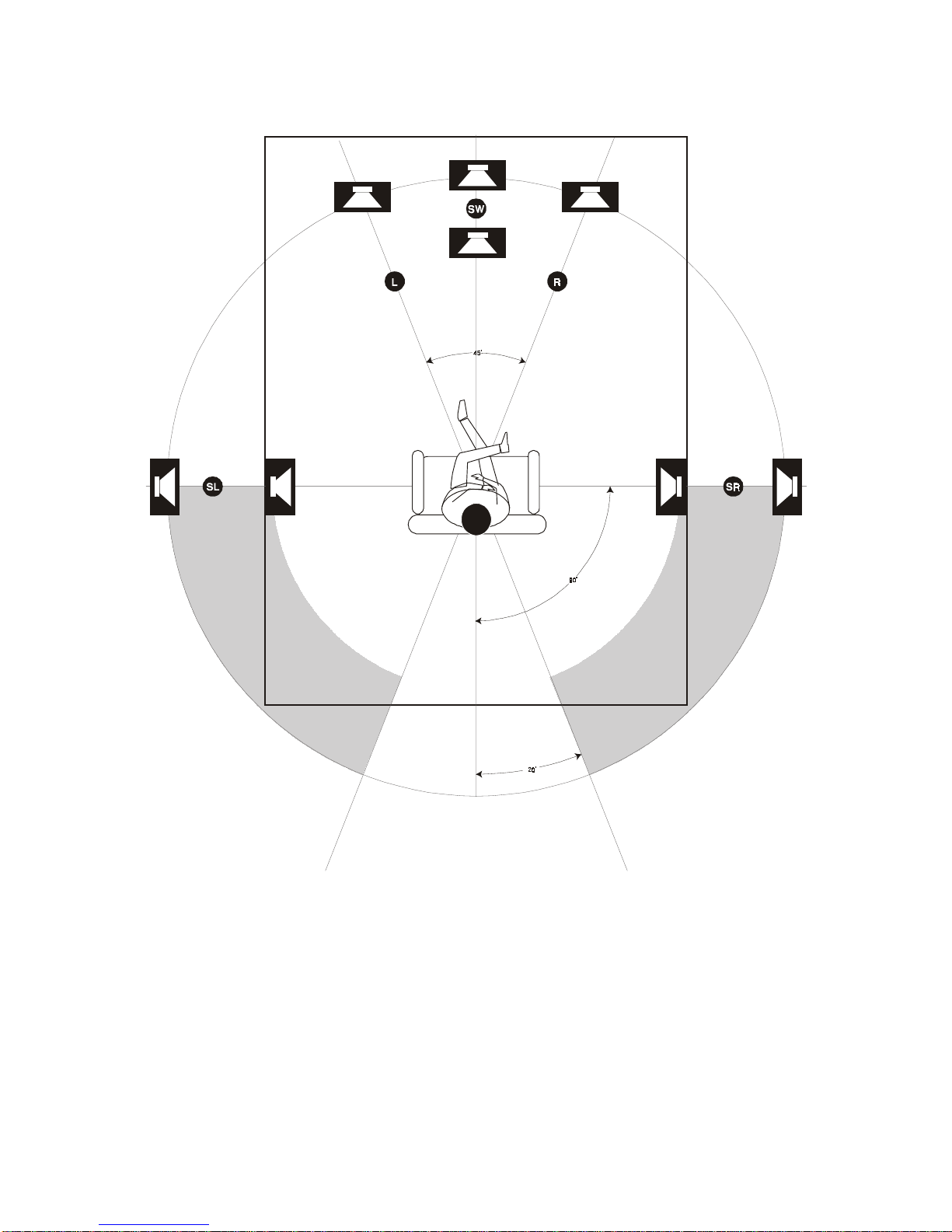

Select a solid location for satellite speakers and place them an appropriate distance
apart for good stereo imaging; 2ft.~3ft. (60cm.~90cm.) apart if using on a desktop
with your multimedia computer, personal stereo or mini-bookshelf audio system; at
least 3ft.~4ft. (90cm.~120cm.) apart is using fairly close to television set and at least
5ft.~8ft. (150cm.~240cm.) apart if using the as a home theater or traditional audio
setup.
The satellite speakers may also be wall mounted with optional brackets available
separately from your dealer. If you choose to mount the satellite, please select a
solid location on the wall.
Select a solid location for subwoofer (generally on the floor) which allows adequate
ventilation for the 600W RMS/480W RMS integrated Amplifier mounted in the rear
of the subwoofer enclosure. To enhance bass performance, it is generally advisable
to place the subwoofer next to a wall or solid piece of furniture with the woofer/grille
pointing away from the wall or furniture.
MDF ENCLOSURE SUBWOOFER
5 1/4in. MDF ENCLOSURE SATELLITE SPEAKERS
BUILT IN FUSE
MAGNETIC SHIELDING
DYNAMIC SOUND QUALITY
With the power switch in the off position and the power outlet is
not connected, refer to the instructions and illustrations below:
Turn off the computer or electrical source that you plan to connect the ANV theater.
Carefully remove the ANV theater components from their packaging.
Place the subwoofer on a flat, stable surface, preferably on the floor and apart from
the wall, allowing a space at least 4in. (0.33ft., 10.2cm.) from front, back and sides
of the unit.
Using the supplied speaker cable connect the left, right, surround left, surround right
and center satellite speakers to the subwoofer’s amplifier output. Make sure the
positive and negative speaker wires are plugged into the appropriate terminal.
Connect RCA cable to the available/selectable audio source.
Plug in the AC power cord to the wall outlet and subwoofer AC power socket.
Press the Power button on the subwoofer.
1. Be sure not to tangle the power cord with sound source cable, to prevent
the sound signal from being interfered by the electrical current.
2. Be sure to turn the volume control counterclockwise before playing from
audio source; increase the volume gradually after playing has started.
.
