Jaybeam Wireless 5157120 Bedienungsanleitung

Issue 05

Page 1/20

Installation Guide for 3G Antennas

_________

Table of Content

Section 1 - Presentation....................................................................................................... 2

Mounting accessory list..................................................................................................... 3

Section 2 - Accessories for antennas with pivot points at the back..................................... 4

2.1 - Hardware for pole mounting (standard).................................................................... 4

2.2 - Hardware for pole mounting (large).......................................................................... 6

2.3 - Hardware for wall mounting...................................................................................... 8

2.4 - Hardware for mechanical tilt ................................................................................... 10

2.5 - Hardware for mechanical tilt on wall mounting (three mounting points version).... 11

2.5.1 - Antennas with two mounting pivot points.......................................................11

2.5.2 - Antennas with three mounting pivot points ....................................................12

Section 3 - Accessories for antennas with mounting plates at top and bottom ................. 13

3.1 - Hardware for pole mounting (standard).................................................................. 13

3.2 - Hardware for pole mounting (large)........................................................................ 14

3.3 - Hardware for wall mounting.................................................................................... 15

3.4 - Hardware for mechanical tilt ................................................................................... 17

3.5 - Hardware for mechanical tilt on wall mounting....................................................... 18

Section 4 - Installation........................................................................................................ 19

4.1 - General guidelines.................................................................................................. 19

4.2 - Unpacking and checks............................................................................................ 19

4.3 - Antenna installation ................................................................................................ 19

4.4 - Maintenance ........................................................................................................... 20

_________

Document history

Issue Comments Date

Issue 05 Logo changed. Antennas type 5157120, 5231100, 5232100, 5230100,

5121100 and 5178100 added. Changed photo section 4.3.

09.09.2005

Issue 04 Antenna type 5142100 added (page 3) 10.03.2005

Issue 03 Mechanical tilt for 5164100 is 0900415/00 instead of 0900412/00

(pages 3 and 17)

28.01.2005

Issue 02 Antenna type 5264100 and tilt hardware 0900250/00 added (page 3) 24.12.2004

Issue 01 Previous separate guides have been grouped to cover all types of

antennas in one document.

29.10.2004

Issue 05

Page 2/20

Installation Guide for 3G Antennas

Section 1 - Presentation

This guide describes the various installation accessories available for our 3G antennas. Each of them is

delivered with an installation drawing.

Depending on antenna type, the attachment of the installation accessories is done either on pivot points

at the back of the antenna or on mounting plates at top and bottom of the antenna.

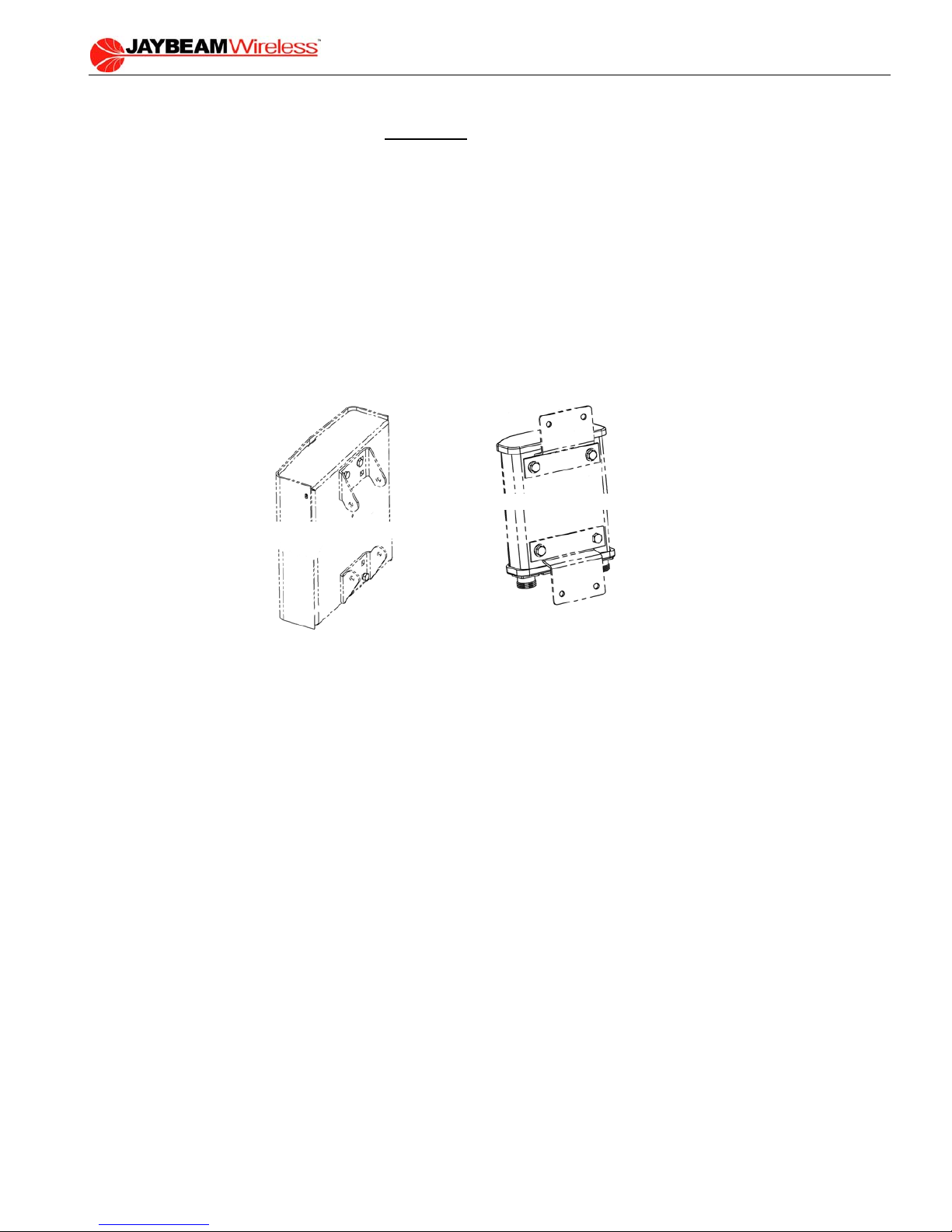

Pictures below help to understand the difference between these two versions:

Mounting by pivot points

at the back

Mounting by plates

at top and bottom

The table next page provides a sum-up of all available accessories.

Section 2 of this document describes the accessories dedicated to antenna with pivot mounting points.

Most of such antennas have two pivots at top and bottom on the back of the antenna. But some of them

with a big height have a third pivot at the middle of the back. The pictures in this section 2 describe the

accessories when antenna has three pivot points. For the ones with two pivot points, the middle

components should not be taken in account.

Section 3 describes the accessories dedicated to antenna with mounting plates at top and bottom.

Section 4 provides general guide lines for installation and describes how to set the electrical tilt.

Issue 05

Page 3/20

Installation Guide for 3G Antennas

Accessory part number

Antenna

type Pole brackets

48-115 mm

(Note 0)

Pole brackets

70-150 mm

Wall brackets

with azimuth pan

Mechanical tilt

(Note 1)

Tilt label

mark

(Note 2)

5165100

5157120

5232100

0900181/00 0900182/00 0900183/00 0900188/00 G

5163100

5163110

5231100

5264100

0900181/00 0900182/00 0900183/00 0900184/00 B

0900395/00 (Note 4)

pan only, no tilt

0900394/00 (Note 5)

pole only

5160100

5160110

5265101

(Note 3)

0900393/00 0900501/00

0900533 (Note 6)

pan and tilt on wall

No letter

Mounting by pivot

points at the back

Notes: 0 - Standard pole brackets.

1 - For all antennas, unless otherwise stated, the mechanical tilt accessory is a kit to be used in conjunction with the pole

or wall brackets ordered separately.

2 - The tilt label on one of the scissor arms is marked with a letter to help distinguish between the kits.

3 - These antennas have a third mounting point at the middle of the back.

4 - Cannot be used together with the mechanical tilt kit 0900394/00. Consider the P/N 0900533/00.

5 - Cannot be used together with the wall brackets 0900395/00. Consider the P/N 0900533/00.

6 - This P/N includes wall mounting brackets to be used instead of P/N 0900395/00.

5162100

5152100

5182100

5157100

5135100

5230100

0900390/00 0900503/00 0900408/00 0900374/00 C

5168100

5121100

5178100

0900390/00 0900503/00 0900408/00 0900474/00 B

5164100 0900390/00 0900503/00 0900408/00 0900415/00

No tilt label

Mounting by plates

at top and bottom

5142100

5146100 0900390/00 0900503/00 0900408/00 0900250/00

Issue 05

Page 4/20

Installation Guide for 3G Antennas

Section 2 - Accessories for antennas with pivot points at the back

2.1 - Hardware for pole mounting (standard)

This accessory is used for installation on pipes of 48 to 115 mm diameter.

The figures and part list below describe the kit and how to assemble it on the antenna. The middle

components do not apply to antenna with only pivots at top and bottom (two mounting points).

The accessory parts list is given next page.

Issue 05

Page 5/20

Installation Guide for 3G Antennas

2 pivots points antenna - Pole mounting 48 to 115 mm - 0900181/00 part list

item description quantit

1 Pole clamp 4 6 M8 full nut 12

2 Antenna bracket 2 7 M8 x 130 mm hex head bolt 2

3 Spacing tube 2 8 M10 x 200 mm hex head screw 4

4 M8 x 30 mm hex head screw 4 9 M10 plain washer 8

5 M8 plain washer 6 10 M10 full nut 8

3 pivots points antenna - Pole mounting 48 to 115 mm - 0900393/00 part list

item description quantit

1 Pole clamp 6 6 M8 full nut 18

2 Antenna bracket 3 7 M8 x 130 mm hex head bolt 3

3 Spacing tube 3 8 M10 x 200 mm hex head screw 6

4 M8 x 30 mm hex head screw 6 9 M10 plain washer 12

5 M8 plain washer 9 10 M10 full nut 12

Issue 05

Page 6/20

Installation Guide for 3G Antennas

2.2 - Hardware for pole mounting (large)

This accessory is used for installation on pipes of 70 to 150 mm diameter.

The figures and part list below describe the kit and how to assemble it on the antenna. The middle

components do not apply to antenna with only pivots at top and bottom.

The accessory parts list is given next page.

Issue 05

Page 7/20

Installation Guide for 3G Antennas

2 pivots points antenna - Pole mounting 115 to 150 mm - 0900182/00 part list

item description quantit

1 Pole clamp 4 6 M8 full nut 12

2 Antenna bracket 2 7 M8 x 130 mm hex head bolt 2

3 Spacing tube 2 8 M10 studding 260 mm 4

4 M8 x 30 mm hex head screw 4 9 M10 plain washer 8

5 M8 plain washer 6 10 M10 full nut 16

3 pivots points antenna - Pole mounting 115 to 150 mm - 0900501/00 part list

item description quantit

1 Pole clamp 6 6 M8 full nut 18

2 Antenna bracket 3 7 M8 x 130 mm hex head bolt 3

3 Spacing tube 3 8 M10 studding 260 mm 6

4 M8 x 30 mm hex head screw 6 9 M10 plain washer 12

5 M8 plain washer 9 10 M10 full nut 24

Issue 05

Page 8/20

Installation Guide for 3G Antennas

2.3 - Hardware for wall mounting

This accessory is used for installation on wall with ±30° azimuth panning capability.

The figures and part list below describe the kit and how to assemble it on the antenna. The middle

components do not apply to antenna with only pivots at top and bottom.

Note that the bottom pan bracket is reversed compared to the top and middle ones.

For antenna with 3 pivots, mechanical tilt cannot be added to this accessory - a specific accessory has to

be used that includes pan brackets and tilt arms.

Issue 05

Page 9/20

Installation Guide for 3G Antennas

The panning device has the following capabilities:

-30° pan 0° pan +30° pan

The accessory parts list is given below.

2 pivots points antenna - Wall mounting with pan - 0900183/00 part list

item description quantit

1 Wall bracket Right Hand 1 6 Spacing tube 2

2 Pan bracket Right Hand 1 7 M8 plain washer 2

3 Wall bracket Left Hand 1 8 M8 full nut 4

4 Pan bracket Left Hand 1 9 M8 coil spring washer 4

5 M8 x 130 mm hex head bolt 2 10 M8 x 30 mm hex head screw 4

3 pivots points antenna - Wall mounting with pan - 0900395/00 part list

item description quantit

1 Wall bracket Right Hand 2 6 Spacing tube 3

2 Pan bracket Right Hand 2 7 M8 plain washer 3

3 Wall bracket Left Hand 1 8 M8 full nut 6

4 Pan bracket Left Hand 1 9 M8 coil spring washer 6

5 M8 x 130 mm hex head bolt 3 10 M8 x 30 mm hex head screw 6

Issue 05

Page 10/20

Installation Guide for 3G Antennas

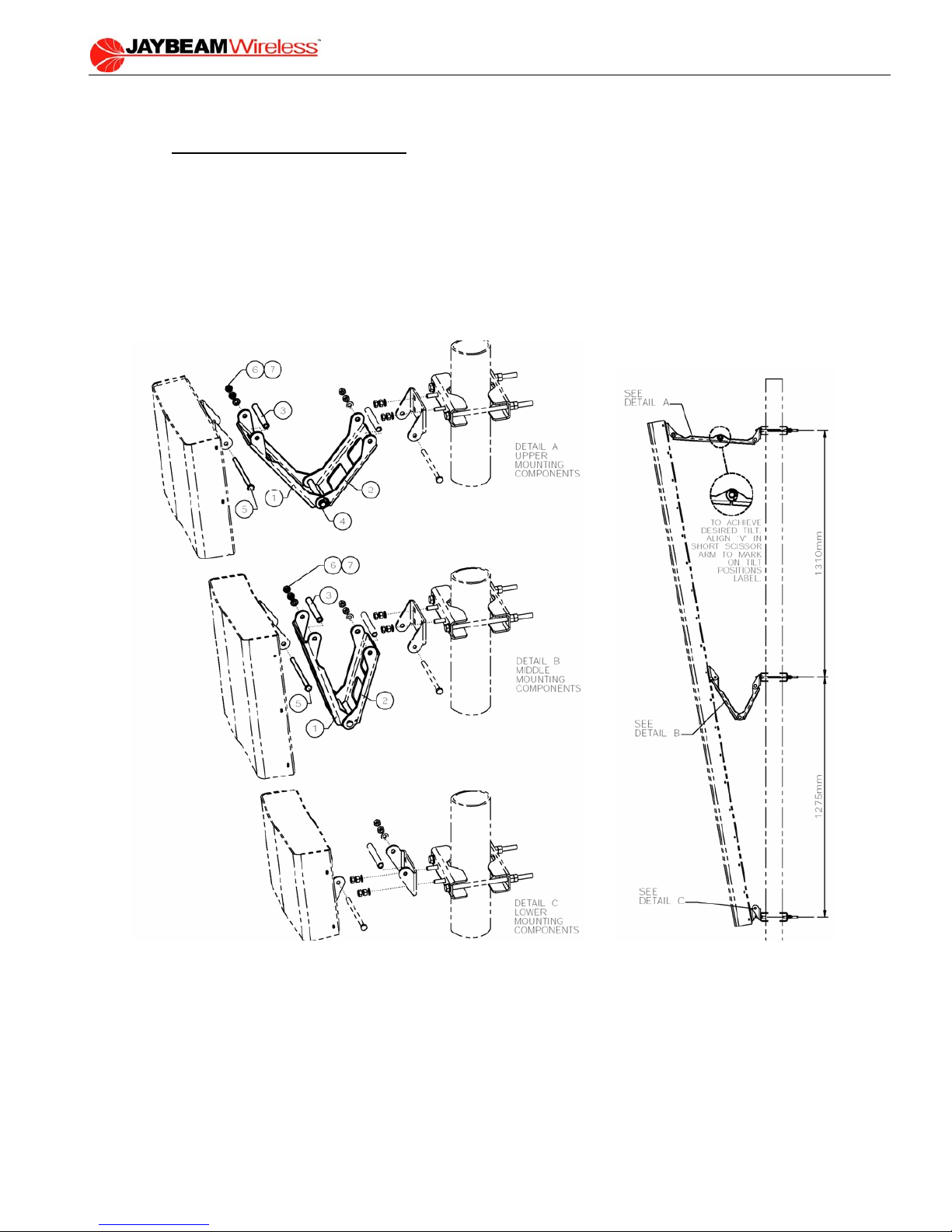

2.4 - Hardware for mechanical tilt

This accessory is used to add mechanical tilt capability to the mounting accessories described above for

installation. The part number for the mechanical tilt hardware depends on the antenna type because each

tilt indicator label on one of the scissor arms differs for various lengths of antennas. A letter printed on the

tilt indicator label helps to distinguish between the various types (see table in section 1).

The figures and part list below describe the kit and how to assemble it on the antenna. The middle

components do not apply to antenna with only pivots at top and bottom.

The top scissor has a tilt angle indicator label.

The accessory parts list is given next page.
