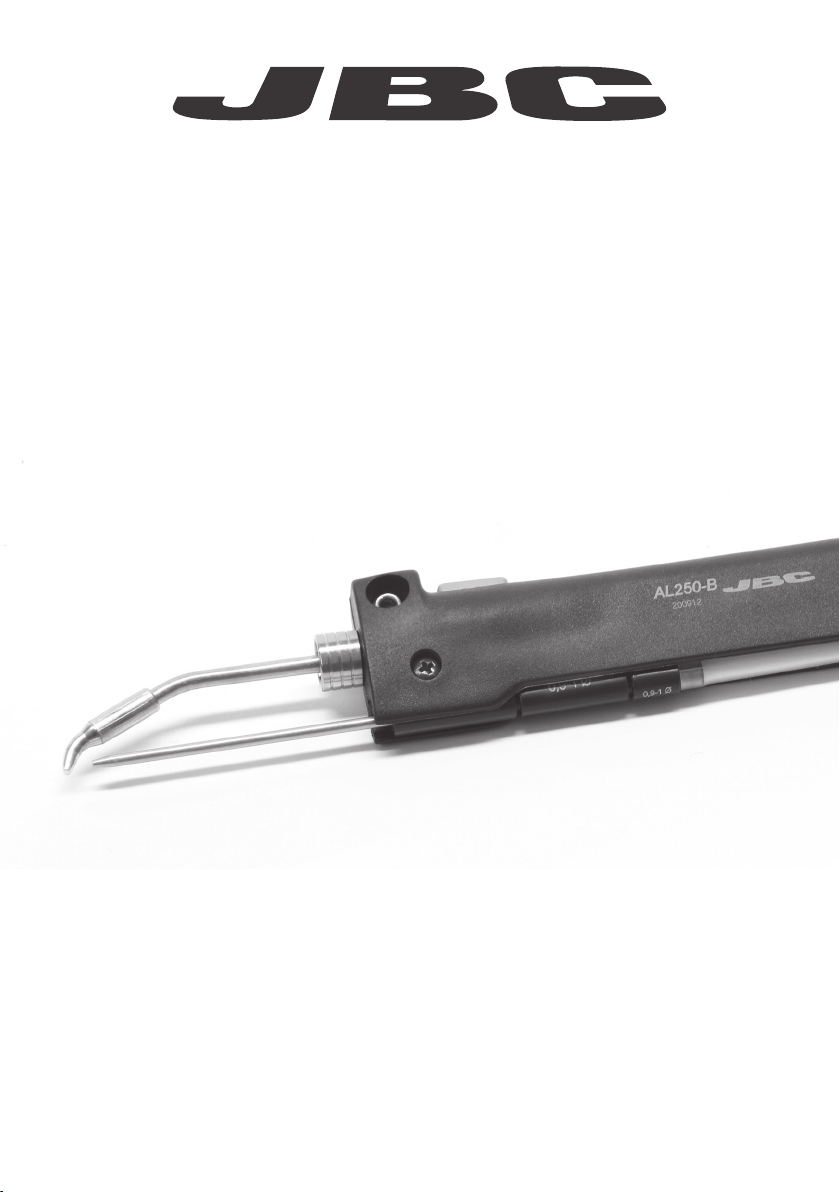

jbc AP250 Bedienungsanleitung
Auto-Feed Iron
Ref. AL250-B
INSTRUCTION MANUAL
www.jbctools.com
2
Packing List
The following items should be included:
Auto-feed Iron ........................................................................................................................................... 1 unit
Ref. AL250-B
Includes: C250403 Cartridge
Guide set - Ref. 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in)
Allen Key 2,5mm ....................................... 1 unit
Ref. 0780493
Manual ......................................................... 1 unit
Ref. 0012317
Auto-Feed Iron
Ref. AL250-B
Guide set - Ref. 0002401
C250403
www.jbctools.com
3
Features
The AL250-B Auto-feed Iron is compatible only with Auto-feed Soldering station.
Stand
R e f . A L- S D
Power
Socket
Equipotential
connection
Pedal connection
(optional)
Auto-feed Iron
Ref. AL250-B
Fuse
Main switch
www.jbctools.com
4
1. Loosen the cartridge screw to release it. Place the new cartridge in the Auto-feed iron.
Mark
Guide tube
Ref . 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in)
Changing cartridge
For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:
2. Align the tip of the cartridge with the solder Guide tube.
Important: It is essential to insert the cartridge till the end for a good connection. Use the mark as
reference. Tighten the cartridge screw.
3. You must leave a gap of 8-10 mm (0.31 - 0.40 in) between the tip and the end of the Guide tube.
4. Loosen the guide screw. Adjust the Guide tube and tighten the screw.
8-10 mm
(0.31 - 0.40 in)
1
2
4
3
ø 0,4
ø 0,6
1,8x0,8
ø 0,8
4,8x1,5
1,2x0,7
3,2x1,5
ø 2,2
2,2 x 1
1,2x0,7
2,2x1
4,8x1,5
ø 2,2
ø 3,8
2,2x1
ø 1,7
5
C250-420 C250-401
C250-405
C250-402
C250-406
C250-403
C250-412C250-404 C250-418
C250-409 C250-410
C250-413C250-407 C250-408 C250-411 C250-414 C250-415
The AL250-B Auto-feed Iron works with C250 cartridge range. Find the model that best suits your
soldering needs in www.jbctools.com
Compatible Cartridges
Note: All the cartridges shown are actual size.
www.jbctools.com
6
Accessories
Fume Extractor
Ref. F4468 - 2 m (78.74 ft) lenght.
The fume extractor for AL250 is an easy & safe solution to suck the fume generated at the solder joint.
Support
Ref. AL-IA
Optional Guide set
Ref. 0002399 Ø 0,4 - 0,5 mm (0.015 - 0.02 in)
0002402 Ø 0,6 - 0,8 mm (0.023 - 0.03 in)
0002843 Ø 1,1 - 1,5 mm (0.043 - 0.06 in)
0013915 Ø 1,6 - 1,8 mm (0.062 - 0.07 in)
7
Before carrying out maintenance, always allow the equipment to cool.
- Before carrying out maintenance, always unplug the stand and the tool.
- Check periodically that the metal parts of the tool and the stand are clean to ensure detection of
the tool when it is in the stand. Use a damp cloth or alcohol.
- Periodically check all cables and tubes connections.
- Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only
be performed by a JBC authorized technical service.
Maintenance
www.jbctools.com
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Register your warranty within 30 days of purchase
in www.jbctools.com/productregistration
0012317-0318
Specifications
- Weight: 148 gr (0.32 lb)
- Dimensions: 35 x 21 x 182 mm (1.42 x 0.83 x 7.16 in)
- Diameter of solder wire: Ø 0,4 - 1,8 mm (0.02 - 0.07 in)
Complies with CE standards.
ESD protected.
www.jbctools.com
