SP5, SP6, SP6C, SP6CS,

SP8, SP8C

SOUNDPOINT™SERIES

OWNER’S GUIDE

ENGLISH

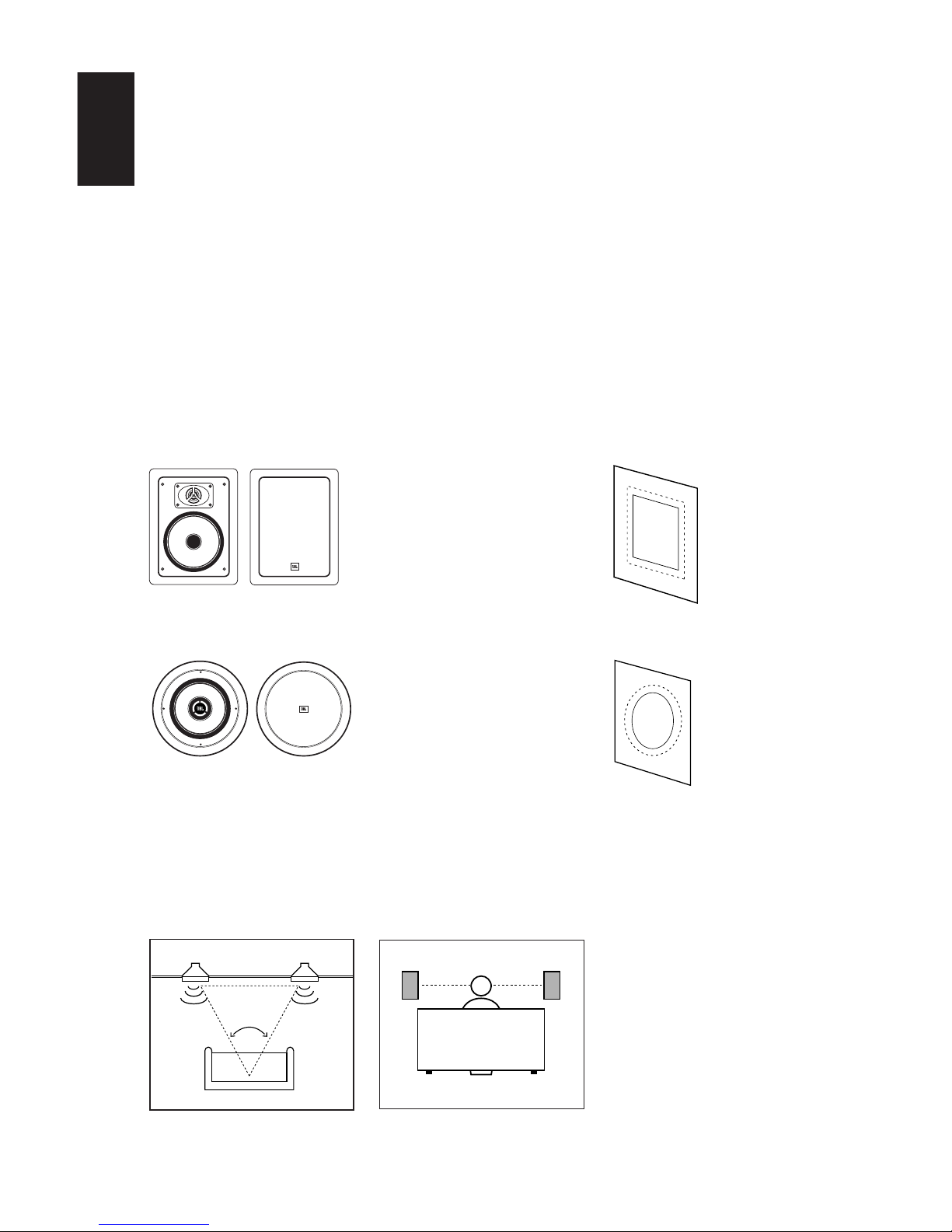

INCLUDED

Template/paint

shield.

Remove paint

shield (inner

rectangle) at per-

foration.

One pair of speakers with

grilles.

Template/paint

shield.

Remove paint

shield (inner

circle) at

perforation.

One pair of speakers with

grilles (SP6 and SP8 ).

Model SP6 S includes only

one loudspeaker, since it is

capable of reproducing two

channels of audio.

THANK YOU FOR CHOOSING JBL

400–600

WALL

FRONT SPEAKERS

SPEAKER PLACEMENT

SP5, SP6, SP8

SP6C, SP6CS, SP8C

For more than 50 years, JBL

has been involved in every

aspect of music and film

recording and reproduction,

from live performances to

monitoring the recordings you

play in your home, car or office.

We’re confident that the

JBL loudspeakers you have

chosen will provide every note

of enjoyment that you expected

– and that when you think

about purchasing additional

audio equipment for your home,

car or office, you will once

again choose JBL.

Please take a moment to

Web site at www.jbl.com. It

enables us to keep you posted

on our latest advancements,

and helps us to better under-

stand our customers and build

products that meet their needs

and expectations.

JBL onsumer Products

ENGLISH

WALL WALL

5 – 6 ft.

WALL WALL

MODELS SP5, SP6, SP8 AS REAR SPEAKERS

MODELS SP6C, SP6CS, SP8C IN CEILING

Proper placement of the

speakers is an important step in

obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the loud-

speakers. Use these placement

recommendations as a guide.

Slight variations will not dimin-

ish your listening pleasure.

The front speakers should be

placed the same distance from

each other as they are from the

listening position. They should

be placed at about the same

height from the floor as the

listener’s ears will be, with

the tweeters aimed toward the

listener at ear-level height.

In a home theater configura-

tion, the two surround speakers

should be placed slightly be-

hind the listening position and

ideally should face each other

and be at a level higher than

the listener’s ears. If that is not

possible, they may be placed in

a wall (or in the ceiling) behind

the listening position, facing

forward. The surround speak-

ers should not call attention to

themselves. They should

provide a diffuse, ambient

sound accompanying the main

program material heard in the

front speakers. In Dolby* Digital

and DTS®systems, aim the

tweeters toward the listening

position at ear-level height.

MODEL SP6CS

Model SP6 S has the capability

of playing two channels

through one loudspeaker,

thanks to its dual-tweeter/dual-

voice-coil construction. Since

the tweeters are close

together, in general they should

be aimed away from each other

for best coverage.

For two-channel (stereo) appli-

cations, e.g., as a single

speaker in a remote room of a

distributed audio system, install

the SP6 S speaker centrally in

the ceiling for best stereo imag-

ing, swiveling the tweeters so

that one points toward the left

and the other toward the right

of the listening position, aimed

at ear-level height.

The SP6 S may also be used to

play the left and right surround

channels in a 5.1-channel home

theater system, in which case it

should be mounted in the ceil-

ing slightly behind the listening

position, centered from left to

right and with the tweeters

pointing toward the left and

right of the listening position,

aimed at ear-level height. For

7.1-channel systems where it is

desired to use two SP6 S

speakers, one to play both the

left surround and surround

back channels and the other to

play both the right surround

and surround back channels,

mount each SP6 S speaker in

the ceiling, slightly behind the

listening position, one closer to

the left side of the room and the

other closer to the right side.

Aim the tweeters away from

each other, toward the front

and rear of the room.

ENGLISH

Phillips #2 screwdriver

Measuring tape Utility knife

Pencil

arpenter’s level Awl

TOOLS NEEDED

The SoundPoint Series in-wall

speakers were designed to be

easily installed. However, if you

are unsure of your ability to

properly install these loud-

speakers, please contact your

dealer or a qualified installer.

INSTALLATION

The wires for both speakers

should be the same length. If

one speaker is placed closer to

the amplifier than the other,

hide the excess wire behind the

wall. Speakers and electronics

terminals have corresponding

(+) and (–) terminals. Most

CONNECTION TIPS

WIRE LENGTH RECOMMENDED SIZE

Up to 20 ft. 16 gauge

Up to 30 ft. 12 gauge

Greater than 30 ft. 10 gauge

Front or Rear Speaker Outputs

LEFT RIGHT

manufacturers of speakers and

electronics, including JBL, use

red to denote the (+) terminal

and black for the (–) terminal. It

is important to connect both

speakers identically: (+) on the

speaker to (+) on the amplifier

and (–) on the speaker to (–) on

the amplifier. Wiring “out of

phase” results in thin sound,

weak bass and a poor stereo

image. With the advent of multi-

channel surround sound

systems, connecting all of the

speakers in your system with

the correct polarity remains

equally important in order to

preserve the proper ambience

and directionality of the

program material.

To use the push-type speaker

terminals, press the red (+) or

black (–) cap for the desired

terminal, insert the bare end of

the speaker wire into the hole

below the cap and release the

cap. Gently tug on the wire to

make sure that it is fully

inserted.

SPEAKER CONNECTIONS

†For model SP6 S, the terminals for

both the left and right channels will

be on the same loudspeaker.

ENGLISH

SP5, SP6, SP8

EXISTING CONSTRUCTION

Remove the grille from the

speaker frame by pulling on the

paper tab. If the tab is missing,

to avoid scratching the grille or

baffle you may unfold a paper

clip, insert the straight end

through one of the holes in the

grille, and gently pull up.

Determine the correct speaker

location.

Note: Remove the inner tem-

plate, which is the paint shield,

at the perforation. Use the

outer template when cutting

the drywall.

Note: Always allow at least

one-half inch between a wall

stud and the speaker cutout or

the locking tabs will not be able

to swivel into place.

≥1/2"

ut the drywall. onnect the speaker wires to

the speaker.

Replace the metal grille.

Place the frame assembly in

the wall.

Screw down each of the four

Phillips head screws. The

locking tabs will swivel into

place and secure the unit to the

rear surface of the drywall.

The SoundPoint speakers fea-

ture unique swivel mounts for

the tweeters that enable you to

aim the very directional high

frequencies toward the listen-

ing position, at ear-level height.

Before installing the speaker

grille, gently press on the outer

edge of the tweeter mount to

adjust the position of the

tweeter. The tweeter will not

swivel more than 15 degrees in

any direction; do not attempt to

force it to move further. You

may also rotate the tweeter to

orient the JBL logo as desired.

ENGLISH

SP6C, SP6CS, SP8C

EXISTING CONSTRUCTION

Remove the grille from the

speaker frame by pulling on the

paper tab. If the tab is missing,

to avoid scratching the grille or

baffle you may unfold a paper

clip, insert the straight end

through one of the holes in the

grille, and gently pull up.

≥1/2"

ut the drywall.

Note: Always allow at least

one-half inch between a wall

stud and the speaker cutout or

the locking tabs will not be able

to swivel into place.

onnect the speaker wires to

the speaker. Model SP6 S

requires two sets of speaker

wires, one for each channel.

Place the frame assembly in

the wall.

Screw down each of the four

Phillips head screws. The lock-

ing tabs will swivel into place

and secure the unit to the rear

surface of the drywall.

Replace the metal grille.

Determine the correct speaker

location.

Note: Remove the inner tem-

plate, which is the paint shield,

at the perforation. Use the

outer template when cutting

the drywall.

The SoundPoint speakers fea-

ture unique swivel mounts for

the tweeters that enable you to

aim the very directional high

frequencies toward the listen-

ing position, at ear-level height.

Before installing the speaker

grille, gently press on the outer

edge of the tweeter mount to

adjust the position of the

tweeter. The tweeter will not

swivel more than 15 degrees in

any direction; do not attempt to

force it to move further. You

may also rotate the tweeter to

orient the JBL logo as desired.

The dual tweeters of the SP6 S

speaker may be swiveled inde-

pendently. Optimum imaging

will be obtained by aiming the

tweeters to the left and right of

the listening position, at ear-

level height, if your application

permits.

ENGLISH

NEW CONSTRUCTION

PAINTING THE SPEAKER

FRAME AND GRILLE

SoundPoint Series loud-speak-

ers can be painted to match

any decor. If you wish to

change their color, the satin

finish on the grille and frame

will function as a primer coat.

Before painting, install the paint

shield (inner section of tem-

plate in the assembly kit)

securely into the recess in the

baffle. This will protect the

speaker components and baffle

from paint residue. Use a high-

quality spray paint, and apply a

thin coat of color.

Be certain the grille per-

forations re ain free of paint.

Filling the with paint will

di inish the sound quality.

Note: Gently remove the

acoustical foam blanket from

the grille before painting.

Reattach the blanket after the

paint has dried.

You will need to purchase the correct rough-in frame kit for your model:

Speaker Model Rough-In Fra e Kit

SP5 RIF5

SP6 RIF6

SP6 S RIF6 S

SP8 RIF8

Detailed installation instructions are supplied with the rough-in kit.

TROUBLESHOOTING

IF THERE IS NO SOUND

FROM ANY OF THE

SPEAKERS:

• heck that receiver/amplifier

is on and a source is playing.

• heck all wires and connec-

tions between receiver/ampli-

fier and speakers. Make sure

all wires are connected. Make

sure none of the speaker wires

are frayed, cut, punctured or

touching each other.

• Review proper operation of

your receiver/amplifier.

IF THERE IS NO SOUND

COMING FROM ONE

SPEAKER:

• heck the “Balance” control

on your receiver/amplifier.

• heck all wires and connec-

tions between receiver/ampli-

fier and speakers. Make sure

all wires are connected. Make

sure none of the speaker wires

are frayed, cut, punctured or

touching each other.

IF THERE IS LOW (OR

NO) BASS OUTPUT:

• Make sure the connections

to the left and right “Speaker

Inputs” have the correct polar-

ity (+ and –).

• onsider adding a powered

subwoofer to your system.

• In Dolby Digital or DTS modes,

make sure your receiver/

processor is correctly config-

ured. When using a subwoofer,

make sure the subwoofer

output of the receiver/proces-

sor has been enabled. If no

subwoofer is being used, make

sure the left and right front and

rear speakers have been con-

figured as “LARGE.” See your

receiver/processor’s owner’s

manual for futher information

on correct speaker configura-

tion in Dolby Digital, DTS and

other surround sound modes.

IF THE SYSTEM PLAYS

AT LOW VOLUMES BUT

SHUTS OFF

AS VOLUME IS

INCREASED:

• heck all wires and connec-

tions between receiver/ampli-

fier and speakers. Make sure

all wires are connected. Make

sure none of the speaker wires

are frayed, cut , punctured or

touching each other.

• If more than one pair of main

speakers is being used, check

the minimum-impedance

requirements of your receiver/

amplifier.

ENGLISH

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility that the products described in this

owner’s manual are in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001 Gary Mardell

Harman Consumer Group International

Chateau-du-Loir, France 9/04

SP5 SP6 SP6C SP6CS SP8 SP8C

Frequency Response Frequency Response Frequency Response Frequency Response Frequency Response Frequency Response

45Hz– 20kHz (–10dB) 38Hz – 20kHz (–10dB) 40Hz– 20kHz (–10dB) 40Hz – 20kHz (–10dB) 30Hz – 20kHz (–10dB) 32Hz – 20kHz (–10dB)

Reco ended Maxi u Reco ended Maxi u Reco ended Maxi u Reco ended Maxi u Reco ended Maxi u Reco ended Maxi u

A plifier Power † A plifier Power † A plifier Power † A plifier Power † A plifier Power † A plifier Power †

60 watts 80 watts 80 watts 100 watts total (50WP ) 100 watts 100 watts

I pedance I pedance I pedance I pedance I pedance I pedance

8 ohms nominal 8 ohms nominal 8 ohms nominal 8 ohms nominal per input 8 ohms nominal 8 ohms nominal

Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m) Sensitivity (2.83V/1m)

87dB 88dB 88dB 88dB, both channels driven 89dB 89dB

Crossover Frequency Crossover Frequency Crossover Frequency Crossover Frequency Crossover Frequency Crossover Frequency

3,000Hz 2,800Hz 2,600Hz 2,600Hz 2,400Hz 2,400Hz

Woofer Woofer Woofer Woofer Woofer Woofer

5-1/4" titanium-laminate 6-1/2" titanium-laminate 6-1/2" titanium-laminate 6-1/2" titanium-laminate 8" titanium-laminate 8" titanium-laminate

cone w/rubber surround cone w/rubber surround cone w/rubber surround cone w/rubber surround cone w/rubber surround cone w/rubber surround

Tweeter Tweeter Tweeter Tweeters Tweeter Tweeter

1" titanium-laminate 1" titanium-laminate 1" Dual 3/4" 1" titanium-laminate 1" titanium-

dome, w/Elliptical Oblate dome, w/Elliptical Oblate titanium-laminate titanium-laminate dome, w/Elliptical Oblate laminate

Spheroidal™ waveguide Spheroidal™ waveguide dome, domes, Spheroidal™ waveguide dome,

and swivel mount and swivel mount w/swivel mount w/swivel mounts and swivel mount w/swivel mount

Plate Size (W x H) Plate Size (W x H) Plate Size (Dia eter) Plate Size (Dia eter) Plate Size (W x H) Plate Size (Dia eter)

191 x 254mm (7-1/2" x 10") 216 x 279mm (8-1/2" x 11") 233mm (9-3/16") 233mm (9-3/16") 257 x 333mm (10-1/8" x 13-1/8" ) 275mm (10-7/8")

Mounting Cutout Size (W x H) Mounting Cutout Size (W x H) Mounting Cutout Size (Dia.) Mounting Cutout Size (Dia.) Mounting Cutout Size (W x H) Mounting Cutout Size (Dia.)

156 x 221mm (6-1/8" x 8-11/16") 181 x 246mm (7-1/8" x 9-11/16") 200mm (7-7/8") 200mm (7-7/8") 225 x 300mm (8-7/8" x 11-13/16") 240mm (9-1/2")

Mounting Depth Mounting Depth Mounting Depth Mounting Depth Mounting Depth Mounting Depth

95mm (3-3/4") 98mm (3-7/8") 108mm (4-1/4") 108mm (4-1/4") 102mm (4") 108mm (4-1/4")

Weight per Speaker Weight per Speaker Weight per Speaker Weight per Speaker Weight per Speaker Weight per Speaker

1.8kg (4 lb) 2.3kg (5 lb) 2.0kg (4.5 lb) 1.8kg (4 lb) 3.5kg (7.8 lb) 2.5kg (5.6 lb)

SPECIFICATIONS

All features and specifications are subject to

change without notice.

† The maximum recommended amplifier power

rating will ensure proper system headroom to

allow for occasional peaks. We do not recom-

mend sustained operation at these maximum

power levels.

* Trademark of Dolby Laboratories.

DTS is a registered trademark of

Digital Theater Systems, Inc.

DESIGN GOAL: ombine the superior performance of traditional

JBL loudspeakers with the convenience of in-wall installation.

TWEETER TYPE:

Titanium-laminate-dome with swivel mount

WOOFER TYPE

Titanium-laminate cone with rubber surround

CROSSOVER NETWORK: Straight-Line Signal Path

™

(SSP)

PROFESSIONAL REFERENCE:Studio Monitor

OWNER’S GUIDE

PRODUCT LINE:

MODELS:

SP5, SP6, SP6C, SP6CS, SP8, SP8C

SOUNDPOINT™SERIES

JBL is a registered trademark of Harman International

Industries, Incorporated.

Part No.

406-000-05033

9/04

PRO SOUND

COMES HOME™

JBL onsumer Products

250 rossways Park Drive, Woodbury, NY 11797

Europe: 2. Route de Tours, 72500 hâteau du Loir, France

www.jbl.com

NOTE: For new-construction applications, be sure

to purchase the correct rough-in frame kit.

ENGLISH

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JBL Sprecher Handbücher

JBL

JBL FLIP 3 Bedienungsanleitung

JBL

JBL SoundFactor SF15i Bedienungsanleitung

JBL

JBL Control Control 28T-60 Bedienungsanleitung

JBL

JBL VTX Series Bedienungsanleitung

JBL

JBL JRX112M Bedienungsanleitung

JBL

JBL Control Control 126W Bedienungsanleitung

JBL

JBL EON 315 Bedienungsanleitung

JBL

JBL L88 Nova Bedienungsanleitung

JBL

JBL Decade L36 Bedienungsanleitung

JBL

JBL S412PII Bedienungsanleitung

JBL

JBL LSR6325P-1 Bedienungsanleitung

JBL

JBL Control 85M Bedienungsanleitung

JBL

JBL CLIP4 Bedienungsanleitung

JBL

JBL CONTROL 1X Bedienungsanleitung

JBL

JBL FLIP 3 Bedienungsanleitung

JBL

JBL L57 Carnival Montage- und Bedienungsanleitung

JBL

JBL SYNTHESIS SAM1HF Bedienungsanleitung

JBL

JBL LX300 Bedienungsanleitung

JBL

JBL BOOST TV Bedienungsanleitung

JBL

JBL SR4731X Bedienungsanleitung

JBL

JBL LXE330 Bedienungsanleitung

JBL

JBL Venue 80 Bedienungsanleitung

JBL

JBL VerTec VT4880 Gebrauchsanweisung

JBL

JBL Ivx HP-DS170 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
