JBL SR4726X Bedienungsanleitung

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL SR4726X/F REV N

PACKAGE WIRING DIAGRAM

01-08

Technical Manual

JBL SR4726X/F

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 ohms

• Power Capacity: 600W Continuous Pink Noise

• Frequency Range: 35 Hz – 18 kHz (–10dB)

• Sensitivity: 97 dB SPL, 1 Watt @ 1 Meter

• Crossover Frequency: 1.1 kHz

SYSTEM COMPONENTS:

• Cabinet: SR4726X (Not For Sale)

• Grille: 128-00395-00

• Low Frequency 380mm (15 in.) Paper Cone

Transducer: Transducer (2226HPL)

• DC Resistance: 5.0 ohm ±10% Aluminum Wire

• High Frequency 50.8mm (2 in.Exit) Pure Titanium

Transducer: Compression Driver (2447J)

• DC Resistance: 8.0 ohm ±8% Aluminum Wire

SYSTEM COMPONENTS:

(Cont’d)

• Crossover Network: 129-20062-00

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input, 20 Hz to 20 kHz

B. L.F. Aural Sweep Test: 7.2V Input, 20 Hz to 1.2 kHz

C. H.F. Aural Sweep Test: 2.0V Input, 550 kHz to 20 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 921mm x 635mm x 460mm D

(36.25 x 25.0 x 18.0 in. D)

• Shipping Weight: 110 lbs. (49.9 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

User’s Guide

SR-X Series

981-00052-04

Carton

SR4726X

990-00172-00

Microfoam(8)

Packaging

49790P

Filler, (2)

Top & Bottom

991-00179-02

Network

129-20062-00

SCHEMATIC (129-20062-00)

Speaker, HighFreq

2447J

Diaph Repl

D16R2450

Speaker, Low Freq

2226HPL

Cone Repl

C8R2226

GRN

YEL

GRN/BLK

YEL/BLK

FULL RANGE

BI AMP

FEMALE

CONNECTION

SP CROSSOVER PC BOARD

SPXXX T/C PC BOARD

2.2mH

1.8mH

15W

5.6

15W

1.6

40W

RED

WHT

GRN

BLK

BLU

YEL/BLK

GRN/BLK

YEL

9µF C5

7µF

28µF C2A

26µF C2B

26µF

1.5µF

1.4mH

–

YEL +

YEL/BLK –

GRN/BLK –

GRN +

L.F.

2226HPL

H.F.

2447J

–2

–1

JBL SR4726X/F

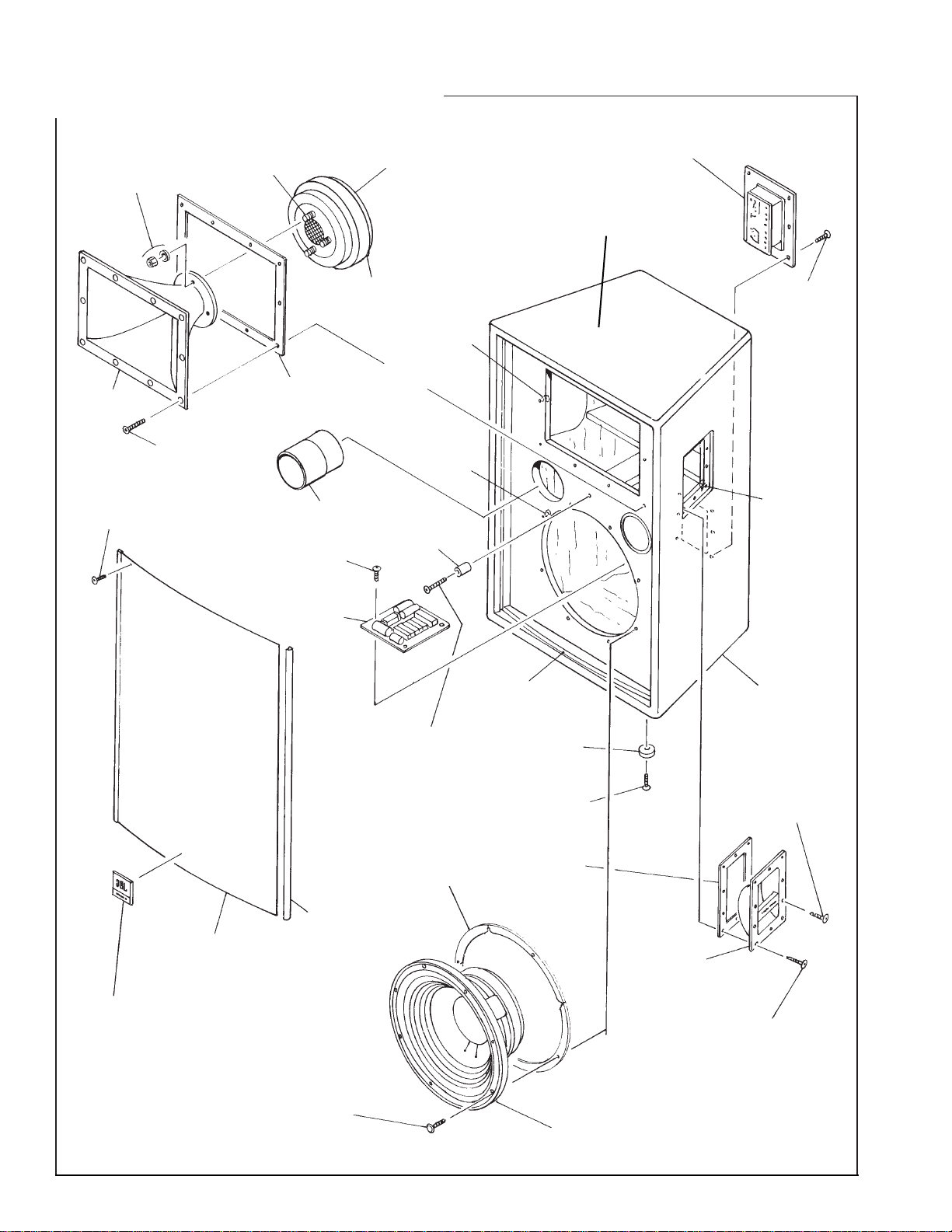

COMPONENT EXPLODEDVIEW

Screw (10)

882-51110-12

6 x 3/4

OV PH Screw (4)

882-51110-12

6 x 3/4

OV PH

Screw

883-31110-40

No. 8 x 2 1/2

TR HD PH PD

Grille

Support (2)

389-0032-00

Screw (8)

804-01110-16

10-32 x 1

FIL, PH, BLK,

ZINC

Gasket

75710

Screw (8)

804-41110-12

10-32 x 3/4

PAN,PH,BLK,

ZINC,LCS

Screw (12)

884-41110-12

No. 10 x 3/4

PNHD PH PB THD

Speaker, Low Freq

2226HPL

Cone Repl

C8R2226

Screw (10)

806-31010-16

1/4-20 x 1

TRUSS PH BLK

ZINC

Screw (4)

64586

No. 10 x 1

RD HD

Screw (6)

61867

No. 6 x 3/4

OV HD PH

Speaker, High Freq

2447J

Diaph Repl

D16R2450

Network

129-20062-00

Network

129-20062-00

Binding Post

RED 33750

BLK 33751

Stud (4)

75815

1/4-20

Foot (4)

924-00013-00

Stand-Off

819-00000-00

T-Nut (8)

61861

No. 10-32

T-Nut (8)

61861

No. 10-32

T-Nut (10)

834-44011-

1/4-20 BLK

Port Tube (2)

47909-08

(Not For Sale)

Horn

2381

126-00000-00

Hardware

Kit

76149

Grille

128-00395-00

Trim, Grille (2)

382-00336-02

Name Plate

950-00037-00

Cabinet

SR4726X

(Not For Sale)

Gasket,

Handle (2)

382-00337-00

Gasket (4)

71129-01

Handle (2)

923-00022-00

NOTE: BLACK DURAFLEX

REPAIR KIT 30052

Screw (16)

818-73714-35

M10 x 35MM

SCKT, HEX, BLK, ZINC

Washer (4)

845-00110-08

5/16 Flat

JBL SR4726X/F

CAUTION!

Suspending this system should only be done by qualified persons following

safe rigging standards.

Remember: the weakest component determines the size and safety of the

entire array! CAUTION! Before suspending any array always inspect all

components of the array (enclosure, truss module, threaded fasteners,

connecting hardware, and lifting hardware) for cracks, deformations, corrosion,

missing or damaged parts that could reduce strength and safety of the array.

Use only load rated hardware. Building structural supports and hoist motors

require inspection prior to each use by knowledgeable professionals. Never

exceed maximum recommended load ratings.

In the event that the track has suffered damage, replace only with the correct

part (see below) from JBL professional. Replacement with parts from other

sources may result in suspension failure.

Track 3” fly ware part number 390-00012-00

Track 8” fly ware part number 390-00013-00

The only fitting load-rated for over head use is a SMI (909) 878-9104 part

number SM-61B “L” Double Indexing locking Swivel Ring Fitting or a ATM

(310) 834-5914 part number AMTS-3SF.

JBL SR4726X/F
