JBL Studio S-CENTERII Bedienungsanleitung

JBL Consumer Products

250 Crossways Park Drive, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

800-336-4JBL (4525) (USA only)

www.jbl.com

of JBL, Incorporated.

Part No.

ai0456

TWEETER TYPE: Pure-titanium dome with EOS™ waveguide

DESIGN GOAL: Bring the thrill of live performance and movie sound to

the homeenvironment bycalling on JBL’s professional engineering leadership.

CROSSOVER NETWORK: Straight-Line Signal Path™(SSP)

WOOFER TYPE:

Cast-aluminum basket with HeatScape™motor structure

PORT DESIGN: FreeFlow™flared

PROFESSIONAL REFERENCE: Studio Monitor

OWNER’S GUIDE PRO SOUND

COMES HOME™

PRODUCT LINE: STUDIO™SERIES

MODEL

NUMBER:

S-CENTERII

Description: 3-Way dual 5-1/4" center

Maximum Recommended

Amplifier Power:** 150W

Nominal Impedance: 8 Ohms

Sensitivity (2.83V/1m):

91dB

Frequency Response (–3dB):

75Hz –20kHz

Crossover Frequencies: 800Hz, 3200Hz

High-Frequency Transducer: 1" Pure-titanium dome, with rubber surround,

shielded; Elliptical Oblate Spheroidal™(EOS)

waveguide

Midrange Transducer: 4" PolyPlas™(polymer-coated cellulose fiber)

cone, rubber surround, shielded; Linear Field

Proximity™(LFP) bezel

Low-Frequency Transducer

:5-1/4" PolyPlas™(polymer-coated cellulose fiber)

cone, rubber surround, SFG™, magnetic shorting

rings, high-temp oversized Kapton®voice coil,

HeatScape™motor structure, cast-aluminum

baskets, shielded

Baffles: Low Diffraction, IsoPower™

Port: FreeFlow™flared

Network: Straight-Line Signal Path™(SSP)

Terminals: All-metal, gold-plated, 5-way binding posts

Dimensions (H x W x D): 7-7/8" x 20-1/2" x 9"

200mm x 521mm x 229mm

Weight: 15 lb/6.8kg

SPECIFICATIONS

*Dolby and Pro Logic are trademarks of Dolby Laboratories.

DTS is a registered trademark of Digital Theater Systems, Inc.

**The maximum recommended amplifier power rating will ensure proper system headroom

to allow for occasional peaks. We do not recommend sustained operation at these

maximum power levels.

All features and specifications are subject to change without notice.

X +

0 +

MHZ

X + 0 + Y

”

TWEETER TYPE: Pure-titanium dome with EOS™waveguide

DESIGN GOAL: Bring the thrill of live performance and movie sound to

thehomeenvironment bycalling on JBL’s professional engineering leadership.

CROSSOVER NETWORK: Straight-Line Signal Path™(SSP)

PORT DESIGN: FreeFlow™flared

PROFESSIONAL REFERENCE: Studio Monitor

OWNER’S GUIDE

WOOFER TYPE:

Cast-aluminum basket with HeatScape™motor structure

PRODUCT LINE: STUDIO™SERIES

THANK YOU FOR CHOOSING JBL

For more than 50 years, JBL

has been involved in every

aspect of music and film

recording and reproduction,

from live performances to the

recordings you play in your

home, car or office.

We’re confident that the JBL

loudspeaker you have chosen

will provide every note of

enjoyment that you expected –

and that when you think

about purchasing additional

audio equipment for your

home, car or office, you will

once again choose JBL.

Please take a moment to

complete the enclosed

profile card. It enables us

to keep you posted on our

latest advancements, and

helps us to better understand

our customers and build

products that meet their

needs and expectations.

JBL Consumer Products

S-CENTERII

0-2 ft.

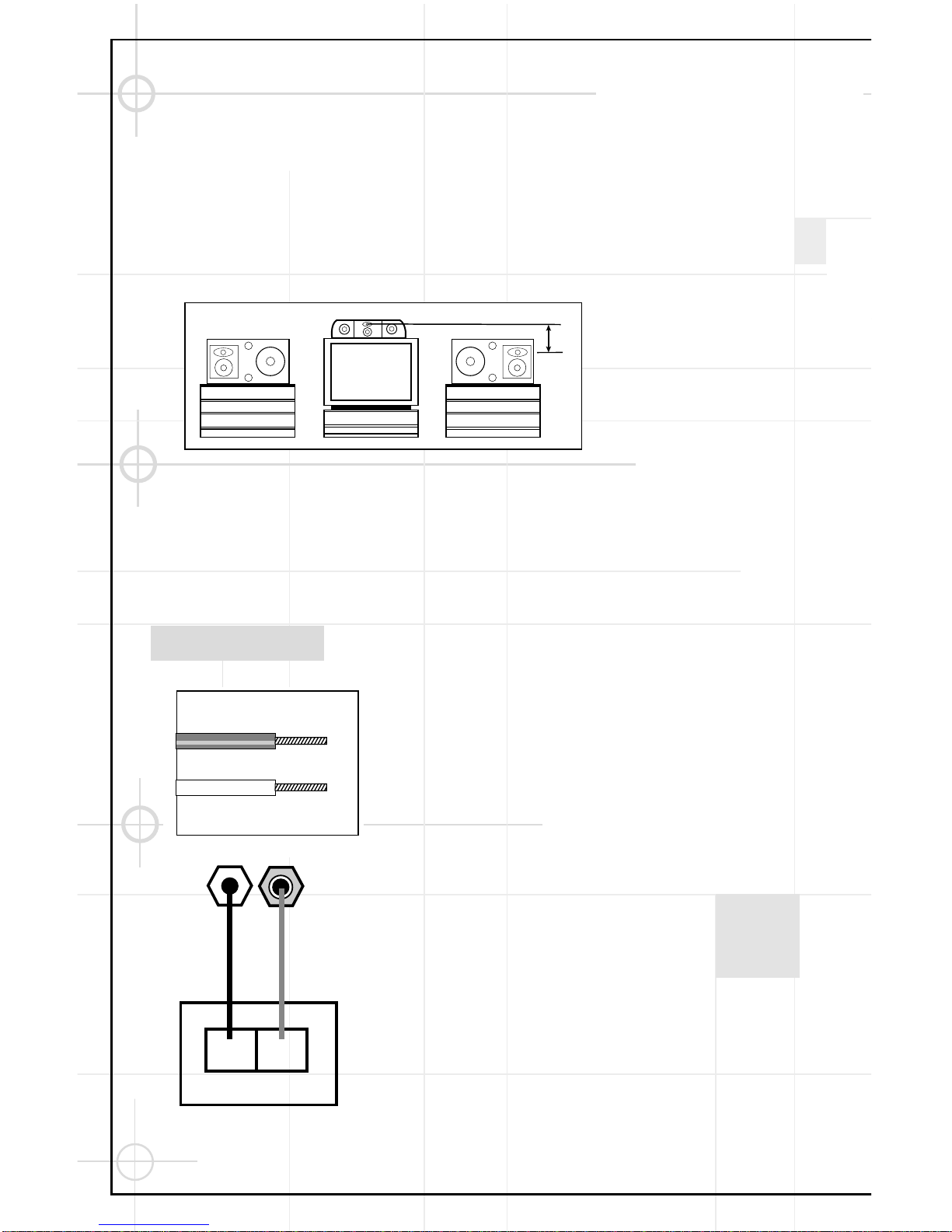

SPEAKER PLACEMENT

Proper placement of your

speakers is an important step

in obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of your

loudspeakers. Use these

placement recommendations

as a guide. Slight variations

will not diminish your

listening pleasure.

The Studio Series S-CENTERII

loudspeaker is video-

shielded and can safely be

placed near a television.

The S-CENTERII is designed

to complement all of the

Studio Series loudspeakers.

It is the ideal way to re-create

the cinematic experience in

your home.

The supplied self-adhesive felt

pads may be attached to the

bottom corners of your

S-CENTERII speaker to protect

your television or furniture.

CONNECTIONTIPS

SPEAKER CONNECTIONS

–+

Speaker Outputs

CENTER

–+

Speakers and electronics

terminals have corre-

sponding (+) and (–)

terminals. It is important to

connect both speakers

identically: (+) on the speaker

to (+) on the amplifier and (–)

on the speaker to (–) on the

amplifier. Wiring “out of

phase”results in thin sound,

weak bass and a poor

stereo image.

With the advent of

multichannel surround sound

systems, connecting

all of the speakers in your

system with the correct

polarity remains equally

important in order to

preserve the proper

ambience and directionality

of the program material.

To use the binding-post

speaker terminals, unscrew

the collar until the pass-

through hole in the center

post is visible under the

collar. Insert the bare end of

the wire through this hole;

then screw the collar down

until the connection is tight.

The hole in the center of

each collar is intended for

use with banana-type

connectors.

If there is no sound from

any of the speakers:

•Check that receiver/

amplifier is on and that

a source is playing.

•Review proper operation

of your receiver/amplifier.

If the system plays at low

volumes but shuts off as

volume is increased:

•Check all wires and

connections between

receiver/amplifier

and speakers.

•Make sure all wires are

connected. Make sure none

of the speaker wires are

frayed, cut or punctured.

•If more than one pair of

main speakers is being

used, check the minimum

impedance requirements of

your receiver/amplifier.

If there is no sound from

the center speaker:

•Check all wires and

connections between

receiver/amplifier and

speaker. Make sure all wires

are connected, and that

none of the speaker wires

are frayed, cut or punctured.

Make sure no wires are

touching other wires or

terminals and creating a

short circuit.

•If your receiver/processor

is set in Dolby* Pro Logic*

mode, make sure the center

speaker is not in phantom

mode.

•If your receiver/processor

is set in Dolby Digital or

DTS®mode, make sure the

receiver/processor is

configured so that the

center speaker is enabled.

TROUBLESHOOTING

We, Harman Consumer International

2, route de Tours

72500 Chateau-du-Loir

France

declare in own responsibility, that the

loudspeaker described in this owner’s manual is

in compliance with technical standards:

EN 50081-1:1992

EN 50082-1:1997

Luc E. Godard

Harman Consumer International

Chateau-du-Loir, France. 7/01
