Installation and connections
Attach the rear part of the housing to the wall using the plugs and screws supplied. Pass the cables through the bottom of the

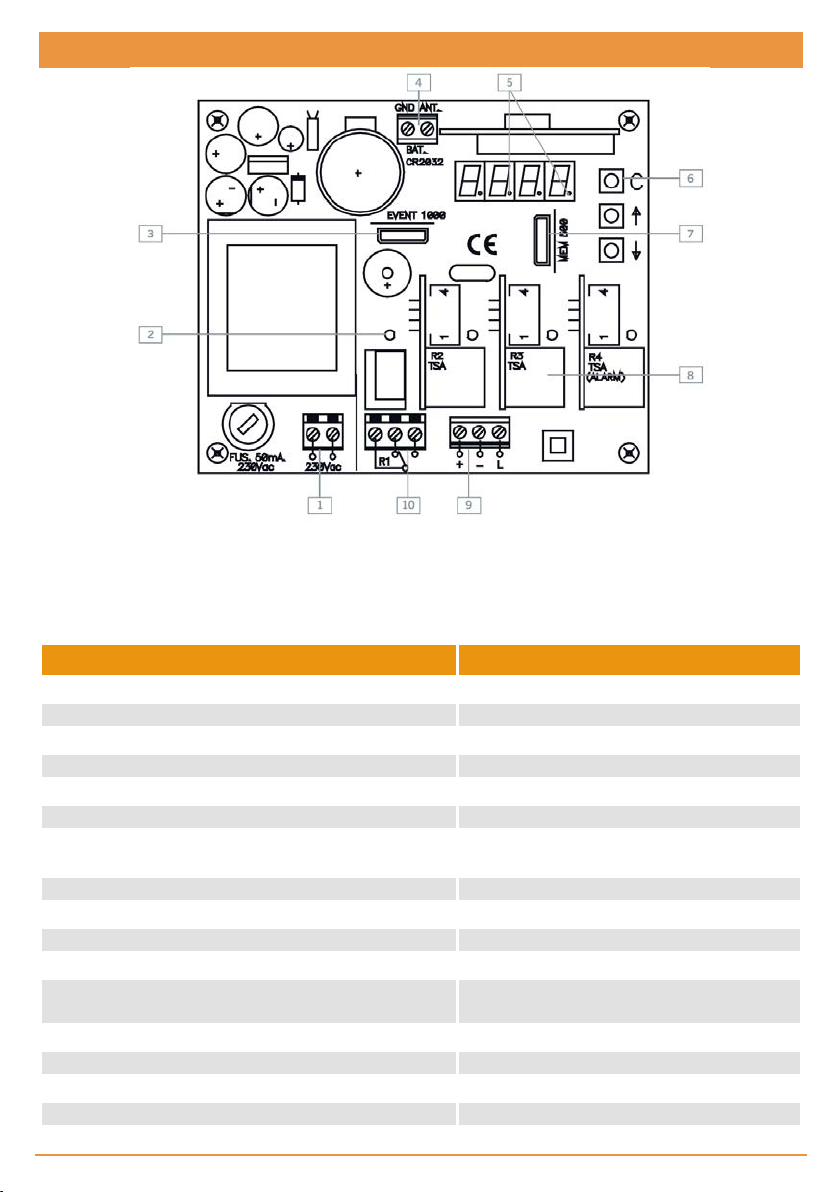

unit. Connect the power cables to the terminals marked in the mother board, as indicated. Fix the unit front to the rear part
using the screws supplied.
Operation
The lights on the screen blink to indicate correct power supply to the equipment. On receiving a code the equipment checks if
it is in the memory, activating the programmes relay(s). If the equipment code is not stored in the memory, the equipment will
not perform any action, and the message “no” will be displayed on the screen.
Menus
To access the menu, press any key and enter the password using the keys . increases number, changes digit,
C confirms password. If the password is incorrect, the message “Err” is displayed on screen and the equipment emits a bleep.
The manufacturer set password is written on a sticker located on the memory card.
The menus that will be displayed are: Mod1 (basic mode), Mod2 (advanced mode), ---- (exit).
are used to change mode. To confirm each option, press the C key.
Menu scrolling key
Menu scrolling key
C Menu accessing or option validating key
If no action is performed, the equipment exits the program automatically after a period of 60 seconds and emits two short
beeps.
Display Description
Mod1 Basic mode: Allows programming in multi-channel mode and individual cancellations.
Mod2 Advanced mode: Allows complete management of the unit: programming (F.1), cancellations (F.2),
time configuration (F.3) and relay configuration(F.4).
Basic Mode (Mod1)
Allows programming in multi-channel mode and individual cancellations.
Programming
The screen displays 001, which indicates the first memory position. increase or decrease the memory position. Place
in the desired position and press the channel of the transmitter to be programmed. If are kept pressed down for more
than 3 seconds, the positions increase or decrease rapidly. If a memory position is taken, this will be indicated by a dot on the
screen.
Cancellations
To delete a code, move to the code position and press the C key. The dot indicating a taken position will disappear. The equip-
ment will emit three short beeps.
To exit the menu, move to the ----- position and press the C key.
If no action is performed, the equipment exits the program automatically after a period of 60 seconds and emits two short
beeps.
