JCM Technologies CAP T868 Bedienungsanleitung
jcmtechnologies
CAPTIVE
RadioBand3G System
EN
CAP T868 / CAP T916
CAP ACTIVE
CAP R868 / CAP R916
CAP MAGIN
User manual
CAPTIVE SYSTEM
CAPTIVE FAMILY
CAPTIVE SYSTEM
jcmtechnologies
2
1. Introduction 4
1.1. General description 4
1.2. CAP T868 / 916 TRANSMITTER 6
1.3. CAP ACTIVE TRANSMITTER 6
1.4. CAP R868 / 916 RECEIVER 8
1.5. CAP MAGIN 9
2. Detection principles 11
3. Installation 11
3.1. CAP T / CAP R 11
3.2. CAP ACTIVE 14
3.3. CAP MAGIN 16
3.3.1. Fixing the grey magnet 15
3.3.2. Fixing the black magnet 16
4. Connections 17
4.1. Connecting the CAP T (safety edge) 17
4.2. Connecting the CAP ACTIVE (safety edge) 18
CAPTIVE SYSTEM
jcmtechnologies
3
4.3. Connecting the receiver to the control panel 19
4.4. Connecting MAGIN to the receiver 21
5. Adjustment of the reciver / Operating modes 22
6. Programming 24
6.1. Programming safety edge to receiver 24
7. Checking and maintenance 26
7.1. Does the equipment work properly 26
7.2. Check the correct operation 26
7.3. CHECK function 27
7.4. Troubleshooting 28
7.5. Total reset 29
7.6. Batteries / Replacing the CAP ACTIVE transmitter battery 30
8. Technical Data Summary 32
9. Maintenance register 33
10.Important safety instructions 34
11.Notes 35
12. EC Declaration of conformity 36
CAPTIVE SYSTEM
jcmtechnologies
4
1. Introduction
1.1. General description
Radio safety solution for industrial sliding gates with NO-TOUCH technology. Based on 3 devices: transmitter (CAP
T868/916, CAP ACTIVE 868), receiver (CAP R868/916) and inhibition detector (CAP MAGIN).
•Compatible with all kind of metallic / aluminum sliding gates.
•Category 2 devices.
Safety edge gives the device security degree. NO-TOUCH detection is a courtesy function.
NO-TOUCH detection is not working all the time, it only should work during the movement of the gate. It detects metal
or conductive objects near the safety edge. It cannot detect plastics, glass neither other no conductive materials.
The receiver manages the activation and deactivation of NO-TOUCH function depending on the status of the inhibition
detector (inhibition input).
Inhibition detector is based on magnetic fields thanks to the use of 2 polarized magnets (grey and black). These 2
magnets are the responsible for activating and deactivating NO-TOUCH sensor on the transmitter. It is needed to
deactivate NO-TOUCH sensor at a distance of 30-50cm before the door is totally closed (inhibition zone).
CAP system is not suitable
for wood gates neither
other non conductive
materials.
CAPTIVE SYSTEM
jcmtechnologies
5
The system complies with EN ISO 13849-1:2008, category 2, PLd. (when the auto-test function is used.)
CAPTIVE SYSTEM
jcmtechnologies
6
1.2. CAP T868/916 TRANSMITTER
–
Recomended
sensibility range
adjustment
between 5-6
CAPTIVE SYSTEM
jcmtechnologies
7
1.3. CAP ACTIVE TRANSMITTER
Recommended
sensibility range
adjustment
between 6-7
CAPTIVE SYSTEM
jcmtechnologies
8

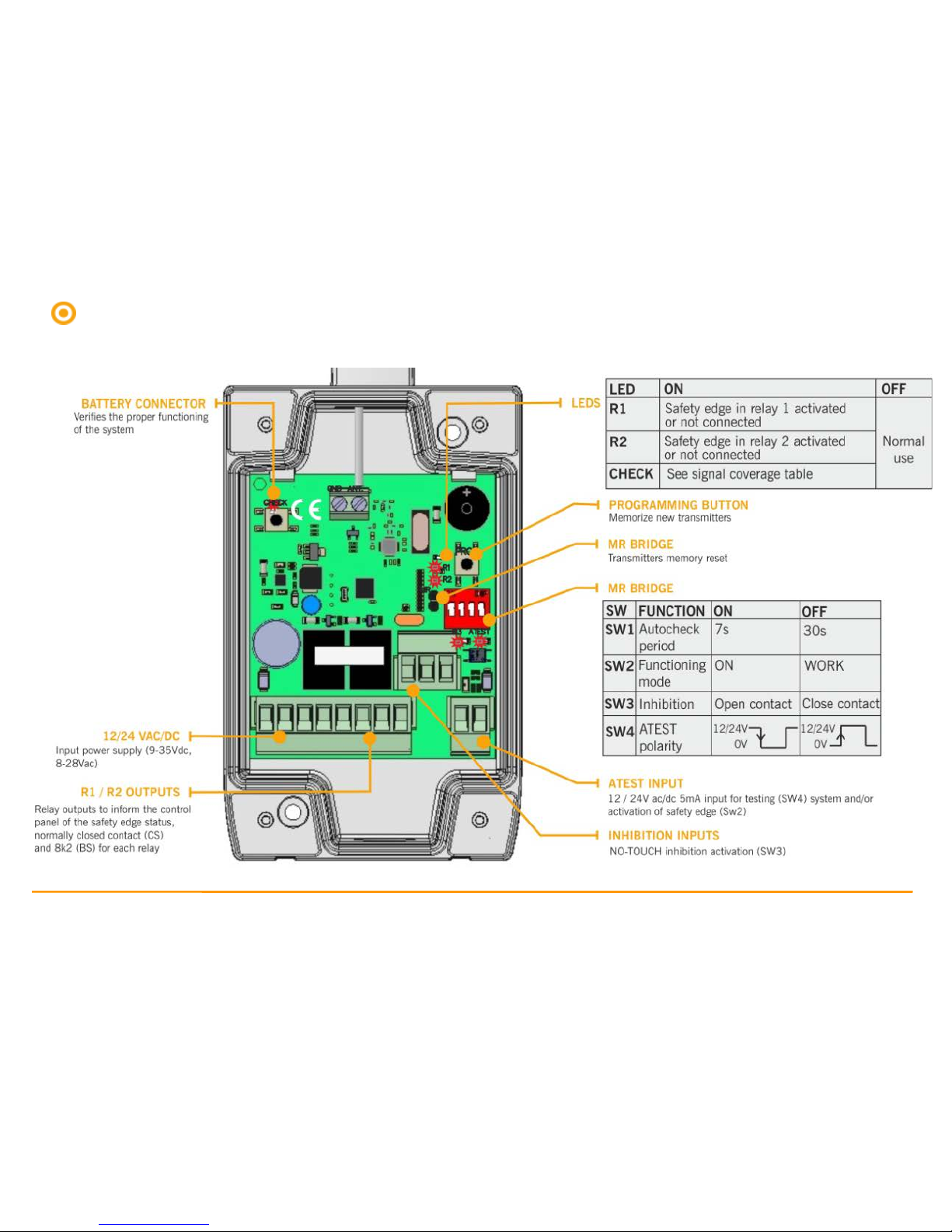

1.4. CAP R868/916 RECEIVER
CAPTIVE SYSTEM
jcmtechnologies
9
INH.
GND.
9 Vdc
1.5. CAP MAGIN
CAP MAGIN
DETECTOR
NO TOUCH activated
NO TOUCH inhibited
2m
GREY
MAGNETS
BLACK
GREY - BLACK magnets position
depends on the direction of the
gate. CAP MAGIN LED must be
GREEN while gate is closing.
RED when gate is stopped.
CAPTIVE SYSTEM
jcmtechnologies
10
2. Detection principles
CAPT detects objects near the safety edge of the gate by detecting variations between conductive part of the gate and
conductive parts of the safety edge.
For that reason CAPT has a cable to connect GND to the metal part of the gate.
It is very important for the proper working of the NO TOUCH detection that the ground
reference is properly connected.
The measurement is going to
depend on:
•Size of the conductive
part of the object.
•Distance from the
object to the edge of
the gate.
Maximum safety edge length=
2.5m.
