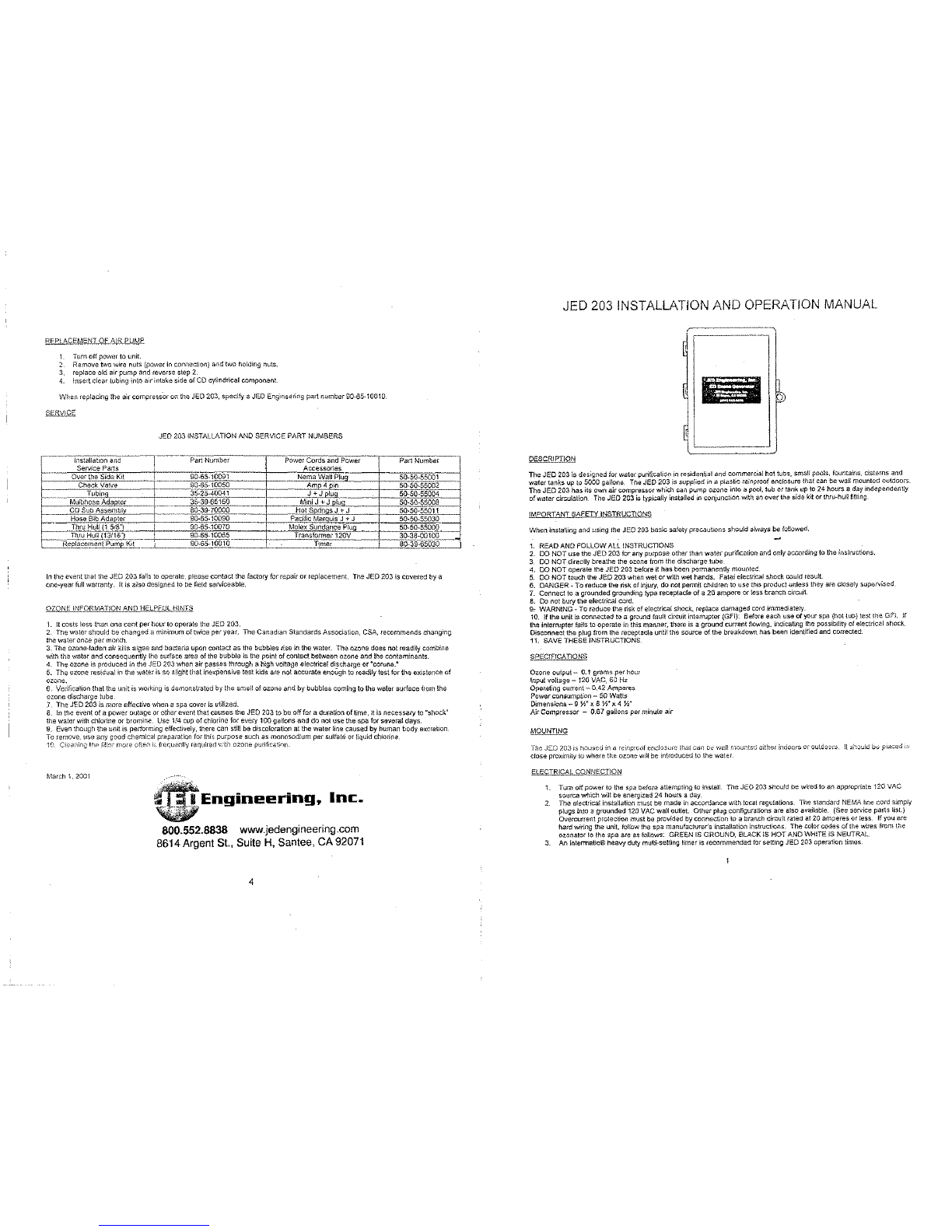

JED 203 INSTALLATION AND OPERATION MANUAL

1. Turn off power to unit.

2. Remove two wire nuts (power in connection) and two holding nuts.

3. replace old air pump and reverse slep 2.

4. Insert clear tubing into air intake side of CD cylindrical component.

When replacing the air compressor on the JED 203. specify a JED Engineering part number 90-65-10010.

IflJlS~~ ~

REPLACEMENT OF AIR PUMP

III!IO

i' •

,""l'"Jillll!l

SERVICE

Installation and Part Number Power Cords and Power Part Number

Service Parts Accessories

Over the Side Kit 90-65-10091 Nema Wall Pluq 50-50-55001

Check Valve 90-65-10050 Amp 4 pin 50-50-55002

Tubinq 35-25-40041 J+JpluQ 50-50-55004

Mullihose

Adapter

35-39-65160 Mini J + J plug 50-50-55008

CD Sub Assembly 80-39-70000 Hot Springs J + J 50-50-55011

Hose Bib Adapter 90-65-10090 Pacific Marquis J+

50-50-55030

Thru HuU(1

5/8·'

I90-65-.10070 Molex Sundance Plug 50-50-55000

Thru Hull 13116" 90-65-10065 Transformer 120V 30-38-00100

Replacement Pump Kit

90-65-10010

Timer

80-39-65030

DESCRIPTION

~ IJ

JED 203 INSTALLATION AND SERVICE PART NUMBERS

The JED 203 is designed for water purification in residential and commercia! hot tubs, small pools, fountains, cisterns and

water tanks up to 5000 gallons. The JED

203

is supplied in a plastic rainproof enclosure that can be wall mounted outdoors.

The JED 203 has its own air compressor which can pump ozone into a pool, tub or tank up to 24 hours a day independently

of water circulation. The JED 203 is typically installed in conjunction with an over the side kit or tnru-hull fitting.

IMPORTANT SAFETY INSTRUCTIONS

When installing and using the JED 203 basic safety precautions should always be followed.

OZONE INFORMATION AND HELPFUL HINTS

1. READ AND FOLLOW ALL INSTRUCTIONS

2. DO NOT use the JED 203 for any purpose other than water purification and only according to the instructions.

3. DO NOT direclly breathe the ozone from the discharge tube.

4. DO NOT operate the JED 203 before it has been penmanenlly mounted.

5. DO NOT touch the JED 203 when wet or with wet hands. Fatal electrical shock could result.

6. DANGER - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised.

7. Connect to a grounded grounding type receptacle of a 20 ampere or less branch circuit.

8. Do not bury the electrical cord.

WARNING - To reduce the risk of electrical shock. replace damaged cord immediately.

10. If the unit is connected to a ground fault circuit interrupter (GFI): Before each use of your spa (hot tub) test the GFI. If

the interrupter fails to operate in this manner, there is a ground current flowing, indicating the possibility of electrical shock.

Disconnect the plug from the receptacle until the source of the breakdown has been identified and corrected.

11. SAVE THESE INSTRUCTIONS.

In the event thai the JED 203 fails to operate. please contact the factory for repair or replacement. The JED 203 is covered by a

one-year full warranty. It is also designed to be field serviceable.

1. It costs less than one cenl per hour to operate the JED 203.

2. The water should be changed a minimum of twice per year. The Canadian Standards Association, CSA, recommends changing

the water once per month.

The ozone-laden air kills algae and bacteria upon contact as the bubbles rise in the water. The ozone does not readily combine

with the water and consequently the surface area of the bubble is the point of contact between ozone and the contaminants.

The ozone is produced in the

JED

203

when

air passes through

high voltage electrical discharge or "corona."

The ozone residual in the water is so slight

that

inexpensive test kids are not accurate enough to readily test for the existence of

ozone,

6. Verification that the unit is working is demonstrated by the smell of ozone and by bubbles coming to the water surface from the

ozone discharge tube.

The JED 203 is more effective when a spa cover is utilized.

8. In the event of a power outage or other event that causes the JED 203 to be off for a duration of time. it is necessary to "shock"

the water with chlorine or bromine. Use 114cup of chlorine for every 100 gallons and do not use the spa for several days.

Even though the unit is performing effectively, there can still be discoloration at the water line caused by human body excretion.

remove, use any good chemical preparation for this purpose such as monosodium per sulfate or liquid chlorine.

10. CieaninD the filter more often

i::.

frequently required '.'iith ozone purification.

SPECIFICATIONS

Ozone output -

0.1

grams per hour

Input voltage - 120 VAC. 60 Hz

Operating current - 0.42 Amperes

Power consumption - 50 Watts

Dimensions - 9 W'

'¥z"

4Yz~

Air Compressor - 0.67 ga/lons per minute air

MOUNTING

The JEO 203 is housed in a rainprcof enclosure that can

wall mounted either indoors or outdoors. It

shJuld

be placed in

close proximity to where the ozone will be introduced to the water.

March 1. 2001 ELECTRICAL CONNECTION

Engineering, Inc.

Turn off power to the spa before attempting to install. The JED 203 should be wired to an appropriate

120

VAC

source which will be energized 24 hours a day.

2. The electrical installation must be made in accordance with local regulations. The standard NEMA line cord simply

plugs into a grounded 120 VAC wall outlet. Other plug configurations are also available. (See service parts list.)

Overcurrent protection must be provided by connection to a branch circuit rated at 20 amperes or less. If you are

hard wiring the unit, follow the spa manufacturers installation instructions. The color codes of the wires from the

ozonator to the spa are as follows: GREEN IS GROUND. BLACK IS HOT AND WHITE IS NEUTRAL

3. An IntenmatiC® heavy duty multi-setting timer is recommended for setting JED 203 operation times.

800.552.8838 www.jedengineering.com

8614 Argent St., Suite H, Santee, CA 92071

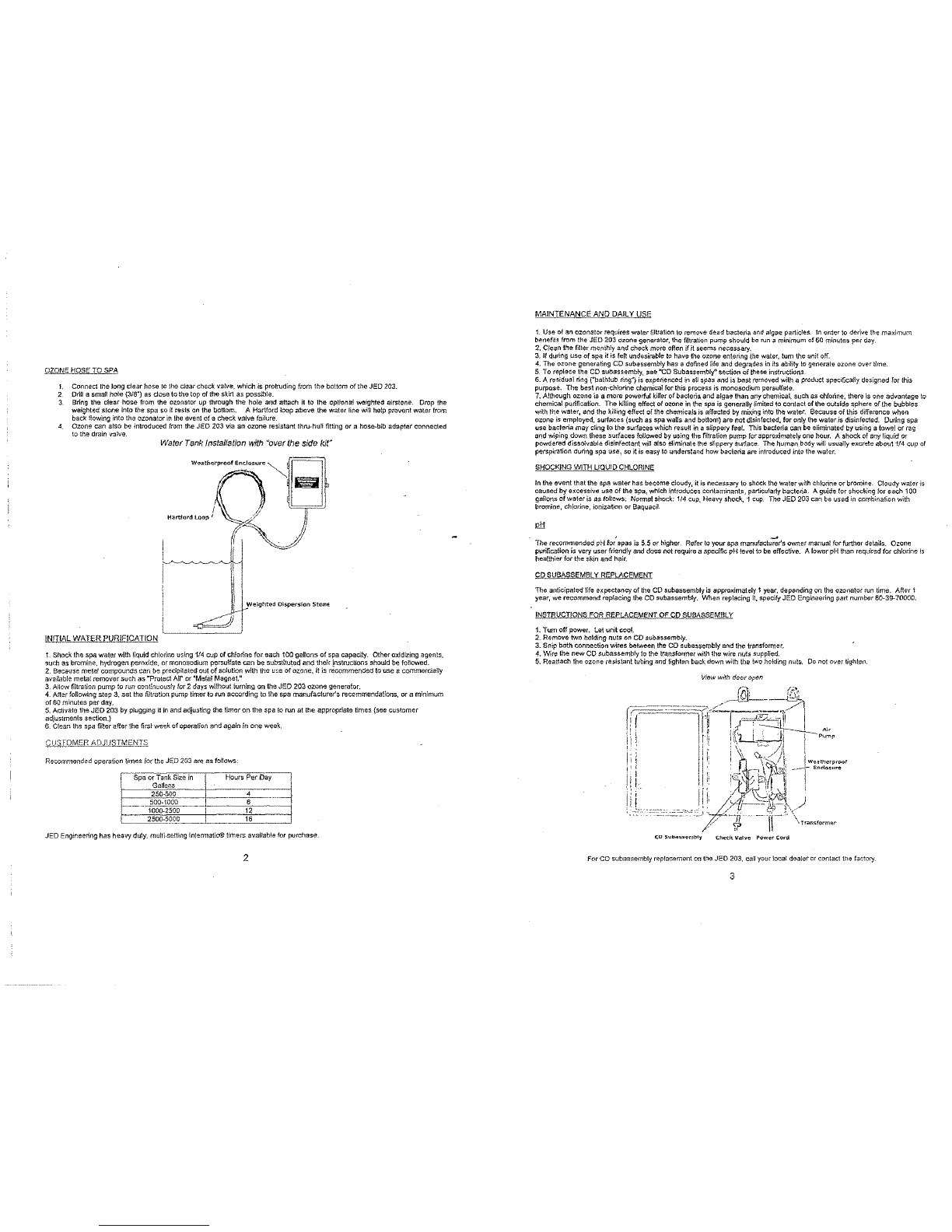

MAINTENANCE AND DAILY USE

Water Tank Installation with "over the side kit"

1. Use of an ozonator requires water filtration 10 remove dead bacteria and algae particles. In order to derive the maximum

benefits from the JED 203 ozone generator, the filtration pump should be run a minimum of 60 minutes per day.

2. Clean the filter monthly and check more often

if it

seems necessary.

3. If during use of spa

relt

undesirable to have the ozone entering the water, turn the unit off.

4. The ozone generating CD subassembly has a defined life and degrades in its ability to generale ozone over time.

5. To replace the CD subassembly, see "CD Subassembly" section of these instructions.

A residual ring ("bathtub ring") is experienced in all spas and is best removed with a product specifically designed for this

purpose. The best

non-chtorine

chemical for this process is monosodium persulfate.

7. A!though ozone is a more

powerful

killer of bacteria and algae than any chemical, such as chlorine, there is one advantage to

chemical purification. The killing effect of ozone in the spa is generally limited to contact of the outside sphere of the bubbles

with the water, and the killing effect of Ihe chemicals is affected by mixing into the water. Because of this difference when

ozone is employed, surfaces (such as spa walls and bottom) are not disinfected, for only the water is disinfected. During spa

use

bacteria may cling to the surfaces which result in a slippery feel. This bacteria can be eliminated

using a towel or rag

and wiping down these surfaces followed

using the filtration pump for approximately one hour. A shock of any liquid or

powdered dissolvable disinfectant will also

elimlnate

the Slippery surface. The human body will usually excrete about

1/4

cup of

perspiration

during spa use, so

is easy to

understand

how bacteria are introduced info the water.

OZONE HOSE TO SPA

1. Connect the long clear hose 10the clear check valve, which is protruding from the bottom of the JED 203.

Drill a small hole (3/8") as close to the top of the skirt as possible.

3. Bring the clear hose from the ozonator up through the hole and attach it to the optional weighted airstone. Drop the

weighted stone into the spa so

rests on the bottom. A Hartford loop above the water line will help prevent water from

back fiowing into the ozonator in the event of a check valve failure.

4. Ozone can also be introduced from the JEO 203 via an ozone

resistant thru-hull fitting or a hose-bib adapter connected

to the drain valve.

Hartt ord

~~~;8~81

,r0

SHOCKING WITH LIQUID CHLORINE

In the event that the spa water has become cloudy, it is necessary to shock the water with chlorine or bromine. Cloudy water

caused by excessive use of the spa, which introduces contaminants, particularly bacteria. A guide for shocking for each 100

gallons of water is as follows: Normal shock:

1/4

cup, Heavy shock, 1 cup. The JED 203 can be used in combination with

bromine, chlorine, ionization

8aquacil.

Q!j

The recommended pH for spas is 5.5 or higher. Refer to your spa manufacturer's owner manual for further details. Ozone

purification is very user friendly and does not require a specific pH level to be effective. A lower pH than required for chlorine is

healthier for

the

skin and hair.

CD SUBASSEMBLY REPLACEMENT

Weighted

Dispersion

stone

The anticipated life expectancy of the

subassembly is approximately

year, depending on the ozonator run time. After

year, we recommend replacing the CD subassembly. When replacing it, specify JED Engineering part number 80-39-70000.

~INSTRUCTIONS FOR REPLACEMENT OF CD SUBASSEMBLY

INITIAL WATER PURIFICATION

1. Turn off power. Let unit cool.

Remove two holding nuts on

subassembly.

Snip both connection wires between the CD subassembly and the transfonmer.

Wire the new CD subassembly to the transfonmer with the wire nuts supplied.

Reattach the ozone resistant tubing and tighten back down with the

two

holding nuts. Do not over tighten.

1. Shock the spa water with liquid chlorine using

1/4

cup of chlorine for each 100 gallons of spa capacity. Other oxidizing agenls,

such

as bromine, hydrogen

peroxide,

or monosodium persulfate can be

substituted

and their instructions should be followed.

Because meta! compounds

can

be precipitated out of solution with the

uce

of ozone,

is recommended to use

commercially

available metal remover such as "Protect All" or "Metal Magnet."

3. Allow filtration pump to run continuously for 2 days without turning on the JED 203 ozone generator.

After following step

set the filtration pump timer to run according to the spa manufacturer's recommendations, or a minimum

of 60 minutes per day.

5, Activate the JED 203 by plugging it in and adjusting the timer on the spa to run at the appropriate times (see customer

adjustments section.)

Clean the spa filter after

the

first week of operation and again

one

week.

View with door open

Spa or Tank Size in

Hours Per Day

Gallons

250-500

500-1000

1000-2500 12

2500-5000 16

::1

r:.;t;,

/JQj_:.

t,\jL

IT.

~==:::~r:;t~-~.0~,-..

;-li,

i ~

f=, ,

I AI,

:(.r! ~; ,

Pump

! ~ , .,;

1 \

.! ' "

ii'

Ir\

!I,ll..

",,--,I

" , I:': \. / I,

! :

i..

!. i. 1"~.. ')..\--~.:

~/!:

W~~~7:~~;~Of

I':

I..--.\

~1:

. , .' ~ 'f,.; -

i(1-\Vell ~

;f';

~/t; ~\~ )

'Y'

(!,,~

1;\/

>-"

c../ ".,.;

-'>/ /--Jj, - --n-' \

'rrertstormer

CUSTOMER ADJUSTMENTS

Recommended operation times for the JED

203

are as follows:

JED Engineering has heavy duty, multi-setting IntennaliC®

timers

available for purchase.

Subassembly

Check Valve

Power

Cord

For CO subassembly replacement on the JED

203,

call your local dealer or contact the factory.

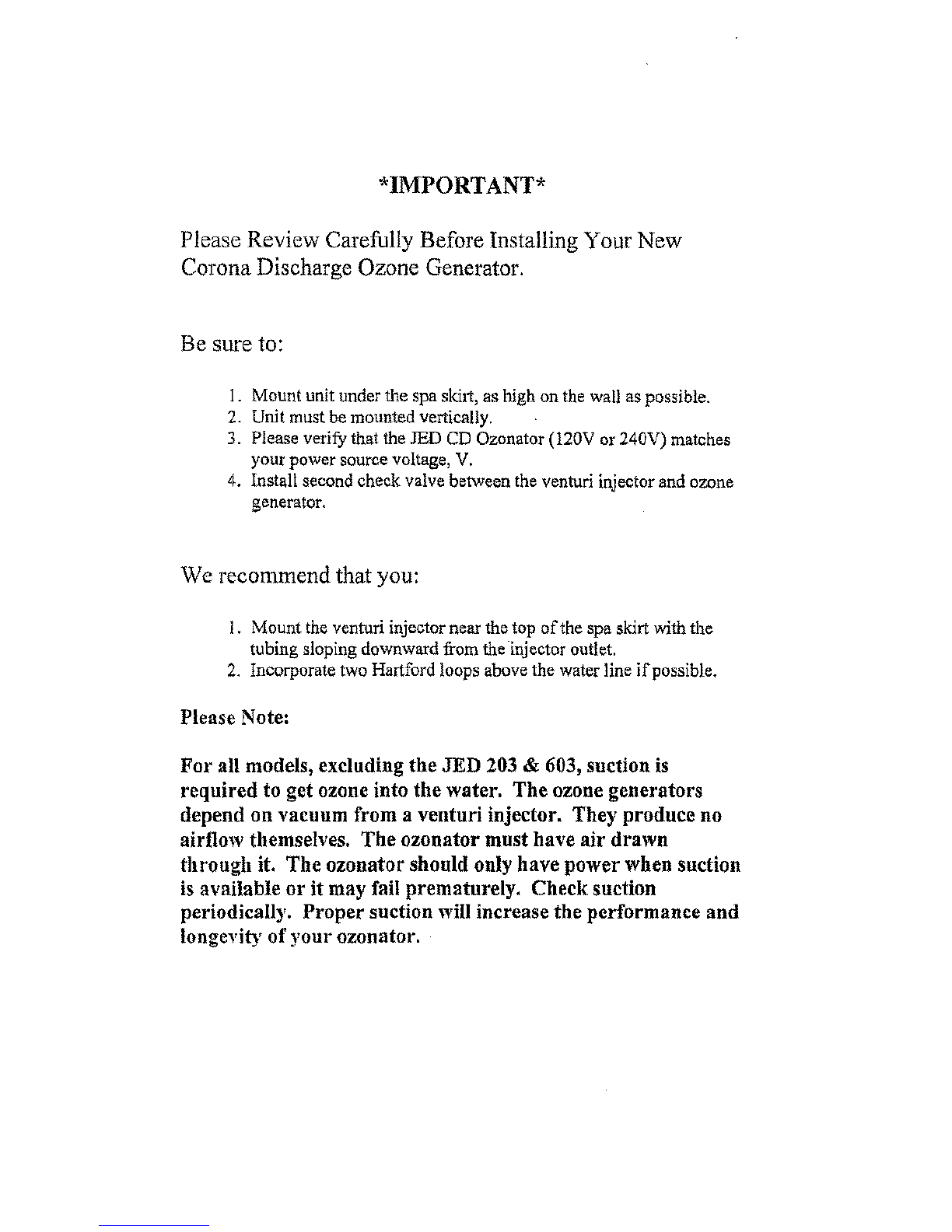

*IMPORTANT*

Please Review Carefully Before Installing Your New

Corona Discharge Ozone Generator.

Be sure to:

1. Mount unit under the spa skirt, as high on the wall as possible.

2. Unit must be mounted vertically.

3. Please verify that the JED CD Ozonator (120V or 240V) matches

your power source voltage, V.

4. Install second check valve between the venturi injector and ozone

generator.

We recommend that you:

1. Mount the venturi injector near the top of the spa skirt with the

tubing sloping downward from the injector outlet.

2. Incorporate two Hartford loops above the water line if possible.

Please Note:

For all models, excluding the JED 203

603, suction is

required to get ozone into the water. The ozone generators

depend on vacuum from a venturi injector. They produce no

airflow themselves. The ozonator must have air drawn

through

it.

The ozonator should only have power when suction

is available or it may fail prematurely. Check suction

periodically. Proper suction will increase the performance and

longevity

of your

ozonator.

J;rani_--ring, Inc.

800.552.8838 www.jedengineering.com

8614 Argent St., Suite H, Santee, CA 92071

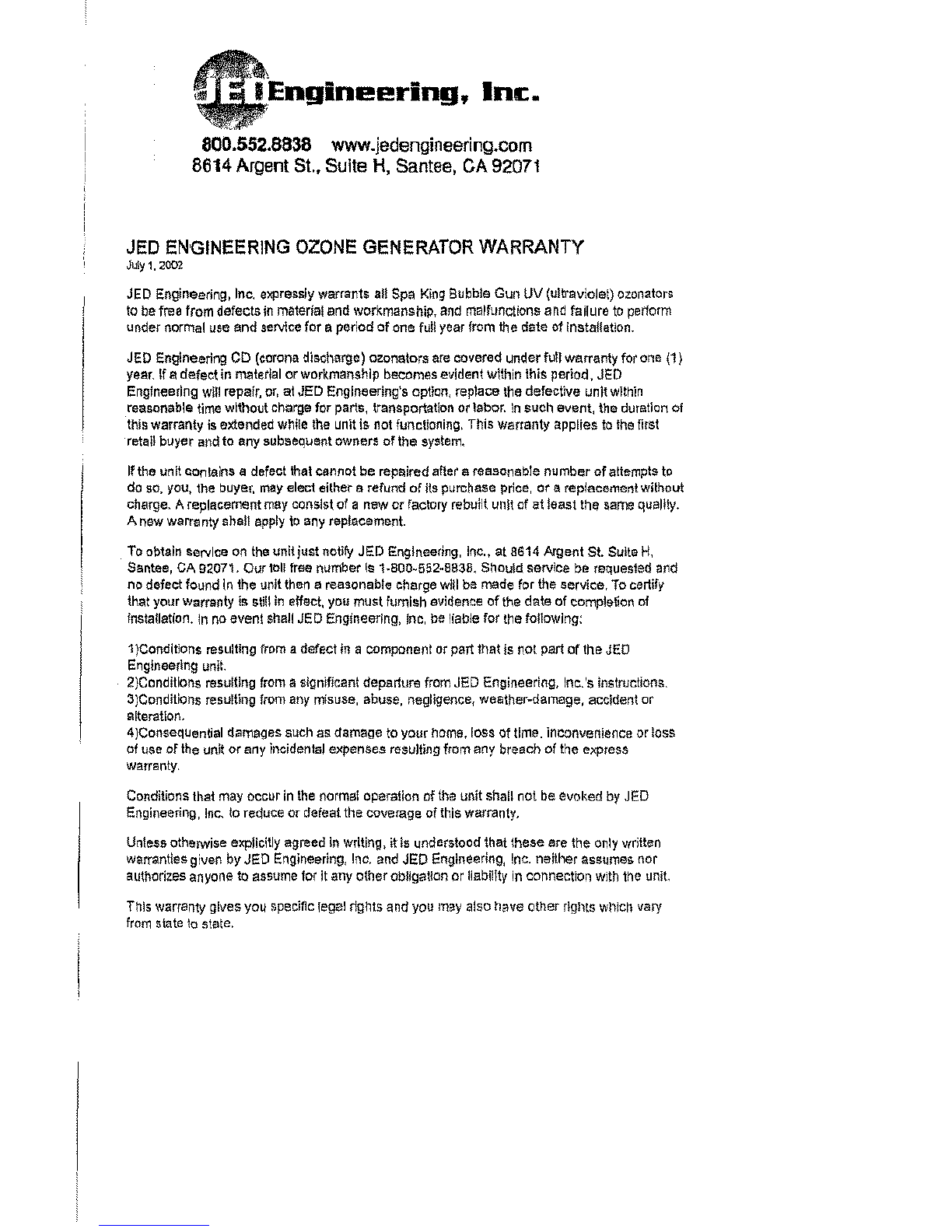

JED ENGINEERING OZONE GENERATOR WARRANTY

July1,2002

JED Engineering, Inc. expressly warrants all Spa King Bubble Gun UV (ultraviolet) ozonators

to be free from defects in material and workmanship, and malfunctions and failure to perform

under normal use and service for a period of one full year from the date of Installation.

JED Engineering CD (corona discharge) ozonators are covered under full warranty for one (1)

year, If a defect in material or workmanship becomes evident within this period, JED

Engineering will repair, or, at JED Engineering's option, replace the defective unit within

reasonable time without charge for parts, transportation or labor, In such event, the duration of

this warranty is extended while the unit is not functioning, This warranty applies to the first

retail buyer and to any subsequent owners of the system,

If the unit contains a defect that cannot be repaired after a reasonable number of attempts to

do so, you, the buyer,

may

elect either a refund of Its purchase price, or a replacement without

charge. A replacement may consist of a new or factory rebuilt unit of at least the same quality.

A new warranty shall apply 10any replacement.

To obtain service on the unit just notify JED Engineering, Inc., at 8614 Argent SI. Suite H,

Santee, CA 92071. Our toll free number Is 1-800-552-8838. Should service be requested and

no defect found In the unit then a reasonable charge will be made for the service, To certify

that your warranty is still in effect, you must furnish evidence of the date of completion of

installation. In no event shall JED Engineering, lnc, be liable for the following:

1)Conditions resulting from a delect In a component or part that is not part of the JED

Engineering unit.

2)Conditlons resulting from a significant departure from JED Engineering, Inc,

instructions.

3)Conditlons resulting from any misuse, abuse, negligence, weather-damage, accident or

alteration,

4)Consequentlal damages such as damage to your home, loss of time, Inconvenience or loss

of use of the unit or any incidental expenses resulting from any breach of the express

warranty.

Conditions thai may occur in the normal operation of the unit shall not be evoked by JED

Engineering, Inc. to reduce or defeat the coverage of this warranty.

Unless otherwise explicitly agreed In writing, it is understood that these are the only written

warranties given by JED Engineering, Inc. and JED Engineering, Inc. neither assumes nor

authorizes anyone to assume for it any other obligation or liability In connection with the unit.

This warranty gives you specific legal rights and you may also have other rlqhts which vary

from state to state.

Andere JED Wasserfiltersystem Handbücher

JED

JED 603 Bedienungsanleitung

Beliebte Wasserfiltersystem Handbücher anderer Marken

Wisy

Wisy LineAir 100 Bedienungsanleitung

Schaffner

Schaffner Ecosine FN3446 Series Betriebsanleitung

Pentair

Pentair FLECK 4600 SXT Benutzerhandbuch

H2O International

H2O International H20-500 Bedienungsanleitung

Renkforce

Renkforce 2306241 Bedienungsanleitung

Neo-Pure

Neo-Pure TL3-A502 Bedienungsanleitung

FLTR

FLTR OBF Bedienungsanleitung

STA-RITE

STA-RITE VERTICAL GRID DE FILTERS S7D75 Bedienungsanleitung

Applied Membranes

Applied Membranes W-G844EM Bedienungsanleitung

BEGA

BEGA 116 Bedienungsanleitung

WATA

WATA Standard Bedienungsanleitung

Price

Price FFU series Handbuch

Gaggenau

Gaggenau BRITA INTENZA 467873 Bedienungsanleitung

Brita

Brita SAFF-100 Bedienungsanleitung

HEISSNER

HEISSNER FPU24000-00 Bedienungsanleitung

BGS technic

BGS technic 1518 Bedienungsanleitung

Reverse Osmosis

Reverse Osmosis RF Series Bedienungsanleitung

ubbink

ubbink Filtramax Series Bedienungsanleitung
