Jeep 2004 Wrangler Bedienungsanleitung

TABLE OF CONTENTS

SECTION PAGE

1INTRODUCTION .............................................................3

2THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ...........................9

3UNDERSTANDING THE FEATURES OF YOUR VEHICLE ............................43

4UNDERSTANDING YOUR INSTRUMENT PANEL .................................109

5STARTING AND OPERATING ................................................157

6WHAT TO DO IN EMERGENCIES .............................................209

7MAINTAINING YOUR VEHICLE ..............................................221

8MAINTENANCE SCHEDULES ................................................261

9IF YOU NEED CONSUMER ASSISTANCE .......................................279

10 INDEX ...................................................................287

INTRODUCTION

CONTENTS

mIntroduction

...........................4

▫Roll Over Warning .....................4

mHow To Use This Manual

.................6

mWarnings And Cautions

..................7

mVehicle Identification Number

..............7

mVehicle Modifications / Alterations

..........8

INTRODUCTION

Thank you for selecting a JeeptWrangler and welcome to

our worldwide family.

This is a specialized utility vehicle designed for both

on-road and off-road use. It can go places and perform

tasks for which conventional two-wheel drive enclosed

vehicles were not intended. It handles and maneuvers

differently from many passenger cars both on-road and

off-road, so take time to become familiar with your

vehicle.

Before you start to drive this vehicle, read the Owner’s

Manual. Be sure you are familiar with all vehicle controls,

particularly those used for braking, steering, transmis-

sion, and transfer case shifting. Learn how your vehicle

handles on different road surfaces. Your driving skills

will improve with experience. When driving off-road or

working the vehicle, don’t overload it or expect it to

overcome the laws of nature. Always observe federal,

state, provincial and local laws wherever you drive.

As with other vehicles of this type, failure to operate this

vehicle correctly may result in loss of control or an

accident. Be sure to read “On-Road/Off-Road Driving

Tips” in this manual.

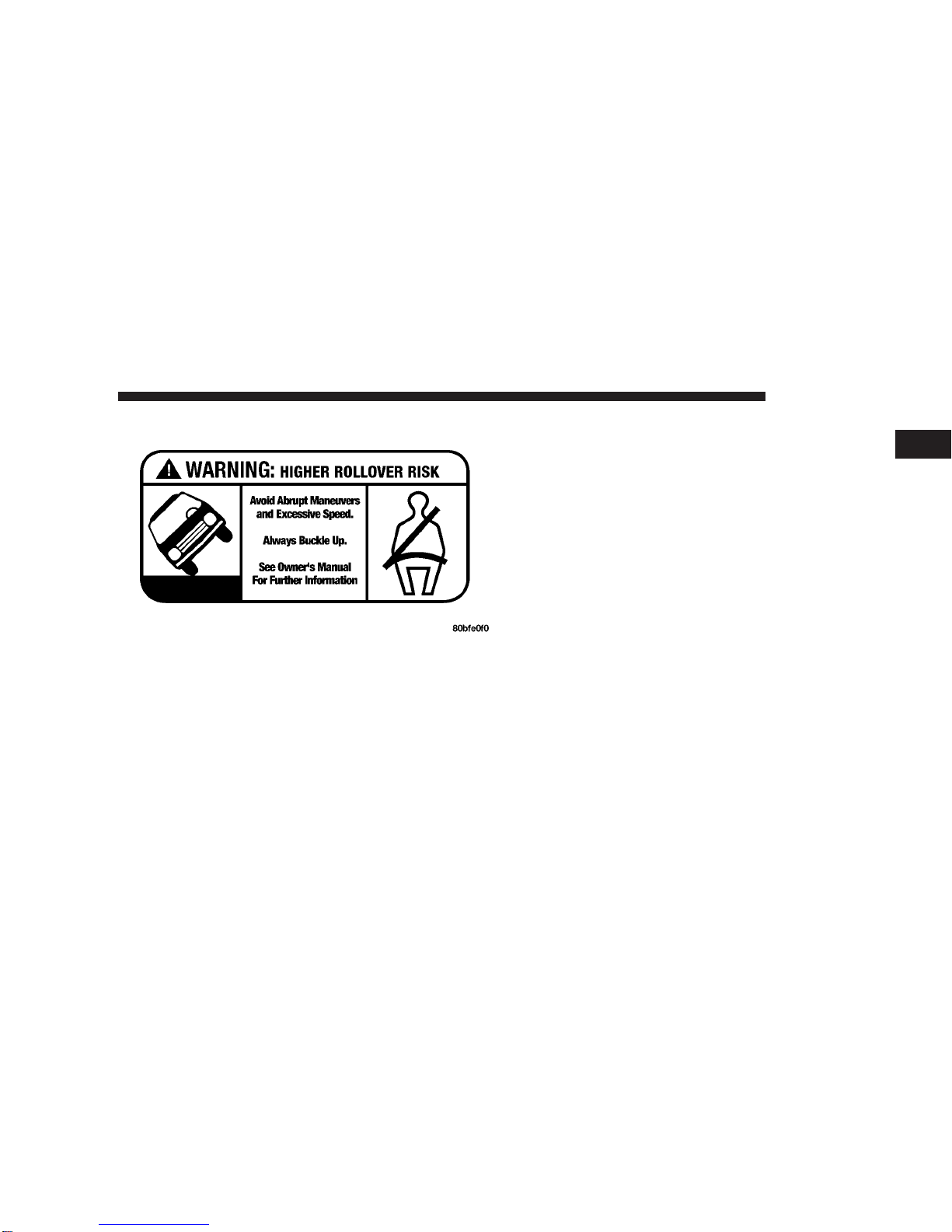

Roll Over Warning

Utility vehicles have a significantly higher roll over rate

than other types of vehicles. This vehicle has a higher

ground clearance, higher center of gravity, and narrower

track than many passenger cars. It is capable of perform-

ing better in a wide variety of off-road applications.

Driven in an unsafe manner, all vehicles can be caused to

go out of control. Because of the higher center of gravity

and the narrower track, if this vehicle is out of control it

may roll over when some other vehicles may not.

Do not attempt sharp turns or abrupt maneuvers or other

unsafe driving actions that can cause loss of vehicle

control. Failure to operate this vehicle safely may result

in an accident, roll over of the vehicle and serious injury

or death. Because of its open-body construction, your

vehicle offers less protection than closed vehicles in the

event of an accident.

4 INTRODUCTION

Failure to use driver and passenger seat belts provided

is a major cause of severe or fatal injury. In fact, the U.S.

government notes that the universal use of existing seat

belts could cut the highway death toll by 10,000 or more

each year, and could reduce disabling injuries by 2

million annually. In a roll over crash, an unbelted person

is significantly more likely to die than a person wearing

a seal belt. Always buckle up.

Although your vehicle may be equipped with a soft top

or optional hard top to give the occupants protection

from the weather, these tops do not offer structural

protection in the event of an accident and do not change

the open-body characteristic of the vehicle. Even though

your vehicle has a sport bar and side bars for some extra

protection, it is a truly open vehicle-there is no structural

integrated top and it has low sides and a folding wind-

shield. Many of these vehicles do not have fully enclosed

hard doors.

Operating this vehicle at excessive speeds or while

intoxicated may result in loss of control, collision with

other vehicles or objects, going off the road, or overturn-

ing, any of which may lead to serious injury or death.

Also, failure to use standard seat belts subjects the

driver and passengers to a greater risk of being thrown

out of an open-body vehicle than out of a closed vehicle

in an accident which can result in injury or death.

INTRODUCTION 5

This manual has been prepared with the assistance of

service and engineering specialists to acquaint you with

the operation and maintenance of your new vehicle. It is

supplemented by a Warranty Information Booklet and

various customer oriented documents. You are urged to

read these publications carefully. Following the instruc-

tions and recommendations in this manual will help

assure safe and enjoyable operation of your vehicle.

NOTE:

After you read the manual, it should be stored

in the vehicle for convenient reference and remain with

the vehicle when sold so that the new owner will be

aware of all safety warnings.

When it comes to service, remember that your authorized

dealer knows your vehicle best, has the factory-trained

technicians and genuine Mopartparts, and is interested

in your satisfaction.

WARNING!

Engine exhaust, some of its constituents, and certain

vehicle components contain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm. In addition,

certain fluids contained in vehicles and certain prod-

ucts of component wear contain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm.

HOW TO USE THIS MANUAL

Consult the table of contents to determine which section

contains the information you desire.

The detailed index, at the rear of the manual, contains a

complete listing of all subjects.

6 INTRODUCTION

WARNINGS AND CAUTIONS

This manual contains WARNINGS against operating

procedures which could result in an accident or bodily

injury. It also contains CAUTIONS against procedures

which could result in damage to your vehicle. If you do

not read this entire manual you may miss important

information. Observe all Warnings and Cautions.

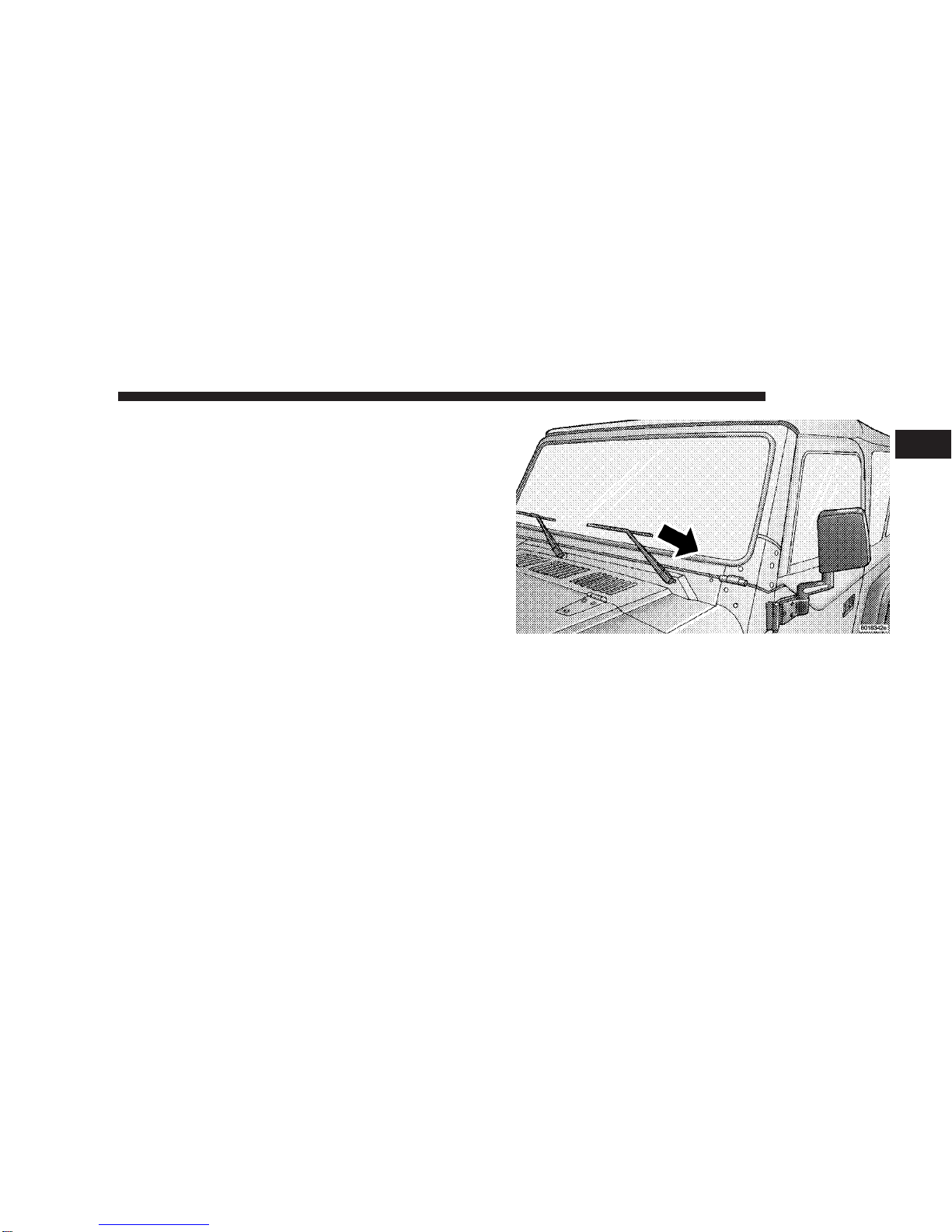

VEHICLE IDENTIFICATION NUMBER

The vehicle identification number (VIN) is found on a

stamped plate located on the left front corner of the

instrument panel pad, visible from outside of vehicle

through windshield. This number also appears on the

Automobile Information Disclosure Label affixed to a

window on your vehicle. Save this label for a convenient

record of your vehicle identification number and optional

equipment.

NOTE:

It is illegal to remove the VIN plate.

INTRODUCTION 7

VEHICLE MODIFICATIONS / ALTERATIONS

WARNING!

Any modifications or alterations to this vehicle

could seriously affect its roadworthiness and safety

and may lead to an accident resulting in serious

injury or death.

8 INTRODUCTION

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CONTENTS

mA Word About Your Keys

.................11

▫Ignition Key ..........................11

▫Key-In-Ignition Reminder ................12

mSentry Key Immobilizer System —

If Equipped

...........................12

▫Important Note About Service .............13

▫Replacement Keys ......................13

▫Customer Key Programming ..............13

▫General Information ....................14

mSteering Wheel Lock — If Equipped

.........14

▫To Manually Lock The Steering Wheel .......14

▫To Release The Steering Wheel Lock .........14

mIlluminated Entry — If Equipped

...........15

mDoors And Locks

.......................15

▫Door Locks ...........................15

mOccupant Restraints

.....................16

▫Lap/Shoulder Belts .....................17

▫Adjustable Upper Shoulder Belt Anchorage ....21

▫Seat Belts And Pregnant Women ............21

▫Seat Belt Extender ......................21

▫Driver And Front Passenger Supplemental

Restraint Systems (SRS) — Airbags ..........22

▫Child Restraint ........................29

mEngine Break-In Recommendations

..........39

mSafety Tips

............................40

▫Exhaust Gas ..........................40

▫Safety Checks You Should Make

Inside The Vehicle ......................41

▫Safety Checks You Should Make Outside The

Vehicle ..............................41

10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
