15" PLANER
WITH QUICK
CHANGE KNIVES
STOCK NO. 900000
10M 07/07
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.

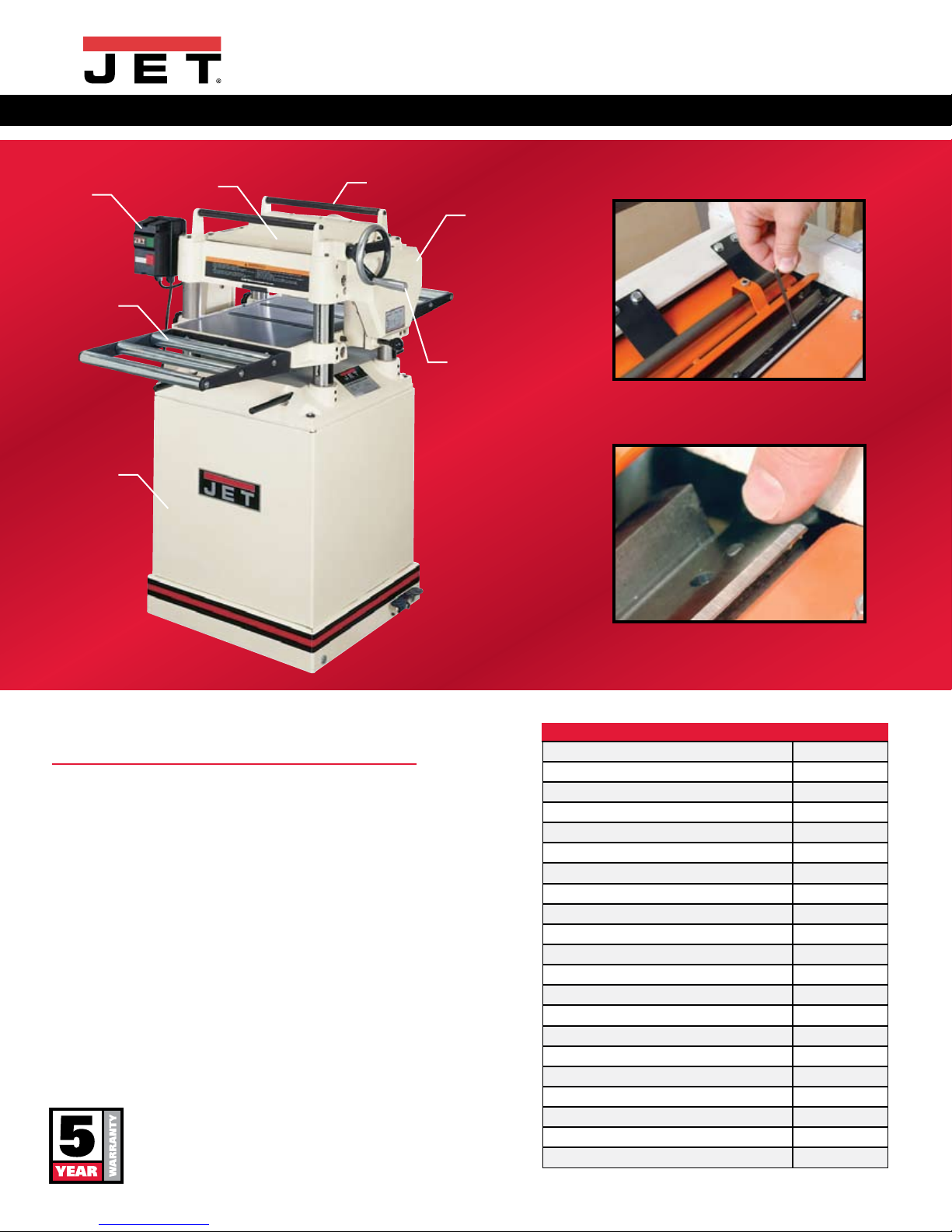

This 15" planer features a cutterhead
with quick change knives that align
themselves without any adjustment.
This machine also has infeed and
outfeed table extensions with rollers
to help in the prevention of snipe.
jettools.com
15" PLANER WITH
QUICK CHANGE KNIVES
•Cutterhead with EXCLUSIVE Quick change knives that align themselves
without any adjustment, double sided for extended knife life
•Heavy-duty cast iron and steel construction for added strength and durability
•Large, cast iron, precision ground table for precise workpiece support
•Powerful 3 HP TEFC induction motor with three V-belt transmission for
smooth and consistent power
•Two-speed gear box with automatic chain tensioner lets you adjust the feed
rate to meet your needs
•Internal castor system for mobility
15" PLANER, WITH QUICK
CHANGE KNIVES STOCK NUMBER 708538
Model Number JWP-15DX
Net Weight (lbs.): 540
Maximum Planing Width (in) 14-7/8
Maximum Planing Thickness(in) 6
Maximim Full Width Depth of Cut(in) 1/8
Maximum Depth of Cut(in) 3/16
Minimum Planing Length(in) 8
Cutterhead Diameter(in) 2-7/8
Cutterhead Speed(RPM) 4500
Cuts Per Minute 13500
Feed Rate(FPM) 16 and 20
Number of Knives 3
Dust Port Diameter(OD/in) 4
Dust Collection Minimun CFM Required 400
Blade Size (in.) 15 x 1 x 1/8
Table Support 4 column
Amps 14
Motor HP 3HP
Motor Phase 1
Motor Voltage 230V
Pre-Wired 230V
Height
Adjustment
Handwheel
Easy access for quick knife changes
Locating pins to precisely align knives
Solid Cast Iron
Construction
Return
Rollers
Industrial
Magnetic
Controls
Sets ofThree
Steel Infeed
and Outfeed
Rollers
Heavy-Duty
Closed Steel
Stand
Cutterhead with Quick
Change Knives
