JETWAY J9BXAS-7A Bedienungsanleitung

9BXAS/9BXAS-A

9BXAN/9BXAN-A

USER'S MANUAL

PCI/ AGP Mainboard

For Pentium



II/ III or Socket 370

The author assumes no responsibility for any errors or omissions which

may appear in this document nor does it make a commitment to update the information

contained herein.

NO. G03-9BXASR7A

Release date: NOV 2000

** Year 2000 compliant **

Trademark:

* Pentium is registered trademark and MMX is a trademark of Intel corporation,

the other names and brands are the property of their respective owners.

* Specifications and Information contained in this documentation are furnished for information use only, and are subject to

change at any time without notice, and should not be construed as a commitment by manufacturer.

Chapter 1

TABLE OF CONTENT

1-1 Preface .................................................................................................... 1

1-2 Feature of Motherboard ........................................................................... 1

1-2-1 Overview ...................................................................................... 1

1-2-2 Key Feature.................................................................................. 2

Chapter 2

Hardware Installation..................................................................................3

2-1 Unpacking ............................................................................................... 3

2-2 The Diagram of Motherboard ................................................................... 4

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket............... 5

2-4 Installation Steps ..................................................................................... 6

2-5 Jumper Settings....................................................................................... 6

2-6 System Memory (DRAM) .......................................................................... 7

2-7 Central Processing Unit (CPU) ................................................................. 7

2-8 Expansion Cards ..................................................................................... 12

2-9 External Connectors ................................................................................ 12

Chapter 3

AWARD BIOS SETUP..................................................................................18

3-1 STANDARD CMOS SETUP........................................................................ 19

3-2 BIOS FEATURES SETUP.......................................................................... 19

3-3 CHIPSET Features SETUP........................................................................ 20

3-4 POWER MANAGE MENT SETUP............................................................... 21

3-5 PnP/PCI CONFIGURATION SETUP .......................................................... 23

3-6 LOAD OPTIMAL DEFAULTS ..................................................................... 24

3-7 LOAD STANDARD DEFAULTS.................................................................. 25

3-8 INTEGRATED PERIPHERALS SETUP ....................................................... 25

3-9 SUPERVISOR/USER PASSWORD............................................................. 26

3-10 SAVE & EXIT SETUP ............................................................................... 26

3-11 EXIT WITHOUT SAVING .......................................................................... 26

Chapter 4

4-1 PC HEALTH MONITOR-III Driver (Option for mainboard that embedded PC Health Chip) 27

4-2 SOUND Driver (Option for mainboard that embedded Audio Chip)........29

Chapter 5

Quick Troubleshooting Guide.......................................................................... 45

Chapter 6

Frequently Asked Questions and Answers ..................................................... 46

Chapter 1

1-1 Preface

Thank you for purchasing this multifunction motherboard. It has the most flexibility that you can

find in today’s computer market. The motherboard integrates both Intel Pentium®II / Pentium®III &

Celeron™ (Slot 1) processor and Celeron™ PPGA / Coppermine FC-PGA (Socket 370) processor

interface into a standard ATX compatible system along with 3D Stereo Sound System audio chip

and many other new feature that meets future specification.

1-2 Feature of Motherboard

This motherboard is design for the PC user who wants highest possible quality and value in a

small package. This motherboard include following main features：

1-2-1 Overview

•Support both Slot 1 & Socket 370 CPU interface (You can only use one CPU interface at

a time).

•Support Jump-less solution for setting Front Side Bus Frequency (CPU Host Clock) and

CPU ratio under CPU Host/PCI clock of CHIPSET FEATURES SETUP.

•Conditionally support 133MHz * of Front Side Bus Frequency. This function allow user

select CPU Bus Frequency by the BIOS to approach Over-Clock possibility.

•Provide PC Health Monitoring to track CPU temperature, system temperature, system

voltage, and fan speed. When CPU current temperature is over CPU warning

temperature, system will slow down automatically in order to reduce the CPU’s

temperature (Option for motherboard that embedded PC Health Chip only).

•Logo-DIY: Provide CBROM utility for user to create their own loge in the BIOS.

•Built in high quality PCI-Based HRTF 3D Extension Positional Audio Chip (Option for

motherboard that embedded Audio Chip only)

-Supports rear side speakers, C3DX positional audio in 4 channels speaker mode.

-Professional digital audio interface to support 24-bit SPDIF IN and OUT (44.1K and 48K

format).

-HRTF-base 3D positional audio, supporting DirectSound™ 3D and Aural A3D™ interface.

- Digital functions that capable to provide hi-fi stereo, Dolby, 3D surround effects, and

playing MP3 music.

•You can add our Optical kit (Optional) to connect any optical Input/Output device for

super high quality sound transaction, such as playing & recording MD(Mini Disk)/CD;

CD-ROM directly recording to MD; combine with DVD player to create a home theater

system (This upgrade kit includes Optical Module, Optical Cable, and Software DVD

Driver).

1-2-2 Key Feature

•Multi-Speed Support ：Provide 66/75*/83*/95*/100/112*/117*/124*MHz Front Side Bus

Frequency to support Intel Pentium®II / Pentium®III, Celeron processor for Slot 1 interface or

Intel Celeron PPGA / Coppermine FC-PGA on a ZIP Socket 370 interface.

•Intel chipset：Intel’s 440BX PCI/AGPset with I/O subsystems.

•DRAM Memory Support：Support 3 x 168-pin DIMM sockets (3.3V) for memory from 8M

Byte to 768M Byte in either EDO (66MHz only) or SDRAM (66MHz/100MHz) type module with

ECC or parity check.

•AGP, ISA, and PCI expansion Slots：Provide an AGP slot, one 16-bit ISA slot, and four 32-

bit PCI master slots.

•Super Multi-I/O: Provides two high-Speed UART compatible serial ports and one parallel port

with EPP and ECP capabilities. Two floppy drives of either 5.25” or 3.5” (1.44MB or 2.88MB)

are also supported without an external card.

•PCI Bus Master IDE Controller and ULTRA DMA 33: On-board PCI Bus Master IDE

controller with two connectors that supports four IDE devices in two channels, provides faster

data transfer rates, and supports Enhanced IDE devices such as Tape Backup, CD-ROM, ZIP,

LS-120 Drives. This controller also supports PIO Modes and Bus Master IDE DMA

33Mbyte/Second.

•ACPI supporting for OS Directed Power Management.

Ring-In Wake up: When Ring-In the system can wake up from SMI Mode.

Ring-In Power On: When Ring-In the system can power on automatic by this function.

RTC Power On: Enabled RTC Power On function, you can set RTC alarm to power on the system

at the time length that correspond to your setting.

Power Button: Press the button will place the system power on/off.

CPU fans auto-stopping with suspend mode.

Support Software Power Off function.

•Power Support: Efficient PWM switching power instead of traditional Linear Voltage

Regulator to prevent power component from being burned-out.

•PC 99 ready

•PS/2 Mouse: This motherboard support PS/2 mouse set.

•USB Port Connector: This motherboard supports two USB port connectors for USB devices.

•Optional IrDA: This motherboard supports an optional infrared port module for wireless

interface, with independent 3rd UART (32-byte FIFO).

•AGP: Accelerated Graphics Port, for to 533MB/sec data transfer rate and 66MHz Bus clock to

improve graphic functions.

•ATX Form Factor: Dimensions 30.5cm x 19cm.

* Your memory module(s) must be PC133 compliant SDRAM chips and specified or marked

as 8ns or 6ns.

* When you are running at 133MHz , make sure all of your PCI devices have enough

tolerance to run on 44MHz . Otherwise, it may cause your system become very unstable.

Chapter 2

Hardware Installation

2-1 Unpacking

This mainboard package should contain the following:

•The mainboard

•USER’S MANUAL for mainboard

•Cable set for IDE x1, Floppy x1

•CD for Drivers PACK

The mainboard contains sensitive electronic components that can be easily damaged by electron-

static, so the mainboard should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat.

The operator should be wearing an anti static wristband, grounded at the same point as the anti-

static mat.

Inspect the mainboard carton for obvious damage. Shipping and handling may cause damage to

your board. Be sure there are no shipping and handling damages on the board before proceeding.

After opening the mainboard carton, extract the system board and place it only on a grounded

anti-static surface component side up. Again inspect the board for damage.

Press down on the entire socket IC’s to make sure that they are properly inserted. Do this only on

with the board placed on a firm flat surface.

Warning: Do not apply power to the board if it has been damaged.

You are now ready to install your mainboard. The mounting hole pattern on the mainboard

matches the ATX system board.

It is assumed that the chassis is designed for a standard ATXmain board mounting. Place the

chassis on the anti-static mat and remove the cover.

Take the plastic clips, Nylon stand-off and screws for mounting the system board, and keep them

separate.

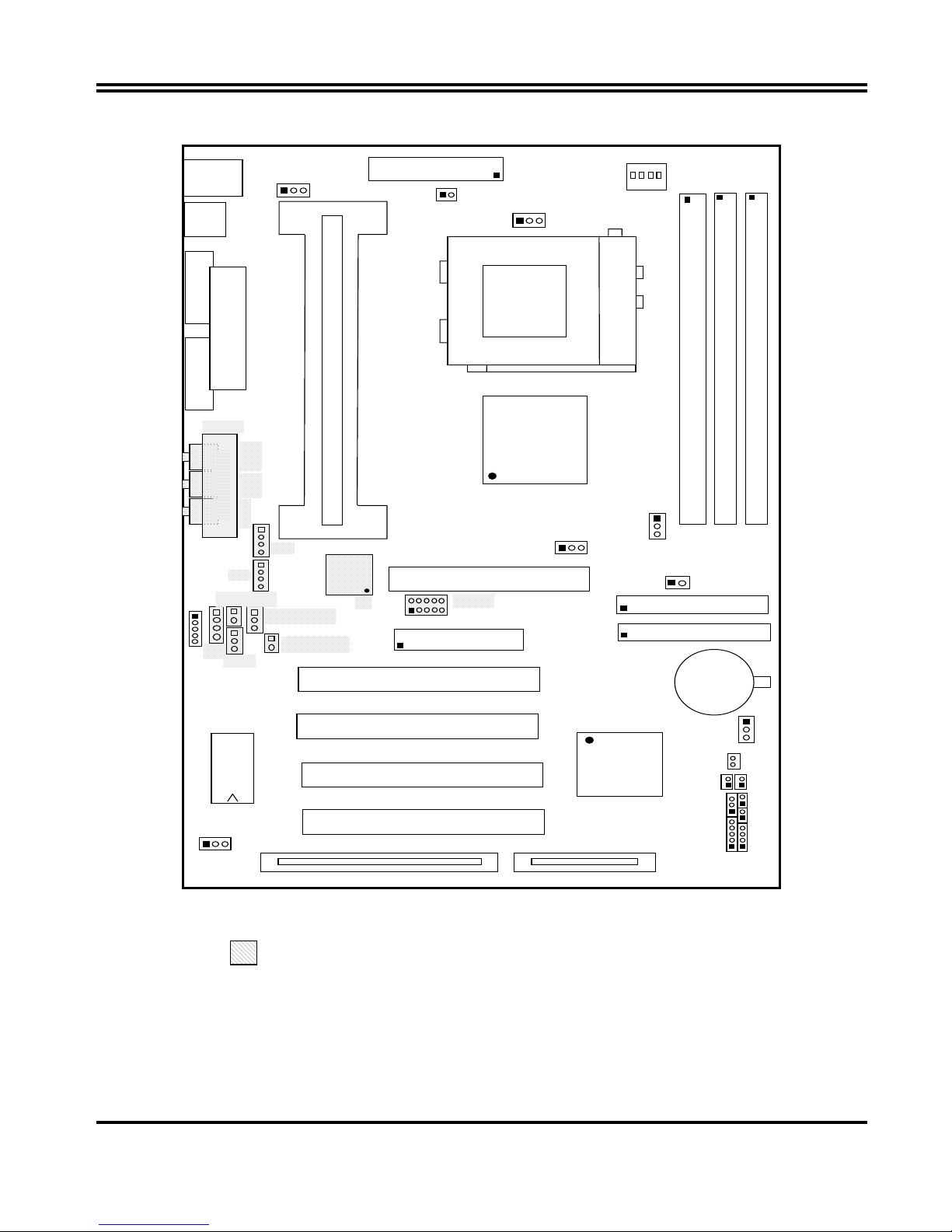

2-2 The Diagram of Mainboard

JP11

SLOT-1

MINI-

DIN

COM2

COM2 COM1

PORT

BATT. +

BT1

82C443BX

INTEL371EB

ATX POW ER

PL1

IDE2

IDE 2

IDE1

PCI 2

PCI

PCI 1

PCI

MIC LINE-

LINE-

OUT

AGC

GAME

PCI

PCI 3

PCI

PCI 4

ZIF SOCKET

370

CPU

U11

DIMM2

DIMM

DIMM1

DIMM

BIOS

JP16

GP1

IR1

JP15

JP14

JP17

CPUFAN

SYSFAN

IDE 1

FDD

JP18

WOL

KEYLOC

RSTTBLE

TBSW

HDLED

PS-

SPEAK

U17

4321

JP1

JP2

JP3

SPDIFIN 1

SPDIFOUT

JP4

SPKIN 1

CMI8738

DIMM3

SMI

Figure 2-2

Only for motherboard that embedded Audio Chip

2-3 Quick Reference for Jumpers, Connectors & Expansion Socket

Jumpers

Jumper Name Description Page

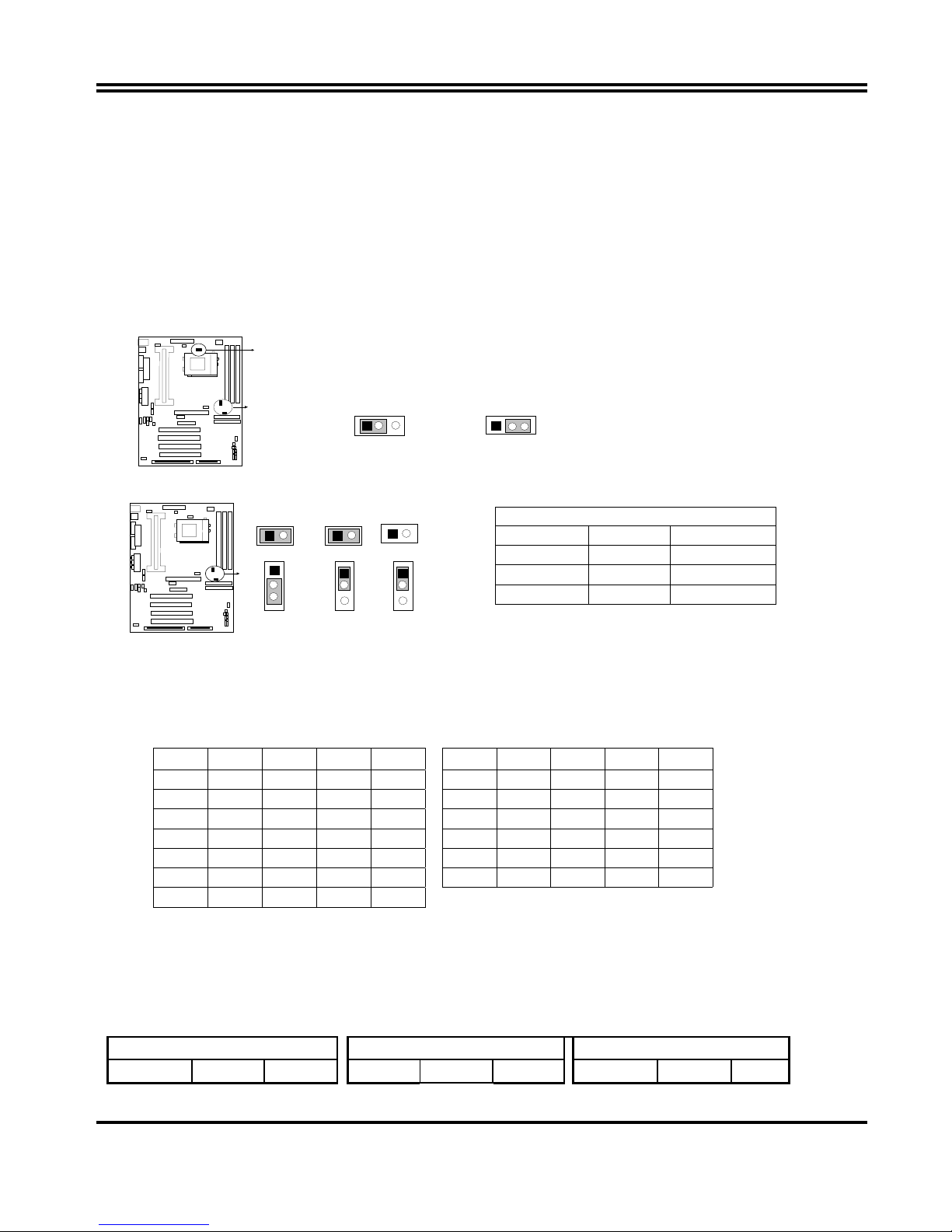

JP11 CPU Type Selection Refer to page 6 p. 6

JP14,JP15 CPU Bus Frequency Selection Refer to page 6 p. 6

U17 CPU Ratio Selector Refer to page 6 p. 6

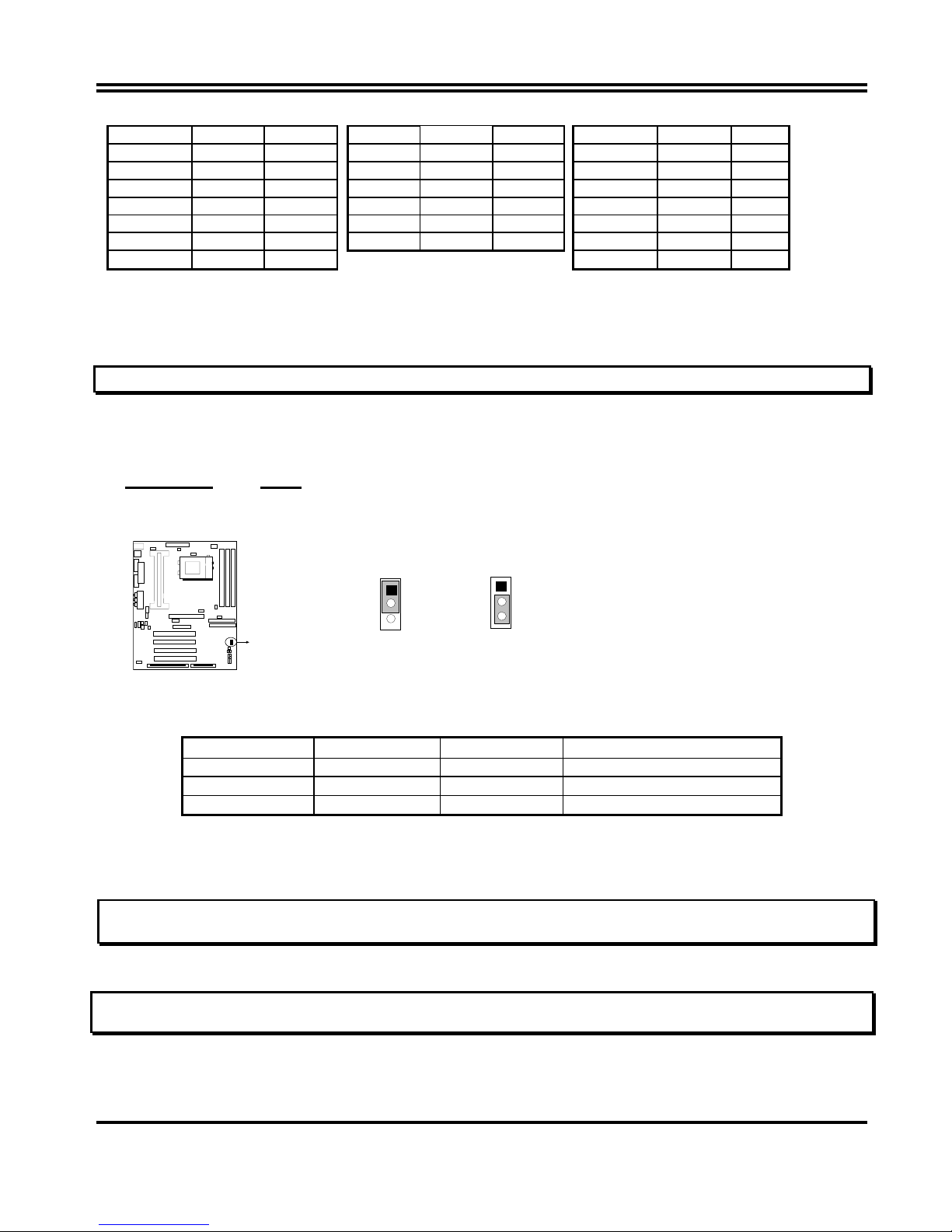

JP17 CMOS RAM Clear 1-2 Normal ,2-3 Clear CMOS p. 7

Connectors

Connector Name Description Page

PL1 ATX Power Connector 20-Pin Block p.12

MINI-DIN PS/2 Keyboard/PS/2 Mouse 6-Pin Female p.13

USB USB Port Connector 5-Pin Connector p.13

PRINT Parallel Port Connector 26-Pin Female p.13

COM1, COM2 Serial Port COMA , COMB 9-Pin Connector p.13

FDD Floppy Driver Connector 34-Pin Block p.13

IDE1 Primary IDE Connector 40-Pin Block p.14

IDE2 Secondary IDE Connector 40-Pin Block p.14

HDLED IDE activity LED 2-Pin Connector p.14

JP16 Front Panel Connector 16-Pin Block p.15

IR1 Infrared Module Connector 10-Pin Block p.15

CPUFAN, SYSFAN FAN Connector Extra fanning system connectors p.15

PS-ON ATX power button/soft power button 2-Pin Connector p.15

WOL Wake On LAN 3-pin Block P.16

Jumpers & Connectors for Motherboard that Embedded Audio Chip only

Item number Name Description Page

JP4 On-Board Sound Enable/Disable 1-2 : Disabled , 2-3 : Enabled p.16

JP1 AUX IN 4-pin Block p.16

JP2 CD-Audio 4-pin Block p.16

JP3 CD-Audio 4-pin Block p.16

AGC Line IN/Line Out/MIC /Game Connector 15-pin Connector + 3 phone jack p.16

SPKIN 1 PC Speaker In 2-pin Block p.17

SPDIFIN 1 SPDIF (Sony/Philips Digital Interface) IN 3-pin Block p.17

SPDIFOUT SPDIF (Sony/Philips Digital Interface) OUT 2-pin Block p.17

JP18 For Optional Optical Kit Connector 10-pin Connector p.17

Expansion Sockets

Socket/Slot Name Description

DIMM1,DIMM2, DIMM3 DIMM Module Socket 168-Pins DIMM SDRAM Module Expansion Socket

Slot1 CPU Slot Pentium II/III CPU Slot

Zip Socket370 CPU Socket Celeron PPGA / Coppermine FC-PGA CPU Socket

AGP SLOT AGP SLOT AGP Expansion Slot

PCI1, PCI2,PCI3 ,PCI4 PCI Slot 32-bit PCI Local Bus Expansion slots

SL1 ISA Slot 16-bit ISA Bus Expansion slot

2-4 Installation Steps

Before using your computer, you must follow the steps as follows:

1. Set Jumpers on the Motherboard

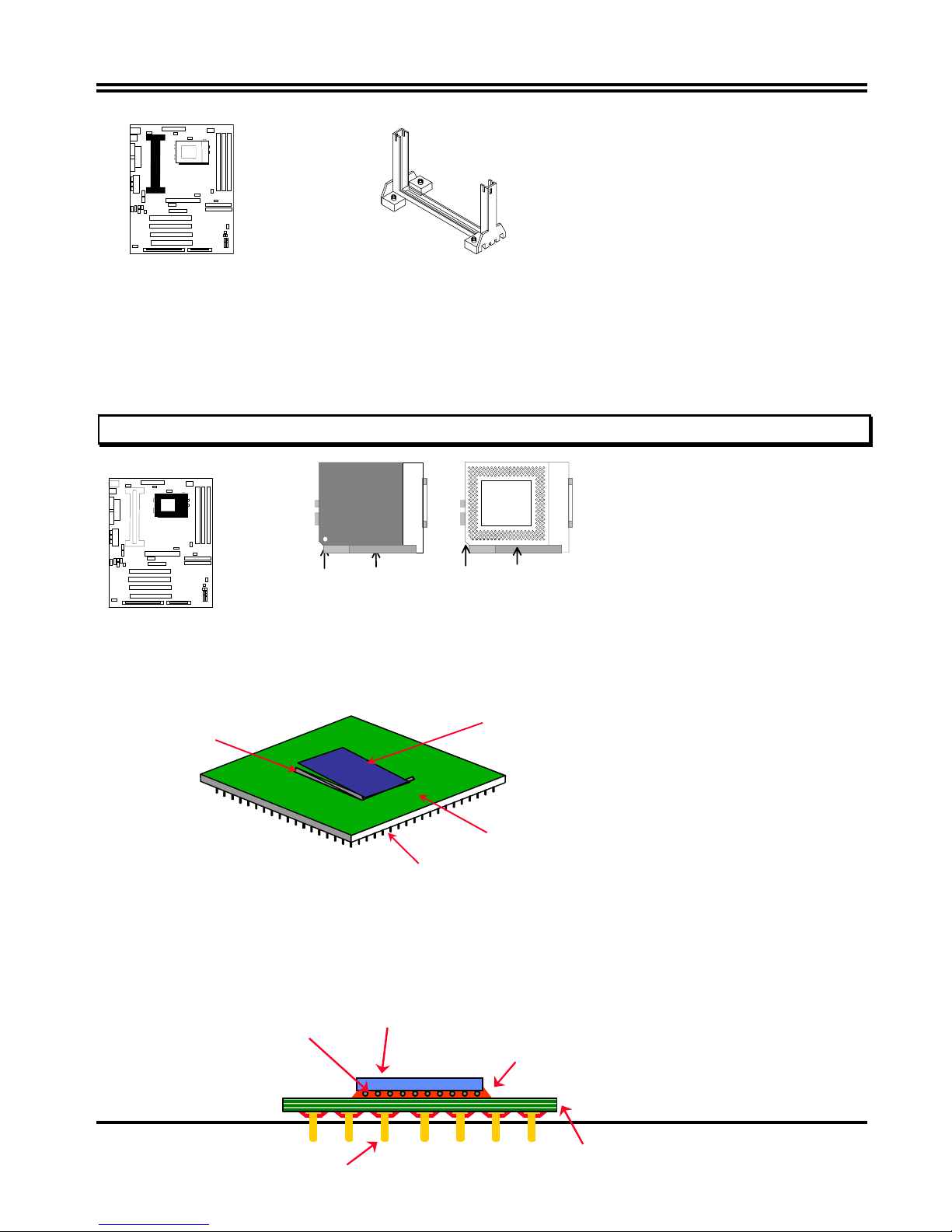

2. Install the CPU

3. Install DRAM Modules

4. Install Expansion card

5. Connect Cables, Wires, and Power Supply

2-5 Jumper Settings

1. CPU Type Selection : JP11

Please set JP11 to 1-2 if you are using Slot 1 , Celeron 370 CPU.

Please set JP11 to 2-3 if you using Coppermine FC-PGA CPU.

COM2

DIMM3

JP11 JP11

13 13

1-2 Solt1 Celeron 370 CPU 2-3 Coppermine FC-PGA CPU

2. CPU Bus Frequency Selection : JP14 , JP15

COM2

DIMM3

JP15

66 MHZ

JP14

100 MHZ

JP15

JP14

133MHZ

JP14

JP15

※ Users can also set the CPU Bus frequency in the “CPU Host/PCI clock” in CHIPSET

FEATURES SETUP (Please refer to page 18).

Table for the Pentium III and Celeron Socket 370 CPU

Celeron Celeron Pentium III

Speed Bus Ratio Speed Bus Ratio Speed Bus Ratio

Ratio 1 2 3 4 Ratio 1 2 3 4

2.0x ON ON ON ON 5.5x OFF OFF OFF ON

2.5x OFF ON ON ON 6.0x ON ON ON OFF

3.0x ON OFF ON ON 6.5x OFF ON ON OFF

3.5x OFF OFF ON ON 7.0x ON OFF ON OFF

4.0x ON ON OFF ON 7.5x OFF OFF ON OFF

4.5x OFF ON OFF ON 8.0x ON ON OFF OFF

5.0x ON OFF OFF ON

3. CPU Ratio Selector

：

U17

CPU External Frequenc

：JP15, JP14

CPU JP15 JP14

66MHz 2-3 ON

100MHz 1-2 ON(Default)

133MHz*1-2 OFF

*Your Memory must meet the

requirement to run on 133MHz the

condition.

300/66 66MHz 4.5x 566/66 66MHz 8.5x 500E/100 100MHz 5.0x

333/66 66MHz 5.0x 600/66 66MHz 9.0x 550E/100 100MHz 5.5x

366/66 66MHz 5.5x 633/66 66MHz 9.5x 600E/100 100MHz 6.0x

400/66 66MHz 6.0x 667/66 66MHz 10.0x 650E/100 100MHz 6.5x

466/66 66MHz 7.0x 700/66 66MHz 10.5x 700/100 100MHz 7.0x

500/66 66MHz 7.5x 733/66 66MHz 11.0x 750/100 100MHz 7.5x

533/66 66MHz 8.0x 766/66 66MHz 11.5x 800/100 100MHz 8.0x

533A/66 66MHz 8.0x 850/100 100MHz 8.5x

∗Because the Ratio are fixed by CPU Manufacture, users don’t need to setting ratio any more, this table just

for reference use.

4. CMOS RAM Clear: JP17 (Yellow color selector)

WARNING: Make sure your computer is POWER OFF when you CLEAR CMOS.

Connect a jumper Cap over this jumper for a few seconds, will clears information stored in the

CMOS RAM Chip that input by user, such as hard disk information and passwords. After CLEAR

CMOS, you must enter the BIOS setup (by holding down <DEL> during power-up) to re-enter

BIOS information (see BIOS SETUP).

Selections JP17

Normal 1-2 (Default)

Clear CMOS 2-3 (momentarily)

COM2

DIMM3

CMOS RAM (Normal / Clear CMOS Data)

JP17 JP17

Normal

Clear CMOS

2-6 System Memory (DRAM)

The mainboard supports three 168-pins DIMM modules to the Max Memory Size of 768MB.

DIMM 1 DIMM 2 DIMM 3 System can be Accept or Not

168-pin DIMM x x Accept

168-pin DIMM 168-pin DIMM x Accept

168-pin DIMM 168-pin DIMM 168-pin DIMM Accept

2-7 Central Processing Unit (CPU)

2-7-1 The mainboard provides a Slot-1 for Pentium II/III processor. The CPU on board must have

a fan or heat sink attached to prevent overheating.

WARNING: Without a fan or heat sink, the CPU will overheat and cause damage to both the CPU and

the motherboard.

To install a CPU, first turn off your system and remove its cover. Locate the Slot- 1 and place

RETENTION MODULE as following:

IMPORTANT: You must set jumper JP14,JP15 for “Bus Frequency Selection” on page6 depending on

the CPU that you install.

1. Attach heat sink to the CPU.

2. Place Part A on slot-1 and gently screw four corners on top of the mother- board.

COM2

DIMM3

PART A

2-7-2 The mainboard also provides a 370-pin ZIF Socket 370. The CPU on motherboard must

have a fan attached to prevent overheating.

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and open

it by first pulling the lever sideways away from the socket then upwards to a 90-degree right angle.

Insert the CPU with the white dot as your guide. The white dot should point towards the end of the

level. The CPU has a corner pin for three of the four corners, the CPU will only fit in the one

orientation as shown as follow. With the added weight of the CPU fan, no force is required to

insert the CPU. Once completely inserted, hold down on the fan and close the socket’s lever.

IMPORTANT: You can setting the CPU ratio and Host Frequency in the BIOS setup on page 18

COM2

DIMM3

CPU ZIF Socket 370

Lock

Socket 370

Blank

Lever

White Dot

Socket 370

CPU

2-7-3 Intel®Pentium®III Processor (256K) in the FC-PGA form factor: Mechanical Features

The FC-PGA package has the processor’s silicon die directly mounted to a pinned interposer substrate.

The pin grid array is partially populated and there may be surface mount components in the unpopulated

central area of the pin field.

Intel®Pentium®III Processor in the FC-PGA form factor: Mechanical Features

Substrate

Flip Chip Die

Pins

Fillet Epoxy

(Not to scale)

Flip-Chip Si Core

C4 Solder bumps

Surface mounted pins

Fillet Epoxy

(Not to scale)

Multi-layer substrate

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JETWAY Hauptplatine Handbücher

JETWAY

JETWAY P4XFM Bedienungsanleitung

JETWAY

JETWAY MBD-J-JNC9VL-H81 Bedienungsanleitung

JETWAY

JETWAY V333UR1A Bedienungsanleitung

JETWAY

JETWAY PM9M - REV 2.0 Bedienungsanleitung

JETWAY

JETWAY J7F4-F Bedienungsanleitung

JETWAY

JETWAY A76M Series Bedienungsanleitung

JETWAY

JETWAY 939AGPECR110 Bedienungsanleitung

JETWAY

JETWAY I402R2A Bedienungsanleitung

JETWAY

JETWAY NF18GFR3A Bedienungsanleitung

JETWAY

JETWAY G03-NF9C-F Bedienungsanleitung

JETWAY

JETWAY PT88BSPRO Bedienungsanleitung

JETWAY

JETWAY 618TAS3A Bedienungsanleitung

JETWAY

JETWAY NF792 Series Bedienungsanleitung

JETWAY

JETWAY NF796M-H310 Series Bedienungsanleitung

JETWAY

JETWAY NU95 Series Bedienungsanleitung

JETWAY

JETWAY PM2M Bedienungsanleitung

JETWAY

JETWAY V6FP Bedienungsanleitung

JETWAY

JETWAY 915GDAPR1A Bedienungsanleitung

JETWAY

JETWAY P4MDMR7A Bedienungsanleitung

JETWAY

JETWAY G03-NMF93-F Bedienungsanleitung

JETWAY

JETWAY JBC390F841VGU Bedienungsanleitung

JETWAY

JETWAY R3288LC-2N Series Bedienungsanleitung

JETWAY

JETWAY 615TCFR1C Bedienungsanleitung

JETWAY

JETWAY V881DASR1A Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
