JMB GSDAB2001 Bedienungsanleitung

CONTENT

Safety and warning ........................................................................................................1-2

C ....................................................................................................2

G ...............................................................................................................3-4

O ....................................................................................................4-6

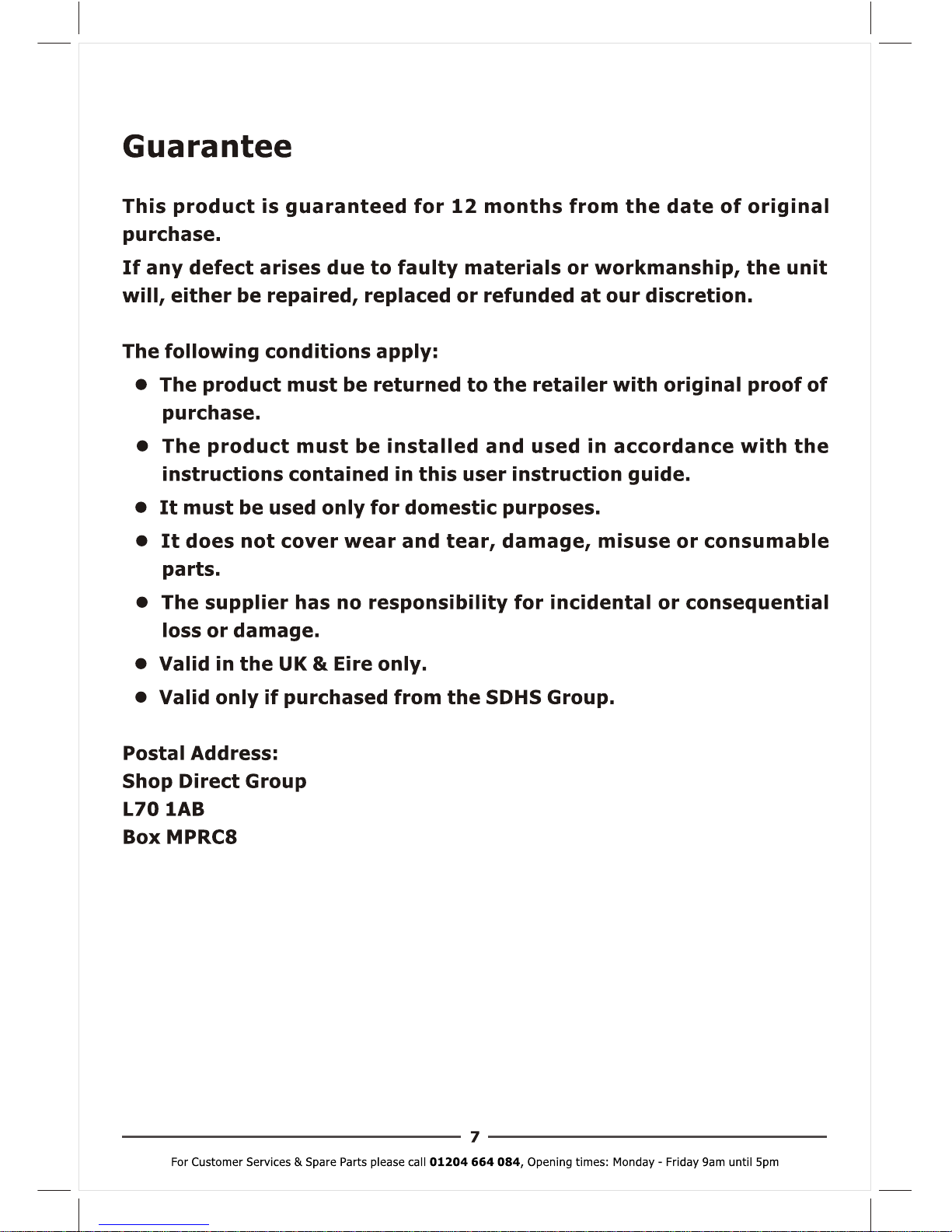

Guarantee ......................................................................................................................7

ontrols and indications

etting started

perating instructions

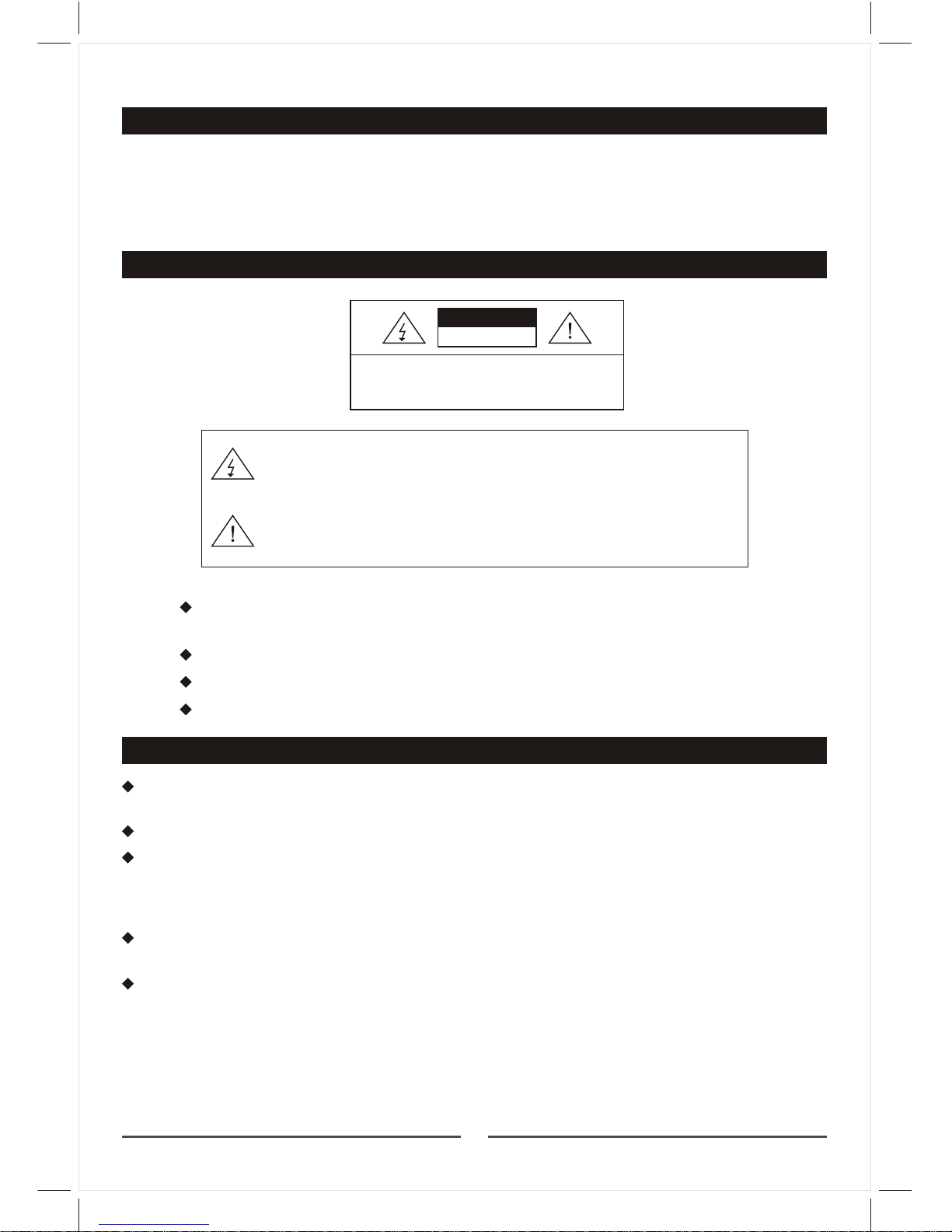

SAFETY AND WARNING

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OFELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICABLE PARTSINSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle,

alerts the user to the presence of un-insulated dangerous voltage within

the system enclosure that may be of sufficient magnitude to constitute a

risk of electric shock.

The exclamation point with in an equilateral triangle alerts the user to the

presence of important operating and maintenance instructions in this

owner's guide.

Do not allow children to play with electrical devices when not under supervision.

Children may not be aware of the presence of potential risks!

Install the cables in a safety way! Avoid tripping over them!

Do not expose the device to direct sunlight or place it near sources of heat!

Protect the cables and devices from dust, dirt and abrasive liquids!

The equipment and cables must not be splashed by water. Do not place any containers of liquid

such as vases or beverages, onto or next to the device.

No fire sources (such as candles) should be placed onto or next to the device!

The wall outlet must be within easy reach and next to the place of use. Only use the supplied

power adapter. Do not place heavy objects on the cable or power supply. Position the cable so

that it cannot obstruct or catch anyone. Always make sure there is sufficient ventilation of the

power adapter.

Before stormy weather when there is the danger of lightning, disconnect the device from the

power supply.

Never open the casing of the device, of the power adapter or other accessories: there are no

serviceable parts! If the casing is opened, your life is in danger due to electric shock. Do not

use the device if the casing is damaged. If this happens, it must first be examined by a technical

expert. If you notice any smoke, unusual noise or strange smells, switch off the device immediately

and pull the plug from the power supply. Contact customer service. It is very dangerous to continue

using this device under these conditions. Disconnect the power supply immediately if liquid gets

into the device and seek the help of customer service or a technical expert.

For Customer Services & Spare Parts please call 01204 664 084, Opening times: Monday - Friday 9am until 5pm

Warning: Do not expose batteries to heat or fire. Do not short-circuit the batteries, disassemble

them or try to recharge them. They may e xplode and cause serious injury. Store

batteries out of children's reach. If batteries are swallowed, there is the danger of

choking or poisoning.

SAFETY AND WARNING

CONFORMITY,DISPOSAL

Conformity

This device has been tested for compliance with the basic and other relevant

requirements of the EMC Directive 2004/108/EC and the low Voltage Directive

2006/95/EC.

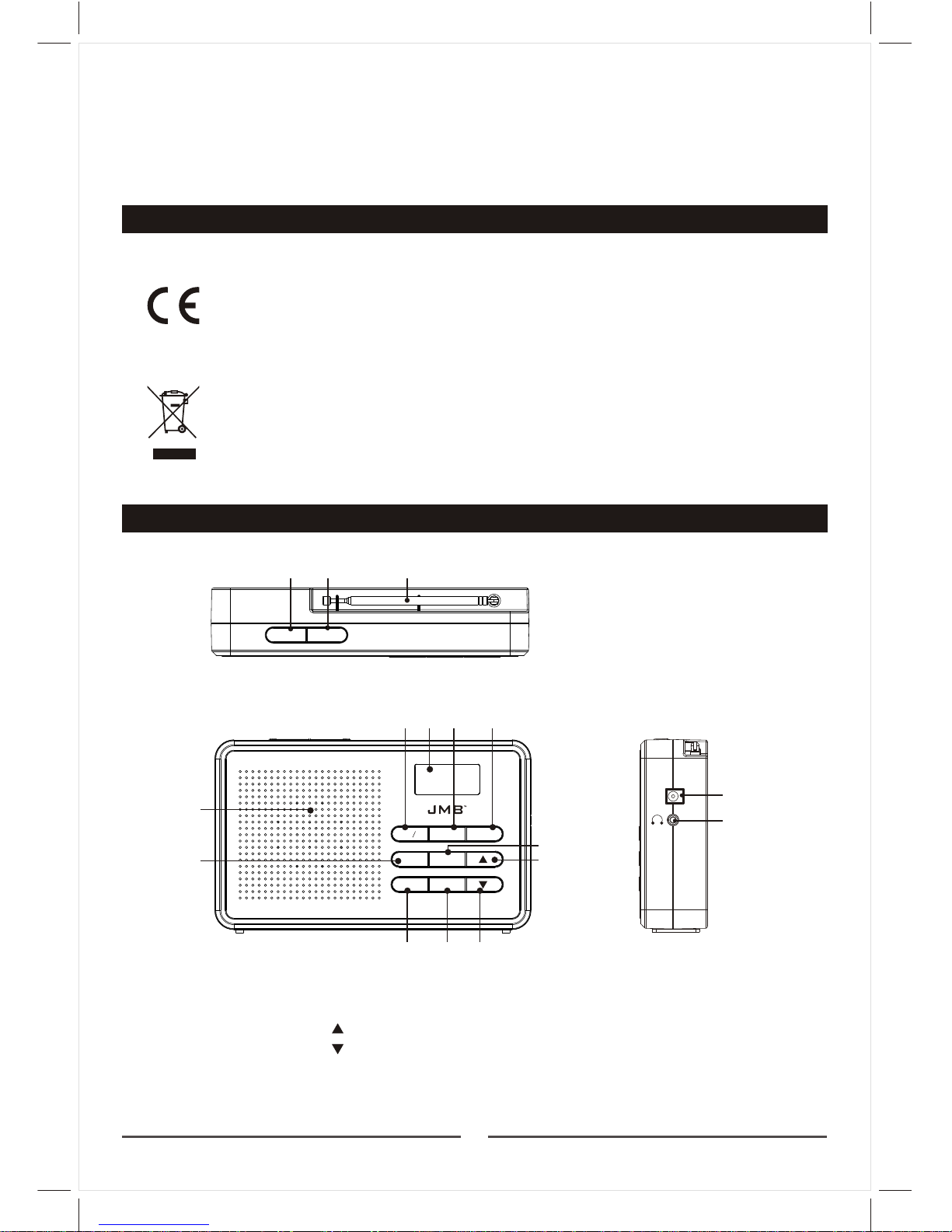

CONTROLS AND INDICATIONS

Front View

PRESET INFO

SCAN

POWER SELECT

DAB FM

1 2 34

14 15 16

Vol +

Vol -

Top View

Side View

DC IN 9V

1 DAB/ FM

2 LCD Display

3 POWER

4 SELECT

5 SCAN

6 BUTTON

7 BUTTON

8 INFO

9 PRESET

10 MENU

11 Speaker

12 DC power input

13 Headphone output

14 Vol -

15 Vol +

16 Antenna

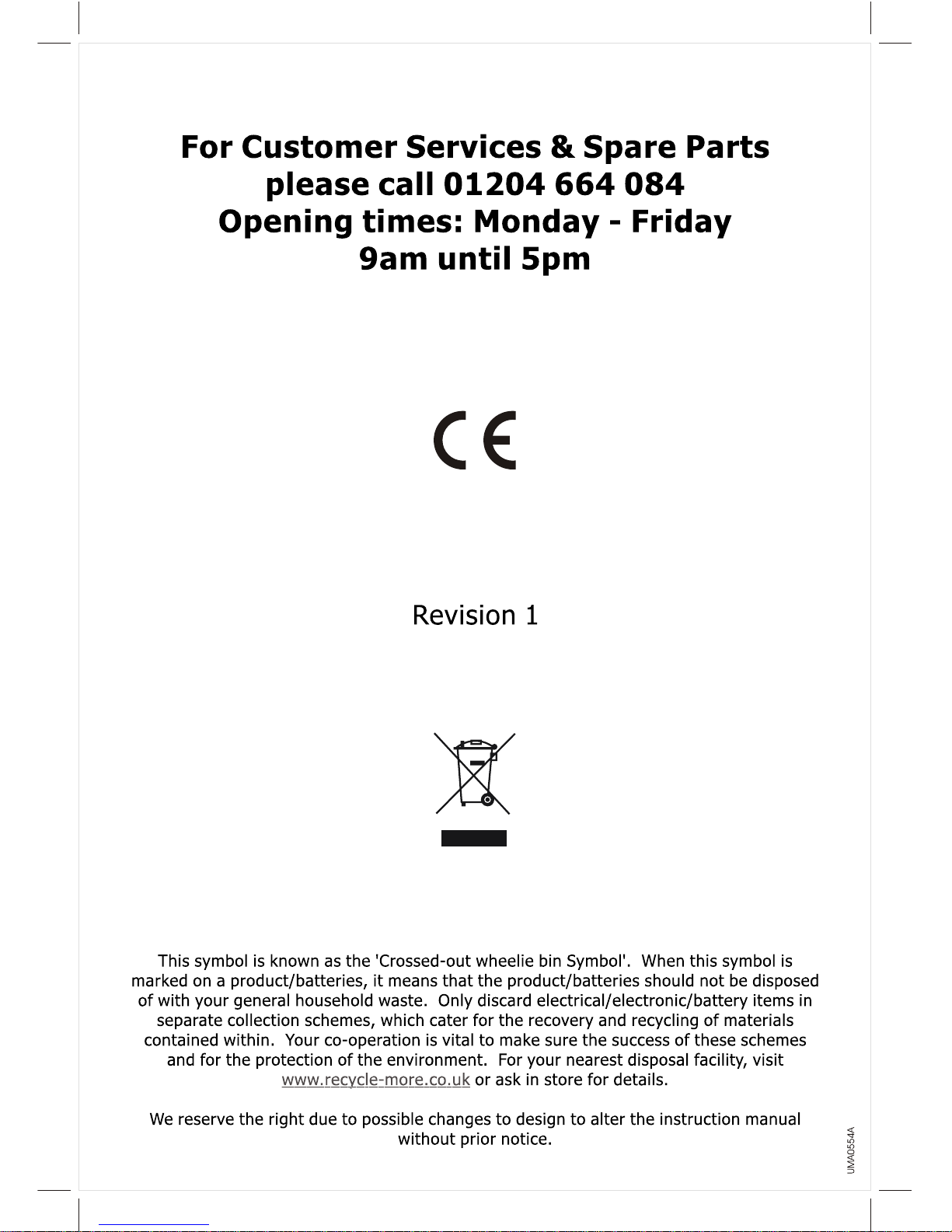

This symbol on the product or in the instructions means that your electrical and

electronic equipment should be disposed at the end of its life separately from your

household waste.There are separate collection systems for recycling in the EU.

For more information,please contact the local authority or your retailer where you

purchased the product.

For Customer Services & Spare Parts please call 01204 664 084, Opening times: Monday - Friday 9am until 5pm

£-

£«

£-

£«

£-

£«

£-

£«

£-

£«

£-

£«

OPEN

6.Install the Batteries

Using earphone(Earphone not included)

5.Plug-in the earphone

POWER SELECT

SCAN

PRESET INFO

DAB FM

VOL-VOL+

DCIN 9V

The unit will enter into DAB mode, scans the stations, set the

time, and starts playing the first station it found. If there is no

time signal, please follow the instructions in Time Setting.

Autotune

Full Scan

4.Set up the Radio in DAB Mode

Scanning...

3.Power On the Radio

PRESET INFO

SCAN

POWER SELECT

DAB FM

1.Press the Power button to turn on the radio.

2.Press again to enter the Standby mode of the radio.

Extend the telescopic aerial as far as it can go.

2.Extend the Telescopic Aerial

MENUMENU

PRESETPRESET INFOINFO

SCANSCAN

POWERPOWER SELECTSELECT

DABDAB FMFM

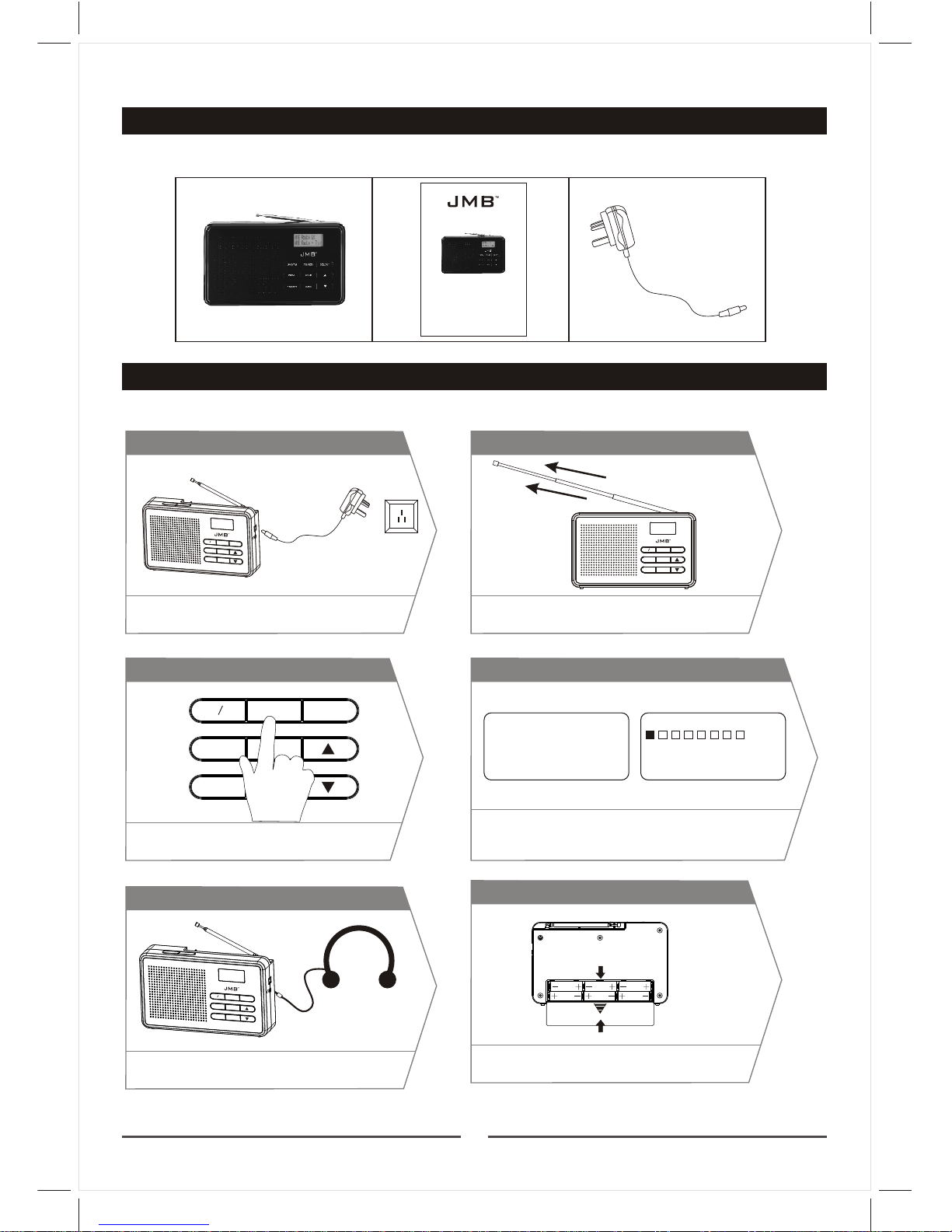

QUICK START

Box Content

GETTING STARTED

Switching on your radio for the first time

Connect the DC Adapter (supplied in the package) to

the unit

1.Connect the Power Source

POWERPOWER SELECTSELECT

SCANSCAN

MENUMENU

PRESETPRESET INFOINFO

DABDAB FMFM

VOL-

VOL-VOL+VOL+

DCIN 9VDC IN 9V

Fitting 6 X AA batteries withcorrect polarity. Refit the

battery cover(Batteries not included).

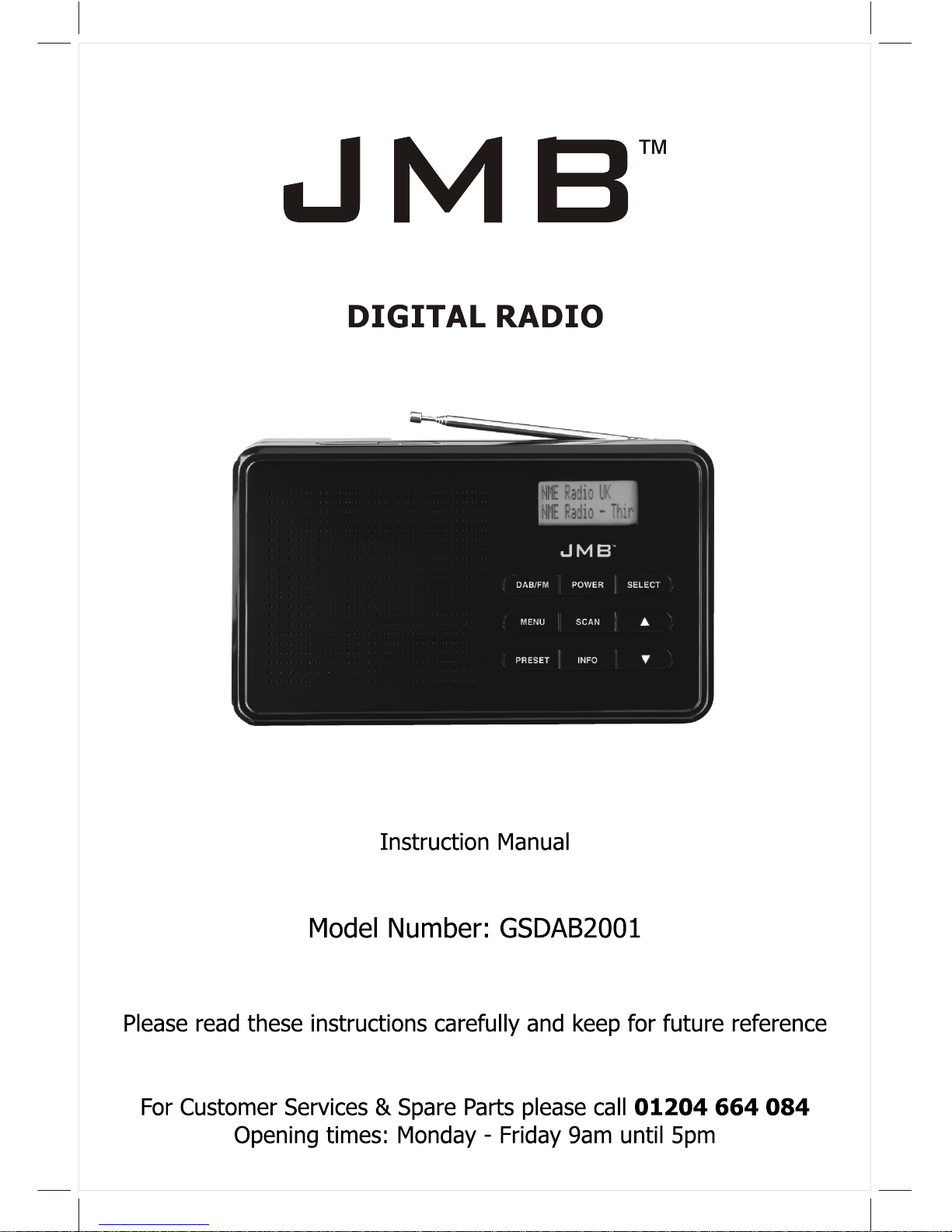

DIGITAL RADIO

Instruction Manual

Model Number: GSDAB2001

Please read these instructions carefully and keep for future reference

For Customer Services & Spare Parts please call 01204 664 084

Opening times: Monday Friday 9am until 5pm

For Customer Services & Spare Parts please call 01204 664 084, Opening times: Monday - Friday 9am until 5pm

Press the Vol button to adjust the volume.

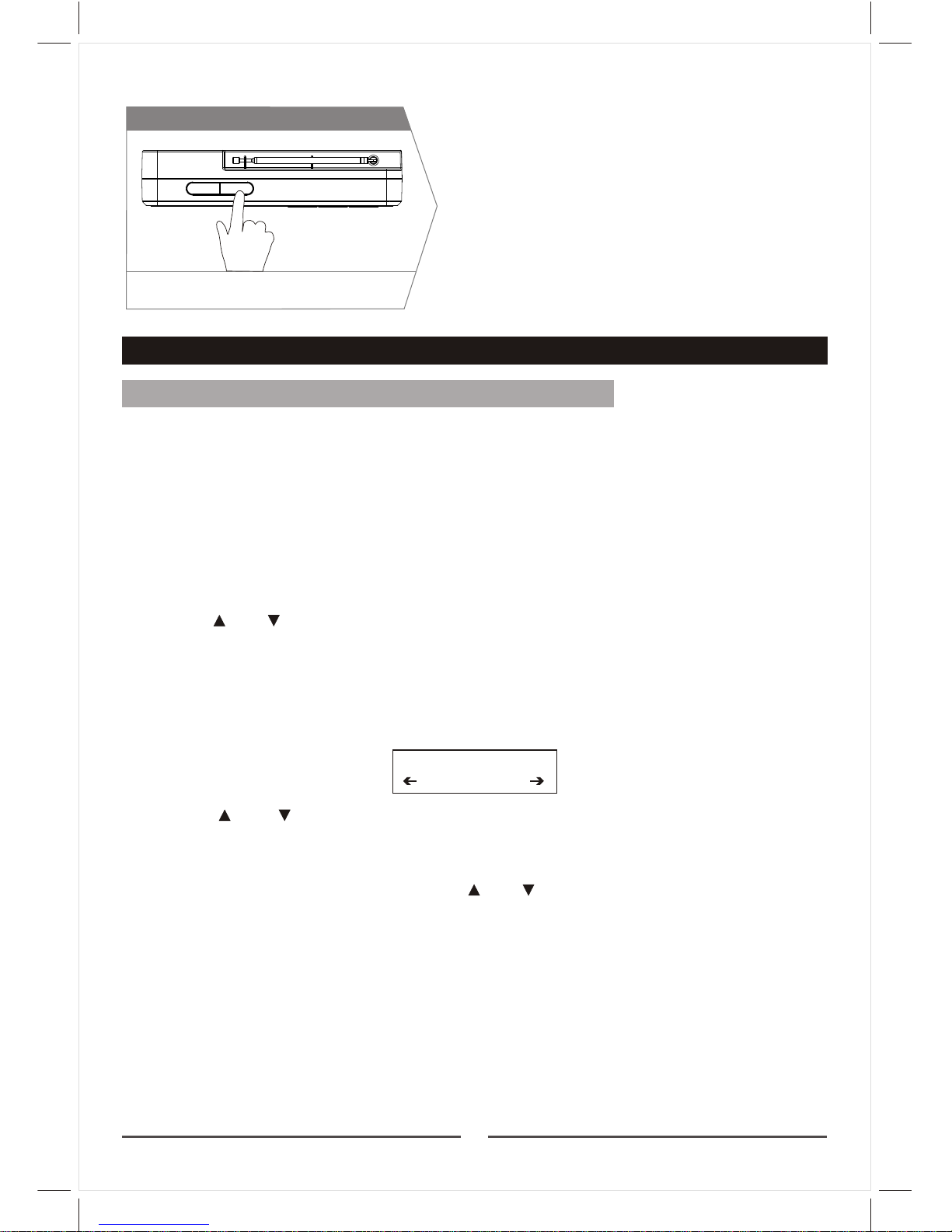

7.Adjust the Volume

Vol +

Vol -

OPERATING INSTRUCTIONS

DAB OPERATION

Listening to the DAB Radio

2. During the first time use, the DAB radio station list is empty, the radio will perform a Quick

Scan to see what stations are available.

3. When the scan is complete, the DAB Radio will then select the first available station.

Stations are listed in numerical then alphabetic order. The station list is retained in memory

so the next time you switch the radio, the station search does not take place. If there are no

stations found, check that you have adequate DAB coverage in your area.

4. Press SCAN again if you want to check more available stations. Full Scan will be performed.

5. Press and button to select the stations in the station list. The station will be tuned

accordingly.

Storing Preset Station

You can preset up to 10 preset DAB stations for easy access follows:

2. Using and button to choose the preset number 1-10 you wish to use.Then press

the SELECT button once to store the station.

Recalling a Preset Station

1. Press the PRESET button briefly, and use and to select your desired station.

2. Press SELECT button to recall the station.

Display modes

Press the INFO button to view various information about the current station on the second

line of display. Every press of the INFO button changes the information displayed.

This can be better explained in a diagram showing the order of sequence.

NOTE: once you reach the last info setting the next press will return you to the first setting.

EMPTY P1

Service X

< >

1. Tune the station you wish to preset, press and hold PRESET button until the display shows as

below with P1 flashing

1. Press DAB/ FM button to switch DAB and FM mode.

For Customer Services & Spare Parts please call 01204 664 084, Opening times: Monday - Friday 9am until 5pm

DLS

Channel Frequency

Programme Type

Transfer Rate

Ensemble Name

Signal Strength

Time and Date

1. DLS (Dynamic Label Segment) - This is the scrolling message that the

broadcaster may include with their transmissions. This message

usually includes information, such as program detail etc.

2. Program Type - This is the type and description of the program

provided by the DAB station

3. Channel Frequency - This displays the channel.

4. Transfer Rate - This shows the signal bit-rate and the signal mode.

5. Ensemble Name - This will show the multiplex that is broadcasting the

program you are listening to.

6. Signal Strength - It shows the signal transmission level by levels.

More level bar displayed means better reception. If you experience

low signal strength, adjust the position of the antenna.

7. Time and Date- This shows the current time and date provided by the

broadcaster.

FM OPERATION

Switching from DAB to FM. Press the DAB/FM button once to switch. The display will show FM Mode.

Automatic Tuning

1. Press SCAN button to search the next available tuning.

2. If the reception is poor, try to use Manual Tuning (see below) to fine tune the station.

Manual Tuning

1. Press and to manual tune through the frequency band.

2. The frequency increases or decreases by 0.05MHz for each step you press.

Storing Preset Station

You can preset up to 10 preset FM stations for easy access follows:

1. Tune the station you wish to preset, press and hold PRESET button until the display shows:

88.00MHz

EMPTY P1

2. P "1" flashes. Using and button to choose the preset number 1-10 you wish to use.

Then press the SELECT button once to store the station.

Display modes

Press the INFO button to view various information about the current station on the second

line of display. Every press of the INFO button changes the information displayed.

This can be better explained in a diagram showing the order of sequence.

NOTE: once you reach the last info setting the next press will return you to the first setting.

Program Type

Signal Strength

Time and Date

Frequency

Audio Mode

Radio Text

1. Program Type - This is the type and description of the program

provided by the FM station.

2. Signal Strength - It shows the signal transmission level by levels.

More level bar displayed means better reception. If you experience

low signal strength, adjust the position of the antenna.

3. Time and Date - Displays the current time.

4. Frequency - Frequency of the station.

5. Audio Mode - This shows the current station is broadcast in stereo

or mono.

6. Radio Text - Displays scrolling text broadcast by the station. (Only

if broadcast ).

For Customer Services & Spare Parts please call 01204 664 084, Opening times: Monday - Friday 9am until 5pm

1. Press MENU button to check the model no. of the DAB radio.

2. To perform System Reset of DAB Radio, press and hold DAB/FM button. Press SELECT button

to confirm. Auto Full Scan will be performed.

3. Time and Date will be automatically set when tuned either DAB or FM radio.

OTHER OPERATION

SPECIFICATION

Power consumption 6W

Supply Voltage, Battery 9 V (AA/UM3 x 6)

DAB BAND III 174 -240 MHz

FM 87.5-108 MHz

Sensitivity -95dBm typical

Headphone Output 3.5mm stereo jack

For Customer Services & Spare Parts please call 01204 664 084, Opening times: Monday - Friday 9am until 5pm
