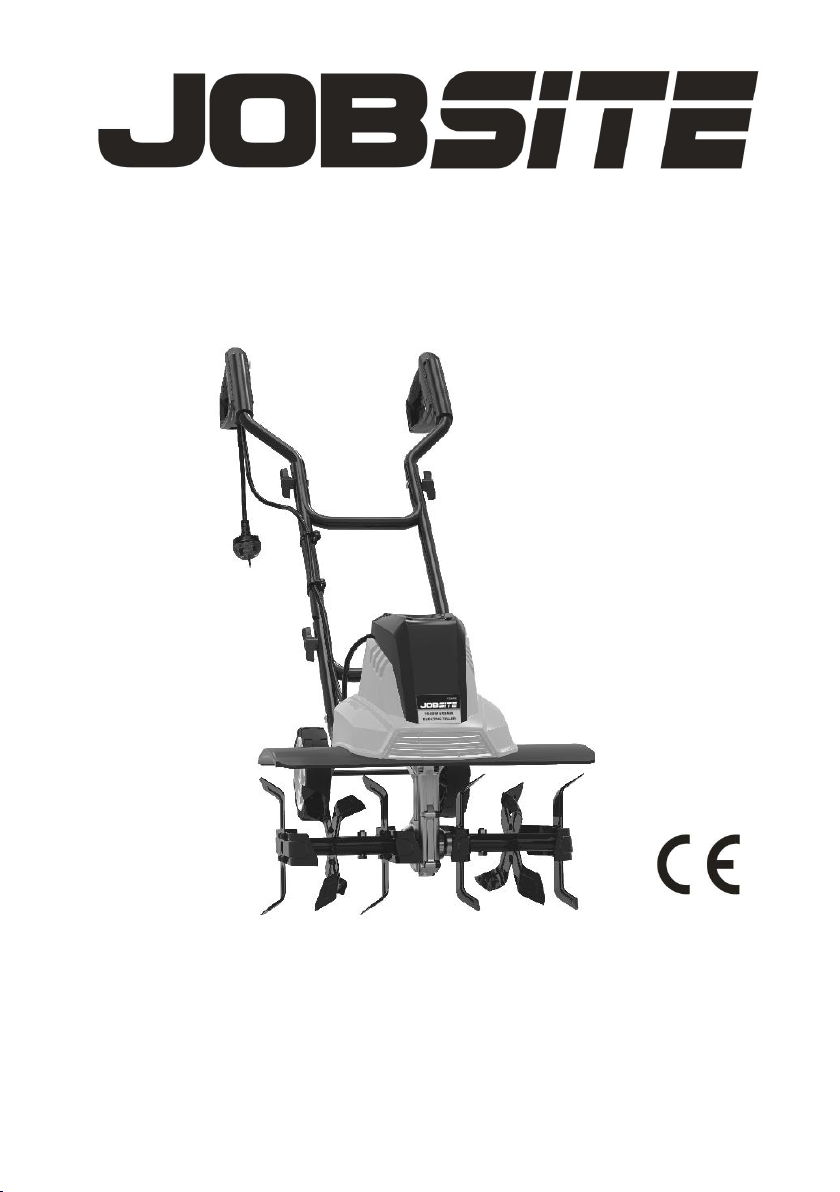

1500W 450MM ELECTRIC TILLER

CT5592

ORIGINAL INSTRUCTIONS

Cannon Tools Limited

Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

SAVE THESE INSTRUCTIONS AND PRECAUTIONS.

EC DECLARATION OF CONFORMITY

We CANNON TOOLS LTD

20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.

Declare that the following machine complies with the appropriate basic safety and

health requirements of the EC Directive based on its design and type, as brought

into circulation by us.

In case of alteration of the machine, not agreed upon by us, this declaration will

lose its validity.

Product description: 1500W 450MM ELECTRIC TILLER

Model: CT5592

Applicable EC Directives:

EC Machinery Directive 2006/42/EC

EC Directive of Electromagnetic Compatibility 2014/30/EU

EC Noise Directive 2000/14/EC & 2005/88/EC

Harmonized standards

EN 60335-1:2012+A11+A13, EN ISO 12100:2010,

EN 709:1997+A4, EN 62233:2008,

EN 55014-1:2017, EN 55014-2:2015,

EN IEC 61000-3-2:2019, EN 61000-3-3:2013

20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

Mr. Gurcharan Tony Singh Sanghera

Managing Director

CANNON TOOLS LTD

2021-02-01

1. SPECIFICATION

Main Voltage: 230~240V/50HZ

Power lnput: 1500 W

No load speed: 409min-1

Working width: max. 450mm(17.7")

Working depth: max.220mm(8.7")

LPA sound pressure level：80.4 dB(A) KPA =3 dB(A)

LWA Sound power level: 91.57 dB(A)

KWA = 1.28 dB(A)

Vibration left hand: 0.968 m/s2

Vibration right hand: 0.947 m/s2

K uncertainty: 1.5 m/s2

Protection class : ll

Protection type: IPX4

2. IMPORTANT SAFETY INFORMATION

Please read all instructions carefully.

Retain instructions for future reference.

Separate and count all parts and hardware.

Read through each step carefully and follow the proper order.

We recommend that,where possible, all items are assembled near to the

area in which they will be placed in use, to avoid moving the product

unnecessarily once assembled.

Always place the product on a flat, steady and stable surface.

Keep all small parts and packaging materials for this product away from

babies and children as they potentially pose a serious choking hazard.

General safety instructions

1. The machine is designed for digging small to mid-sized gardens and

flowerbeds.Be sure to observe the restrictions in the additional safety

instructions.

2. The equipment is allowed to be used only for its prescribed purpose.

3. This implement can cause serious injuries if it is not properly used.Please

read these Operating Instructions carefully and familiarize yourself with all the

control elements before operating this implement. Keep these Operating

Instructions in a readily accessible place so that this information is always at your

disposal.

Operating the implement:

WARNING! The implement can cause serious injuries. How to avoid accidents

and injuries:

Preparations:

· Never allow children and people who are not familiar with these Operating

Instructions to use the implement.Local regulations may stipulate a mini-mum

age for operators.

. This appliance is not intended for use by persons(including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge,unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

. Never start up the implement while other people,but especially children and

domestic pets, are in the vicinity.

. Check the area on which the implement is to be used.Remove all stones, sticks,

wire and other foreign bodies that could be caught up and flung out.

. Always wear appropriate protective work clothes and firm shoes with nonslip

soles, strong long trousers, ear defenders and goggles. Never operate the

implement while bare footed or when wearing open sandals.

. Never operate the implement if it is damaged, incomplete or has been modified

without the consent of the manufacturer. Never work with damaged or missing

protective devices (e.g. starting lever, unlocking knob, impact protector).

. Never disengage protective devices (e.g. by tying the starting lever).

.Children must be supervised in order to ensure that they do not play with the

equipment.

. Before starting the equipment, ensure that no objects or branches are pushed

into the blade opening, that the equipment is standing stably and that the

workspace is tidy and not blocked. Check the condition of your extension cable

and the connecting cable of your equipment. Use the necessary protective

equipment.

. If your equipment vibrates or emits unusual noises when switched on ，

disconnect the plug from the socket and check the cutting cylinder. Ensure that

no remains of chopped matter are blocking the cutting cylinder or jammed

between the blades.

. If the blades no longer dig correctly or if the motor is overloaded, check all the

parts of your equipment and replace the worn parts. If a more extensive re-pair is

required , contact a customer service centre.

Use:

. CAUTION -A very sharp tool.Avoid cutting your fingers or toes. While working

always keep your feet and fingers well away from the cutting cylinder and the

ejector opening. There is the danger of serious injury!

. Do not operate the implement while it is raining, in poor weather conditions and

when the surrounding area and lawn are wet.Operate the implement only during

daylight hours or with bright lighting.

. Do not operate the implement if you are tired or are lacking in concentration and

after having drunk alcohol or taken medicine. Always take a work break in due

time. Approach the work with common sense.

. Familiarize yourself with the terrain and remain focused on the potential

hazards that you could miss on account of the motor noise.

. Always maintain a secure footing while working,especially on a slope, never up

and down! Be particularly careful when changing the travelling direction. Do not

work on very steep slopes.

. Always guide the implement at a walking pace with both hands on the handle.

Be especially careful when you turn the implement around or draw it towards you.

Danger of stumbling!

. Start or actuate the starting lever with care and in conformity with the directions

in these instructions.

. Do not tilt the implement when starting, other than it has to be lifted. In this case

tilt the implement only to the extent that is absolutely necessary and always lift

the implement on the side that is opposite to the operator.

. Do not operate the implement in the vicinity of inflammable liquids or gases as

this could give rise to the danger of a fire or explosion.

Work intervals:

. After the implement has been turned off, the cutting cylinder will continue to

rotate for a few seconds.Keep hands and feet well away.

. Only shift working depth when the implement is completely still standing.

. Only remove plant parts and soil when the implement is standing completely

still.

. Switch off the power when the implement is to be transported，lifted or tilted and

when traversing other surfaces than soil.

. Never leave the implement unattended at the place of work.

. Always switch off the implement and disconnect the power plug:

- Whenever you leave the implement

- Before you clean the ejector opening or unblock or unclog the implement

- When the implement is not being used

- During all maintenance and cleaning work

- When the power cable is damaged or has become tangled

- When the implement hits an obstruction during work or when unusual

vibrations arise.Establish the cause and see if the implement has been

damaged.

. Do not repair it yourself! Have the implement repaired by an authorised

workshop!

. Store the implement in a dry place well out of reach of children.

CAUTION! The following states how to avoid damage to the implement and any

resulting harm to people:

Take care of your implement

. Switch off the power when the implement is to be carried across steps.

. Inspect the implement each time before it is to be used. Never operate the

implement if safety devices (e.g. impact protector，parts of the cutting facility or

bolts are missing, worn out or damaged.Check especially the power cable and

starting lever for damage.To avoid imbalance, all tools and bolts must be

exchanged as complete sets.

. Only use spare parts and accessories that have been supplied or

recommended by the manufacturer.

. Ensure that all nuts, bolts and screws are firmly tightened and that the

implement is in a safe working state.

. Never try to repair the implement yourself, other than you have been trained

accordingly. All work that has not been listed in these Instructions must only be

carried out by professional technicians.

. Treat the implement with the greatest care.Always keep the tool clean for better

and safer work.Follow the maintenance instructions.

. Never overload the implement. Always work within the specified capacity range.

Do not use low-power machines for heavy-duty work. Do not operate the

implement for purposes for which it is not intended.

Electrical safety:

CAUTION! The following states how to avoid accidents and injuries due to

electric shock:

. Before each use, carry out a visual inspection of the power and extension

cables for signs of dam-age or ageing.

. If the power cable for this equipment is damaged, it must be replaced by the

qualified person in order to prevent hazards.

. Keep the power cable well away from the cutting tools. Should the power cable

become damaged during work,then instantly disconnect the power cable from

the mains.

DO NOT touch the power cable before it has been disconnected from the mains.

. Keep the extension cables away from the teeth.The teeth may damage the

cables and result in contact with live parts.

. Check that the mains voltage is the same as indicated on the rating plate.

. Wherever possible connect the implement to a power socket with a residual-

current circuit break-er that has a rated current of not more than 30 mA.- Avoid

body contact with earthed parts (e.g. metal fences, metal posts).

. Only use approved extension cables of the type H05Vv-F or H05RN-F with a

maximum length of 75 m and which have been approved for open-air use.The

stranded cord diameter of the extension cable must be at least 2.5 mm2. Always

unreel a cable drum to its full length so that the entire cable can be checked for

damage.

. Use the envisaged cable suspension when attaching an extension cable.

. Never pull the cable to disconnect the plug from the socket. Protect the cable

from heat,oil and sharp edges.

. If the connecting cable is damaged, first disconnect the extension cable from

the socket.You can then disconnect the connecting cable of the equipment.

. If the power cable for this equipment is damaged, it must be replaced by the

professional technicians in order to prevent hazards.

Residual risks

Even if you use this electric power tool in accordance with instructions,

certain residual risks cannot be ruled out.The following hazards may arise

in connection with the equipment's construction and layout:

1. Damage to hearing if no suitable ear protection is used.

2. Health damage caused by hand-arm vibrations if the equipment is used over

a prolonged period or is not properly guided and maintained.

3. Even when all safety measures are taken,some remaining hazards which are

not yet evident may still be present.

4. Remaining hazards can be minimized by following the instructions in Safety

Precautions, Proper Use and in the entire operating manual.

5. Injuries caused by the rotating blade.

6. Health risks caused by electricity. When incorrect or damaged mains cables

are used. Follows instructions in the manual Electrical Connections.

Warning! This electric tool generates an electromagnetic field during

operation.This field can impair active or passive medical implants under certain

conditions. In order to prevent the risk of serious or deadly injuries,we

recommend that persons with medical implants consult with their physician and

the manufacturer of the medical implant prior to operating the electric tool.

3. TECHNICAL DESCRIPTION

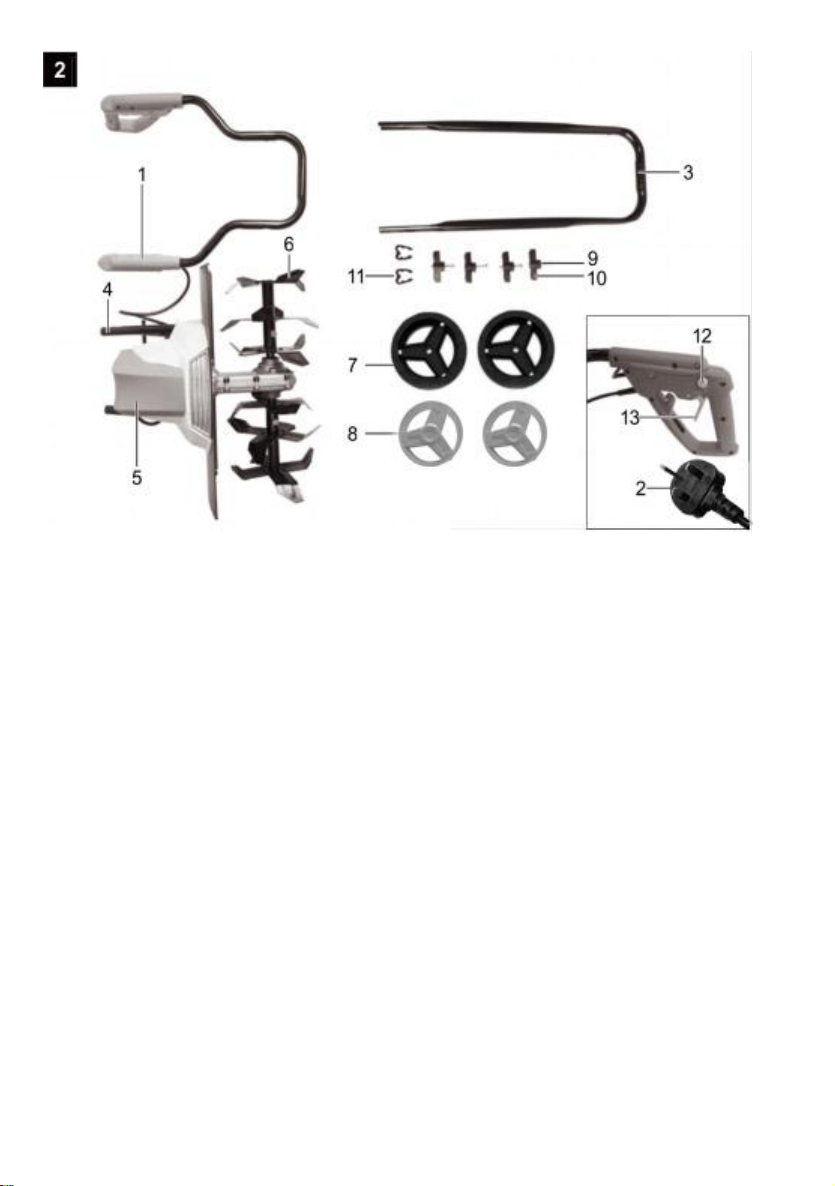

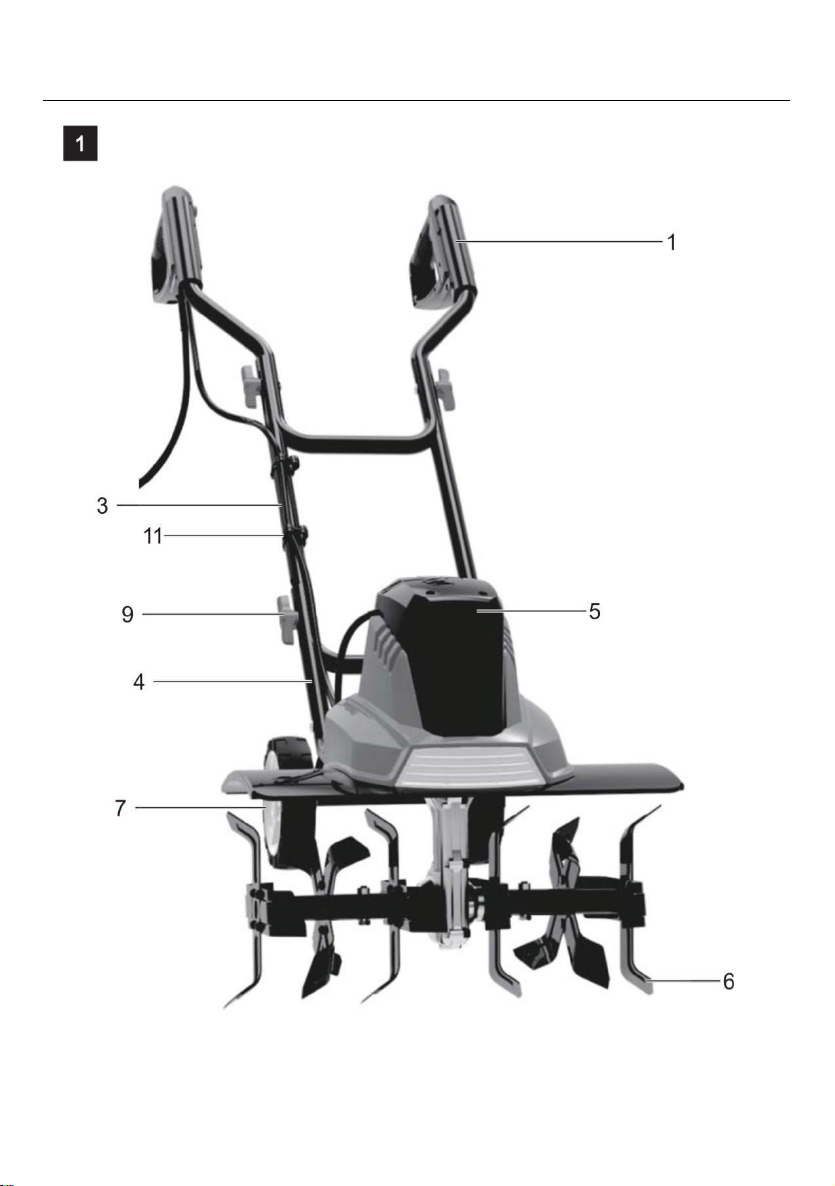

Device Description (Fig.1-2)

1. Handle 2. Power cord

3. Frame tubing 4. lower bar

5. Machine frame 6. Blade roller

7. Wheel 8. wheel cap

8. Carriage bolt 10.Wing nut (plastic)

11.Cable clip 12. Safety release catch

13.On/Off switch 14. Wheel suspension

15.washer (pre-assembled) 16. Split pin (pre-assembled)

17.Lock pin 18.Screw M8

19.Nut M8 20. Drive shaft

Inhaltsverzeichnis

Andere Jobsite Pinne Handbücher

Jobsite

Jobsite CT2067 Bedienungsanleitung

Beliebte Pinne Handbücher anderer Marken

MTD

MTD 410R Bedienungsanleitung

Craftsman

Craftsman 247.29931 Bedienungsanleitung

MTD

MTD FRT Series Bedienungsanleitung

Craftsman

Craftsman 917.298353 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Colt FT Bedienungsanleitung

Ryobi

Ryobi 510r Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

YAT

YAT YT5601-01 Wartungshandbuch

Craftsman

Craftsman 917.296010 Bedienungsanleitung

Troy-Bilt

Troy-Bilt OEM-290-260 Bedienungsanleitung

Scheppach

Scheppach MTP560 Montageanleitung

GARDEN WAY

GARDEN WAY 12194 Bedienungsanleitung

Classen

Classen STAND-AER SA-25 Montage- und Wartungsanleitung

Craftsman

Craftsman 850 Series Bedienungsanleitung

DR PILOT 2 Kurzanleitung

Altrad

Altrad ATIKA BH 1400 N Leitfaden

WIL-RICH

WIL-RICH 2500 Bedienungsanleitung

Viking

Viking HB 685 Bedienungsanleitung
