Joemeek GbQ Bedienungsanleitung

visit us on the web at joemeek.com

JOEMEEK

DISTRIBUTED BY PMI AUDIO GROUP

1845 W. 169th Street

Gardena, CA 90247

USA

Joemeek User Guide

Place

Stamp

Here

PMI AUDIO GROUP

USA: 1845 W. 169th Street

Gardena, CA 90247

toll free: 877-563-6335

fax: 310-323-0900

email: [email protected]

UK: Unit 4 Minerva Court

Woodland Industrial Estate

Torquay, TQ2 7BD

tel: +44 (0)1803-612700

fax: +44 (0)1803-612009

email: [email protected]

Joemeek is manufactured and

marketed under the direction of:

Written by Allan Bradford, MSc

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water. Do not expose to drips

or splashes. Do not place any objects filled with liquids, such as

vases, on the apparatus.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Do not install this

apparatus in a confined space such as a book case or similar

unit. Install only in racks designed for the purpose and in

accordance with manufacturers’ instructions.

8. Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding-type plug has two blades and

a third grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11. Only use attachments and accessories specified by the

_ manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or has been dropped.

15. Apparatus designed with Class-I construction must be

connected to a mains socket outlet with a protective earthing

connection (the third grounding prong).

16. This apparatus may be equipped with a single-pole, rocker-

style AC mains power switch. If so this switch is located on the

front panel and should remain readily accessible to the user.

17. The manufacturer reserves the right to change the

technical specification of the product without prior notice.

Important Safety Instructions

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING: TO AVOID FIRE OR ELECTRIC

SHOCK HAZARD, DO NOT EXPOSE THIS

APPARATUS TO WATER, RAIN OR MOISTURE.

NOTE — This apparatus does not exceed the Class A/Class B

(whichever is applicable) limits for radio noise emissions from

digital apparatus as set out in the radio interference regulations

of the Canadian Department of Communications.

ATTENTION — Le présent appareil numérique n’émet pas de

bruits radioélectriques dépassant las limites applicables aux

appareils numériques de class A/de class B (selon le cas)

prescrites dans le réglement sur le brouillage radioélectrique

édicté par les ministere des communications du Canada.

These limits are designed to provide reasonable protection

against harmful interference in a commercial/residential

installation respectively. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may

cause harmful interference to radio communications. There

is no guarantee that interference will not occur in a particular

installation. If this equipment does cause interference to

radio or television equipment reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by any

combination of the following measures: (1) Relocate or

reorient the receiving antenna (2) Increase the separation

between the equipment and the receiver (3) Plug the

equipment into an outlet on a circuit different from that to

which the receiver is connected (4) Consult your dealer or

experienced radio/television technician for additional

assistance.

CAUTION — Changes or modifications to this equipment

not expressly approved by the party responsible for

compliance could void the user's authority to operate this

equipment.

This appliance has a serial number located on the rear panel. Please

record the model number and serial number and retain them for your

records.

Model number

Serial number

Important Safety Information

JOEMEEK – the legend grows

About the Designer

The latest generation of Joemeek audio processors represents a

quantum leap in the history of the Joemeek legend. Long regarded for

its "Big Sound", the original Joemeek gear was both revered and

reviled for its somewhat "quirky" nature. Now we have taken the best

of what made the Joemeek products sound great, refined it, distilled it,

added to it and repackaged it.

Properly and robustly engineered for predictable, controllable

performance, the new range retains the famous Joemeek sound, with

its wide, flat frequency response extending from subsonic to

ultrasonic. It also uses genuinely low noise circuitry, with lots of

headroom (immunity to overload). Accurate calibration and clear

panel labeling, give you complete confidence in what's going on.

While some equipment pays lip-service to quality and "professional

rules" but fails to deliver, the new generation of Joemeek products is

founded on good solid electronic and audio engineering, and easily

withstands direct comparison with the very best names in pro audio.

The Joemeek range provides everything you need to get your

performance across, whether playing live or recording.

The latest generation of Joemeek products has been designed by

renowned audio electronics consultant Allan Bradford. With his

background in physics and 30 years experience with the design of

instruments, mixers, processors and amplifiers, Allan's unique range

of expertise ensures that Joemeek remains at the forefront of music

technology.

Controls at a glance ......................................................8 & 9

Overview

Preamplifier ........................................................................10

Distortion Generator ...........................................................10

Meequalizer ........................................................................11

Output .............................................................................12

Connections .......................................................................12

Using the gbQ

Getting connected ..............................................................13

Power Supply .....................................................................13

Using the Preamp ...............................................................13

Using the Distortion

Generator ...........................................................................14

Using the Meequalizer ........................................................14

Troubleshooting ...............................................................15

Technical Specification ....................................................15

Contents

Statement of WEEE Policy

PMI Audio Group manufactures many complete electronic

products which are covered by the European Union’s “Waste

Electric and Electronic Equipment” directive 2002/96/EC

(WEEE). This directive seeks to ensure that waste electric and

electronic equipment is disposed of in an environmentally

responsible manner, at the end of its life cycle. PMI Audio

Group takes seriously its obligations under this directive to

take back WEEE-affected products and, from 13th August

2005, will mark all such products with the crossed-out wheeled

bin symbol.

Business to Business products: PMI Audio Group will cost-

neutrally take back WEEE-affected electric and electronic

equipment in this category, from 1st January 2006. PMI Audio

Group will work with disposal and recycling partners working

within the EU. The waste electric and electronic equipment can

then be turned over to a disposal and recycling companies in

the countries concerned.

Business to Customer products: emerging electric and

electronic equipment will be disposed of by local authorities'

collection systems.

Dual Use products: this equipment will be disposed of by local

authorities' collection systems.

PMI Audio Group manufactures complete electronic products

which are covered by the European Union’s “Removal of

Hazardous Substances” directive 2002/95/EC (RoHS). This

directive seeks to eliminate toxic substances from the

manufacturing process, such that when equipment is disposed

of at the end of its life cycle, the materials it contains do not

contaminate the environment and pose health risks. Banned

substances are lead, mercury, cadmium, hexavalent

chromium, polybrominated biphenyls (PBB) and poly-

brominated diphenyl ethers (PBDE). Lead is used together

with tin in solder connections to reduce the melting point of

solder. Lead-free solder requires higher soldering

temperatures which in turn places greater thermal stress on

components.

PMI Audio Group takes seriously its obligations under the

RoHS directive and insists that its factories use only

components that are certified RoHS compliant, as well as lead-

free solder. In a very few cases the necessary components

may not yet be available to the world market but we work

continuously to eliminate any such exceptions at the earliest

opportunity. Our printed Circuit Boards (PCB’s) and all

soldered joints have been lead-free since 2005.

RoHS

COMPLIANT

Statement of RoHS Compliance

GUITAR AMP INPUT – sets the gain of the preamplifier, to match the guitar to the guitar amplifier.

ODD – add . SOFT – changes hard clipping to soft clipping.

STRUCTURE – changes the phase of all added harmonics, relative to the original signal.

– add

–

POST EQ – places the entire Distortion Generator section after the Meequalizer

s dissonant harmonics and sustain

EVEN s sonant harmonics.

TUNE sets the frequency above which harmonic enrichment is applied.

Q adds a resonant peak at the frequency set by the TUNE control.

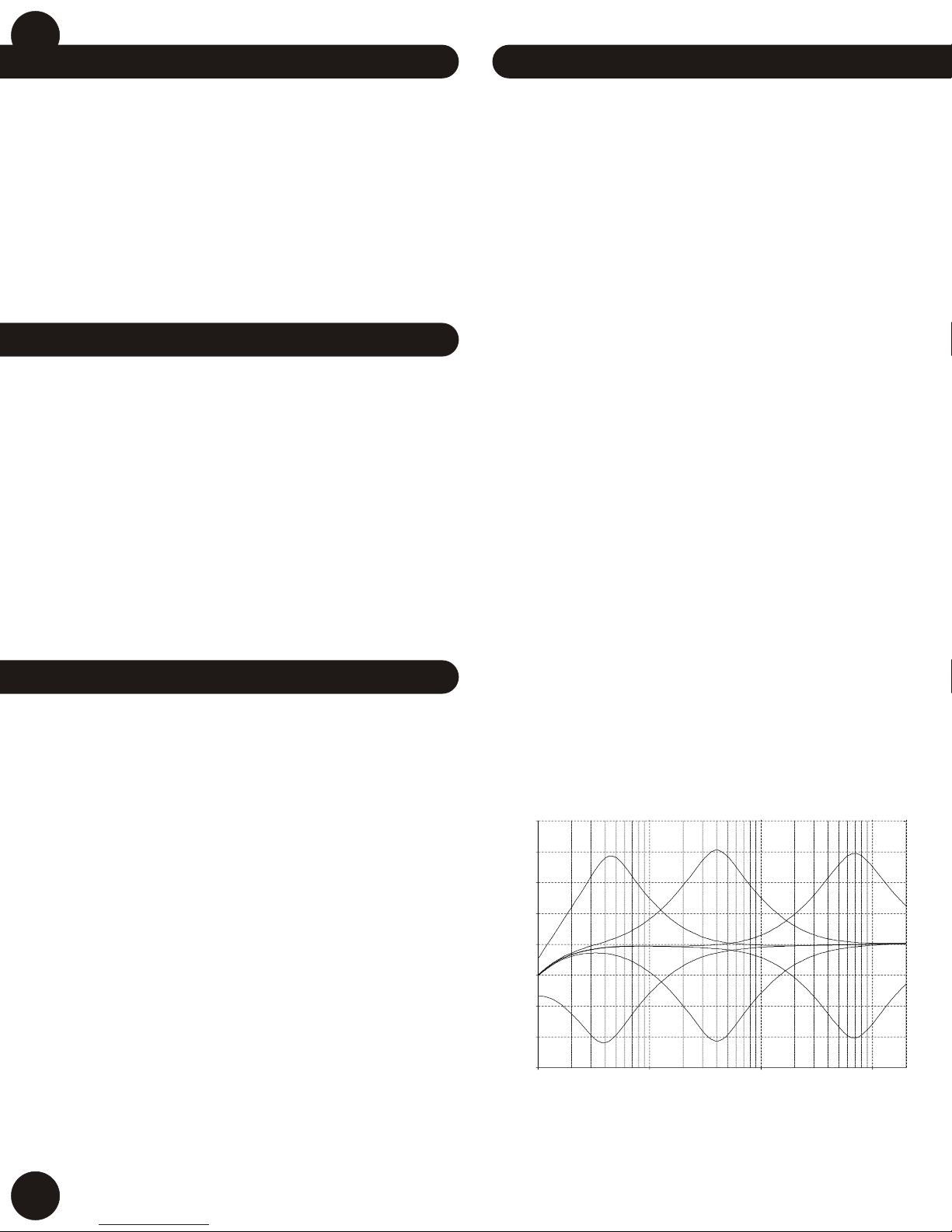

MEEQUALIZER – three band, parametric, peaking tone controls.

OUTPUT – sets the volume of the distorted and Meequalized signal.

DISTORT & MEEQUALIZE FOOTSWITCHES – turn individual sections on and off. LEDs light when active. BYPASS FOOTSWITCH – turns

everything on and off except for 'INPUT' level. Red LED lights when Bypass is active.

DI OUTPUT – balanced feed to mixing desk. Screwdriver adjustment sets volume. Ground-Lift switch can be used to avoid mains hum.

PHONES – drives most high impedance headphones for practice.

SEND & RETURN – used to connect another effects pedal, to that the gbQ's BYPASS footswitch can turn it on and off.

POWER – use supplied

12Vac adaptor, or any

third-party guitar effects

power supply in the range

9V - 18V, ac or dc.

DO NOT ATTEMPT TO

CONNECT TO MAINS

VOLTAGE!!!

gbQ at a Glance

MEEQUALIZE BYPASSDISTORT

INPUT

TUNE

ODD

POST EQSOFT

QEVEN

100

2 8

100

2 8

100

2 8

100

2 8

100

2 8

100

2 8

100

2 8

OUTPUTSTRUCTURE

MID FREQFREQFREQ HFLF

MEEQUALIZERDISTORTION

GENERATOR

150

230

100

300

+dB

-dB

+dB

-dB

+dB

-dB

kHz

3.5

650

1250

2000

350

150

OUTPUT

GUITAR

PHONESPOWER RETURN SEND

USE ONLY CORRECT

POWER SUPPLY:

9V - 18V ac/dc NO USER SERVICEABLE PARTS.

REFER SERVICE TO QUALIFIED PERSONNEL.

DESIGNED IN THE UK FOR PMI AUDIO.

MADE IN CHINA.

EN55103

gbQ

Guitar/Bass Processor

www.joemeek.com

LEVEL

GROUND

LIFT

DI OUTPUT

The 'ODD' harmonics control provides fairly conventional "clipping"

overdrive, only with a contoured frequency response, so that harmonics

are produced consistently over the whole range of the instrument. Clipping

an audio signal generates overtones at 3, 5, 7... times the frequency of the

fundamental note, hence: "odd" order (dissonant) harmonics. The 'SOFT'

button reduces the harshness of the effect (which can also be modified

extensively by both the 'Structure' control and the Meequalizer). Either way

the 'Odd' section of the Distortion Generator will add sustain to the guitar.

The 'EVEN' harmonics control adds musically sonant harmonics at octave

intervals above the fundamental note, which is the equivalent of "tube"

distortion. However to do this over the whole range of the instrument can

just sound horrible! This is why we have a 'TUNE' control, to set the range

of frequencies affected. Turn it clockwise to process only higher notes.

Turning up the ‘Q’ control emphasizes a narrow range of frequencies

around that set by the ‘TUNE’ control, which concentrates processing on a

particular band. Using the ‘TUNE’ and ‘Q’ controls together allows the gbQ

to bring out a particular part of the guitar's overall sound.

Note that the 'Even' section of the Distortion Generator is independent of

signal level and so does not add sustain to the guitar.

'STRUCTURE' alters the phase relationship between the original signal

and the generated harmonics. When the knob is swept it sounds like

"phasing" but in the gbQ, think of it as a different kind of tone control.

Normally the Distortion Generator comes before the Meequalizer, which

allows tone control of the distorted sound. Pressing the 'POST EQ' switch

places the Distortion Generator after the Meequalizer, allowing the EQ

section to boost or cut those frequencies which will be distorted. This is

useful for example, when some strings are louder than others.

The footswitch turns the Distortion Generator on and off (yellow LED lights

when active).

This is the all-important front end to the gbQ. Its job is to accept any type of

instrument and make it loud enough. It has a very high input impedance,

making it suitable for all types of guitar pick-up, including piezo (crystal)

acoustic pick-ups.

There is just one control, 'INPUT', which covers a range of amplification

from 0dB (unity) to 20dB. This accommodates the wide variation in levels

that come from different kinds of guitars and acts as a level matcher

between guitar and guitar amplifier.

It is active whether or not the Distortion Generator or EQ is turned on, so

that the gbQ always sends the correct guitar volume to the power amplifier.

The preamp is an extremely high quality, low noise, Class-A design that will

be appreciated by audiophile musicians and engineers.

Distortion Generator

Preamp

Meequalizer

The gbQ “Meequalizer” is a highly effective, versatile and musically

rewarding three-band equalizer, or tone control system. It may help to think

of it as being like a graphic equalizer, only instead of lots of fixed frequency

bands, you have three that can be moved to cover any given frequency

band. Each stage allows boost or cut of up to 15dB around the frequency in

question.

The “EQ” footswitch turns the equalizer on and off (green LED lights when

active).

The LF or bass band can be tuned or “swept” anywhere between 40Hz and

350Hz. Cutting can be used to reduce unwanted LF noise, such as hum or

rumble. Boosting can bring out the warmth and body of bass lines.

The Mid band can be tuned or “swept” anywhere between 150Hz and

2.5kHz. Cutting the Mid band can reduce annoying resonances. Boosting

can bring out the body and warmth of a guitar, or the harmonics of bass

guitars.

The HF or treble section can be tuned or “swept” anywhere between

500Hz and 7kHz. Boosting the HF band gives a sense of “air” or “sparkle”

to instruments. Alternatively with bass guitars, cutting this band will reduce

HF noise such as hiss and crackle. Higher setting are very effective at

reducing harshness, or indeed creating it, for example by boosting the

harmonics of electric guitars.

The Meequalizer is normally after the Distortion Generator and before the

Insert Point. Pressing the 'POST EQ' switch however, places the

Meequalizer before the Distortion Generator.

Technical stuff

Each section of the Meequalizer has a peaking or “bell” shaped frequency

response, which will be found to be musically more satisfying than

conventional “shelving” equalizers. The use of bell curves at LF and HF

also avoids boosting subsonics and ultrasonics which can have adverse

effects on other studio equipment, such as recorders, monitor amplifiers

and speakers. The “Q” value of the peaking filters is 0.9 (or 1.6 octaves).

Zero phase distortion ensures the best possible audio coherence.

The JOEMEEK gbQ is a professional studio quality processor in compact

pedal format. It takes an instrument such as an electric guitar or bass

guitar, amplifies it, creates harmonic distortion and adds sustain as

required. give the gloss

of a professional studio production to all your performances. It is equally at

home both live and in the studio.

Think of the gbQ as five separate items of equipment:

A Preamplifier

A Distortion Generator

An Equalizer

A Direct Inject (DI) Box

A Headphone Amplifier

Simple to use yet extremely powerful, the gbQ will

Overview

10.00 Hz 100.00 1000.00 10000.00

-20.00

-15.00

-10.00

-5.00

0.00

5.00

10.00

15.00

20.00

dBu

gbQ Meequalizer response curves:

lLF boost and cut @ 40Hz

lMF boost and cut @ 400Hz

lHF boost and cut @ 7kHz

PHONESPOWER RETURN SEND

USE ONLY CORRECT

POWER SUPPLY:

9V - 18V ac/dc NO USER SERVICEABLE PARTS.

REFER SERVICE TO QUALIFIED PERSONNEL.

DESIGNED IN THE UK FOR PMI AUDIO.

MADE IN CHINA.

EN55103

gbQ

Guitar/Bass Processor

www.joemeek.com

LEVEL

GROUND

LIFT

DI OUTPUT

OUTPUT (Jack)

Use this connection to feed a guitar amplifier or other effects pedals.

PHONES (Jack)

This output drives most high impedance headphones.

This provides a balanced, line-level feed to a mixing desk. A screwdriver

'LEVEL' control on the back of the gbQ sets the volume, independently of

the GuitarAmp and Headphone outputs.

DI OUTPUT (XLR)

It is wired as follows:

Pin 2: + (hot)

Pin 3: - (cold)

Pin 1: ground

The XLR output is properly balanced, which is to say there is a signal on

both pins. In this way the maximum possible common-mode rejection of

interference, can be achieved at the receiving end.

The ‘OUTPUT’ control

gain right down to nothing, to fade the sound out

completely. It has no effect when 'BYPASS' is on.

Adding distortion and boosting with the Meequalizer generally makes the

guitar louder, so the 'OUTPUT' control is used to restore the original level.

In this way there need be no change in volume between the processed and

unprocessed sound if that is what is required.

sets the volume of the distorted and Meequalized

signal. It goes from unity

–

To run the DI Output unbalanced, ground pin 3 of the cable connector. This

boosts the signal on pin 2 by 6dB so that there is no drop in level when

running unbalanced.

If mains hum is apparent when using the gbQ with a PA System, move the

This pair of unbalanced jacks on the rear panel allows you to patch other

pieces of equipment into the gbQ, such as a digital delay effects processor.

Connecting other equipment in this way, has the advantage that the gbQ's

overall 'BYPASS' footswitch bypasses the other equipment as well.

GROUND' switch to the 'LIFT' position. In this way the signal ground is

connected by some other circuit within the overall system, thereby

avoiding "hum loops".

When no jack is inserted, the sockets are internally linked, or "normalled",

so that the signal flows uninterrupted.

POWER

The gbQ can be powered either using the supplied 12Vac adaptor, or any

third-party guitar effects power supply in the range 9V - 18V, ac or dc. This

means that the gbQ can be powered from almost any existing pedalboard,

so long as you have a connector that fits the power socket.

Use of other voltages may damage the gbQ and damage so caused will

invalidate the warranty. In particular:

DO NOT ATTEMPT TO CONNECT TO MAINS VOLTAGE!!!

SEND and RETURN (Jacks)

Output

Connections

MIXER

DIGITAL DELAY

Using the gbQ

GETTING CONNECTED

The figure shows the gbQ being used in a typical setup:

The SEND & RETURN are being used to divert the sound through an

external delay processor. The delay is then switched off when the gbQ's

'BYPASS' footswitch is pressed. The DI Output provides a separate feed to

the PA System.

GUITAR

AMP

POWER SUPPLY

Connect the Power Supply to the 'POWER' connector on the rear panel

and switch on the mains supply. NB: Use only the 12Vac mains adaptor

supplied, or a proper guitar pedal supply in the range 9V to 18V, ac or

dc. Use of any other power supply may damage the gbQ and

invalidate the warranty.

Turn the 'INPUT' control to minimum and connect the guitar. Press the

'BYPASS' footswitch so that the red LED lights. The Distortion Generator

and Meequalizer are now bypassed so that only the Preamp is in use.

Adjust the 'INPUT' until you have a working volume from the guitar amp.

The amount of gain required will depend on the particular type of guitar and

pickups.

Using the Preamp

Always start with the Meequalizer boost/cut controls (LF, MID and HF) set

to "0" (the control knobs set in their center notches). This setting is also

known as "flat".

'MEEQUALIZE'

You need to be careful about too much boost, since boosting takes the gbQ

closer to overload. Overload equals distortion but not the good sort! The

gbQ has generous overload margins but when a lot of boost is used, it may

be necessary to compensate by reducing the 'OUTPUT' control or the

'INPUT' control (the latter will affect the "Odd" distortion and sustain

though).

The way to use the LF, MF and HF controls, is to apply quite a lot of boost,

then sweep the frequency until you "tune in" to the sound you are

interested in. Once you find it, adjust the amount of boost or cut to give the

desired effect.

Experiment with combinations of settings of EQ and try to picture how the

audio signal is being affected. Use the 'MEEQUALIZE' footswitch to make

comparisons between EQ'd and non-EQ'd signals.

Make sure that the 'OUTPUT' control is turned up full and

that the 'BYPASS' footswitch is off. Press the footswitch so

the green LED lights. At this point there should be no change in the sound

of the guitar.

Start with 'ODD', 'EVEN' and 'STRUCTURE' controls all at "0" and the

'SOFT' and 'POST EQ' switches out. Make sure that the 'OUTPUT' control

is turned up full and that the 'BYPASS' footswitch is off. Press the

'DISTORT' footswitch so the yellow LED lights.At this point there should be

no change in the sound of the guitar.

Advance the 'ODD' control clockwise until the required degree of distortion

and/or sustain is achieved. Try pressing the 'SOFT' switch and listen to the

effect on tone and sustain. Turn the 'STRUCTURE' control clockwise and

hear how the sound changes ("0" has no effect).

Set 'TUNE' and 'Q' controls to "0" and advance the 'EVEN' control. There

should be an apparent increase in the treble content of the distortion. With

higher settings of the 'TUNE' control, the effect will be heard at

progressively higher pitches.

Turn the 'EVEN' and 'Q' controls to maximum: now sweep the 'TUNE'

control and hear the resonant peak moving through the spectrum. This can

be used to emphasize a particular part of the guitar's timbre.

Enhancement

The "Even" section of the Distortion Generator can also be used with a

clean guitar sound, providing harmonic enrichment without apparent

distortion. This is especially useful for acoustic guitars.

Make sure the 'ODD' and 'Q' controls are set to "0" and the 'TUNE' control

to "7". Advance the 'EVEN' control and adjust the 'TUNE' control between

"6" and "10" to change the character of the resulting enhancement.

Then turn up the 'Q' control and use the 'TUNE' control to hunt around for

particular harmonics. With this kind of enhancement you will usually find

that "less is more" and it is as well to keep the 'EVEN' and 'Q' settings fairly

low. It is very easy to add too much harmonic and though the effect can be

Using the Meequalizer

dramatic at first, it will soon become wearing and contribute to listening

fatigue. If you can hear audible distortion creeping in you are definitely

overdoing it, so turn down the 'EVEN' control and/or raise the 'TUNE'

setting.

Use the 'DISTORT' footswitch to make comparisons between processed

and unprocessed sound. The nature of harmonic enhancement is such

that you may not realize how much effect it is having until you turn it off!

Input impedance 6.8Mohm

Pre-amp gain 0dB to +20dB (variable)

EQ "Q" 0.9

LF Frequency 40Hz to 350Hz

MF Frequency 150Hz to 2.5kHz

HF Frequency 500Hz to 7kHz

Output gain -infinity to 0dB (variable)

Nominal output level 0dBu

Output impedance 100ohm

Power supply voltage 9V to 18V, ac or dc

(12V ac adaptor s

Mechanical 220W x 65H x 154D (overall)

Weight 1.5 kilo

Equivalent input noise -92dBu (A-weighted)

Distortion 0.001% (below Distortion

threshold)

Frequency response 15Hz to 20kHz (-3dB)

Maximum input before clipping +19.5dBu

Headroom before clipping +19.5dBu

EQ Boost and Cut -15dBu to +15dBu (variable)

(1.6 octaves)

(variable)

Noise Floor -92dBu (typical, with 0dB

Input and 0dB Output gain)

upplied)

Power supply current 270mA max (@ 9Vdc)

Power consumption 2.5W max

Technical Specification

Troubleshooting

1) No Power (FOOTSWITCH LEDs don't light up)

!Is the power supply plugged in (both ends)?

!Is the mains power on?

!Has a mains fuse blown?

!There is a thermal, self-resetting fuse inside the gbQ. Try

disconnecting the power supply, waiting 5 minutes then trying again.

2) The Input doesn't work

!Is the guitar connected to the input jack?

!Is the 'INPUT' control turned up enough?

3) The Distortion Generator doesn't work

!Is the 'DISTORT' footswitch on (yellow LED lit)?

!Is the 'BYPASS' footswitch off (red LED off)?

!Is the 'ODD' control turned up enough?

!Is there enough signal, as set by the 'INPUT' control, to drive the

Distortion Generator?

4) The Meequalizer doesn't work

!Is the 'MEEQUALIZE' footswitch on (green LED lit)?

!Is the 'BYPASS' footswitch off (red LED off)?

!Is either the LF 'FREQ' too low or the HF 'FREQ' too high?

5) Too much noise

!Is the 'INPUT' control too high (eg: the input signal is too small)?

!Is the noise already present in the input signal? (Try unplugging the

guitar).

!Is the 'OUTPUT' control too high (eg: when lots of "Odd" distortion is

being used)?

6) Sounds (unpleasantly) distorted

!Is the 'INPUT' control too high?

!Too much boost from the Meequalizer?

Using the Distortion Generator

Notes

Conditions of Warranty

THIS PRODUCT IS FOR PROFESSIONAL USE ONLY

PMI Audio Group warrants that all products will be free from defects in

material or workmanship:

A: For a period of one (1) year from the date of purchase (hereinafter the

labor warranty period). PMI Audio Group will repair or replace this

Product if determined to be defective. After the expiration of the labor

warranty period, the Purchaser must pay labor charges.

B: In addition, PMI Audio Group will supply, at no charge, replacements

for defective parts for a period of one (1) year from the date of purchase.

During the labor warranty period, to repair the Product, the Purchaser

must return the defective Product, freight prepaid, or deliver it to a PMI

Audio Group Service Center. The Product to be repaired is to be

returned in either its original carton or a similar package affording an

equal degree of protection. PMI Audio Group will return the repaired

Product freight prepaid to the Purchaser. PMI Audio Group is not

obligated to provide the Purchaser with a substitute unit during the

warranty period or at any time.

1. Notification of claims: Warranty Service: If Purchaser discovers that

the Product has proven defective in material or workmanship, then

written notice with a full explanation of the claim shall be given promptly

by the Purchaser to PMI but all claims for warranty service must be made

within the warranty period. If after investigation PMI determines that the

reported problem was not covered by the warranty, Purchaser shall pay

PMI for the cost of investigating the problem at it's the prevailing time-

and-materials rate. No repair or replacement by Purchaser of any

Product or part thereof shall extend the warranty period as to the entire

Product. The specific warranty on the repaired part only shall be in effect

for a period of ninety (90) days following repair or replacement of that

part or the remaining period of the Product warranty, whichever is

greater.

2. Exclusive Remedy: Acceptance: Purchaser’s exclusive remedy and

PMI’s sole obligation is to supply (and pay for) all labor necessary to

repair any product found to be defective within the warranty period and

to supply, at no extra charge, new or rebuilt replacements for defective

parts. If repair or replacement fails to remedy the defect, then and only in

such an event, shall PMI exchange to Purchaser a new or reconditioned

unit. Purchaser’s failure to make a claim as provided in paragraph 1

above or continued use of the product shall constitute an unqualified

acceptance of such Product and a waiver by Purchaser of all claims

thereto.

3. Exceptions to Limited Warranty: PMI shall have no liability or

obligation to Purchaser with respect to any Product subjected to abuse,

negligence, accident, modification, failure of the end-user to follow the

operating and maintenance procedures outlined in the users manual,

attempted repair by non-qualified personnel, operation of the unit

outside of the published environmental and electrical parameters, or if

such Product’s original identification (trademark, serial number)

markings have been defaced, altered, or removed. PMI excludes from

warranty coverage, Products sold AS IS and/or WITH ALL FAULTS and

excludes used products which have not been sold by PMI to the

purchaser. PMI also excludes from warranty coverage consumables

such as fuses and batteries, tubes, etc.

4. Proof of Purchase: The dealer’s dated bill of sale must be retained as

evidence of the date of purchase and to establish warranty eligibility.

5. Grey Market: All warranties apply only to PMI Audio Group Products

purchased and used in the USA, and to PMI Audio UK Products

purchased and used in the UK, EU and all other countries outside of the

USA. All warranties apply only to PMI Audio Group/PMI Audio UK

Products originally purchased from an authorized PMI Audio Group/PMI

Audio UK dealer. PMI Audio Group/PMI Audio UK Product that was not

purchased through an authorized and legitimate sales channel is

considered "Grey Market". Warranties for PMI Audio Group/PMI Audio

UK Products purchased outside their respective territories will be

covered by the PMI Audio Group/PMIAudio UK Importer for that specific

country or region. Products originally sold to the USA market and

consequently resold overseas forfeit their warranty as do PMI Audio UK

Products sold outside of the UK and Europe.American PMI Audio Group

Dealers are expressly forbidden to export PMI Audio Group Products

and PMI Audio UK Distributors and Dealers are expressly forbidden to

export to North, South, Central and Latin America. "Grey Market"

purchases are not covered by any warranty. In the case that a PMI Audio

Group/PMI Audio UK Product must be returned to the factory from

outside its respective territory, customer shall adhere to specific

shipping, customs, and commercial invoicing instructions given with the

Return Authorization as PMI Audio Group/PMI Audio UK will not be

responsible for transportation costs or customs fees related to any

importation or re-exportation charges whatsoever.

Joemeek Limited Warranty

Name:

Address:

City: State: Zip Code:

Telephone Number: email Address:

Model Purchased: Date Purchased:

Serial Number: Dealer:

Comments:

What magazines do you read to inform your buying decision: (check all that apply)

MIX Electronic Musician EQ Sound on Sound Pro Audio Review Recording Pro Sound News Audio MIDI

EXCEPT FOR THE FOREGOING WARRANTIES, PMI HEREBY DISCLAIMS AND

EXCLUDES OTHER WARRANTIES, EXPRESS OR LIMITED, INCLUDING BUT

NOT LIMITED TO ANY/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH

REGARD TO ANY CLAIM OF INFRINGEMENT THAT MAY BE PROVED IN

SECTION 2-312(12) OF THE UNIFORM COMMERCIAL CODE AND/OR IN ANY

COMPARABLE STATE STATUTE. PMI HEREBY DISCLAIMS ANY

REPRESENTATIONS OR WARRANTY THAT THE PRODUCT IS COMPATIBLE

WITH ANY COMBINATION OF NON-PMI AUDIO PRODUCTS PURCHASER MAY

CHOOSE TO CONNECT TO THE PRODUCT.

THE LIABILITY OF PMI, IF ANY, AND PURCHASER’S SOLE AND EXCLUSIVE

REMEDY FOR DAMAGES FOR ANY CLAIM OF ANY KIND WHATSOEVER,

REGARDLESS OF THE LEGAL THEORY AND WHETHER ARISING IN TORT OR

CONTRACT, SHALL NOT BE GREATER THAN THE ACTUAL PURCHASE PRICE

OF THE PRODUCT WITH RESPECT TO WHICH SUCH CLAIM IS MADE. IN NO

EVENT SHALL PMI BE LIABLE TO PURCHASER FOR ANY SPECIAL, INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING, BUT

NOT LIMITED TO, COMPENSATION, REIMBURSEMENT OR DAMAGES ON

ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS OR ANY

OTHER REASON WHATSOEVER.

Information in this User Guide is subject to change without notice. No part of this User Guide may be

reproduced or transmitted in any form or by any means, electronic, mechanical or by any other

means, for any purpose, without the express written permission of PMIAudio Group.

PMI Audio Group may have trademarks, copyrights or other intellectual property rights covering the

subject matter of this User Guide. Except as expressly provided in any written agreement from PMI

Audio Group, the furnishing of this User Guide is provided for the sole use of the authorized User (or

Service Agent where applicable) and does not give the User any license to use any trademarks,

copyrights or other intellectual property of PMIAudio Group.

PMI, PMI AUDIO, TED FLETCHER, MEEQUALIZER, STUDIO PROJECTS, JOEMEEK, TOFT

AUDIO DESIGNS, CURRENTSENSE, MEEKROPHONE, TRAKPAK and "If it Sounds Right... It is

Right" are either registered trademarks or trademarks of PMI Audio Group in the USA and/or other

countries.

Disclaimer of Warranty

Limitation of Liability

Product Registration Information

Please Fill in the Below Sections and Return

TO BE COMPLETED AT TIME OF PURCHASE

Name ________________________________________

Date of Purchase ________________________________

Serial Number __________________________________

Dealer’s Name _________________________________

RETAIN FOR YOUR RECORDS

PLEASE DISPATCH AND RETURN

YOUR REGISTRATION

TO JOEMEEK WITHIN 14 DAYS

OF PURCHASE

Specifications and model numbers are subject to

change without notice

Owners Registration Card
