FX-PCV1826/1832 Programmable VAV Box

Controller Installation Instructions

Applications

FX-PCV1826 controllers are well-suited for commercial zoning applications and can be used

for pressure dependent VAV box applications where no differential pressure tranduser (DPT) is

required.

Note: At Controller Configuration Tool (CCT) 13.0 or later, using Release Mode 10.1, the PCV18

Series controllers can be configured as either N2 devices or as standard BACnet® MS/TP

devices. This ability provides a potential cost-effective protocol upgrade path for existing

customers and should be considered when you install the controller.

Important: When you receive an FX-PCV18 Series controller from the factory or upgrade the

firmware or main code, the controller defaults to using the MS/TP communications protocol.

The Load Summary screen of CCT shows the connection as Wired Field Bus, indicating that

the MS/TP protocol is in use. If you have an N2 application, the Load Summary screen indicates

that you need to switch the communications protocol to N2.

These FX-PCV controllers feature an integral digital pressure sensor (FX-PCV1832 model only), a

damper actuator, and a 32-bit microprocessor. The controller's small package size facilitates quick

field installation and efficient use of space for field replacements, while still enabling precision

control performance.

Note: Connecting an FX-PCX to the FX-PCV via the SA Bus connection is not supported.

North American Emissions Compliance

United States

This equipment has been tested and found to comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when this equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area may cause harmful

interference, in which case the users will be required to correct the interference at their own

expense.

Canada

This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

Installation

Observe these guidelines when installing an FX-PCV18 Series controller:

Part No. 24-10143-381 Rev H

2019-03-22 (barcode for factory use only)

FX-PCV1826-1, FX-PCV1832-1

*2410143381H*

• Transport the FX-PCV controller in the original container to minimize vibration and shock damage

to the FX-PCV controller.

• Do not drop the FX-PCV controller or subject it to physical shock.

Parts included

• One FX-PCV18 Series controller with removable N2/FC bus terminal block

• One installation instructions sheet

• Two 6.35 mm x 6.35 mm (1/4 in. x 1/4 in. ) brass fittings

• One self-drilling No. 10 x 25 mm (1 in.) screw

• Two 12-in. (30.48 cm.) pieces of flexible tubing

• One controller/sensor Y cable adapter

• One 8-pin to 6-pin single-socket cable adapter

Note: Remove the cap plug from the TSTAT port of the controller and save for future use. The

cap plug is used on existing sensor ports that are no longer used.

Materials and special tools needed

Note: You may not require all the materials listed for your controller installation.

• Several 6 mm (1/4 in.) female spade terminals for input and output wiring and crimping tool or

spade mounted terminal blocks

• Small straight-blade screwdriver for securing wires in the terminal blocks

• 8 mm (5/16 in.) wrench or 10 mm (3/8 in.) 12-point socket to tighten the square coupler bolt

• Several shims or washers to mount the FX-PCV

• Power screwdriver, 100 mm (4 in.) extension socket, punch, drill, and 3.5 mm (9/64 in.) drill bits to

mount the FX-PCV

• Pliers to open and close the damper

• Required length of 3.97 mm (5/32 in.) ID pneumatic tubing and barbed fittings

Mounting

Observe these guidelines when mounting an FX-PCV:

Important: When the air supply to the VAV box is below 10°C (50°F), make sure that any

condensation on the VAV box, particularly on the damper shaft, does not enter the FX-

PCV electronics. Mount the FX-PCV vertically above the damper shaft to allow any shaft

condensation to fall away from the FX-PCV. Additional measures may be required in some

installations.

• Ensure the mounting surface can support the FX-PCV and any user-supplied enclosure.

• Mount the FX-PCV on a hard, even surface whenever possible.

• Use shims or washers to mount the FX-PCV securely and evenly on the mounting surface.

• Mount the FX-PCV in an area free of corrosive vapors that matches the ambient conditions

specified in the Technical specifications section.

FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions2

• Provide sufficient space around the FX-PCV for cable and wire connections and adequate

ventilation through the controller (50 mm [2 in.] minimum on the top, bottom, sides, and front of

the controllers).

• Do not mount the FX-PCV in areas where electromagnetic emissions from other devices or wiring

can interfere with controller communication.

• Avoid mounting the FX-PCV on surfaces with excessive vibration.

On panel or enclosure mount applications, observe these additional guidelines:

• Do not install the FX-PCV in an airtight enclosure.

• Mount the FX-PCV so that the enclosure walls do not obstruct cover removal or ventilation

through the controller.

• Mount the FX-PCV so that the power transformer and other devices do not radiate excessive heat

to the controller.

To mount the FX-PCV18 Series controller, complete the following steps:

1. Place the FX-PCV18 Series controller in the proper mounting position on the damper shaft so

that the wiring connections are easily accessible.

Note: The line from the captive spacer and screw through the center of the damper shaft

must be either horizontal or vertical, and the wall plate must be wall-mounted to comply

with UL requirements. See the following figure for possible mounting positions.

Figure 1: Possible FX-PCV18 series controller mounting positions

Make sure the FX-PCV controller base is parallel to the VAV box (perpendicular to the damper

shaft). If needed, use a spacer to offset tipping of the FX-PCV controller caused by the shaft

bushings.

Note: Using the alignment marks to center the captive spacer ensures sufficient FX-PCV18

controller movement in either direction.

2. Secure the self-drilling No. 10 screw through the shoulder washer (Figure 3) with a power

screwdriver and 100 mm (4 in.) extension socket. Otherwise, use a punch to mark the position

of the shoulder washer, and then drill a hole into the VAV box using a 3.5 mm (9/64 in.) drill bit.

Insert the mounting screw and tighten against the washer.

Important: Do not overtighten the screws, or the threads may strip. If mounting to the

VAV box, make sure the screws do not interfere with damper blade movement.

3FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions

3. Locate the damper position using the typical marking on the end of the damper shaft. See the

following figure.

Figure 2: Typical damper end shaft icons

4. Note the direction, clockwise (CW) or counterclockwise (CCW), required to close the damper.

Grasp the damper shaft firmly with pliers, and either manually close the damper (for 90°

boxes) or manually open the damper (for 45° or 60° boxes).

5. Push down and hold the Manual Override button (Figure 3) and turn the FX-PCV controller

coupler until it contacts the mechanical end-stop at either the fully closed (90° boxes) or fully

open (45° and 60° boxes) position.

6. If the damper for a 90° box closes CCW, rotate the coupler to the CCW mechanical limit. If the

damper for a 90° box closes CW, rotate the coupler to the CW mechanical limit. The open end-

stop is automatically set for 90° boxes. For 45° and 60° boxes, hard stops must be provided

at both fully closed and fully open damper positions. By installing the FX-PCV controller at the

fully open position, the FX-PCV controller provides the open stop for 45° and 60° boxes. The

closed damper seal provides the fully closed stop.

7. Tighten the square coupler bolt to the shaft using an 8 mm (5/16 in.) wrench or 10 mm (3/8 in.)

12-point socket. Tighten to 10.5 to 11.5 N·m (95 to 105 lb·in).

8. Loop the pneumatic tubing to include a trap for condensation. If needed, use the included

brass fittings and attach the included pieces of tubing to the tubing of the FX-PCV controller.

Attach the tubing from the FX-PCV controller to the dual port fitting on the FX-PCV controller

and the other ends of the tubing to the pressure transducer in the VAV box application (Figure

3). The FX-PCV1826 does not come with the tubing pieces.

Note: The FX-PCV uses a digital non-flow pressure sensor with bidirectional flow

operation, which allows the high- and low-pressure DP tube connections to be made to

either barbed fitting on the FX-PCV controller. You do not need to make a specific high- or

low-side connection when you attach the tubing to the barbed fittings on the FX-PCV.

9. Push the manual release button, and turn the actuator coupling manually to ensure that the

actuator can rotate from full-closed to full-open positions without binding.

10. Complete the mounting by rotating the damper to the full-open position.

FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions4

CAUTION

Risk of Property Damage

Rotate the damper to the full-open position before starting the air handler. Failure to rotate the damper

to the full-open position may result in damage to the VAV box or ductwork when the air handler is

started.

Mise En Garde: Risque de dégâts matériels

Faire pivoter le registre pour le placer en position d'ouverture complète avant de démarrer l'unité de

traitement d'air. Le non-respect de cette directive risque d'endommager le caisson de l'unité à volume

d'air variable (VAV) ou le réseau de conduites au démarrage de l'unité de traitement d'air.

Wiring diagram

Figure 3: FX-PCV Series Controller wiring terminations and physical features

5FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions

Table 1: FX-PCV18 Series Controller feature callout numbers and descriptions

Callout Physical features: description and references

1 24 VAC, Class 2 Supply Power Spade Terminals (see Supply power spade terminals)

2 Device Address DIP Switch Block (see Setting the device address)

3 Binary Outputs, 24 VAC Triacs (see Table 4)

4 Configurable Outputs: Voltage Analog Output (0–10 VDC) and Binary Output (24 VAC

Triac) (see Table 4)

5 Dual Port Fitting (see Figure 3)

Not included in the FX-PCV1826 model.

6 Manual Override Switch (see Mounting)

7 Controller Coupler (see Mounting)

8 Coupler Bolt (see Mounting)

9 Universal Input: Voltage Analog Input (0–10 VDC)

Resistive Analog Inputs (0–600k ohm) (see Table 4):

0–2k Potentiometer

RTD: 1k Nickel, 1k Platinum, or A99B SI

NTC: 10K Type L (10K JCI Type II is equivalent to Type L) or 2.252K Type II

Dry Contact Binary Input

10 N2/FC Bus Pluggable Screw Terminal Block (see N2/FC bus terminal block)

11 EOL (End-of-Line) Switch (see Setting the EOL switch)

12 SA Bus Spade Terminals (see SA bus spade lugs)

13 TSTAT Modular Port: RJ-45 8-Pin Modular Jack (see Modular port)

14 Captive Spacer and Screw (see Figure 3)

15 LED Status Indicators (see Table 7)

Wiring

Warning

Risk of Electric Shock

Disconnect the power supply before making electrical connections to avoid electric shock.

Mise En Garde: Risque de décharge électrique:

Débrancher l'alimentation avant de réaliser tout raccordement électrique afin d'éviter tout risque de

décharge

Important: Do not connect supply power to the controller before finishing wiring and

checking all wiring connections. Short circuits or improperly connected wires can result in

damage to the controller and void any warranty.

Important: Do not exceed the controller electrical ratings. Exceeding controller electrical

ratings can result in permanent damage to the controller and void any warranty.

FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions6

Important: Use copper conductors only. Make all wiring in accordance with local, national,

and regional regulations.

Important: Electrostatic discharge can damage controller components. Use proper

electrostatic discharge precautions during installation, setup, and servicing to avoid damaging

the controller.

For detailed information on configuring and wiring an N2 Bus, refer to the N2 Communications Bus

Technical Bulletin (LIT-636018).

FX-PCV terminals and bus ports

See Figure 3 for input and output terminal and bus port locations on the FX-PCV18 Series

controllers. Observe the following guidelines when wiring an FX-PCV18 controller.

Input and Output terminals

The input spade terminals are located on the side of the FX-PCV near the N2/FC Bus terminal block.

The output spade terminals are located on the opposite side of the controller near the power

supply spade terminals. See Table 4 for more information.

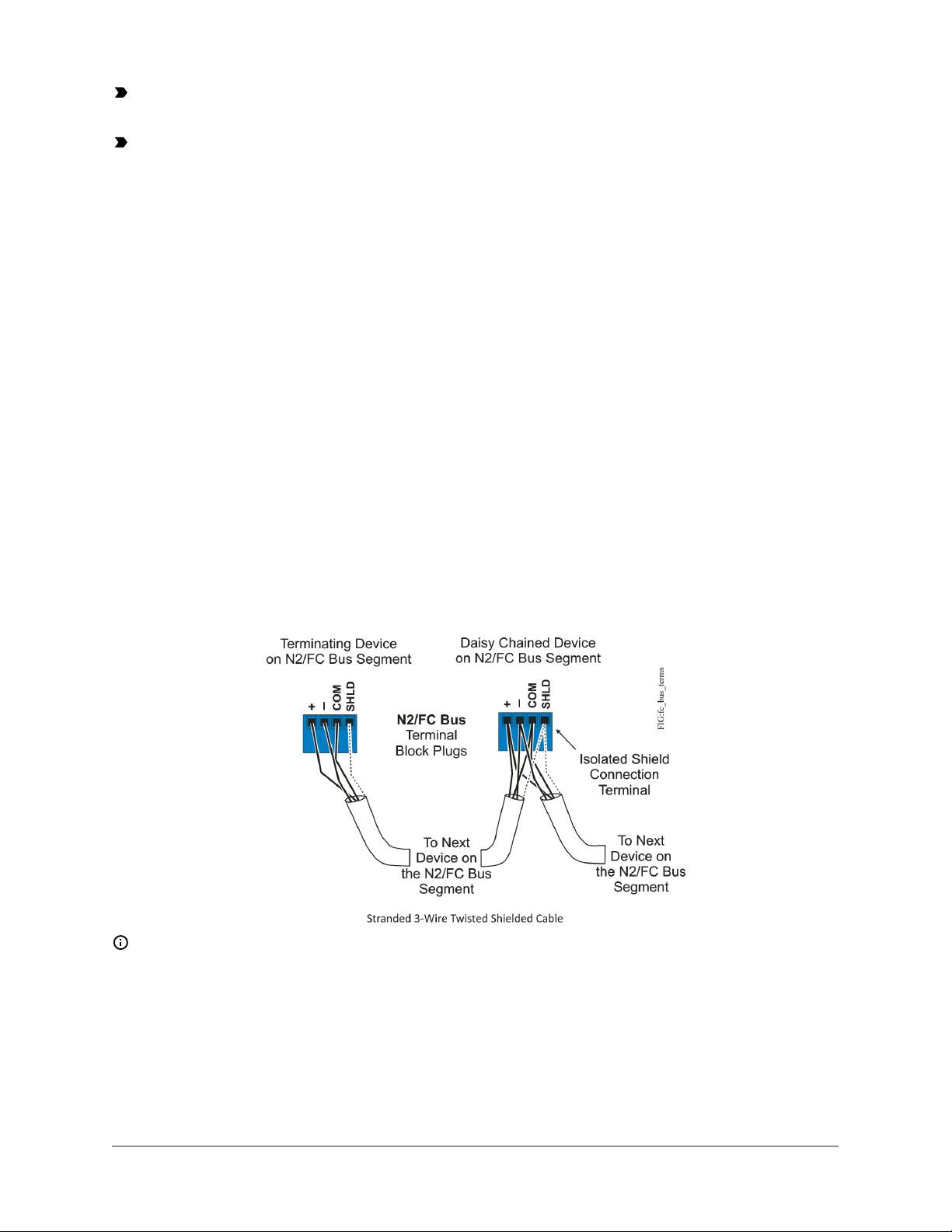

N2/FC bus terminal block

The N2/FC Bus terminal block is a blue, removable, 4-terminal plug that fits into a board-mounted

jack.

Wire the removable N2/FC Bus terminal block plugs on the FX-PCV and other field controllers in a

daisy-chain configuration using 3-wire twisted, shielded cable as shown in Figure 4. See Table 5 and

Table 6 for more information.

Figure 4: N2/FC bus terminal block wiring

Note: The Shield terminal (SHLD) on the N2/FC Bus terminal block is isolated and can be used

to connect the cable shields on the bus (Figure 4).

7FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions

SA bus spade lugs

Wire the SA Bus spade lugs on the FX-PCV and other SA Bus devices in a daisy-chain configuration

using 4-wire twisted, shielded cable as shown in Figure 5. See Table 6 for more information.

Figure 5: SA bus spade lug wiring

Note: Connecting an FX-PCX to the FX-PCV by using the SA Bus connection is not supported.

Modular port

The modular (TSTAT) port on the face of the FX-PCV (Figure 3) is an RJ-45, 8-position modular jack

used to connect your new or existing sensor to the FX-PCV using one of the two included adapters.

Refer to the Sensor Replacement section in the N2 FX-PCV Application Note (LIT-12011838).

Figure 6: Pin number assignments for the modular port on FX-PCV18 Controllers

Supply power spade terminals

Wire the 24 VAC supply power wires from the transformer to the HOT and COM terminals on the

spade terminal as shown in Figure 7. See Table 6 for more information.

FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions8

Figure 7: 24 VAC supply power spade terminal wiring

Important:

• The supply power terminal block on the FX18-PCV is a two-position spade lug (Figure 7).

Exercise caution while rewiring the power plug when replacing an existing controller. Stray

wire strands may make contact and cause a short circuit across the 24 VAC power supply.

• To maintain proper phasing when replacing the existing PCV14xx controller with the FX-

PCV18 controller, connect the power wire from 24 VAC: 1 terminal on the existing controller

to the HOT power terminal on the FX-PCV18. Also connect the power wire from the 24 VAC: 2

terminal on the existing controller to the COM power terminal on the FX-PCV18 controller.

The supply power wire colors may be different on transformers from other manufacturers. Refer to

the transformer manufacturer’s instructions and the project installation drawings for wiring details.

Important: Connect 24 VAC supply power to the FX-PCV and all other network devices so that

transformer phasing is uniform across the network devices. Powering network devices with

uniform 24 VAC supply power phasing reduces noise, interference, and ground loop problems.

The FX-PCV does not require an earth ground connection. However, when grounding the

secondary of the 24 VAC transformer is required, only one connection to ground should be

made near the transformer.

CAUTION

Risk of Personal Injury and Property Damage

Improper wiring of this terminal may cause a short circuit across the 24 VAC power supply on -1

models.

To wire the FX-PCV18 Series controller, complete the following steps:

1. Terminate wiring per engineering drawings.

2. Wire network sensors and other devices to the FX-PCV's SA Bus.

3. Wire the N2/FC Bus in a daisy chain (see Table 6).

4. Ensure that the FX-PCV’s device address DIP switches are set to the appropriate device address.

(See Setting the device address.)

5. Connect the FX-PCV controller to 24 VAC, Class 2 power.

Refer to the N2 FX-PCV Application Note (LIT-12011838) for more information about replacing an

existing controller with an FX-PCV18 controller.

9FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions

FX-PCV terminal functions, ratings, requirements, and wiring

guidelines

Input and Output wiring guidelines

Table 4 provides information about the functions, ratings, and requirements for the FX-PCV input

and output terminals, and Table 5 provides guidelines for wire sizes and cable lengths.

In addition to the wiring guidelines in Table 4, observe these guidelines when wiring FX-PCV inputs

and outputs:

• Run all low-voltage wiring and cables separate from high-voltage wiring.

• All input and output cables, regardless of wire size or number of wires, should consist of twisted,

insulated, and stranded copper wires.

• Shielded cable is not required for input or output cables.

• Shielded is recommended for input and output cables that are exposed to high electromagnetic

or radio frequency noise.

• Cable runs of less than 30 m (100 ft) typically do not require an offset in the input/output

software setup. Cable runs over 30 m (100 ft) may require an offset in the input/output software

setup.

Maximum cable length versus load current

Use Figure 12 to estimate the maximum cable length relative to the wire size and the load current

(in mA) when wiring inputs and outputs.

N2/FC and SA bus and supply power wiring guidelines

Table 6 provides information about terminal block functions, ratings, and requirements.

Table 6 also provides wire size, cable type, and cable length guidelines for wiring the FX-PCV

communication buses and supply power.

In addition to the guidelines in Table 6, observe these guidelines when wiring the SA and N2/FC

Buses and supply power:

• Run all low-voltage wiring and cables separate from high-voltage wiring.

• All N2/FC and SA Bus cables, regardless of wire size, should be twisted, insulated, stranded

copper wire.

• Shielded cable is strongly recommended for all N2/FC and SA Bus cables.

• Refer to the N2 Communications Bus Technical Bulletin (LIT-636018) for detailed information

regarding wire size and cable length requirements for the N2/FC and SA buses.

Termination diagrams

A set of Johnson Controls® termination diagrams provides details for wiring inputs and outputs

to the FX-PCV18 Series controllers. See the figures in this section for the applicable termination

diagrams.

FX-PCV1826/1832 Programmable VAV Box Controller Installation Instructions10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Johnson Controls Controller Handbücher

Johnson Controls

Johnson Controls A25 Series Service-Handbuch

Johnson Controls

Johnson Controls LN-DSWSC1-0 Bedienungsanleitung

Johnson Controls

Johnson Controls TEC3000 Series Bedienungsanleitung

Johnson Controls

Johnson Controls FX80 Bedienungsanleitung

Johnson Controls

Johnson Controls VAP Series Bedienungsanleitung

Johnson Controls

Johnson Controls FX-PCG1621 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN P70 Series Handbuch

Johnson Controls

Johnson Controls tyco Kantech IP LINK Bedienungsanleitung

Johnson Controls

Johnson Controls System 350 P352AB Series Bedienungsanleitung

Johnson Controls

Johnson Controls SE-ZEC510-1 Bedienungsanleitung

Johnson Controls

Johnson Controls SNC Series Bedienungsanleitung

Johnson Controls

Johnson Controls A25CN Series Leitfaden

Johnson Controls

Johnson Controls FX-PCV1615 Bedienungsanleitung

Johnson Controls

Johnson Controls M9102-GA-1S Series Bedienungsanleitung

Johnson Controls

Johnson Controls FX30E Service-Handbuch

Johnson Controls

Johnson Controls EDA-8000 Montageanleitung

Johnson Controls

Johnson Controls York 366-70488 Bedienungsanleitung

Johnson Controls

Johnson Controls M9102 GA-1S Series Bedienungsanleitung

Johnson Controls

Johnson Controls LX Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9206-DN Series Bedienungsanleitung

Johnson Controls

Johnson Controls FEC26 Series Bedienungsanleitung

Johnson Controls

Johnson Controls MP8 20 Series Bedienungsanleitung

Johnson Controls

Johnson Controls M9308-AGA-xZ series Bedienungsanleitung

Johnson Controls

Johnson Controls TEC3310 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
