Johnson Controls RHP143 Series Bedienungsanleitung

6198123-UIM-A-0622

York International Corporation, 5005

York Drive, Norman, OK 73069

2022-02-23

Johnson Controls Ducted Systems

R-410A Outdoor Split-System Heat Pump

Installation Manual - YH2E / THE2 /

RHP143 Series

Supersedes: nothing

2 R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series

Johnson Controls Ducted Systems

Contents

ContentsGeneral......................................................................................5

Safety.........................................................................................5

Inspection........................................................................... 5

Requirements for installing/servicing R-410A

equipment...........................................................................5

Limitations.......................................................................... 5

Unit installation........................................................................ 6

Location...............................................................................6

Add-on replacement/retrofit............................................6

Ground installation............................................................ 8

Roof installation................................................................. 8

Wall mount installation..................................................... 8

Unit placement................................................................... 9

Liquid line filter-drier.........................................................9

Piping connections.............................................................9

Precautions during line installation...............................10

Precautions during brazing of lines...............................10

Precautions during brazing of service valve.................10

Connecting the refrigerant lines.............................. 11

Indoor expansion device.......................................................12

Thermostatic expansion valve (TXV) installation......... 12

Evacuation...............................................................................13

System charge........................................................................13

Measuring indoor airflow............................................... 14

Charging the unit............................................................. 14

Determining the total system charge............................14

Charging with gauges..................................................... 15

Subcooling charging charts...................................... 15

Heating charging charts............................................21

Electrical connections............................................................27

General information and grounding............................. 27

Field connections power wiring..................................... 28

Field connections control wiring....................................28

Control wiring diagrams........................................... 30

Dehumidification control (typical)................................. 32

Indoor cubic feet per minute (CFM) settings

(typical)..............................................................................32

System start-up...................................................................... 33

Energize crankcase heater (where applicable)............ 33

System operation...................................................................33

Anti short-cycle delay...................................................... 33

Low voltage detection..................................................... 33

Test input.......................................................................... 33

Fault code display............................................................ 35

Demand defrost......................................................... 36

Operation.................................................................... 36

Defrost curves.............................................................36

Defrost curve selection..............................................36

Defrost cycle initiation...............................................36

Defrost inhibition....................................................... 36

Defrost termination................................................... 37

Cooling operation...................................................... 37

Heating operation......................................................37

Emergency heat......................................................... 37

Pressure switch fault and lockout............................37

Instructing the owner............................................................37

Maintenance.....................................................................38

Wiring diagrams.....................................................................39

Start-up sheet.........................................................................42

Johnson Controls Ducted Systems

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series 3

4 R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series

Johnson Controls Ducted Systems

General

The outdoor units are designed to be connected to a

matching indoor coil with sweat connect lines. Sweat

connect units are factory charged with refrigerant for

a nominal sized matching indoor coil plus 15 ft of field-

supplied lines.

Matching indoor coils can be used with a thermostatic

expansion valve (TXV). Refer to the Tabular Data Sheet or to

the Technical Guide for the proper selection.

Safety

This is a safety alert symbol. When you see this

symbol on labels or in manuals, be alert to the

potential for personal injury.

Understand and pay particular attention to the signal

words DANGER, WARNING, or CAUTION.

DANGER indicates an imminently hazardous situation,

which, if not avoided, will result in death or serious

injury.

WARNING indicates a potentially hazardous situation,

which, if not avoided, could result in death or serious

injury.

CAUTION indicates a potentially hazardous situation,

which, if not avoided may result in minor or moderate

injury. It is also used to alert against unsafe practices and

hazards involving only property damage.

WARNING

Improper installation may create a condition where

the operation of the product could cause personal

injury or property damage. Improper installation,

adjustment, alteration, service, or maintenance can

cause injury or property damage. Refer to this manual

for assistance. For additional information, consult a

qualified contractor, installer, or service agency.

CAUTION

This product must be installed in strict compliance

with the enclosed installation instructions and any

applicable local, state, and national codes including

but not limited to building, electrical, and mechanical

codes.

CAUTION

R-410A systems operate at higher pressures than

R-22 systems. Do not use R-22 service equipment

or components on R-410A equipment. Service

equipment must be rated for R-410A.

Inspection

As soon as a unit is received, it must be inspected for

possible damage during transit. If damage is evident,

the extent of the damage must be noted on the carrier’s

delivery receipt. A separate request for inspection by

the carrier’s agent must be made in writing. See Local

Distributor for more information.

Requirements for installing/servicing

R-410A equipment

• Gauge sets, hoses, refrigerant containers, and

recovery system must be designed to handle the POE

type oils, and the higher pressures of R-410A.

• Manifold sets should be high side and low side with

low side retard.

• All hoses must have a 700 psig service pressure

rating.

• Leak detectors should be designed to detect HFC

refrigerant.

• Recovery equipment (including refrigerant recovery

containers) must be specifically designed to handle

R-410A.

• Do not use an R-22 TXV.

Limitations

The unit must be installed in accordance with all National,

State and Local Safety Codes and the limitations listed

below:

• Limitations for the indoor unit, coil, and appropriate

accessories must also be observed.

• The outdoor unit must not be installed with any

duct work in the air stream. The outdoor fan is the

propeller type and is not designed to operate against

any additional external static pressure.

• The maximum and minimum conditions for

operation must be observed to ensure a system that

will give maximum performance and service life.

Table 1: Maximum/minimum operating limit

conditions

Air temperature at

outdoor coil °F

Air temperature at indoor

coil °F

Minimum Maximum Minimum Maximum

cool

heat

cool

heat

cool

heat

cool

heat

55 0 125 75 57 50 72 80

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series 5

Johnson Controls Ducted Systems

Note:

• Operation below this temperature is

permissible for a short period of time, during

morning warm-up.

• The unit should not be operated in cooling

mode at outdoor temperatures below 50°F

without an approved low ambient operation

accessory kit installed.

• The maximum allowable line length for this

product is 80 ft. Consult the Piping Application

Guide (P/N 247077) for installations over the

maximum allowable line length. Installation

of an accessory crankcase heater is required if

not factory installed for installations over the

maximum allowable line length.

Unit installation

Location

Before starting the installation, select and check the

suitability of the location for both the indoor and outdoor

unit. Observe all limitations and clearance requirements.

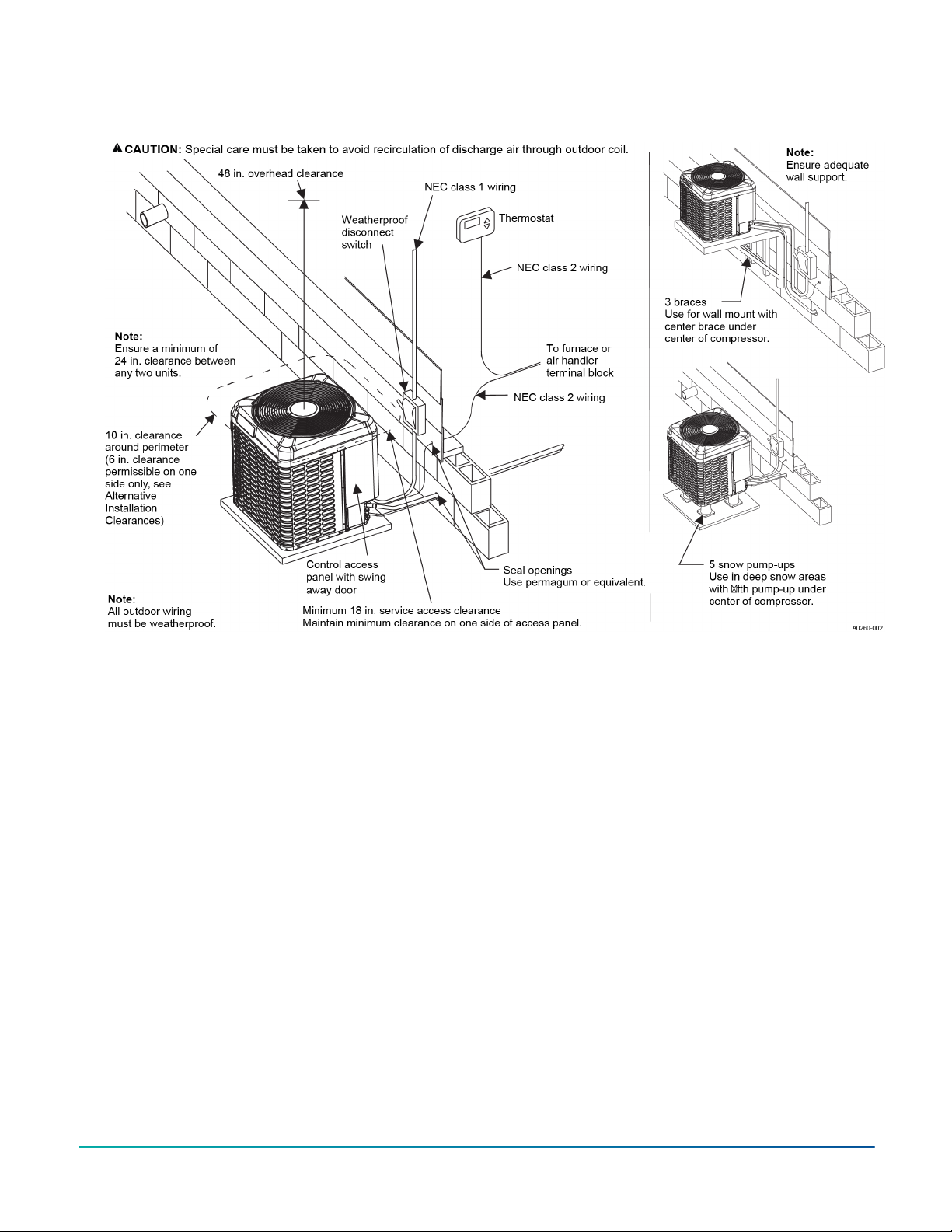

The outdoor unit must have sufficient clearance for air

entrance to the outdoor coil, air discharge, and service

access. See Figure 1 and Figure 2.

NOTICE

For multiple unit installations, units must be spaced a

minimum of 24 in. (61 cm) apart (coil face to coil face).

If the unit is installed on a hot sun-exposed roof or a

paved ground area that is seasonally hot, the unit must

be raised sufficiently above the roof or ground to avoid

taking the accumulated layer of hot air into the outdoor

unit.

If the system is being installed during seasonally cold

weather of 55°F or below, the preferred method is to

weigh in the charge. For charging or checking the system

charge at 55°F or below, see Heating charging charts.

There is an Optional Cold Weather Charging accessory

kit to prevent the outdoor unit from taking in cold air

below 55°F. The kit part number can be found in the list of

accessory kits at www.simplygettingthejobdone.com.

Provide adequate structural support for the unit.

Add-on replacement/retrofit

About this task:

When using this unit as a replacement for an R-410A

unit, you must replace the outdoor unit, indoor coil,

and metering device. Do the following to ensure proper

system operation and performance. Change out the line

set where possible.

1. Change out the indoor coil to an approved

R-410A coil or outdoor unit combination with the

appropriate metering device.

2. Change out the line-set when replacing an

R-22 unit with an R410-A unit to reduce cross-

contamination of oils and refrigerants.

3. If a change out of the line set is not practical, then

the following precautions should be taken.

- Inspect the line set for kinks, sharp bends,

or other restrictions, and for corrosion.

- Determine if there are any low spots which

might be serving as oil traps.

- Flush the line set with a commercially

available flush kit to remove as much of the

existing oil and contaminants as possible.

- Install a suction line filter-drier to trap any

remaining contaminants, and remove after

50 h of operation.

4. If the outdoor unit is being replaced due to a

compressor burnout, then installation of a 100%

activated alumina suction-line filter drier in the

suction-line is required, in addition to the factory

installed biflow liquid-line drier. Operate the

system for 10 h. Monitor the suction drier pressure

drop. If the pressure drop exceeds 3 psig, replace

both the suction-line and liquid-line driers. After

a total of 10 h runtime where the suction-line

pressure drop has not exceeded 3 psig, replace

the liquid line drier, and remove the suction-line

drier. Never leave a suction-line drier in the system

longer than 50 h of run time.

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series6

Johnson Controls Ducted Systems

Example:

Figure 1: Typical installation clearances

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series 7

Johnson Controls Ducted Systems

Figure 2: Alternative installation clearances

Ground installation

The unit may be installed at ground level on a solid

base that will not shift or settle, causing strain on the

refrigerant lines and possible leaks. The unit must

be installed in as level a position as possible while

maintaining the clearances shown in Figure 1 and Figure

Normal operating sound levels may be objectionable if

the unit is placed directly under windows of certain rooms

such as a bedroom or study.

Condensate will drain from beneath the coil of the

outdoor unit during the defrost cycle. Normally this

condensate may be allowed to drain directly on the

ground.

WARNING

The outdoor unit must not be installed in an area

where mud or ice could cause personal injury.

Remember that condensate will drip from the unit

coil during heat and defrost cycles and that this

condensate will freeze when the temperature of the

outdoor air is below 32°F.

Elevate the unit sufficiently to prevent any blockage of the

air entrances by snow in areas where there will be snow

accumulation. Check the local weather bureau for the

expected snow accumulation in your area.

Isolate the unit from rain gutters to avoid any possible

wash out of the foundation.

Roof installation

When installing units on a roof, the structure must

be capable of supporting the total weight of the unit,

including a pad, lintels, and rails, which should be used to

minimize the transmission of sound or vibration into the

conditioned space.

Wall mount installation

Care must be taken to mount the outdoor unit on a solid

base that is sloped to shed water, secure from settlement,

and is isolated from the structural foundation or walls to

prevent sound and vibration transmission into the living

space.

On occasion, site conditions may require direct wall

mounted brackets to be used to locate and support the

outdoor unit. In these applications, care must be taken to

address unit base pan support, structural integrity, safe

access and serviceability, as well as the possible sound

and vibration transmission into the structure. These

applications are best served by a properly engineered

solution.

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series8

Johnson Controls Ducted Systems

Unit placement

About this task:

NOTICE

Heat pumps will defrost periodically resulting in

water drainage. The unit must not be located where

water drainage may freeze and create a hazardous

condition - such as sidewalks and steps.

1. Provide a base in the pre-determined location.

2. Remove the shipping carton and inspect for

possible damage.

3. Ensure that compressor tie-down bolts remain

tightened.

4. Position the unit on the base provided.

Liquid line filter-drier

The filter-drier is packaged and shipped along with the

outdoor unit. It is located outside the unit next to the

service valves.

CAUTION

Filter-drier is required to be installed in liquid line. The

recommended location is at the indoor coil before the

refrigerant metering device. It can be installed at the

outdoor unit if desired.

CAUTION

Using a granular type drier may result in damage to

the equipment.

CAUTION

Filter-drier must be wrapped in wet rag while brazing.

NOTICE

Replacements for the liquid line drier must be bi-flow

and an approved replacement from Source 1.

R-410A filter-drier source

1 Part Number

Apply with models

S1-404101 All heat pumps

Piping connections

The outdoor unit must be connected to the indoor coil

using field supplied refrigerant grade (ACR) copper

tubing that is internally clean and dry. Units should be

installed only with the tubing sizes for approved system

combinations as specified in tabular data sheet. The

charge given is applicable for total tubing lengths up to

15 ft (4.6 m). See Piping Application Guide (P/N 247077)

for installing tubing of longer lengths and elevation

differences.

NOTICE

Using a larger than specified line size could result in

oil return problems. Using too small a line will result

in loss of capacity and other problems caused by

insufficient refrigerant flow. Slope horizontal vapor

lines at least 1 in. (2.5 cm) every 20 ft (6.1 m) toward

the outdoor unit to facilitate proper oil return. If more

than the 80 ft line length is necessary, facilitate proper

refrigerant velocity with adjusted line diameter in

accordance with the Piping Application Guide (P/N

247077).

CAUTION

This system uses R-410A refrigerant which operates

at higher pressures than R-22. No other refrigerant

may be used in this system. Gauge sets, hoses,

refrigerant containers, and recovery system must be

designed to handle R-410A. If you are unsure, consult

the equipment manufacturer.

WARNING

Never install a suction-line filter drier in the liquid line

of an R-410A system. Failure to follow this warning

can cause a fire, injury or death.

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series 9

Johnson Controls Ducted Systems

Precautions during line installation

• Install the lines with as few bends as possible. Care

must be taken not to damage the couplings or kink

the tubing. Use clean hard drawn copper tubing

where no appreciable amount of bending around

obstruction is necessary. If soft copper must be

used, care must be taken to avoid sharp bends

which may cause a restriction.

• The lines should be installed so that they will not

obstruct service access to the coil, air handling

system, or filter.

• Care must also be taken to isolate the refrigerant

lines to minimize noise transmission from the

equipment to the structure.

• The vapor line must be insulated with a minimum

of 1/2 in. foam rubber insulation (Armaflex or

equivalent). Liquid lines that will be exposed to

direct sunlight, high temperatures, or excessive

humidity must also be insulated.

• Tape and suspend the refrigerant lines as shown. Do

not allow tube metal-to-metal contact. See Figure 3.

• Use PVC piping as a conduit for all underground

installations as shown in Figure 4. Buried lines

should be kept as short as possible to minimize the

build up of liquid refrigerant in the vapor line during

long periods of shutdown.

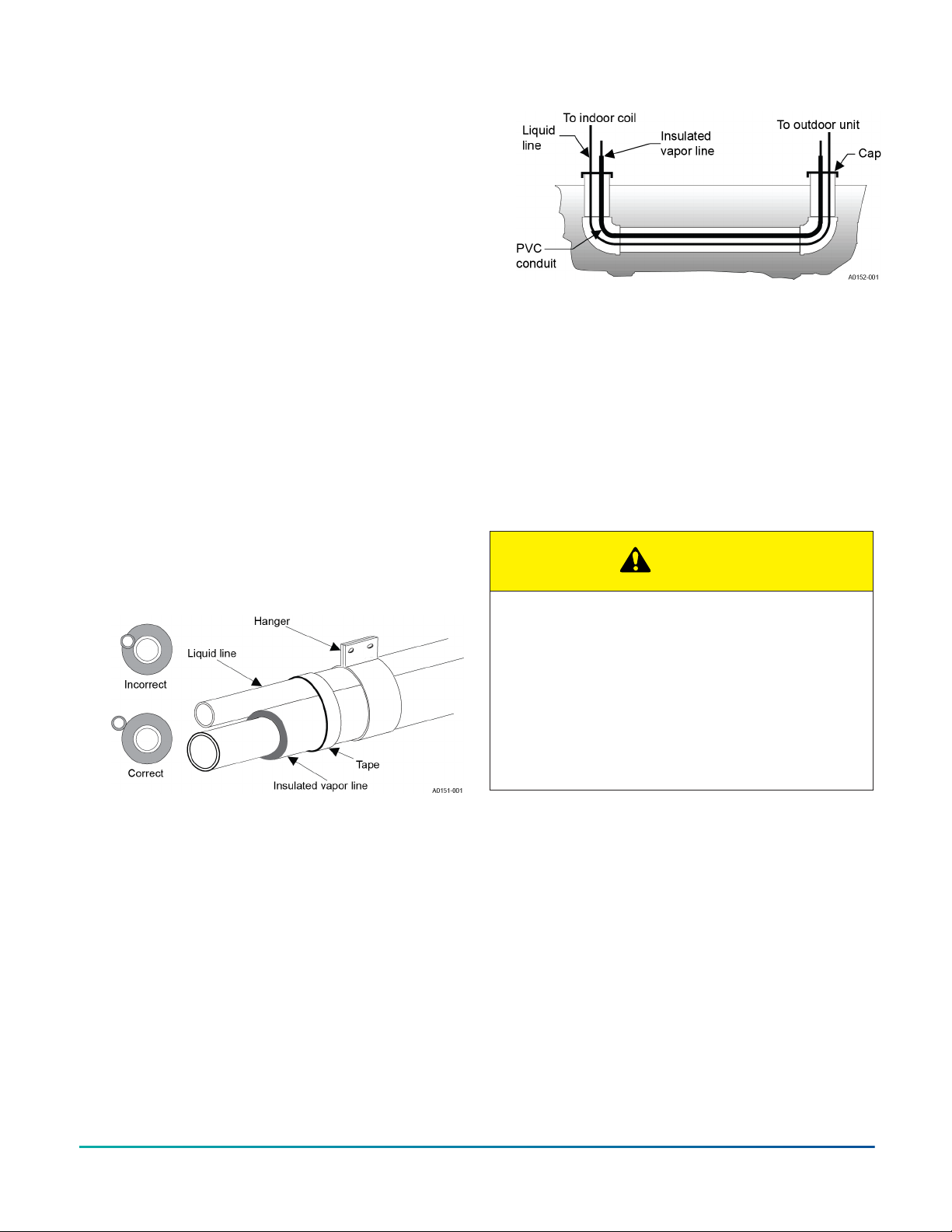

Figure 3: Installation of vapor line

• Pack fiberglass insulation and a sealing material

such as permagum around refrigerant lines where

they penetrate a wall to reduce vibration and to

retain some flexibility.

• For systems with total line length exceeding 80 ft

(22.86 m), refer to Piping Application Guide (P/N

247077) for vapor and liquid line sizing, calibration

of liquid line pressure loss or gain, determination

of vapor line velocity, elevation limitations, TXV

connections, system charging, traps, and crankcase

heater.

Figure 4: Underground installation

Precautions during brazing of lines

All outdoor unit and indoor coil connections are copper-

to-copper and should be brazed with a phosphorous-

copper alloy material such as Silfos-5 or equivalent. Do

not use soft solder. The outdoor units have reusable

service valves on both the liquid and vapor connections.

The total system refrigerant charge is retained within

the outdoor unit during shipping and installation. The

reusable service valves are provided to evacuate and

charge per this instruction.

Serious service problems can be avoided by taking

adequate precautions to assure an internally clean and

dry system.

CAUTION

Dry nitrogen should always be supplied through

the tubing while it is being brazed, because the

temperature required is high enough to cause

oxidation of the copper unless an inert atmosphere

is provided. The flow of dry nitrogen should continue

until the joint has cooled. Always use a pressure

regulator and safety valve to insure that only low

pressure dry nitrogen is introduced into the tubing.

Only a small flow is necessary to displace air and

prevent oxidation.

Precautions during brazing of service

valve

Precautions should be taken to prevent heat damage to

service valve by wrapping a wet rag around it as shown in

Figure 5. Also, protect all painted surfaces, insulation, and

plastic base during brazing. After brazing, cool joint with

wet rag.

R-410A Outdoor Split-System Heat Pump Installation Manual - YH2E / THE2 / RHP143 Series10

Johnson Controls Ducted Systems

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Johnson Controls Wärmepumpe Handbücher

Johnson Controls

Johnson Controls DHPM09NWM42Q1 Bedienungsanleitung

Johnson Controls

Johnson Controls BB-03 Bedienungsanleitung

Johnson Controls

Johnson Controls PCG4A30 Bedienungsanleitung

Johnson Controls

Johnson Controls Duct R-410A Bedienungsanleitung

Johnson Controls

Johnson Controls (H,Y)VAHP072(3,4)1CW Installations- und Betriebshandbuch

Johnson Controls

Johnson Controls JRC Series Betriebsanleitung

Johnson Controls

Johnson Controls YD360 Bedienungsanleitung

Johnson Controls

Johnson Controls SUNLINE 2000 BQ 060 Bedienungsanleitung

Johnson Controls

Johnson Controls RC Series Bedienungsanleitung

Johnson Controls

Johnson Controls HMH7 Series Bedienungsanleitung

Johnson Controls

Johnson Controls RJ H Series Betriebsanleitung

Johnson Controls

Johnson Controls UC Bedienungsanleitung

Johnson Controls

Johnson Controls 15 SEER - YZE / HC5B / HL5B SERIES Bedienungsanleitung

Johnson Controls

Johnson Controls VB09 Montage- und Bedienungsanleitung

Johnson Controls

Johnson Controls YHE Series Bedienungsanleitung

Johnson Controls

Johnson Controls DOAS Series Bedienungsanleitung

Johnson Controls

Johnson Controls York YH9FYH12BAH-A-X Bedienungsanleitung

Johnson Controls

Johnson Controls RHP150 Series Bedienungsanleitung

Johnson Controls

Johnson Controls YORK EUKC-09 AA Bedienungsanleitung

Johnson Controls

Johnson Controls PHE4 Series Bedienungsanleitung

Johnson Controls

Johnson Controls JE-Series Bedienungsanleitung

Johnson Controls

Johnson Controls RBS009 Bedienungsanleitung

Johnson Controls

Johnson Controls RL Series Betriebsanleitung

Johnson Controls

Johnson Controls XA Series Bedienungsanleitung

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
