Series TY-B — 57, 80, and 115 K-factor

Upright and Pendent Sprinklers

Special Response, Standard Coverage

Page 1 of 4 AUGUST 2018 TFP672

IMPORTANT

Refer to Technical Data Sheet

TFP2300 for warnings pertaining to

regulatory and health information.

Always refer to Technical Data

Sheet TFP700 for the “INSTALLER

WARNING” that provides cautions

with respect to handling and instal-

lation of sprinkler systems and com-

ponents. Improper handling and

installation can permanently damage

a sprinkler system or its compo-

nents and cause the sprinkler to fail

to operate in a ﬁre situation or cause

it to operate prematurely.

Worldwide

Contacts

www.tyco-ﬁre.com

General

Description

The Series TY-B, 57, 80, and 115 K-fac-

tor, Upright and Pendent Sprinklers

described in this data sheet are special

response - standard coverage, decora-

tive 4 mm glass bulb type spray sprin-

klers designed for use in accordance

with the installation rules recognized by

the applicable Approval agency (e.g.,

VdS).

NOTICE

The Series TY-B Sprinklers described

herein must be installed and main-

tained in compliance with this docu-

ment, as well as with the applicable

standards recognized by the Approval

agency, in addition to the standards of

any other authorities having jurisdiction.

Failure to do so may impair the perfor-

mance of these devices.

The owner is responsible for main-

taining their fire protection system

and devices in proper operating con-

dition. Contact the installing contrac-

tor or product manufacturer with any

questions.

Sprinkler

Identiﬁcation

Numbers (SINs)

TY2149 . . . . . . . . . . . . . . Upright 57K

TY2249 . . . . . . . . . . . . . Pendent 57K

TY3141 . . . . . . . . . . . . . . Upright 80K

TY3241 . . . . . . . . . . . . . Pendent 80K

TY4141 . . . . . . . . . . . . . Upright 115K

TY4241 . . . . . . . . . . . . .Pendent 115K

Technical

Data

Approvals

VdS Approved (CEA 4001)

Maximum Working Pressure

12,1 ba r

Discharge Coefﬁcient

K = 57 lpm/bar½

K = 80 lpm/bar½

K = 115 lpm/bar½

Temperature Ratings

57°C, 68°C, 79°C, 93°C, and 141°C

Finishes

Refer to Table A

Physical Characteristics

Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze

Button . . . . . . . . . . . . . . . . . . . . . . Brass/Copper

Sealing Assembly ..Beryllium Nickel w/TEFLON

Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass

Compression Screw . . . . . . . . . . . . . . . . .Bronze

Deﬂector . . . . . . . . . . . . . . . . . . . . . . . . . Copper

Operation

The glass bulb contains a ﬂuid which

expands when exposed to heat. When

the rated temperature is reached, the

ﬂuid expands sufﬁciently to shatter the

glass bulb, allowing the sprinkler to

activate and water to ﬂow.

TFP672

Page 2 of 4

PENDENTUPRIGHT

CROSS

SECTION

55 mm

WRENCH

FLATS

38 mm

10 mm

NOMINAL

MAKE-IN

53 mm

ISO

7 - R3/8

Temperature rating is

indicated on Deector

or adjacent to orice

seat on Frame.

Components:

Frame

Sealing

Assembly

Button

Deector

Compression

Screw

4 Bulb

* **

SECTION

CROSS

PENDENTUPRIGHT

56 mm

38 mm

11 mm

NOMINAL

MAKE-IN 1/2"

NPT

56 mm

WRENCH

FLATS

Bulb

Button

Frame

-4-

3 Sealing

Assembly

Compression

Screw

Deector6 -

Components:Pipe thread connections per

ISO 7-1 can be provided on

special request.

Temperature rating is

indicated on Deector

or adjacent to orice

seat on Frame.

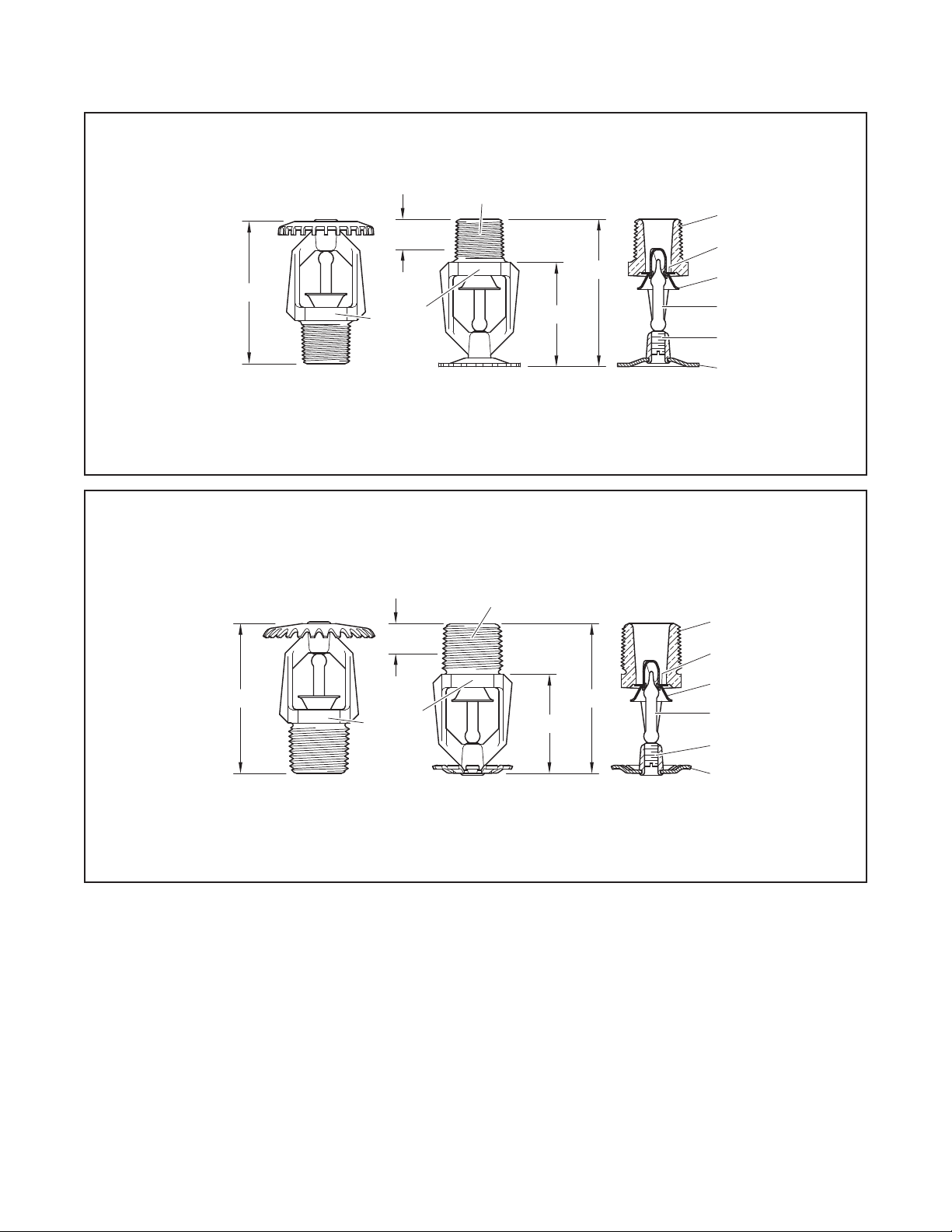

FIGURE 1

SPECIAL RESPONSE SERIES TY-B UPRIGHT (TY2149) AND PENDENT (TY2249) SPRINKLERS

57 K-FACTOR, ISO 7-1 R 3/8

FIGURE 2

SPECIAL RESPONSE SERIES TY-B UPRIGHT (TY3141) AND PENDENT (TY3241) SPRINKLERS

80 K-FACTOR, 1/2 INCH NPT

TFP672

Page 3 of 4

Installation

The Series TY-B Sprinklers must

be installed in accordance with this

section.

General Instructions

Do not install any bulb type sprinkler

if the bulb is cracked or there is a loss

of liquid from the bulb. With the sprin-

kler held horizontally, a small air bubble

should be present. The diameter of the

air bubble is approximately 1,6 mm for

the 57°C to 2,4 mm for the 141°C tem-

perature ratings.

A leak tight ISO 7-1 R 3/8 sprinkler

joint should be obtained with a torque

of 8 to 16 N∙m. A leak tight 1/2 in. NPT

sprinkler joint should be obtained with

a torque of 9 to 19 N∙m. A leak tight

3/4 in. NPT sprinkler joint should be

obtained with a torque of 13 to 27 N∙m.

Higher levels of torque may distort the

sprinkler inlet and cause leakage or

impairment of the sprinkler.

Do not attempt to make up for insuf-

ﬁcient adjustment in the escutcheon

plate by under- or over-tightening the

sprinkler. Readjust the position of the

sprinkler ﬁtting to suit.

The Series TY-B Pendent and Upright

Sprinklers must be installed in accor-

dance with the following instructions:

Step 1. Pendent sprinklers are to be

installed in the pendent position, and

upright sprinklers are to be installed in

the upright position.

Step 2. With pipe thread sealant

applied to the pipe threads, hand

tighten the sprinkler into the sprinkler

ﬁtting.

Step 3. Tighten the sprinkler into the

sprinkler ﬁtting using only the W-Type

6 Sprinkler Wrench (Ref. Figure 4) or

W-Type 7 Sprinkler Wrench (Ref. Figure

5). With reference to Figures 1, 2, and

3, the W-Type 6 or W-Type 7 Sprinkler

Wrench is to be applied to the wrench

ﬂats.

Care and

Maintenance

The Series TY-B Sprinklers must be

maintained and serviced in accordance

with this section.

Before closing a ﬁre protection system

main control valve for maintenance

work on the ﬁre protection system that

it controls, permission to shut down the

affected ﬁre protection system must be

obtained from the proper authorities

and all personnel who may be affected

by this action must be notiﬁed.

Sprinklers that are found to be leaking

or exhibiting visible signs of corrosion

must be replaced.

Automatic sprinklers must never be

painted, plated, coated or other-

wise altered after leaving the factory.

Modiﬁed sprinklers must be replaced.

Sprinklers that have been exposed to

corrosive products of combustion, but

have not operated, should be replaced

if they cannot be completely cleaned

by wiping the sprinkler with a cloth or

by brushing it with a soft bristle brush.

Care must be exercised to avoid

damage to the sprinklers before,

during, and after installation. Sprin-

klers damaged by dropping, striking,

* **

UPRIGHT PENDENT

CROSS

SECTION

59 mm

40 mm

3/4"

NPT

13 mm

NOMINAL

MAKE-IN

57 mm

WRENCH

FLATS

Pipe thread connections per

ISO 7-1 can be provided on

special request.

Bulb

Compression

Screw

Deector

Sealing

Assembly

Components:

1-Frame

Button

Temperature rating is

indicated on Deector

or adjacent to orice

seat on Frame.

WRENCH RECESS

(END "A" USED FOR

ISO 7 - R3/8 &

1/2" NPT MODELS)

WRENCH RECESS

(END "B" USED FOR

3/4" NPT MODELS)

RECESS

WRENCH

WITH SPRINKLER

ENGAGEMENT

IN TO ENSURE

WRENCHING AREA

PUSH WRENCH

FIGURE 4

W-T YPE 6

SPRINKLER WRENCH

FIGURE 3

SPECIAL RESPONSE SERIES TY-B UPRIGHT (TY4141) AND PENDENT (TY4241) SPRINKLERS

115 K-FACTOR, 3/4 INCH NPT

FIGURE 5

W-T YPE 7

SPRINKLER WRENCH

TFP672

Page 4 of 4

NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;

TEFLON is a registered trademark of DuPont

1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone +1-215-362-0700

* Eastern Hemisphere sales only

wrench twist/slippage, or the like, must

be replaced. Also, replace any sprinkler

that has a cracked bulb or that has lost

liquid from its bulb. Ref to the Installa-

tion section for more information.

The owner is responsible for the inspec-

tion, testing, and maintenance of their

ﬁre protection system and devices in

compliance with this document, as well

as with the applicable standards of the

NATIONAL FIRE PROTECTION ASSO-

CIATION (e.g., NFPA 25), in addition to

the standards of any other authorities

having jurisdiction. Contact the install-

ing contractor or product manufacturer

with any questions.

It is recommended that automatic

sprinkler systems be inspected, tested,

and maintained by a qualiﬁed Inspec-

tion Service in accordance with local

requirements and/or national codes.

Limited

Warranty

For warranty terms and conditions, visit

www.tyco-ﬁre.com

Ordering

Procedure

Contact your local distributor for avail-

ability. When placing an order, indicate

the full product name and Part Number

(P/N).

Sprinkler Assembly

Specify: (Specify) SIN, (specify) K-fac-

tor, Series TY-B (specify Pendent or

Upright) Sprinkler Special Response,

(specify) temperature rating, with

(specify) ﬁnish, P/N (specify from Table

Sprinkler Wrench

Specify: W-Type 6 Sprinkler Wrench,

P/N 56-000-6-387

Specify: W-Type 7 Sprinkler Wrench,

P/N 56-850-4-001

P/N 57 - XXX - X - XXX

SIN

480 57K UPRIGHT (ISO 7-1 R 3/8) TY2149

481 57K PENDENT (ISO 7-1 R 3/8 TY2249

470 80K UPRIGHT (1/2 in. NPT) TY3141

471 80K PENDENT (1/2 in. NPT) TY3241

490 115K UPRIGHT (3/4 in. NPT) TY4141

491 115K PENDNET (3/4 in. NPT) T Y4241

SPRINKLER

FINISH

1NATURAL BRASS

3PURE WHITE (RAL9010)*

POLYESTER

4SIGNAL WHITE (RAL9003)

POLYESTER

9CHROME PLATED

TEMPERATURE

RATING

135 57°C

155 68°C

175 79°C

200 93°C

286 141°C

TABLE A

SERIES TY-B SPECIAL RESPONSE PENDENT AND UPRIGHT SPRINKLERS

PART NUMBER SELECTION

Andere Handbücher für tyco TY-B Series

Dieses Handbuch passt für folgende Modelle

Andere Johnson Controls Bewässerungssystem Handbücher

Johnson Controls

Johnson Controls tyco CWS Bedienungsanleitung

Johnson Controls

Johnson Controls tyco TY4334 Bedienungs- und Wartungsanleitung

Johnson Controls

Johnson Controls tyco LD Bedienungsanleitung

Johnson Controls

Johnson Controls tyco TY3334 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco EC-25 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-34 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco TY-FRL Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco CHEC Bedienungsanleitung

Johnson Controls

Johnson Controls Tyco TY720 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco RFII Series Bedienungsanleitung

Johnson Controls

Johnson Controls SABROE SVER Bedienungsanleitung

Johnson Controls

Johnson Controls TY5811 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco RFII Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco CC1 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-25 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco CC3 Bedienungsanleitung

Johnson Controls

Johnson Controls SABROE NS-HPAC Bedienungsanleitung

Johnson Controls

Johnson Controls tyco RAPID RESPONSE LFII Series Bedienungsanleitung

Johnson Controls

Johnson Controls tyco TY2335 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco RFII Bedienungsanleitung

Johnson Controls

Johnson Controls tyco ESFR-17 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco AQUAMIST ULF AM28 Bedienungsanleitung

Johnson Controls

Johnson Controls tyco AQUAMIST IFP Bedienungsanleitung

Johnson Controls

Johnson Controls tyco TY2234 Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken

Hunter

Hunter Institutional Series Bedienungsanleitung

Cellfast

Cellfast 52-305 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product CENTRAL A Bedienungsanleitung

Oral Care Technologies

Oral Care Technologies Hydro Floss Bedienungsanleitung

Reliable

Reliable F1-300 Bedienungsanleitung

Tyco Fire Product

Tyco Fire Product Gem F892 Bedienungsanleitung

Netafim

Netafim NETBEAT Bedienungsanleitung

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Bedienungsanleitung

Tyco

Tyco CC3 Bedienungsanleitung

Reliable

Reliable F4FR Bedienungsanleitung

OpenSprinkler

OpenSprinkler OSPi Bedienungsanleitung

EINHELL

EINHELL GE-WW 5537 E Bedienungsanleitung

Valley

Valley Bender160 Bedienungsanleitung

Reliable

Reliable F1FR42 Series Bedienungsanleitung

Reliable

Reliable F1FR-300 Bedienungsanleitung

Toro

Toro 730 Series Kurzanleitung

Eden

Eden 97063-EDAMZ Bedienungsanleitung

Johnson Controls tyco TY-B Series Bedienungsanleitung

Beliebte Bewässerungssystem Handbücher anderer Marken
