Fire Initiating Devices and Notification Appliances Technical Manual 408

Conventional Products Section

Technical Bulletin

Issue Date 1095

Code No. LIT-408140

Introduction Page 3

●

General Description 4

Installation Procedures 7

●

General Information 7

●

Mounting 7

●

Spacing 8

●

Wiring Installation Guidelines 8

●

Installation 10

●

Tamper-Proof Feature 10

Testing and Maintenance Procedures 11

●

Testing 11

●

Maintenance 13

●

Limitations 15

2400 and 2400TH Direct 2-Wire Smoke Detectors

2 Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors

Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors 3

Introduction

This document contains important information about installing and

operating 2400 and 2400TH direct wire smoke detectors. These

conventional detectors are manufactured by System Sensor for use with

Johnson Controls systems. If you install this detector for someone else to

use, you must leave a copy of this document with the user.

These instructions provide information regarding mounting, spacing,

wiring, installation, testing, and maintenance. Follow only those

instructions that apply to the model you are installing.

Before you install any 2400 and 2400TH direct wire smoke detectors, read

and be familiar with:

●The Guide for Proper Use of System Smoke Detectors Technical

Bulletin in the Fire Initiating Devices and Notification Appliances

Technical Manual (FAN 408) that provides detailed information on

detector spacing, placement, zoning, wiring, and special applications

●or, for non-United States installations, applicable codes and standards

specific to the country and locality of installation.

Failure to follow these directions may result in failure of this device to

report an alarm or trouble condition or respond properly to an alarm

condition. Johnson Controls is not responsible for devices that have been

improperly installed, tested, or maintained by others.

4 Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors

The 2400 photoelectronic detectors use state-of-the-art, optical sensing

chambers. These detectors are designed to provide open area protection,

and are intended for use with compatible UL Listed 2-wire control panels

only. The detector’s operation and sensitivity can be tested in place.

Model 2400TH has the same specifications as model 2400, but also

features a restorable, built-in, fixed temperature (135°F) heat

detection unit.

These detectors are listed to UL 268 and are latching type system

detectors. When latched in alarm, the detectors must be reset by a

momentary power interruption.

A Light Emitting Diode (LED) on the detector provides a local indication

of the detector’s status. This LED blinks every ten seconds when the

detector is receiving power and ready in standby, and is latched on

continuously in alarm until the detector is reset. The detector provides an

output for connection to an optional remote annunciator (model RA400Z).

The remote annunciator mounts to a single gang box and provides a

supplementary alarm indication.

Table 1: 2400 Series Direct Wire Smoke Detectors

Model Control Description Operating Current Consumption

Panel Voltage Standby

(Min) Alarm

(Max)

2400 2-wire Photo Detector 12/24 VDC 120 µA --

2400TH 2-wire Photo Detector with Fixed

Heat Sensor 12/24 VDC 120 µA --

2400AT 2-wire Photo Detector with Fixed

Heat Sensor and Horn 24 VDC 120 µA 67 mA

2400AIT 2-wire Photo Detector with

Isolated Heat Sensor 24 VDC 120 µA 67 mA

2412AT 4-wire Photo Detector with Fixed

Heat Sensor and Horn 24 VDC 120 µA 51 mA

2424AT 4-wire Photo Detector with Fixed

Heat Sensor and Horn 24 VDC 120 µA 43 mA

2424AIT 4-wire Photo Detector with

Isolated Heat Sensor and

Horn

24 VDC 120 µA 43 mA

General

Description

Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors 5

Table 2: Specifications Summary

Specifications

Diameter 5.5 in. (140 mm)

Height 3.14 in. (80 mm)

Add 0.5 in. (13 mm) for all models with a

“T” suffix (i.e., 2400TH)

Weight 0.7 lb (318 g)

Operating Temperature Range Model 2400--0 to 49°C (32 to 120°F)

Model 2400TH--0 to 38°C (32 to 100°F)

Operating Humidity Range 10 to 93% RH, Non-condensing

Maximum Air Velocity 3,000 ft/min. (15m/s)

Locking Alarm Reset by momentary power interruption

Fixed Temperature Head Detector 135°F (57°C)

Electrical Ratings

System Voltage 12/24 VDC

Maximum Ripple Voltage 4 volts Peak-to-Peak

Startup Capacitance 0.02

F Maximum

Standby Ratings 8.5 VDC Minimum

35 VDC Maximum

120

A Maximum

Alarm Ratings 4.2 VDC Minimum at 10 mA

6.6 VDC Maximum at 100 mA

Alarm current must be limited to 100 mA

maximum by the control panel. If used, the

RA400Z Remote Annunciator operates

within the specified detector alarm currents.

Detector Sensitivity Setting 3.0 ± 0.7 %/ft. obstruction

Reset Voltage 2.5 VDC Minimum

Reset Time 0.3 Sec. Maximum

Startup Time 34 Sec. Maximum

6 Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors

Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors 7

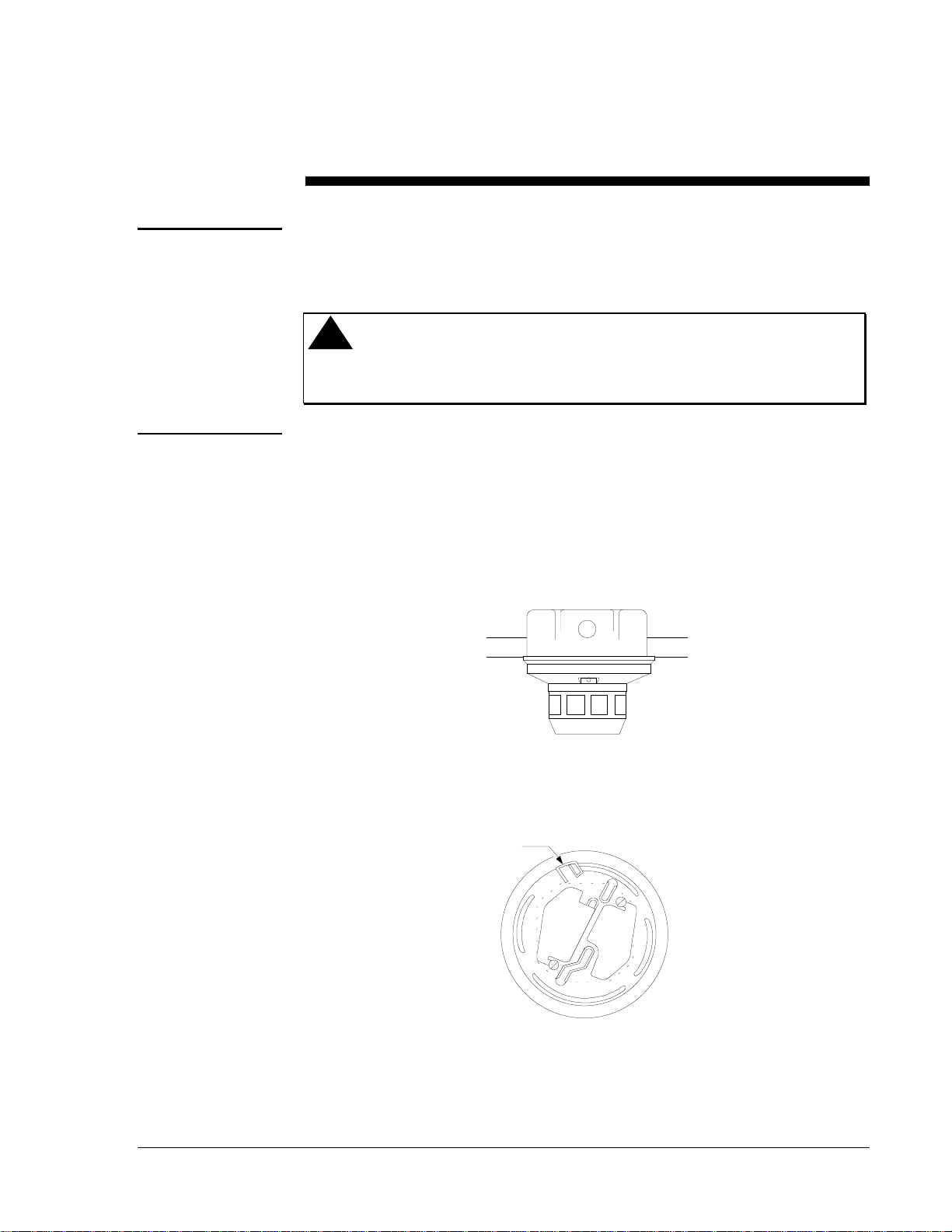

Installation Procedures

This section contains installation information for 2400 and 2400TH direct

wire smoke detectors. Instructions are given for mounting the detector,

and basic wiring information is provided.

CAUTION: Equipment hazard. Do not use in potentially

explosive atmospheres. Do not leave unused

wires exposed.

Each 2400 series detector is supplied with a mounting bracket kit that

permits the detector to be mounted in either of two ways:

●directly to 3-1/2 inch or 4 inch octagonal box, 1-1/2 inch deep

electrical box (Figure 1)

●to a 4 inch square electrical box using the plaster ring with the

supplied mounting bracket kit

flmount2

Figure 1: Flush Mounting of 2400TH Smoke Detector

on 3-1/2 Inch and 4 Inch Octagonal Box

Tamper

Resistant Tab

mountbrk

To make detector tamper-proof,

break off tab extension at scribed line.

Figure 2: 2400 Smoke Detector Mounting Bracket

General

Information

Mounting

8 Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors

NFPA-72-National Fire Alarm Code defines the spacing requirements for

smoke detectors. Typically, this is 30 feet when the detectors are

installed on a smooth ceiling. However, all installations must comply

NFPA-72-National Fire Alarm Code and/or special requirements of the

authority having jurisdiction.

All wiring must be installed in compliance with the National Electrical

Code, all applicable local codes, and any special requirements of the local

authority having jurisdiction. Proper wire gauges should be used. The

conductors used to connect smoke detectors to control panels and

accessory devices should be color-coded to reduce the likelihood of wiring

errors. Improper connections can prevent a system from responding

properly in the event of a fire.

For Initiating Device Circuit (IDC) wiring (the wiring between

interconnected detectors as well as the control panel), it is recommended

that the wire be no smaller than No. 18 American Wire Gauge (AWG)

(1.0 square mm). However, the screws and clamping plate in the base can

accommodate wire sizes up to No. 12 AWG (3.3 square mm). The use of

twisted pair wiring for the detection/power (+ and -) wires is

recommended to minimize the effects of electrical interference.

Smoke detectors and alarm system control panels have specifications for

allowable IDC resistance. Consult the control panel manufacturer’s

specifications for the total IDC resistance allowed for the control panel

being used before wiring the detector IDCs.

To make wire connections:

1. Strip about 3/8 inch of insulation from the end of the wire.

2. Slide the bare end of the wire under the clamping plate.

3. Tighten the clamping plate screw.

Please note carefully the wiring diagram for a typical 2-wire detector

system shown in Figure 3.

Spacing

Wiring

Installation

Guidelines

Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors 9

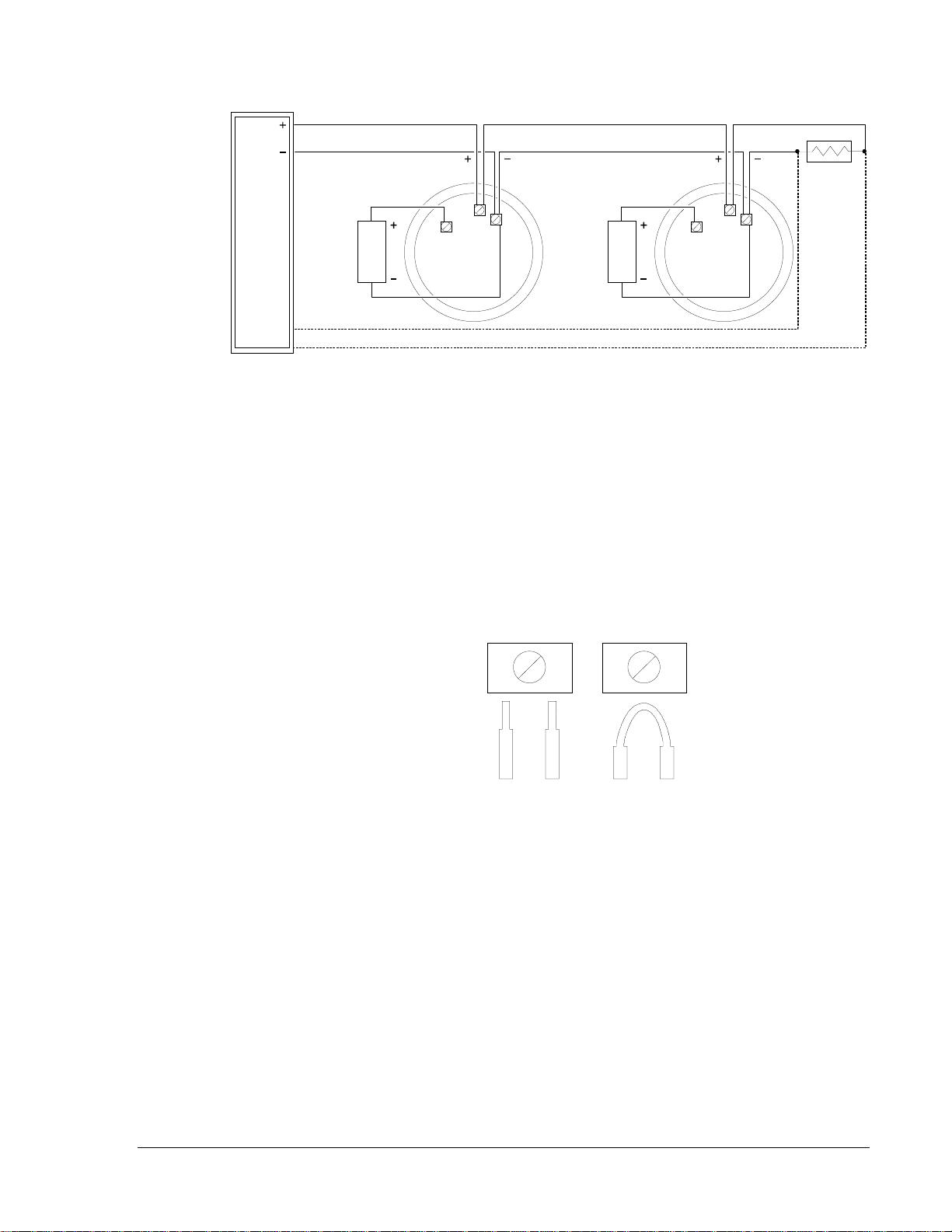

Figure 3: Wiring Diagram for the 2400 Smoke Detector Used

with a 2-Wire Control Panel

The detectors are marked with a compatibility identifier located as the last

digit of a five-digit code stamped on the back of the product. Connect

detectors only to compatible control units as indicated in the Device

Compatibility Technical Bulletin in the Fire Management Accessories

Manual (FAN 445).

Note: For system supervision, do not loop wire under Terminals 1 and 2.

This NotThis

wirguide

Figure 4: Electrical Connections

Note: If remote annunciator is not used, polarity to the detector may be

reversed.

Remote

Annunciator

smkwire

Initiatin

Loop

UL Listed

Control

Panel

Remote

Annunciator

Class A Optional Wirin

Note: If remote annunciator is not used, polarit

to detector ma

be reversed.

End-of-Line

(

EOL

)

Resistor

10 Conventional Products—2400 and 2400TH Direct 2-Wire Smoke Detectors

WARNING: Shock hazard. Disable the power IDCs before

installing detectors.

1. Wire each detector following installation guidelines.

2. Line up arrows on the detector with arrows on the mounting bracket.

3. Turn the detector clockwise until it clicks into place.

4. Enable the tamper-proof feature. For instructions see the

Tamper-Proof Feature section of this technical bulletin.

5. After all detectors have been installed, apply power to the control unit.

6. Test the detector as described in the Testing section of this

technical bulletin.

7. Reset the detector at the system control panel.

8. Notify the proper authorities that the system is in operation.

Dust covers can be used to help limit dust entry to the detector. However,

these covers are not a substitute for removing the detector during building

construction. Remove any dust covers before placing the system in

service.

This detector includes a tamper-proof feature that prevents removal of the

detector without the use of a tool.

To make the detector tamper-proof:

1. Break off the smaller tab at the scribed line on the tamper-proof tab on

the detector mounting bracket (Figure 2).

2. Install the detector.

To remove the detector from the bracket once it has been made

tamper-proof:

1. Use a small screwdriver to depress the tamper-proof tab located in the

slot on the mounting bracket.

2. Turn the detector counterclockwise for removal.

The tamper-proof feature may be defeated by breaking and removing

the plastic lever from the base. However, this prevents using the

feature again.

Installation

Limiting

Exposure to Dust

Tamper-Proof

Feature

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Johnson Controls Rauchmelder Handbücher

Johnson Controls

Johnson Controls METASYS B501BHJ Bedienungsanleitung

Johnson Controls

Johnson Controls METASYS DH500 Series Bedienungsanleitung

Johnson Controls

Johnson Controls DH300PL Bedienungsanleitung

Johnson Controls

Johnson Controls IR6003/7 Bedienungsanleitung

Johnson Controls

Johnson Controls 2951JR Bedienungsanleitung

Johnson Controls

Johnson Controls DH300RPL Bedienungsanleitung

Beliebte Rauchmelder Handbücher anderer Marken

x-sense

x-sense SD19-W Bedienungsanleitung

BRK electronic

BRK electronic First Alert P1010 Bedienungsanleitung

FireAngel

FireAngel Thermoptek ST-622 Bedienungsanleitung

teko

teko Astra-42A Bedienungsanleitung

Safetec

Safetec SDS-2/6 Betriebsanleitung

Siemens

Siemens PE-11C Bedienungsanleitung

System Sensor

System Sensor DH500ACDC Bedienungsanleitung

Resolution Products

Resolution Products RE612 CryptiX Bedienungsanleitung

First Alert

First Alert PC900V Bedienungsanleitung

Eminent

Eminent EM6590 E-Domotica Bedienungsanleitung

Ei Electronics

Ei Electronics Ei Ei168RC Bedienungsanleitung

Carrier

Carrier Kidde Quell Q301 Bedienungsanleitung

VESDA

VESDA VLF-500 Bedienungsanleitung

ELRO

ELRO FS8110 Bedienungsanleitung

Heiman

Heiman SMOKI NS-626PHS Bedienungsanleitung

Regin

Regin SDD-S65 Bedienungsanleitung

Family Gard

Family Gard FG225 Bedienungsanleitung

Greystone

Greystone DSD120 Bedienungsanleitung
