SL600AC SLIDING GATE OPERATOR

1. Products introduction

Please read the instructions carefully before proceeding.

MCU is supplied to control the gate operator.

Keypad / single button interface.

Have Infrared safety sensor interface.

Soft start and soft stop function and the soft stop width are

adjustable, and the soft start function can be disabled.

Working time is adjustable.

Motor output torque is adjustable.

Manual key release designed for emergency purposes.

2. Important safety information

Carefully read and follow all safety precautions and warning before

attempting to install and use this automatic gate operator.

zThe gate operator should be installed by a qualified technician;

otherwise, serious personal injury or property damage may

occur.

zWhen opening or closing the gate, do not attempt to walk or

drive through the gate.

zIf enable the auto-close function, must use the infrared sensor.

zChildren should not be allowed to play near or operate automatic

gates.

zThe automatic gate operator must be grounded.

zInstall the gate operator on the inside of the property; DO NOT

install it on the outside of the property where the public has

SL600AC SLIDING GATE OPERATOR

access to it.

zBe careful when in close proximity to moving parts where hands

or fingers could be pinched.

zDo not allow control devices to be placed so that a person can

access them by reaching through the gate.

zIn the event of power failure, an emergency release key allows

you to operate the gate manually.

zThe operator should be switched off before repairing it or

opening its cover.

zPlease erase and reprogram the transmitter code after installing

the operator.

Make sure the Power supply (AC220V or AC110V) of the gate

operator is suitable for the power supply in your area.

3. Main technical parameters

Type SL600AC SL600ACU

Power supply 220V, 50Hz 110V, 60Hz

Motor speed 55rpm 66rpm

Rated output power of motor 180W

Remote control operating

distance 30m (Frequency:433.92mHz)

Remote control mode Single button

Output shaft height 48.5mm

SL600AC SLIDING GATE OPERATOR

Max. gate weight 600Kg

Output torque 14N·m

Limit switch Magnetic limit switch

Noise ≤56dB

Duty cycle S2, 15 minutes

extra remote control 20

Environmental temperature -20°C~+50°C

Gate Move speed 12m/min 14m/min

4. Mechanical Installation

The SL600AC will handle gate weighting up to 600kg and up to

8m/12m if the proper installation procedures have been followed.

The SL600AC gate operator operates by forcing a drive rack by a

drive gear. The entire configuration is shown in the diagram below.

The gate operator must be installed on the inside of the gate.

Sliding gate

Wall

Switch

Gate operator

Input power

Rack

Fig.1

SL600AC SLIDING GATE OPERATOR

Gate preparation

Be sure the gate is properly installed and slides smoothly before

installing the SL600AC sliding gate operator. The gate must be plumb,

level, and move freely.

Conduit

In order to protect the cable, use PVC conduit for low voltage power

cable and control wires. Conduit must be preset into the concrete

when it is poured. Wires within the conduit shall be located or

protected so that no damage can result from contact with any rough

or sharp part.

Concrete pad

The base unit of the gate operator requires a concrete pad in order to

maintain proper stability. The concrete pad should be approximately

450mm x 300mm x 200mm deep in order to providing for adequate

weight and structure to insure proper stable installation.

Anchors (see Fig.2)

You can use anchor bolts, anchors, washers and nuts. These

anchors must be set into the concrete when it is poured or you can

use wedge anchors to fasten the operator.

Gate operator

Gear

Groundsill

Input power

Plain washer

Nut

Spring washer

Nut

SL600AC SLIDING GATE OPERATOR

Gate operator

Gear

Groundsill

Input power

Plain washer

Nut

Spring washer

Nut

Fig.2

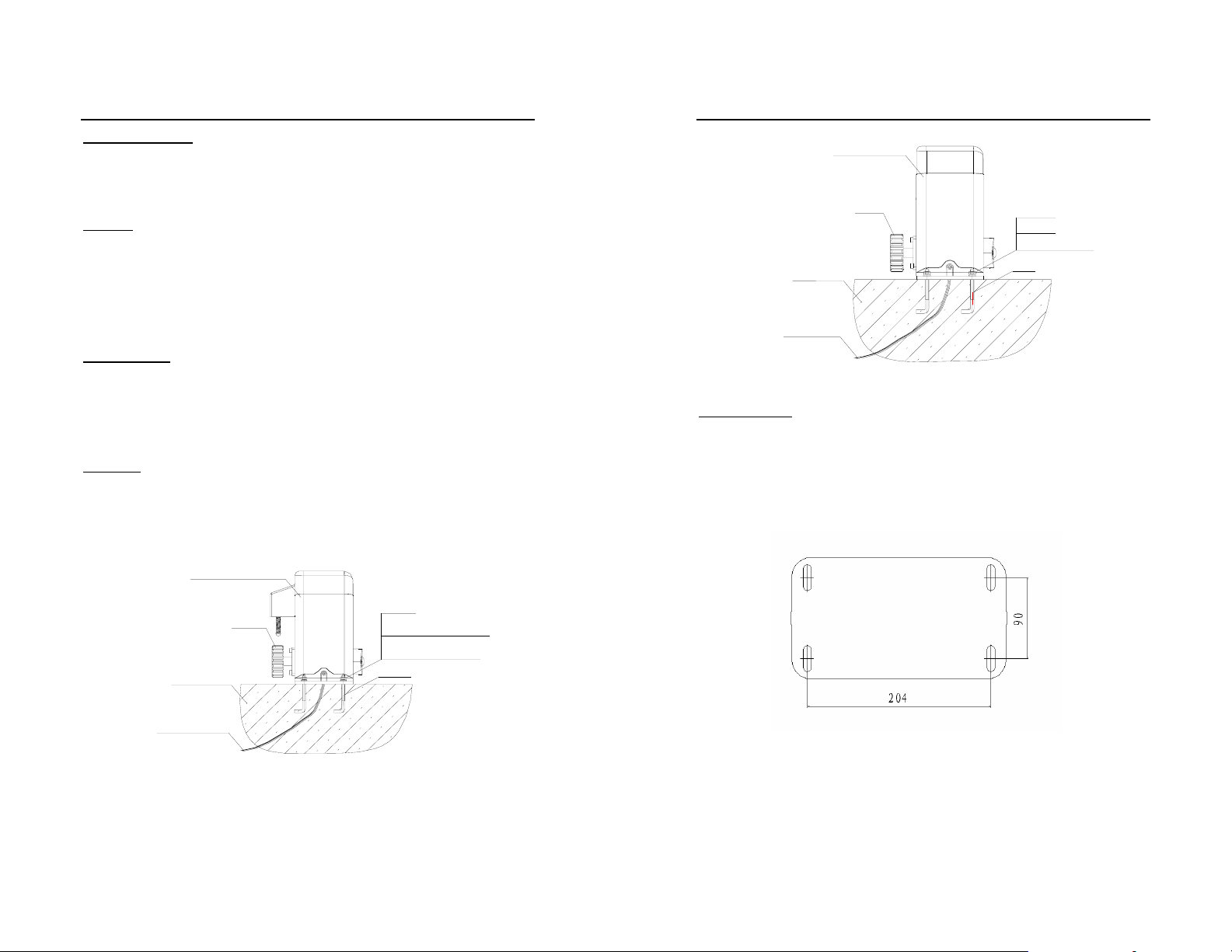

Operator base (see Fig.3)

After the concrete has hardened, mount the gate operator base to the

concrete pad. Verify that the base is properly leveled.

Using bolts and washers mount the gate operator to the base and

insert the cover. Check the operator and make sure it is lined up with

the gate.

Fig.3

SL600AC SLIDING GATE OPERATOR

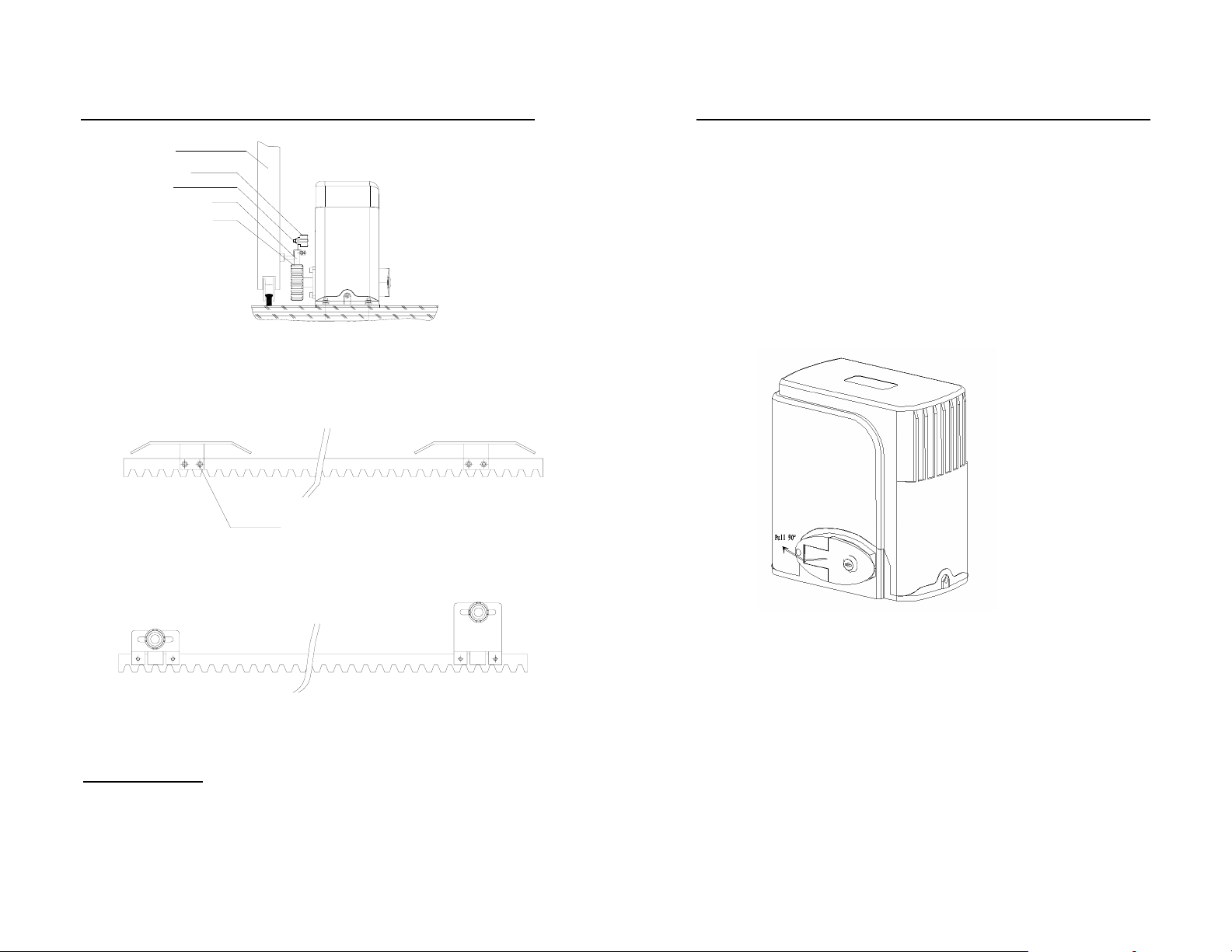

Installation of Rack

zFix the three nuts (in the same package with rack) on the rack

element.

zLay the first piece of rack on the gear and weld the first nut on the

gate.

zMove the gate manually, checking if the rack is resting on the

gear, and weld the second and third nut.

zBring another rack element near to the previous one. Move the

gate manually and weld the three nuts as the first rack, thus

proceeding until the gate is fully covered.

zWhen the rack has been installed, to ensure it meshes correctly

with the gear.

zThe space between rack and gear is about 0.5mm.

Fig.4

5. Adjustment

Spring limit switch

zTo ensure safety, it is recommended to install limit switches at

both ends of the gate to prevent the gate from sliding out of the

rails. The rails must be installed horizontally.

zInstall the limit block as shown in Fig.5 and Fig.6. The spring limit

switch and blocks are used to control the position of the gate.

SL600AC SLIDING GATE OPERATOR

zRelease the gear with the key and push the sliding gate manually

to pre-determine the position, fix the block to the rack and lock

the gear by push up the release bar. Moving the gate electrically,

adjust the block to the proper position until the position of the

opening and closing meet the requirement.

Magnetic limit switch

zTo ensure safety, it is recommended to install limit switches at

both ends of the gate to prevent the gate from sliding out of the

rails. The rails must be installed horizontally.

zInstall the limit block as shown in Fig.5 and Fig.6. The magnetic

of limit switch and blocks are used to control the position of the

gate.

zRelease the gear with the key and push the sliding gate manually

to pre-determine the position, fix the block to the rack and lock

the gear by push up the release bar. Moving the gate electrically,

adjust the block to the proper position until the position of the

opening and closing meet the requirement.

Spring limit switch

Gear

Sliding gate

Rack

limit block

Spring of limit switch

SL600AC SLIDING GATE OPERATOR

Gear

Sliding gate

Rack

imit block

Magnetic

Magnetic limit switch

Fig.5

M6X10

Spring limit switch

Magnetic limit switch

Fig.6

Manual operation

In case of power failure use key unlock the lock and pull down the

SL600AC SLIDING GATE OPERATOR

release bar about 90 degree to open or close gate manually, use the

release key as follow:

zFit the supplied key in the lock.

zTurn the key and pull down the release bar about 90°to release

the gear. (Note: Do not exceed 90°, be careful not to use too

much force, otherwise the release bar will be damaged.)

zOpen and close the gate manually.

Note: If the gate bumps the mounting post and cannot be electric

opened, move the gate a few inches by hand, thus you can release

the gate with the key, open and close the gate manually.

Fig. 7

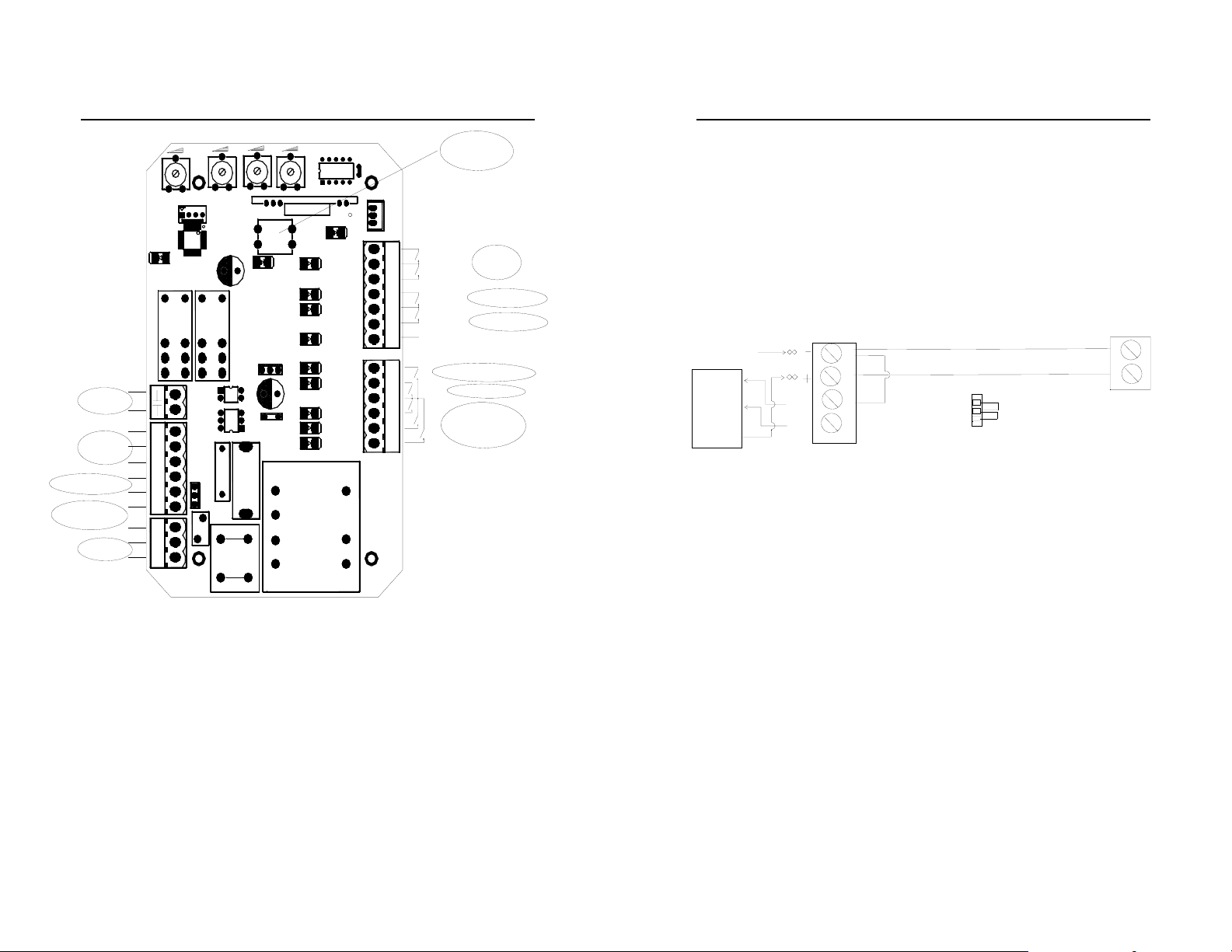

6. Wire Connecting

Make sure that the power is OFF before making any electrical

connections.

Remove the cover, perform the wiring (See Fig.8 and wiring notes for

control board) and replace the cover again.

SL600AC SLIDING GATE OPERATOR

OFF

N L N

SPEED GND VCC

CAP

MOT2

MOT1

COM

MOT

812

123

LAMP

PE L

SW1

RL2

RL1

VR2

VR1

65 10

1312

OC2

OC1

C20

C19

C22

POWER

LEARN

VR4

VR3

VDR1

HALL

J5 X1

POWER

MOTOR

Caution light

Protect Earth

Capacitor

Extral button

switch

O/S/C switch

Pedestrian switch

Infared sensor

Loop detector

Limit

swtich

+12VDC

GND/COM

COM

Learn button

Open limit

Close limit

Fig.8

Wiring notes of control board

a. Power Input (terminal J3): PE (Earth),L (Live),N (Neutral).

SL600AC: AC220V

SL600ACU:AC110V

b. Caution light: connect caution light wire to L and N of

LAMP(terminal J4)

SL600AC: AC220V

SL600AC SLIDING GATE OPERATOR

SL600ACU: AC110V

c. Output power supply: 12VDC(7 of J5), COM (9 of J5), I.R. (8 of

J5 is N.C Infrared)

If the infrared beam is interrupted during closing, the gate will reverse

and open immediately. The product is not factory equipped with an

infrared device; the infrared output signal must be N.C.

From four-terminal

to the receiver

COM

OUT

RX Receiver connecting

JUMP

NC OR NO

Form two-terminal to the emitter

12--24V AC/ DC

TX Emitter connecting

power supply

Control board

Terminal J5

Fig.9 infrared Schematic diagram

d. Three-button switch / single-button switch (keypad): The

SL600AC is equipped with interfaces for three-button switch and

single-button switch (keypad).

To install the keypad attach one lead of your keypad to ‘5’ of

terminal J2 and the other to the ‘4(COM)’. The keypad will

function in single channel mode.

For three-button switch installation, use the terminals for

multi-channel mode. Connect open wire of external button switch

to ‘1 (OPEN)’ of terminal J2, connect close wire of switch to ‘2

(CLOSE)’, connect stop wire of switch to ‘3(STOP)’, connect

common wire of switch to ‘4(COM)’.

SL600AC SLIDING GATE OPERATOR

Com

Stop

Open

Three-button

switch

terminal J2

Keypad

Control boardControl board

Single-button

switch

or keypad

terminal J2

Fig.10A

e. Pedestrian switch

Connect pedestrian switch wire to 4 and 6 terminal of J2. press

the switch the door will open 1 meter when the door is closed.

terminal J2 Switch

Control board

terminal block

Pedestrian

switch

Fig.10B

Motor and capacitor (Terminal J2, J4): MOT COM (com), MOT1

(Positive direction), MOT2 (Opposite direction), PE (Protect Earth), C

and C (capacitor). If the door move direction is wrong, please

change the MOT1 and MOT2 of motor, and change the block of

SL600AC SLIDING GATE OPERATOR

limit (Magnetic limit switch).

Motor

Mot1

Mot2

Mot

COM

Control

board

Terminal J6

Capacitor

Control board

terminal block

terminal J4

Fig.11

f. Loop detector interface

Connect wire see the Fig.11A

terminal J2

LOOP

Control board

terminal block

Loop

detector

output

Fig.11A

The car through the loop the door will close itself when the door opened.

The car arrived the loop the door will reverse when the door closing, and

the door will auto closed after the car through the loop.

If the car stops on the loop the door can’t close.

SL600AC SLIDING GATE OPERATOR

7. Tuning and operation

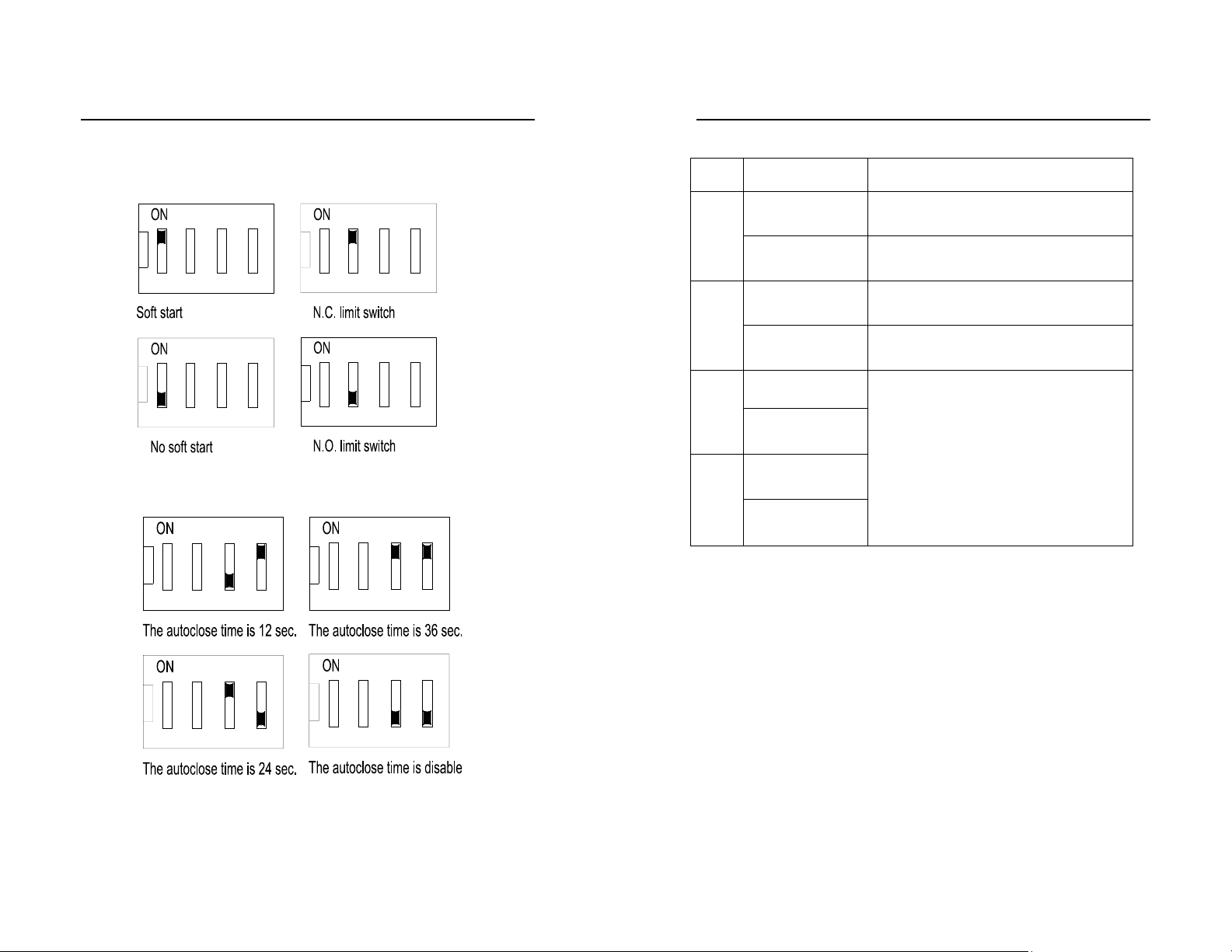

a. Adjust the Adjustable resistance (see Fig.8)

VR1: For motor working total time adjustment.

Clockwise rotation to increase, counter-clockwise rotation to reduce.

The total time can be set to 10 seconds as minimum and 90 second

s as maximum.

VR2: For brake force adjustment in limit position.

Clockwise rotation to increase, counter-clockwise rotation to reduce.

Rotate to minimum to cancel brake function in place.

VR3: For slow stop width adjustment.

Clockwise rotation to increase, counter-clockwise rotation to reduce.

VR4: For motor output force adjustment to keep safe usage.

Clockwise rotation to increase, counter-clockwise rotation to reduce.

Warning:

Motor force can not be set too large, just drive the door is ok.

Remote control

zThe remote control works in a single channel mode. It has four

buttons. See Fig.12 Remote transmitter. The function of button

1, button 2、button3 are the same and button 4 is pedestrian

mode. With each press of the remote control button (1, 2 and 3)

which has been programmed, the gate will close, stop, open or

stop cycle.

SL600AC SLIDING GATE OPERATOR

Remote Pedestrian button: After you learn the transmitter, you

press the remote button 4 the door will open 1 meter when the

door is closed.

zYou can program/learn button 1, button 2, and button 3

individually. If you learn button1, the button 1 and button 4 are

enable, if you learn button 2 too, the button 2 and button 4 are

enable, the button 1 is disable.

Button 1

Button 2

Button 3

Button 4

Fig.12 Remote transmitter

zAdding extra remote controls (Learn):Remove the cover, press

and hold the learn button ‘S1’ (Fig.8) more than 2 seconds, then

the ‘LED of LEARN’ (Fig.8) will be on, then press the remote

control button which you want to use, the ‘LED’ will turn on about

2 seconds and then turn off again. The learning process is

finished.

Up to 25 remote controls may be used.

zErase remote controls: To erase all existing remote controls,

press and hold learn button ‘S1’, the LED of ‘LEARN’ will turns

on, release the button until the LED turns off. This indicates

that all the remote controls have been erased completely, if you

change another manufactory code transmitter must erase first.

zVerify open direction: If the gate does not move in the desired

direction, then you will need to reverse the motor operating

direction, open the black plastic cover, you can do this by

exchanging wires ‘MOT1’ and ‘MOT2’, ‘Open limit(13 of J5)’ and

‘Close limit(11 of J5)’.

SL600AC SLIDING GATE OPERATOR

8. Programming Process

Adjust the DIP switch（see Fig13B and table 1）

1 2 3 4 1 2 3 4

Fig.13A Fig.13B

1 2 3 4

Fig. 13C Fig. 13D

SL600AC SLIDING GATE OPERATOR

Table 1: DIP switch adjust

DIP DIP-switch Function SET

(see Fig.13A) No soft start mode

1 OFF

(see Fig.13A)

Soft start mode(need to power on

reset).

(see Fig.13B) N.C. limit switch(spring limit)

2 OFF

N.O. limit switch(magnetic limit)

3 OFF

(see Fig.13C)

4 OFF

(see Fig.13D)

When the 3 and 4 all OFF, the

Auto-close function is disable. When

the 3 OFF and the 4 is ON, auto-close

time is near 12 Sec. when the 3 ON

and the 4 is OFF auto-close time is

near 24 sec. when the 3 and the 4 is

all in ON position, the auto-close time

is near 36 sec.

NOTE:

(1) You must follow the operating instruction as above, any

wrong operation is not allowed during setting. If your device

responds to your requested function correctly, you have set

the function successfully, otherwise repeat the above setup

instruction until your device responds to your expected

function.

(2) If the gate can not be moved, please check whether the gate

is obstructed or the gate is too weight.

Activities Covered in this section

zRemote transmitter: With each press of the button, the gate will

close, stop, open or stop cycle. (Single-button mode)

SL600AC SLIDING GATE OPERATOR

zThree-button mode external button switch (not supply):

press ‘OPEN’ button, the gate opens. Press ‘STOP’ button, the

gate stops. Press ‘CLOSE’ button, the gate closes.

zSingle-button mode external button switch / keypad (not

supply): With each press of the button, the gate will close, stop,

open or stop cycle.

zAuto-close function: This feature can be selected to make the

gate stay open for some seconds before it automatically closes.

The auto-close time can be adjusted to between 12, 24 and 36

seconds.

zSafe guard (Infrared photocell): If infrared beam is interrupted

during closing, the gate will reverse and go open immediately.

This feature will not function if the gate is in fully opened and

closed positions or during opening.

zOpen priority: The gate will return to open if press ‘OPEN’

button of external button switch during closing.

zLimit switch: The switch is used to accurately stop the gate in

the opened and closed positions.

If the gate stops at opened position when the limit switch is

reached, the gate will not move if you press ‘OPEN’ button.

If the gate stops at closed position when the limit switch is

reached, the gate will not move if you press ‘CLOSE’ button.

zThe device is installed with a thermal protector, the thermal

protector will switch off the motor automatically in case of the

temperature is higher than 120°C and switch on the motor

automatically when the temperature is lower than 85°C±5 °C.

9. LED indicate

a. LED of Power indicated the input power.

b. LED of LEARN indicated the transmitter learn status.

c. LED 1 indicate the ‘CLOSE’ external button, if the button is

SL600AC SLIDING GATE OPERATOR

pressed the LED will light.

d. LED 2 indicate the ‘OPEN’ external button, if the button is

pressed the LED will light.

e. LED 3 indicate the ‘STOP’ external button, if the button is

pressed the LED will light.

f. LED 5 indicate the ‘O/S/C’ external button, if the button is

pressed the LED will light.

g. LED 6 indicate the ‘pedestrian switch’ external button, if the

button is pressed the LED will light.

h. LED 7 indicate the ‘infrared sensor’ status, if the output is

connected the LED will light.

i. LED 9 indicate the ‘Loop detector’ status, if the output is

connected the LED will light.

j. LED 10 indicate the ‘Close limit switch’ status, if the switch is

connected the LED will light.

k. LED 12 indicate the ‘Open limit switch’ status, if the switch is

connected the LED will light.

All these LED position see the Fig.8

10. Maintenance

zCheck the door once a month. The door should be carefully

checked for balance. The door must be in good working order.

zWe suggest for safety reasons, photocells be used on all gates.

zDisconnect from mains supply before replacing bulb.

zBe sure to read the entire manual before attempting to perform

any installation or service to the door operator.

zOur company reserves the right to change the design and

specification without prior notification.

Inhaltsverzeichnis

Andere JOYTECH Garagentoröffner Handbücher

JOYTECH

JOYTECH PY600AC Bedienungsanleitung

Beliebte Garagentoröffner Handbücher anderer Marken

Dorma

Dorma ES 90 Bedienungsanleitung

Garaga

Garaga SECURITY+ 3265GCM 1HP Bedienungsanleitung

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Bedienungsanleitung

Chase Doors

Chase Doors DuraShield Bedienungsanleitung

CSI

CSI Classic Bedienungsanleitung

HATO

HATO 120 Bedienungsanleitung

Chamberlain

Chamberlain Elite 3575S Bedienungsanleitung

Richmond

Richmond GTR156 Bedienungsanleitung

Raynor

Raynor 1280RGD Bedienungsanleitung

CAME

CAME F4000 Series Bedienungsanleitung

B&D

B&D Controll-A-Door 5 Bedienungsanleitung

BFT

BFT PRV AA SL Bedienungsanleitung

Craftsman

Craftsman 139.53924 Bedienungsanleitung

Chamberlain

Chamberlain MyQ 940ESTD Bedienungsanleitung

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Bedienungsanleitung

Westfalia

Westfalia 19 36 07 Bedienungsanleitung

Chamberlain

Chamberlain HD520EVP Bedienungsanleitung

Cardin

Cardin BL Series Bedienungsanleitung
