Quick Start Guide
Smart Visu Server
Philips HUE
HOW DO I CONNECT PHILIPS HUE?
Sonos
HOW DO I CONNECT SONOS?
Astro function
HOW DO I ADJUST THE ASTRO FUNCTION?
Remote access
HOW DO I SET UP REMOTE ACCESS?
Content
How do I connect Philips Hue?
Smart Visu Server
SMART VISU SERVER + PHILIPS HUE 2
Feel-good lighting with the Smart Visu
Server:
With the integration of the Philips Hue
colour lighting system, you simply
create individual light scenes with
your finger tip on your smart phone. In
addition, it can be controlled with the
JUNG KNX push-button modules.
These instructions explain the
individual steps to commission it and
to use it on the basis of an example.
1. Introduction

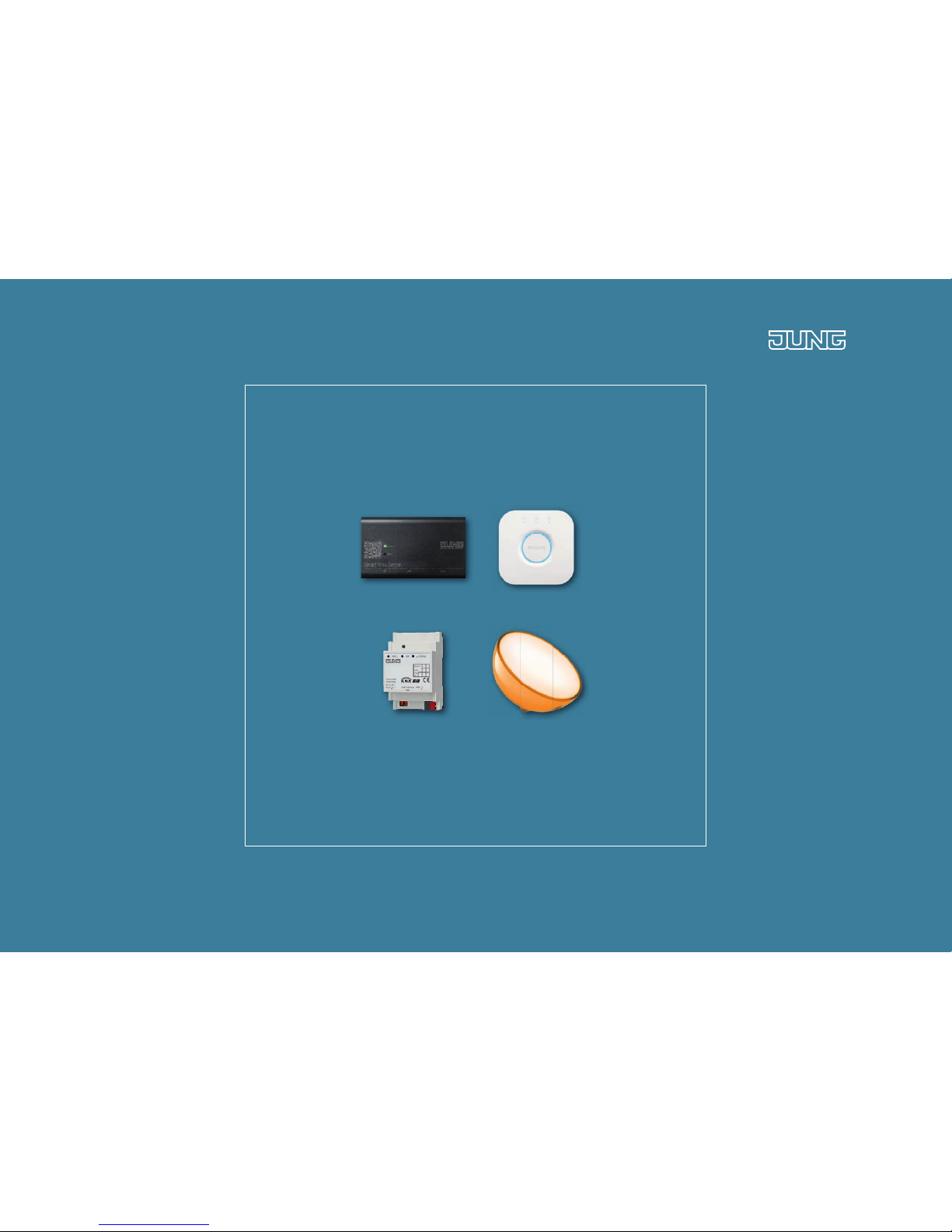

COMPONENTS
JUNG
ITEM NO: QUAN-
TITY
Smart Visu Server SV SERVER 1
KNX IP interface IPS 200 REG 1
KNX Standard
push-button
sensor module,
4-gang
4074 TSM 3
COMPONENTS
PHILIPS
ITEM NO QUAN-
TITY
Hue Bridge – 1
Hue White
Ambiance E27 – 1
Hue Go – 1
Hue Lightstrip – 1
SMART VISU SERVER + PHILIPS HUE 3
Philips Hue can be integrated into
your JUNG Smart Visu Server
with just a few steps.
The table here gives an overview of
the necessary steps.
On the following pages, the
individual steps are described
in detail.
STEP PAGE
1. Download Philips Hue app 4
2. Install the Philips Hue Bridge 4
3. Add the Philips Hue Bridge to the app 4
4. Make light setup 5
5. Make room setup 6
6. Set brightness and colours 7
7. Add additional lamps 8
8. Create more rooms and allocate lamps 9
9. Connect the Smart Visu Server to the IP network 12
10. Connect the Philips Hue Bridge to the Smart Visu Server 13
11. Connect the Philips Hue lamps to the Smart Visu Server 13
12. Edit Philips Hue lamps 14
13. Configure actions 15
14. Save project 17
2. Overview
SMART VISU SERVER + PHILIPS HUE 4
1. Open the Hue app. The search for
a new Bridge starts automatically. If
this is not the case, press the Search
button.
3. Commissioning Philips Hue
Install the Philips Hue App on your smartphone and integrate the Hue Bridge to your home network.
3.1 Initial operation
For the initial operation, in normal circumstances there is no configured Hue Bridge present. The initial operation of the Philips Hue is carried out as follows:
2. As soon as a Bridge is found, select
Set up.
3. Connect the Bridge to the Hue app. 4. Accept the terms of use and press
Enable.
SMART VISU SERVER + PHILIPS HUE 5
1. Use +to add new lamps to the net-
work.
3.2 Light setup
After you have connected the Bridge to the Hue app and you have accepted the terms of use, first make the light and room setup.
2. Select Search to open the network
and to display the available lamps.
3. The list displays all available lamps.
Confirm with to continue with com-
missioning.
SMART VISU SERVER + PHILIPS HUE 6
1. Add your new rooms using +.
3.3 Room setup
As soon as you have confirmed the selected lamps, you come automatically to the room settings.
2. Name your room and specify the
Room type. Use to add lamps to
your room.
3. Save your configuration with Save.
4. Setting up the Philips Hue is
complete. Press Let’s go to control
your Philips Hue installation.
SMART VISU SERVER + PHILIPS HUE 7
1. Using the Home menu, select the
desired room.
3.4 Setting brightness and colour
You can now set the brightness and colour of the lamps for each room.
2. Set the Brightness and the Colour of
the selected lamps to your require-
ments.
SMART VISU SERVER + PHILIPS HUE 8

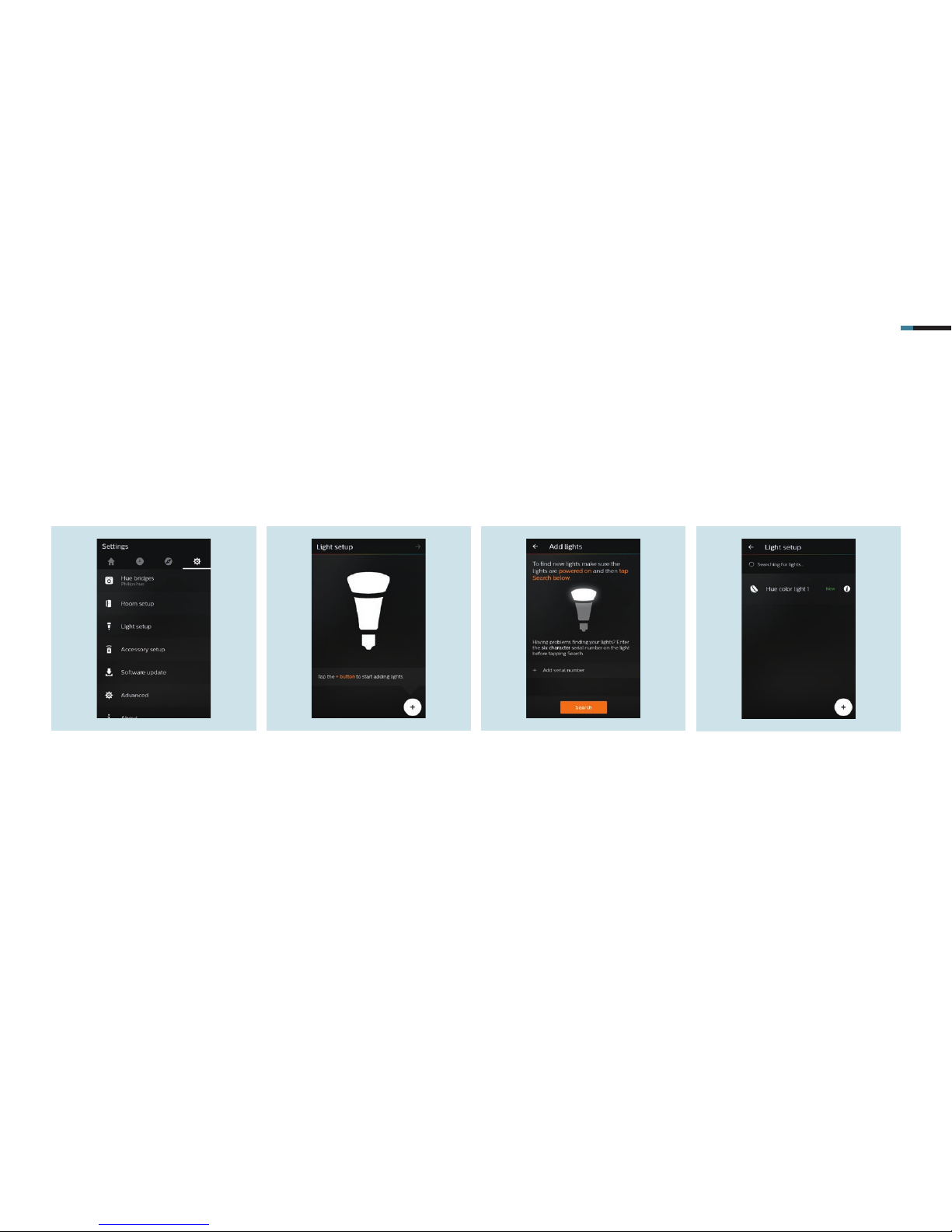

1. Select the Light setup.
3.5 Adding additional lamps
Check that all Philips Hue lamps are switched on.
2. Use +to add new lamps to the
network.
3. Select Search to open the network
and to display the available lamps.
4. All accessible lamps are displayed in
the list. Use +to restart the search.
