SRX5600 Services Gateway Getting

Started Guide

December 2013

Part Number: 530-055499

Revision 01

This document describes how to install the SRX5600 Services Gateway.

Contents AboutThisGuide....................................................3

Step 1: Prepare the Site for SRX5600 Services Gateway Installation . . . . . . . . . . . 4

Rack-MountingRequirements......................................4

Tools Required to Unpack and Prepare the SRX5600 Services Gateway for

Installation..................................................6

Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an

Open-FrameRack................................................6

Step3:InstalltheServicesGateway.....................................8

RemoveComponents.............................................9

Install the Services Gateway Using a Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Install the Services Gateway Without a Mechanical Lift . . . . . . . . . . . . . . . . . 12

ReinstallComponents............................................12

Step4:ConnecttheGroundingCable...................................13

Step 5: Connect External Devices and Network Cables . . . . . . . . . . . . . . . . . . . . . 14

Connect to a Network for Out-of-Band Management . . . . . . . . . . . . . . . . . . . 14

ConnectaManagementConsole...................................14

ConnecttheNetworkCables......................................15

Step6:ConnectPowerCables.........................................16

Connect Power to an AC-Powered Services Gateway . . . . . . . . . . . . . . . . . . . 16

Connect Power to a DC-Powered Services Gateway . . . . . . . . . . . . . . . . . . . . 17

Step 7: Perform the Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 20

EnterConfigurationMode........................................20

Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

ConfigureSystemAttributes.......................................21

CommittheConfiguration.........................................21

SafetyWarnings....................................................24

SRX5600 Services Gateway Compliance Statements for EMC

Requirements ..................................................26

Canada .......................................................26

EuropeanCommunity............................................26

Japan.........................................................26

United States ..................................................26

SRX Series Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

RequestingTechnicalSupport.........................................27

RevisionHistory....................................................28

SRX5600 Services Gateway Getting Started Guide

About This Guide

This guide contains information that you need to install and configure the SRX5600

Services Gateway quickly. For complete installation instructions, see the SRX5600

Services Gateway Hardware Documentation at www.juniper.net/techpubs/.

WARNING: This guide contains a summary of safety warnings in “Safety

Warnings” on page 24. For a complete list of warnings for this device, including

translations, see the SRX5600 Services Gateway Hardware Documentation

at www.juniper.net/techpubs/.

The SRX5600 Services Gateway is a high-performance, highly scalable, carrier-class

security device with multiprocessor architecture. The services gateway is eight rack units

(RU) tall. Three services gateways can be stacked in a single floor-to-ceiling rack, for

increased port density per unit of floor space. The services gateway provides six slots

that can be populated with up to four Services Processing Cards (SPCs) and interface

cards and two Switch Control Boards (SCBs) in redundant fabric configurations. The

interface cards can be any of the following types:

•I/O cards (IOCs) have fixed ports on their front panels.

•Flex I/O cards (Flex IOCs) have two slots on their front panels for smaller cards called

port modules that add additional ports to the services gateway.

•Modular Port Concentrators (MPCs) have two slots on their front panels for smaller

cards called Modular Interface Cards (MICs) that add additional ports to the services

gateway.

The SRX5600 Services Gateway provides redundancy and resiliency. The hardware

system is fully redundant, including power supplies and SCBs.

By installing various combinations of interface cards and SPCs, you can tailor both the

number of ports and the maximum services processing capacity to suit your network.

Table 1 on page 3 describes the minimum system configuration for the SRX5600 Services

Gateway.

Table 1: Minimum System Configuraton

MinimumComponent

1SPC

1Interface card (IOC, Flex IOC, or MPC)

1SCB

1Routing Engine

About This Guide

For detailed information about the cards supported by the services gateway, see the

SRX5400, SRX5600, and SRX5800 Services Gateway Card Reference at

www.juniper.net/techpubs/.

The services gateway is shipped in a cardboard box strapped securely to a wooden pallet.

Plastic straps secure the top and bottom in place. The services gateway chassis is bolted

to this pallet. A printed copy of this document and a cardboard accessory box are also

included in the shipping container.

Step 1: Prepare the Site for SRX5600 Services Gateway Installation

•Rack-Mounting Requirements on page 4

•Tools Required to Unpack and Prepare the SRX5600 Services Gateway for

Installation on page 6

Rack-Mounting Requirements

•You can install the services gateway in a four-post rack or cabinet or an open-frame

rack.

•The rack rails must be spaced widely enough to accommodate the services gateway

chassis's external dimensions: 14.0 in. (35.6 cm) high, 24.5 in. (62.2 cm) deep, and

17.45 in. (44.3 cm) wide. The outer edges of the mounting brackets extend the width

to 19 in. (48.3 cm). See Figure 1 on page 5.

SRX5600 Services Gateway Getting Started Guide

Figure 1: Rack Clearance and Chassis Dimensions

•The rack must be strong enough to support the weight of the fully configured services

gateway, up to 213 lb (97 kg). If you stack five fully configured services gateways in one

rack, it must be capable of supporting about 1066 lb (485 kg).

•For service personnel to remove and install hardware components, there must be

adequate space at the front and back of the services gateway. Allow at least

30 in. (76.2 cm) in front of the services gateway and 24 in. (61 cm) behind the services

gateway.

•The rack or cabinet must have an adequate supply of cooling air.

•Ensure that the cabinet allows the chassis hot exhaust air to exit the cabinet without

recirculating into the services gateway.

•The services gateway must be installed into a rack that is secured to the building

structure.

•The services gateway should be mounted at the bottom of the rack if it is the only unit

in the rack.

•When you are mounting the services gateway in a partially filled rack, load the rack

from the bottom to the top, with the heaviest component at the bottom of the rack.

Rack-Mounting Requirements

Tools Required to Unpack and Prepare the SRX5600 Services Gateway for Installation

To unpack the services gateway and prepare for installation, you need the following

tools:

•A mechanical lift—recommended

•Phillips (+) screwdrivers, numbers 1 and 2

•2.5-mm flat-blade (–) screwdriver

•7/16-in. torque-controlled driver or socket wrench

•1/2-in. or 13-mm open-end or socket wrench to remove bracket bolts from the shipping

pallet

•Electrostatic discharge wrist strap

•Antistatic mat

Proceed to “Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an

Open-Frame Rack” on page 6.

Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame

Rack

To install the mounting shelf on the front rails of a four-post rack or cabinet, or on the

rails of an open-frame rack:

1. If needed, install cage nuts in the holes specified in Table 2 on page 6.

2. On the back of each rack rail, partially insert a mounting screw into the lowest hole

specified in Table 2 on page 6.

3. Install the mounting shelf on the back of the rack rails. Rest the bottom slot of each

flange on a mounting screw.

4. Partially insert screws into the open holes in each flange of the mounting shelf (see

Figure 2 on page 7 or Figure 3 on page 8).

5. Tighten all the screws completely.

Table 2: Mounting Shelf Hole Locations

Distance Above U Division

Hole (Starting from U

Division)

1.14 U2.00 in. (5.1 cm)4

0.86 U1.51 in. (3.8 cm)3

0.50 U0.88 in. (2.2 cm)2

0.14 U0.25 in. (0.6 cm)1

SRX5600 Services Gateway Getting Started Guide

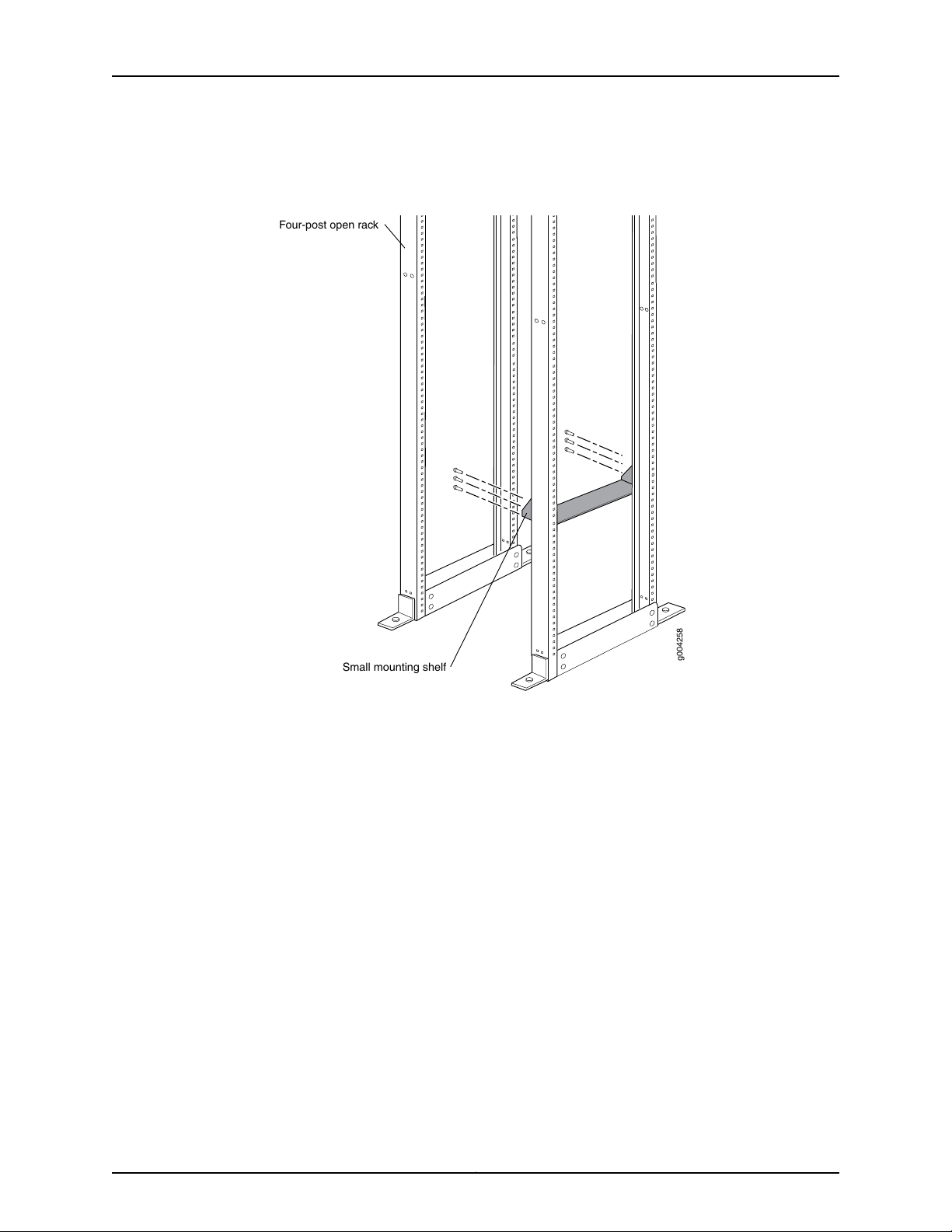

Figure 2: Mounting Hardware for a Four-Post Rack or Cabinet

g004258

Four-post open rack

Small mounting shelf

Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame Rack

Figure 3: Mounting Hardware for an Open-Frame Rack

Proceed to “Step 3: Install the Services Gateway” on page 8.

Step 3: Install the Services Gateway

Because of the services gateway’s size and weight, you must remove all components,

as shown in Figure 4 on page 9 and Figure 5 on page 9, before you install the services

gateway. We also recommend using a mechanical lift to install the services gateway.

•Remove Components on page 9

•Install the Services Gateway Using a Lift on page 10

•Install the Services Gateway Without a Mechanical Lift on page 12

•Reinstall Components on page 12

SRX5600 Services Gateway Getting Started Guide

Remove Components

Figure 4: Components to Remove from the Front of the Services Gateway

STATUS

SPU0

SERVICE

STATUS

SPU1

SERVICE HA

OK/FAIL

CHASSISCLUSTER

CONTROL0

ENABLE

LINK/ACT

CHASSISCLUSTER

CONTROL1

ENABLE

LINK/ACT

STATUS

SPU0

SERVICE

STATUS

SPU1

SERVICE HA

OK/FAIL

CHASSISCLUSTER

CONTROL0

ENABLE

LINK/ACT

CHASSISCLUSTER

CONTROL1

ENABLE

LINK/ACT

SPCs

g030210

IOCs

SCB0

and RE

SCB1

Figure 5: Components to Remove from the Rear of the Services Gateway

Before you lift the services gateway, you must remove the following components:

•Power supplies

•Cards (SCBs, SPCs, IOCs, Flex IOCs, and MPCs)

•Air filter

•Fan tray

Remove Components

To remove the components from the services gateway:

1. Slide each component out of the chassis evenly so that it does not become stuck or

damaged.

2. Label each component as you remove it so you can reinstall it in the correct location.

3. Immediately store each removed component in an electrostatic bag.

4. Do not stack removed components. Lay each one on a flat surface.

NOTE: For complete instructions on removing services gateway components,

see “Install the Services Gateway Without a Mechanical Lift” in the SRX5600

Services Gateway Hardware Guide.

Install the Services Gateway Using a Lift

To install the services gateway using a lift:

1. Ensure that the rack is in its permanent location and is secured to the building. Ensure

that the installation site allows adequate clearance for both airflow and maintenance.

For details, see the SRX5600 Services Gateway Hardware Documentation at

www.juniper.net/techpubs/.

2. Load the services gateway onto the lift, making sure that it rests securely on the lift

platform (see Figure 6 on page 11).

SRX5600 Services Gateway Getting Started Guide

Andere Handbücher für SRX5600

Inhaltsverzeichnis

Andere Juniper Tor Handbücher

Juniper

Juniper SRX220 Bedienungsanleitung

Juniper

Juniper SRX550 Montageanleitung

Juniper

Juniper SRX5600 Montageanleitung

Juniper

Juniper SRX240B Bedienungsanleitung

Juniper

Juniper SRX 5800 Montageanleitung

Juniper

Juniper SRX320 Montageanleitung

Juniper

Juniper SRX220 Montageanleitung

Juniper

Juniper SRX345 Einrichtungshandbuch

Juniper

Juniper PowerConnect J-SRX210 Bedienungsanleitung

Juniper

Juniper SRX5400 Bedienungsanleitung

Juniper

Juniper SRX3600 Montageanleitung

Juniper

Juniper SRX5400 Bedienungsanleitung

Juniper

Juniper SRX5400 Bedienungsanleitung

Juniper

Juniper SRX 5800 Bedienungsanleitung

Juniper

Juniper SRX5400 Bedienungsanleitung

Juniper

Juniper SRX5600 Montageanleitung

Juniper

Juniper SRX 210 Bedienungsanleitung

Juniper

Juniper SRX100 Bedienungsanleitung

Juniper

Juniper SRX3400 Bedienungsanleitung

Juniper

Juniper SRX550 Montageanleitung

Juniper

Juniper SRX110 Montageanleitung

Juniper

Juniper SRX 210 Montageanleitung

Juniper

Juniper SRX3600 Bedienungsanleitung

Juniper

Juniper SRX550 Montageanleitung

Beliebte Tor Handbücher anderer Marken

LST

LST M500RFE-AS Bedienungsanleitung

Kinnex

Kinnex Media Gateway Bedienungsanleitung

2N Telekomunikace

2N Telekomunikace 2N StarGate Bedienungsanleitung

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Bedienungsanleitung

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Bedienungsanleitung

Telsey

Telsey CPVA 500 - SIP Bedienungsanleitung

RTA

RTA 460A-NNA4 Technisches Datenblatt

Shaw

Shaw Gateway HDPVR Bedienungsanleitung

ABB

ABB VSN900 Kurzanleitung

Commander

Commander Pulse Bedienungsanleitung

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Bedienungsanleitung

NETGEAR

NETGEAR C6300BD Bedienungsanleitung

Amit

Amit CDW531AM Bedienungsanleitung

HMS

HMS Netbiter EasyConnect EC150 Bedienungsanleitung

Huawei

Huawei EchoLife HG620 Bedienungsanleitung

AT&T

AT&T U-verse 3801 Gebrauchs- und Pflegehandbuch

Logic IO

Logic IO RTCU MX2 turbo Bedienungsanleitung

Suttle

Suttle MediaMAX MXM-521 Bedienungsanleitung
