Jura GIGA X3
Operating & cleaning in truction
4
Control elements
Control elements
4
5
2
7
6
9
14
13
12
8
10
11
3
1
1 Bean container with aroma preservation
cover
2 Water tank cover
3 Water tank
4 Power switch and plug-in mains cable
(back of the machine)
5 Coffee grounds container
6 Drip tray
7 Cup grille
8 Filler funnel for ground coffee
9 Ventilation slats
10 Storage compartment cover
11 Measuring spoon for ground coffee
12 Height- and width-adjustable dual spout
13 Splash guard
14 Height-adjustable hot-water spout
5
Control elements
1
4
5
32
Top of the machine
1 QOn/Off button
2 gRotary Switch
3 OP button (programming)
Front
4 Display
5 Multi-function buttons (button function
depends on what is shown in the display)
1
2
3
4
Back of the machine
1 Service cover
(open by pressing with your finger)
2 Locking device
3 Sliding catch
4 Service socket (underneath cover)
Cleaning procedures & Products
GIGA (Tank water)
My Coffee Shop Pty Ltd
ACN 102 850 0 7
9 Hall St
Hawthorn East VIC 12
ph: 0 9946 4160
fax: 0 9822 6269
Shop 9 ,1-5 Harwood Street
Pyrmont NSW 2009
ph: 02 90 4 6580
fax: 02 90 4 6586
clientservices@mycoffeeshop.com.au 1300 365 4 7 www.mycoffeeshop.com.au
Daily
See procedure – Daily milk system clean
Must be performed at the end of each day just before the machine is turned off
Purpose: To ensure the milk system is clean overnight so milk does not go off blocking the pathways.
Use Jura cappuccino cleaner – 1 litre bottle (Prod no. 71141)
Weekly
See procedure – Weekly milk system clean
Performed once per week
Purpose: To remove any milk fats to ensure the milk frother works correctly.
Use Jura cappuccino cleaner – See above
When prompted
Clean machine – See procedure (Coffee system clean)
Performed only when prompted (Every 220 coffees)
Purpose: Removes coffee oil from the brewing unit and coffee path to maintain the quality of the coffee.
Use Jura cleaning tablets – 6 pk (Prod no. 71111), 25 pk (Prod no. 71112), 100 pk (Prod no. 7111 )
See procedures – Changing the filter or Descaling the machine
Perform a filter change or descale only when prompted.
Purpose: Reduces the formation of lime scale inside the coffee machine maintaining clear pathways,
water temperature and steam pressure.
Use
Prod no. 711 4
9 pk – Prod no. 71121
6 pk – Prod no. 71122
Important: Genuine Jura cleaning and descaling tablets must be used as a condition of warranty and
service programs.
GIGA X3 Professional
Daily milk system clean
J
These short instructions do not replace
the ‘GIGA X3 Professional Instructions for
Use’. Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
JURA Cappuccino Cleaner
1000 ml (Art. 62536)
Precondition: »Please select
product:«
1
»Maintenance status (1/5)«
2
3
»Cleaning agent for milk
system.«
4
Clean the
milk system
Start 2x
250 ml
5
6
7
»Milk system is being rinsed.«
»Water for cleaning milk system.«
8
1x 15 ml
Next
c250 ml
9
10
»Milk system is being rinsed.«
»Milk system cleaning complete.«
»Please select product:«
Next
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
Weekly milk system clean
My Coffee Shop Pty Ltd
ACN 102 850 037
9 Hall Street
Hawthorn Ea t Vic 3123
ph: 03 9946 4160
fax: 03 9822 6269
93/1-5 Harwood Street
Pyrmont NSW 20009
ph: 02 9034 6580
fax: 02 9034 6586
servicecentre@mycoffeeshop.com.au 1300 365
487
www.mycoffeeshop.com.au
Complete thi procedure once a week after the daily milk y tem clean
1. Remove the pla h back. (Fig 1)
2. Remove pout cover. Pre the black relea ing button and lift. (Fig 2 – 3)
3. Pull the milk outlet down (Fig 4) and the milk ho e out. (Fig 5)
4. Remove the auto frother by pulling it toward you. (Fig 6)
5. Separate the auto frother into 6 part . (Fig 7)
6. Soak all 6 part in 250ml of warm (not hot) water & 15ml of milk cleaner for 15 - 20 min (max).
7. Remove the part from olution and rin e under cold tap water.
8. Check that water flow through the milk outlet freely. (Fig 8)
9. Re-a emble the auto frother en uring the arrow tip line up. (Fig 9)
10. Refit the auto frother, pout cover and pla h back.
Plea e note: The pla h back protect the pout lide behind it from milk platter and mu t be fitted.
igure 1 igure 2 igure 3 igure 4 igure 5
igure 6 igure 7 igure 8 igure 9
GIGA X3 Professional
Coffee system clean
Approximate duration 20 min.
J
These short instructions do not replace
the ‘GIGA X3 Professional Instructions for
Use’. Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
2-phase cleaning tablets
Tub of 25 (Art. 62535)
Pack of 6(Art. 62715)
Precondition: »Clean machine.«
(or: »Please select product:«)
1
»Maintenance status (1/5)«
2
3
»Empty coffee grounds
container.«
4
Clean
Start 2x
5
6
7
»Press the Rotary Switch.«
8
9
»Machine is being cleaned.«
»Add cleaning tablet.«
10
11
12
»Press the Rotary Switch.«
13
»Machine is being cleaned.«
»Empty coffee grounds
container.«
14
15
16
»Clean« /»Cleaning complete.«
»Please select product:«
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
GIGA X3 Professional
Changing the filter
J
These short instructions do not replace
the ‘GIGA X3 Professional Instructions for
Use’. Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
CLARIS Pro Blue filter cartridge
Pack of 4 (Art. 69670)
Precondition: »Change the filter«
1
»Maintenance status (1/5)«
2
3
4
»Change filter.« /»Press the
Rotary Switch.«
Change the fi lter
Start
Start
5
6
7
8
9
10
11
»Filter is being rinsed.«
»Empty drip tray.«
12
13
14
15
»Change the filter.« /
»Filter rinsing complete.«
»Please select product:«
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
GIGA X3 Professional
Descaling the machine
Approximate duration 50 min.
J
These short instructions do not replace
the ‘GIGA X3 Professional Instructions for
Use’. Make sure you read and observe the
safety information and warnings first in
order to avoid hazards.
Equipment required:
Descaling tablets
Tub of 36 (Art. 70751)
Pack of 3 (Art. 61848)
Precondition: »Decalcify machine.«
(or »Please select product:«)
1
»Maintenance status (1/5)«
2
3
4
»Empty drip tray.«
Descale
Start
Start
5
6
7
8
»Pour descaling agent into water
tank.«
9
10
11
»Press the Rotary Switch.«
12
4x
800 ml
13
»Machine is being descaled.«
»Empty drip tray.«
14
15
16

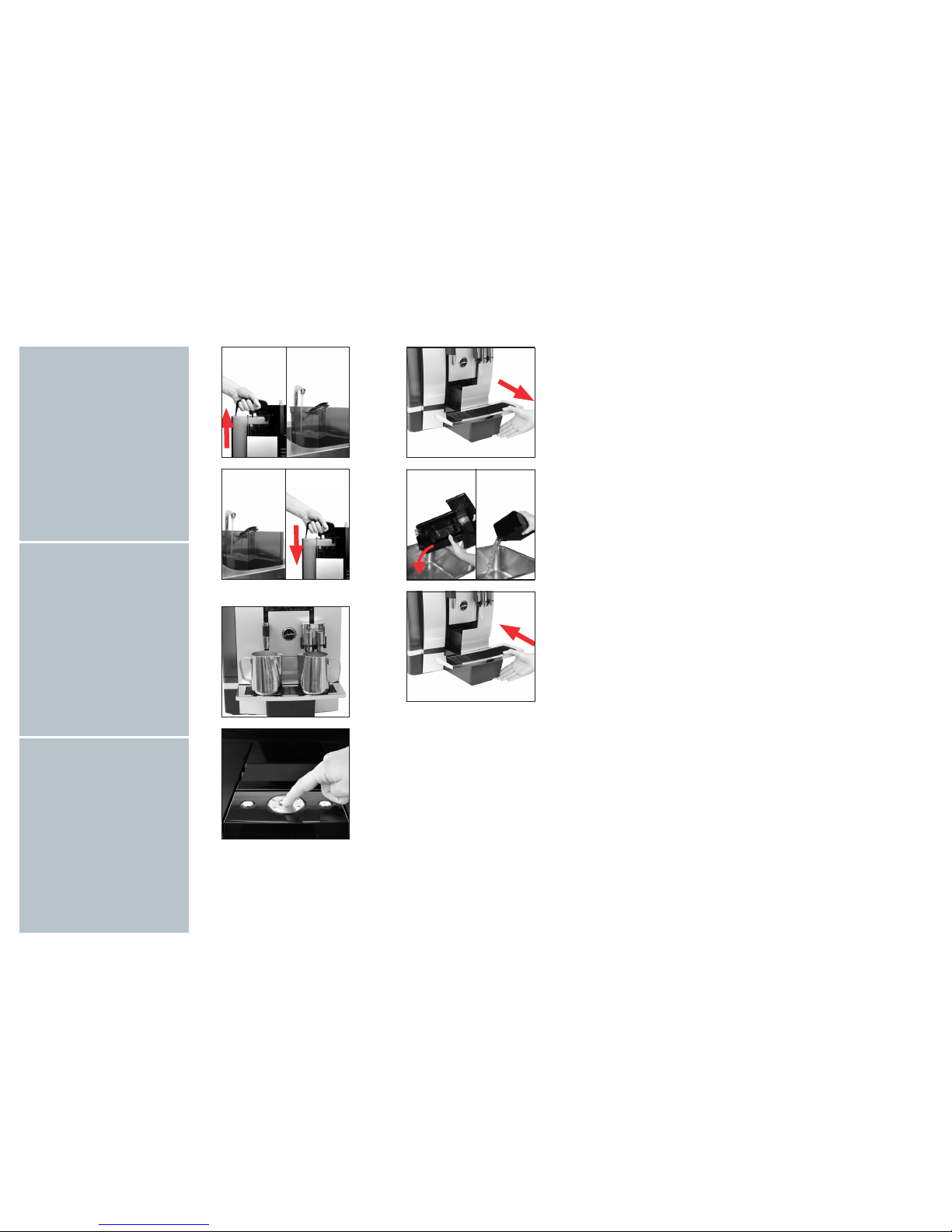

»Fill water tank.«
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
17
18
»Press the Rotary Switch.«
19
20
»Machine is being descaled.«
»Empty drip tray.«
c
21
22
23
»Descale« /»Descaling complete.«
»Please select product:«
