Jura I A X3C
Operating & cleaning instructions
4
Control elements
Control elements
4
5
2
7
6
9
14
13
12
8
10
11
3
1
1 Bean container with aroma preservation
cover
2 Water tank cover
3 Water tank
4 Power switch and plug-in mains cable
(back of the machine)
5 Coffee grounds container
6 Drip tray
7 Cup grille
8 Filler funnel for ground coffee
9 Ventilation slats
10 Storage compartment cover
11 Measuring spoon for ground coffee
12 Height- and width-adjustable dual spout
13 Splash guard
14 Height-adjustable hot-water spout
5
Control elements
1
4
5
32
Top of the machine
1 QOn/Off button
2 gRotary Switch
3 OP button (programming)
Front
4 Display
5 Multi-function buttons (button function
depends on what is shown in the display)
1
2
34
Back of the machine
1 Service cover
(open by pressing with your finger)
2 Locking device
3 Sliding catch
4 Service socket (underneath cover)
Cleaning Products – GIGA (Filtered mains water)
My Coffee Shop Pty Ltd
ACN 10 850 037
1473-1475 Malvern Road
Glen Iris VIC 3146
ph: 03 9946 4160
fax: 0 96 9 8046
93/1-5 Harwood Street
Pyrmont NSW 009
ph: 0 9034 6580
fax: 0 96 9 8046
clientservices@mycoffeeshop.com.au 1300 365 487 www.mycoffeeshop.com.au
Daily
See procedure – Daily milk system clean
Must be performed at the end of each day just before the machine is turned off
Purpose: To ensure the milk system is clean overnight so milk does not go off blocking the pathways
Use Cafetto daily milk cleaner – 1 litre bottle (Prod no. 71144)
Weekly
See procedure – Weekly milk system clean
Performed once per week
Purpose: To remove any build up of milk fats to ensure the milk frother works correctly
Use Cafetto weekly milk cleaner – 1 litre bottle (Prod no. 71145)
When prompted
Clean machine – See procedure (Coffee system clean)
Performed only when prompted (Every 0 coffees)
Purpose: Removes coffee oil from the brewing unit and coffee path to maintain the quality of the coffee
Use Jura cleaning tablets
- 6 pk (Prod no. 71111)
- 5 pk (Prod no. 7111 )
Change the filter – Contact service on 1300 365 487
Performed when prompted by the machine, based on water volume, or during regular service
Purpose: Protects against lime scale build up inside the machine maintaining water & steam paths
Medium filter
Prod no. J69535
Large filter
Prod no. J69536
Precondition: »Please select
product:«
1
»Maintenance status (1/5)«
2
3
»Cleaning agent for milk
system.«
4
Clean the
milk system
Start 2x
250 ml
5
6
7
»Milk system is being rinsed.«
»Water for cleaning milk system.«
8
1x 15 ml
Next
c250 ml
9
10
»Milk system is being rinsed.«
»Milk system cleaning complete.«
»Please select product:«
Next
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
GIGA X3c Professional
Daily milk system clean
J
These short instructions do not replace
the ‘GIGA X3c Professional Instructions
for Use’. Make sure you read and observe
the safety information and warnings first
in order to avoid hazards.
Equipment required:
JURA Cappuccino Cleaner
1000 ml (Art. 62536)
Weekly milk system clean
My Coffee Shop Pty Ltd
ACN 102 850 037
1473-1475 Malvern Road
len Iris VIC 3146
ph: 03 9946 4160
fax: 02 9629 8046
93/1-5 Harwood Street
Pyrmont NSW 2009
ph: 02 9034 6580
fax: 02 9629 8046
clientservices@mycoffeeshop.com.au 1300 365 487 www.mycoffeeshop.com.au
Complete this procedure once a week after the daily milk system clean
1. Remove the splash guard. (Fig 1)
2. Remove spout cover. Press the black releasing buttons and lift. (Fig 2 – 3)
3. Pull the milk outlet down (Fig 4) and the milk hose out. (Fig 5)
4. Remove the auto frother by pulling it towards you. (Fig 6)
5. Separate the auto frother into 6 parts. (Fig 7)
6. Soak all 6 parts in 250ml of warm water & 15ml of Cafetto red weekly solution (71145) for 20 min.
7. Remove the parts from solution and rinse under cold tap water.
8. Check that water flows through the milk outlet freely. (Fig 8)
9. Re-assemble the auto frother ensuring the arrow tips line up. (Fig 9)
10. Refit the auto frother, spout cover and splash guard.
Important:
The splash guard protects the coffee spout slide ribbon behind it from milk splatters and must be fitted. Be
careful not to press on the coffee spout slide ribbon as it can be damaged.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9

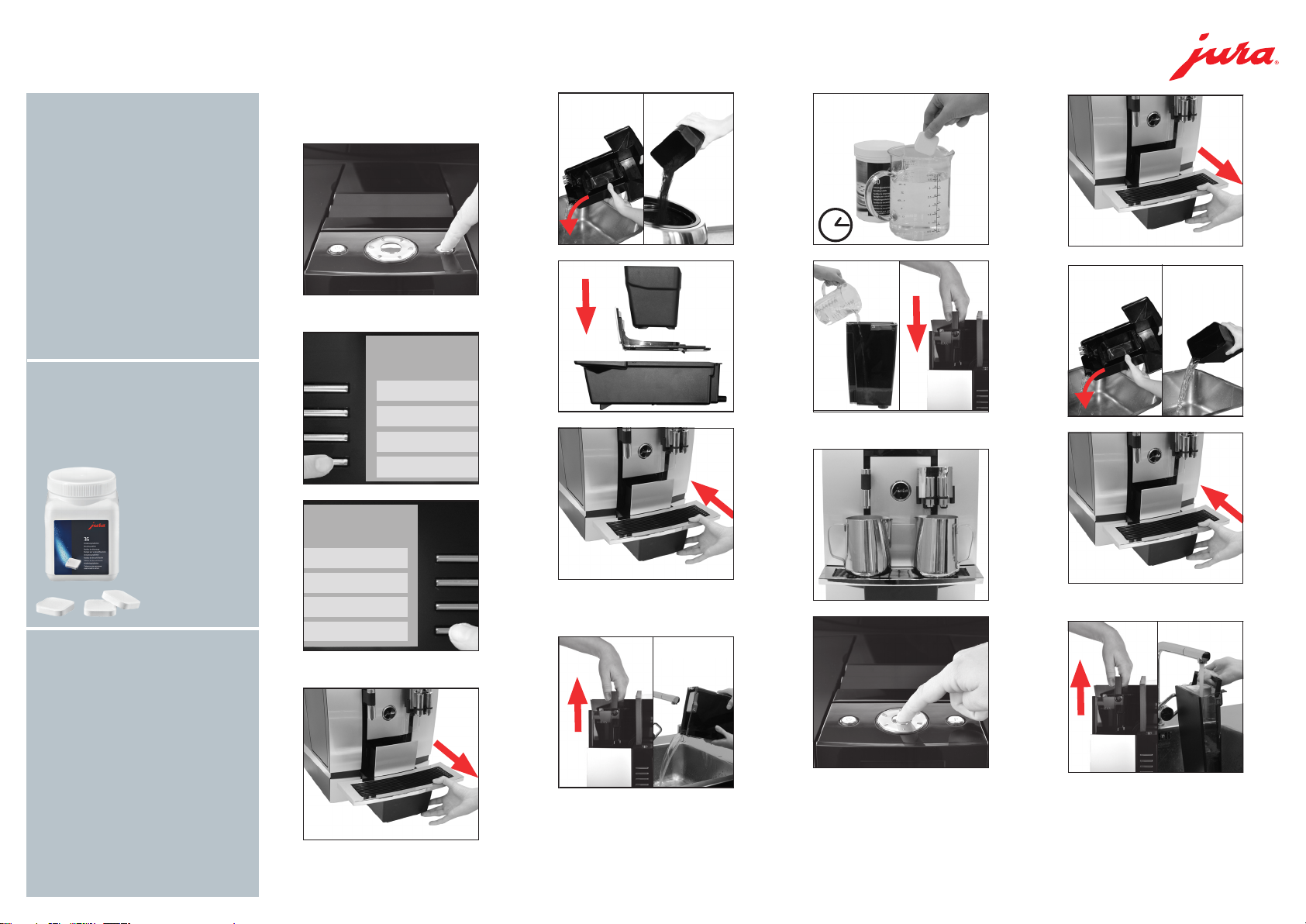

Precondition: »Clean machine.«
(or: »Please select product:«)
1
»Maintenance status (1/5)«
2
3
»Empty coffee grounds
container.«
4
Clean
Start 2x
5
6
7
»Press the Rotary Switch.«
8
9
»Machine is being cleaned.«
»Add cleaning tablet.«
10
11
12
»Press the Rotary Switch.«
13
»Machine is being cleaned.«
»Empty coffee grounds
container.«
14
15
16
»Clean« /»Cleaning complete.«
»Please select product:«
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
GIGA X3c Professional
Coffee system clean
Approximate duration 20 min.
J
These short instructions do not replace
the ‘GIGA X3c Professional Instructions
for Use’. Make sure you read and observe
the safety information and warnings first
in order to avoid hazards.
Equipment required:
2-phase cleaning tablets
Tub of 25 (Art. 62535)
Pack of 6(Art. 62715)
GIGA X3c Professional

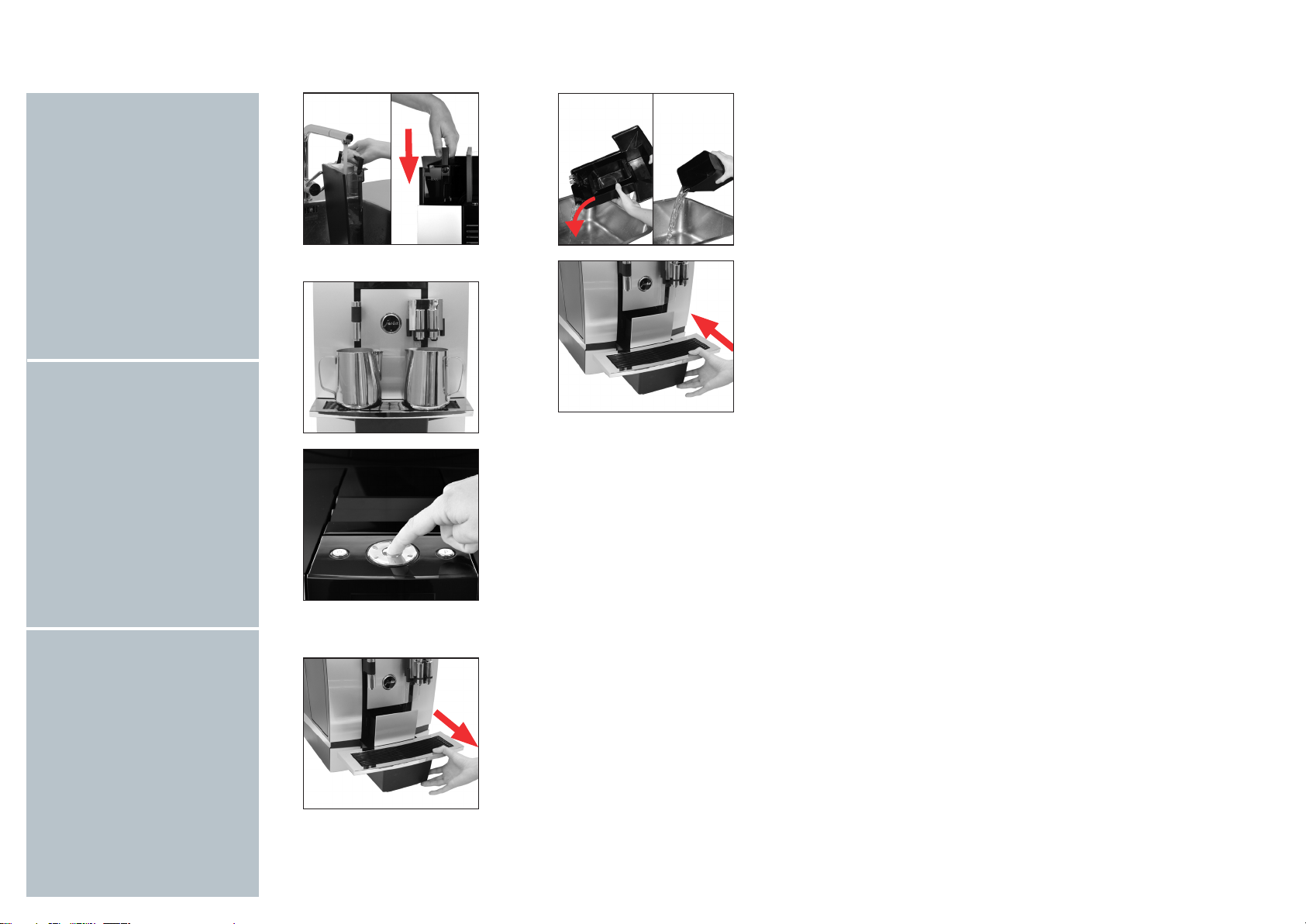

Precondition: »Decalcify machine.«
(or »Please select product:«)
1
»Maintenance status (1/5)«
2
3
»Empty drip tray.«
4
Descale
Start 2x
5
6
7
»Pour descaling agent into water
tank.«
8
9
10
»Press the Rotary Switch.«
11
12
»Machine is being descaled.«
»Empty drip tray.«
4x
800 ml
13
14
15
»Fill water tank.«
16
c
JURA Elektroapparate AG, Kaffeeweltstraße 10, CH-4626 Niederbuchsiten, www.jura.com
Descaling the machine
Approximate duration 50 min.
J
These short instructions do not replace
the ‘GIGA X3c Professional Instructions
for Use’. Make sure you read and observe
the safety information and warnings first
in order to avoid hazards.
Equipment required:
Descaling tablets
Tub of 36 (Art. 70751)
Pack of 3 (Art. 61848)
17
»Press the Rotary Switch.«
18
19
»Machine is being descaled.«
»Empty drip tray.«
20
21
22
»Descale« /»Descaling complete.«
»Please select product:«
Troubleshooting:
Milk flow
No milk Spluttering milk Not filling cups Froth milk is flat
Solution:
1. Remove the splash guard. (Fig 1)
2. Press the black releasing buttons on the sides of the spout cover and lift the cover off. (Fig 2 – 3)
3. f the flat milk is flowing normally and the problem is with the froth milk only, replace the air suction (Fig 4), refit the
cover and test the milk again. f the problem has been solved, purchase spare air suction (Part no. 70008). f the
problem has not been solved go to step 4.
4. Remove the auto frother by pulling the milk outlet down (Fig 5) and pulling the milk hose connector out (Fig 6). Now you
will be able to remove the auto frother by pulling it towards you (Fig 7).
5. Separate the auto frother into 6 parts (Fig 8).
6. Soak 6 parts (Fig 8) in 250ml of warm water and 15 ml of Cafetto red weekly cleaning solution (71145) for 30 min.
7. Remove the parts from the solution and rinse under tap water.
8. Clean the milk, air and steam paths using the cleaning brushes. See 2 x milk path holes in Fig 11.(Fig 9 – 13)
9. Pour tap water into the top of the milk outlet (Fig 14). f water does not pour from the two outlets as shown, soak it for
another 30 min and retest. f you are not able to clean the outlet, order in another outlet. (Part no. 70007)
10. Re-assemble the auto frother ensuring that the arrow tips line up. (Fig 15)
11. Refit the auto frother, cover, splash guard and test. f the problem has not been solved ph 1300 365 487.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure
Figure 7
Figure 8
Figure 9 (Milk path)
Figure 10 (Milk path)
Figure 11 (Milk path)
Figure 12 (Air path)
Figure 13 (Steam path)
Figure 14 (Test outlet)
Figure 15
