JVC HS-V4KIT Bedienungsanleitung

INSTRUCTIONS

BEDIENUNGSANLEITUNG / MODE D’EMPLOI

GEBRUIKSAANWIJZING / MANUAL DE INSTRUCCIONES

MANUALE DI ISTRUZIONI / INSTRUKTIONSBOG

KÄYTTÖOHJEET / ANVISNINGAR

BRUKSANVISNING /

HS-V4KITE

JLIP CAPTURE PACK

JLIP CAPTURE-PACK

ENSEMBLE JLIP CAPTURE

JLIP CAPTURE PAKKET

PAQUETE JLIP CAPTURE

PACCHETTO JLIP CAPTURE

JLIP CAPTURE PACK

JLIP-SIEPPAUSPAKKAUS

JLIP CAPTURE PACK

JLIP BILDEOVERFØRINGSPAKKE

BEFORE OPERATION

VOR DER INBETRIEBNAHME

AVANT DE COMMENCER

VOOR GEBRUIK

ANTES LA OPERACION

PRIMA DI INIZIARE

FØR BRUGEN

ENNEN KÄYTTÖÄ

INNAN DU SÄTTER IGÅNG

FØR BRUK

LYT0432-001A

ENGLISHDEUTSCHFRANÇAIS

NEDERLANDSCASTELLANO

ITALIANODANSKSUOMISVENSKANORSK

CAUTIONS

Connection to the mains supply in the United Kingdom.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for

the power points in your home or the cable is too short to reach a power point, then obtain

an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted, and

to replace the fuse cover.

If nontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug

immediately, to avoid a possible shock hazard by inadvertent connection to the mains

supply.

If this product is not supplied fitted with a mains plug then follow the instructions given

below:

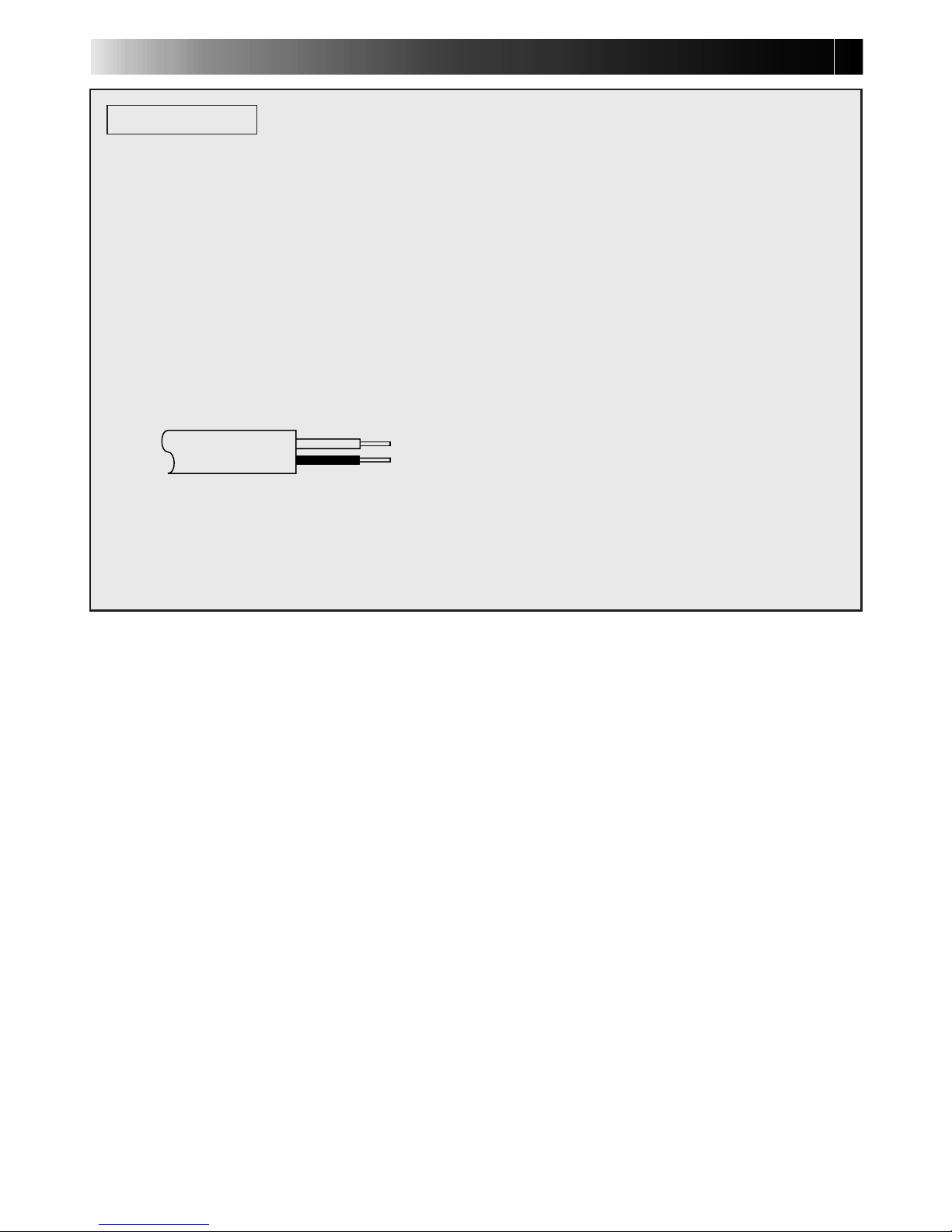

DO NOT make any connection to the Larger Terminal coded E or Green.

The wires in the mains lead are coloured in accordance with the following code:

If these colours do not correspond with the terminal identifications of your plug, connect

as follows:

Blue wire to terminal coded N (Neutral) or coloured black.

Brown wire to terminal coded L (Live) or coloured Red.

If in doubt — consult a competent electrician.

IMPORTANT (For owners in U.K.)

Blue to N (Neutral) or Black

Brown to L (Live) or Red

Some Do’s And Don’ts On The Safe

Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards

but, like any electrical equipment, care must be taken if you are to obtain the best results and

safety is to be assured.

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and

interconnections between pieces of equipment) are properly made and in accordance with

the manufacturer's instructions. Switch off and withdraw the mains plug when making or

changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of

your equipment.

DO be careful with glass panels or doors on equipment.

DON'T continue to operate the equipment if you are in any doubt about it working normally,

or if it is damaged in any way — switch off, withdraw the mains plug and consult your

dealer.

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T leave equipment switched on when it is unattended unless it is specifically stated that it

is designed for unattended operation or has a standby mode. Switch off using the

switch on the equipment and make sure that your family knows how to do this. Special

arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the

requirements of road safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume, as such use can permanently damage your

hearing.

DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete

safety always fit the manufacturer's approved stand or legs with the fixings provided

according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL...

—NEVER let anyone especially children push anything into holes, slots or any other

opening in the case — this could result in a fatal electrical shock;

—NEVER guess or take chances with electrical equipment of any kind — it is better to be

safe than sorry!

2EN

JVC SOFTWARE LICENCE AGREEMENT

TO CUSTOMERS:

MAKE SURE TO READ THIS CAREFULLY BEFORE OPENING THE SEALED SOFTWARE

PACKETS

Thank you for purchasing our product. In order to start using the software programme

enclosed, you are required to accept the terms and conditions of the agreement as pro-

vided below.

Software Licence Agreement

This is a legal agreement between you (either an individual or an entity) and Victor Company

of Japan, Limited (JVC). By opening the sealed software packages and/or by using the Pro-

gramme, you are agreeing to be bound by the terms of thisAgreement. Should you not agree

to the terms hereof, return the unopened software packets and the accompanying items to the

place where you obtained them.

1. GRANT OF LICENCE

ThisLicenceAgreement(Agreement) permitsyou touse thesoftware programme(Programme)

enclosed in this package and/or the accompanying written material (e. g. printed manuals).

Although you are also granted licence to load the Programme into temporary memory (i. e.

RAM) or install the Programme once into permanent memory (e. g. hard disk, CD-R, or other

storage device) of one (1) computer system, you are strictly prohibited to install the Pro-

gramme on a network server for the sole purpose of internal distribution.

2. COPYRIGHT

Notwithstanding the provision of Article 1 hereof, any copyright in the Programme is owned

exclusively by JVC and is protected by the Japanese copyright law, copyright laws of other

countries, as applicable, and relevant provisions under international treaties including the

Berne Convention for the Protection of Literary and Artistic Works, as amended, and the

Universal Copyright Convention, as amended. Therefore, you must treat the Programme like

any other copyrighted material except that you may either (a) make one (1) copy of the Pro-

gramme solely for your personal backup or archival purposes, or (b) transfer the Programme

to a single hard disk, provided that you keep the original solely for your personal backup or

archival purposes.

3. RESTRICTION ON THE PROGRAMME

You may not reverse engineer, decompile, disassemble, revise or modify the Programme,

except to the extent that such restriction is expressly prohibited by applicable law. JVC and its

distributors and dealers shall not be liable for any claims or defects etc. arising out of or in

connection with such prohibited activities as indicated in this Agreement.

4. OTHER RESTRICTIONS

You may not rent, lease or transfer the Programme to any third party nor let such a party use

the Programme.

IMPORTANT

EN 3

5. LIMITED WARRANTY

JVC warrants that any media in which the Programme is embodied (e.g. floppy discs, CD-

ROM, etc.) are free from any defects in materials and workmanship for a period of thirty (30)

days from the date of your purchase and that any hardware accompanying the Programme is

also free from defects to the extent provided in the attached Warranty Form. JVC’s entire

liability and your exclusive remedy in connection with the Programme shall be, at JVC’s op-

tion, either (a) return of the price paid, or (b) replacement of defective Programme media.

6. DISCLAIMER OF WARRANTIES

EXCEPTFORTHE EXPRESS WARRANTIES STATED HEREINAND TOTHE EXTENT PER-

MITTED BY APPLICABLE LAW, JVC AND ITS SUPPLIERS DISCLAIM ANY OTHER WAR-

RANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED

WARRANTIES OF MERCHANTABILITYAND FITNESS FOR APARTICULAR PURPOSE IN

REGARD TO THE PROGRAMME AND THE ACCOMPANYING PRINTED MATERIALS.

7. LIMITED LIABILITY

TO THE EXTENT PERMITTED BYAPPLICABLE LAW, IN NO EVENT SHALL JVC AND ITS

SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES WHATSOEVER, REGARDLESS OF THE FORM OF ACTION WHETHER

IN CONTRACT, TORT, STRICT PRODUCT LIABILITY OR OTHERWISE (INCLUDING BUT

NOT LIMITEDTO DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS

OF BUSINESS INFORMATION ORANY OTHER PECUNIARY LOSS)ARISING OUT OF OR

IN CONNECTION WITH THE USE OF OR INABILITYTO USETHE PROGRAMME, EVEN IF

JVC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Victor Company of Japan, Limited

4EN

CONTENTS

CAUTION:

●Operate this equipment according to the operating procedures described in this manual.

●Use only the provided CD-ROM. Never use any other CD-ROM to run this software.

●Do not attempt to modify this software.

●Changes or modifications not approved by JVC could void user’s authority to operate the

equipment.

How to handle a CD-ROM

●Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do

not write anything or put a sticker on either the front or back surface. If the CD-ROM gets

dirty, gently wipe it with a soft cloth outward from the centre hole using a circular

motion.

●Do not use conventional disc cleaners or cleaning spray.

●Do not bend the CD-ROM or touch its mirror surface.

●Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from

direct sunlight.

MAJOR FEATURES 5 – 6

GETTING STARTED 7

Provided Accessories .............................................................

Connectable Devices ..............................................................

Operating Environment ...........................................................

INSTALLATION 8 – 9

JLIP Video Capture................................................................

JLIP Video Producer ..............................................................

Adobe®Acrobat®Reader 3.0 ...................................................

Mr. Photo Gold ....................................................................

CONNECTIONS 10 – 11

Presto! Mr. Photo Gold 13 – 19

TECHNICAL SUPPORT FOR REGISTERED USERS 20 – 21

NOTICE FOR USERS 21

●The Readme.TXT file provides additional information for setup and information that is not

included in the instruction manual. Please read the file before installing the provided

software programme.

●You can find the latest information (in English) on the provided software programme at our

world wide web server at http://www.jvc-victor.co.jp.

NOTE:

The JLIP Video Capture/Producer instruction manual is also included on the CD-ROM in

PDF format. To open, double-click the file in the desired language. Note that Adobe®

Acrobat®Reader must be installed to read PDF files.

EN 5

Two software programmes are provided.

JLIP Video Capture

Video Capture Facility

Video images from a video camera can be

captured as still images with 16.77 million

colours through the serial port (RS-232C) of a

WindowsT-operated computer.

JLIP Control Facility

With a JLIP compatible video camera,

• all basic video operations can be

executed via the computer display;

• up to 99 images can be captured

automatically with Programme Video

Capture (playing tape — scanning —

transferring to PC).

JLIP Video Producer

JLIP Control Facility

With a JLIP-compatible video camera,

• all basic video operations can be

executed on the computer display;

• programmed video playback (up to 99

programmes) or assemble editing can be

performed.

Assemble Editing

Selected scenes on a pre-recorded tape can

be edited in a specified sequence.

Pre-recorded tape

(on video camera)

Recording tape

(on VCR)

MAJOR FEATURES

6EN

Business presentations

Images captured from video can be incorpo-

rated into business documents to spice up

your presentations.

Internet homepage

Images captured from video can be incorpo-

rated in your Internet homepage using image

editing software.

Advanced Applications

Create title indexes for your video

collection

Title index images can be captured from your

favorite recordings using the Interval Capture

mode. Print the captured index images on

your PC printer using the computer’s Print

Screen facility, then attach them to your

cassettes.

Video journal and postcards

Create your own original postcards, party

invitation cards and the like or keep a video

journal.

MAJOR FEATURES (cont.)

EN 7

GETTING STARTED

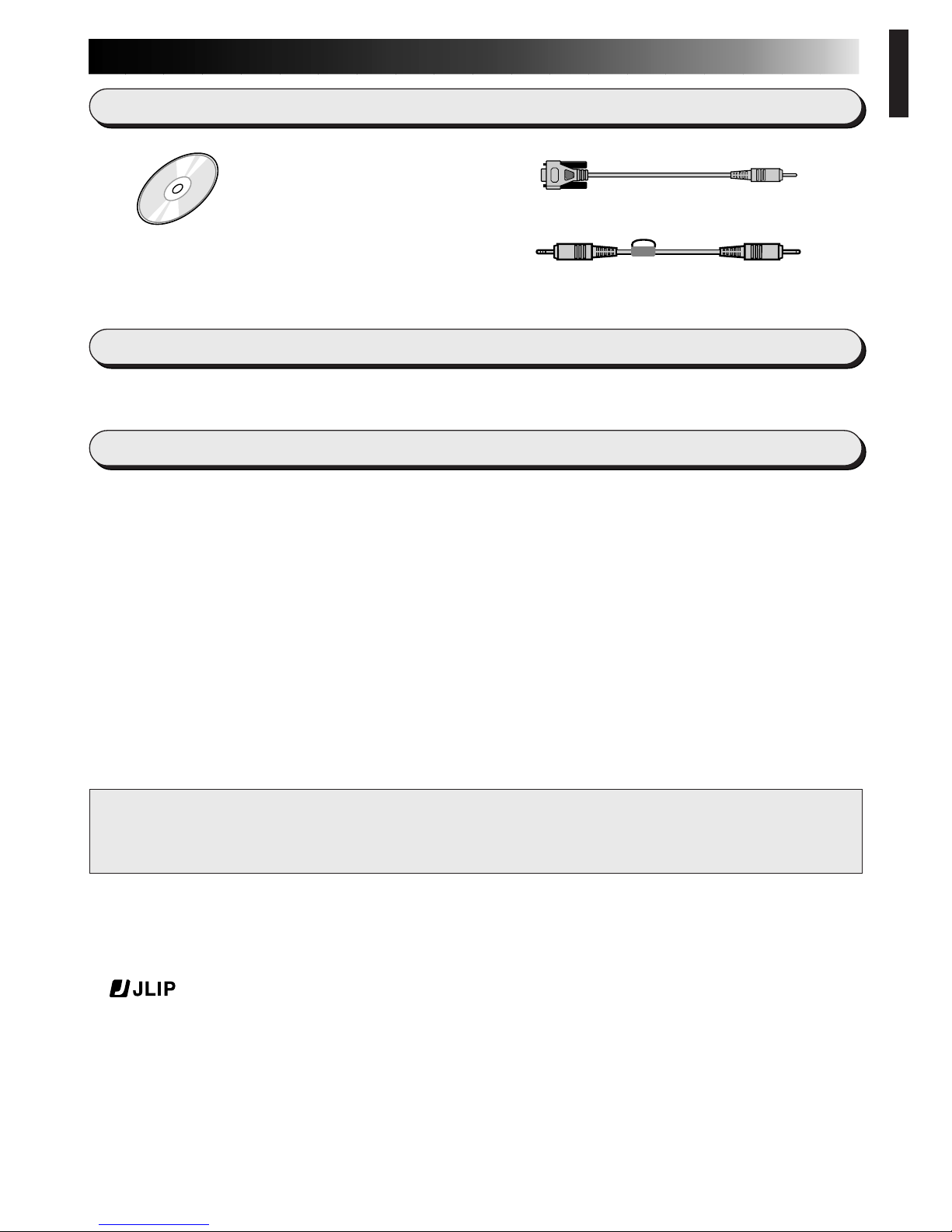

Operating Environment

qPersonal Computer with Microsoft®Windows®95/Windows®98

qCPU: Intel®Pentium®or better processor

qMinimum RAM requirement: 32 MB

qAvailable Hard Disk space of at least 10 MB for JVC Software

Recommended 140 MB for Presto! Mr. Photo Gold

(You can select which applications from Mr. Photo Gold you wish to install.)

qColour display capable of at least 640 x 480 pixels, 256 colours

Recommended 1024 x 768 pixels, 16.77 million colours

q1 free serial transmission port, compatible with 9600 bps or higher transmission

rate, connectable to RS-232C with 9 pin serial connector

(Recommended compatible with UART 16550A)

qMouse (Windows®compatible)

qCD-ROM drive

NOTE:

An optional 9 pin serial conversion adapter is required for computers using a serial

communication port other than a standard 9 pin.

* The system requirements information above is not a guarantee that the provided

software will work on all personal computers meeting those requirements.

* Microsoft®and Windows®are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

* is a registered trademark of JVC.

JLIP stands for Joint Level Interface Protocol, a new communication protocol which

allows AV units equipped with a JLIP terminal to be controlled by a personal

computer.

* Other product and company names included in this instruction manual are

trademarks and/or registered trademarks of their respective holders.

Connectable Devices

qJVC digital video cameras: GR-DVL20, GR-DVL30, GR-DVL40

PC Connection Cable

Provided Accessories

CD-ROM including:

•JLIP Video Capture

•JLIP Video Producer

•Presto! Mr. Photo Gold

•Mr. Photo

•PhotoAlbum

•ImageFolio Edit Cable (4 pole – 2 pole)

8EN

INSTALLATION

Refer to the Windows®95/98 manual or your computer’s manual for details on basic

Windows®95/98 operating procedures.

Installing JLIP Video Capture

1. Start up Windows®.

• Close any other applications that are running.

Make sure that there are no icons of other applications on the task bar.

2. Insert the CD-ROM into the CD-ROM drive.

Click Start on the task bar — Run.

3. Click Browse — CD-ROM icon in the Look in: column.

4. Double-click the JVC folder.

5. Double-click the Jcpt folder.

6. Double-click the Setup.exe icon.

7. Click OK.

The set-up programme will load. Follow the instructions that appear on the screen.

Installing JLIP Video Producer

1. Start up Windows®.

• Close any other applications that are running.

Make sure that there are no icons of other applications on the task bar.

2. Insert the CD-ROM into the CD-ROM drive.

Click Start on the task bar — Run.

3. Click Browse — CD-ROM icon in the Look in: column.

4. Double-click the JVC folder.

5. Double-click the Vdpro folder.

6. Double-click the Setup.exe icon.

7. Click OK.

The set-up programme will load. Follow the instructions that appear on the screen.

Installing Adobe®Acrobat®Reader 3.0

1. Start up Windows®.

• Close any other applications that are running.

Make sure that there are no icons of other applications on the task bar.

2. Insert the CD-ROM into the CD-ROM drive.

Click Start on the task bar — Run.

3. Click Browse — CD-ROM icon in the Look in: column.

4. Double-click the Reader folder.

5. Double-click the Setup.exe icon.

6. Click OK.

The set-up programme will load. Follow the instructions that appear on the screen.

NOTES:

• Close any other programmes running on the PC.

• Disable programmes that operate in the background, such as screen savers, e-mail

and communication software, virus checkers, schedulers, etc.

• Turn off file and printer sharing.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere JVC Camcorder-Zubehör Handbücher

JVC

JVC VU-V856KIT Bedienungsanleitung

JVC

JVC CB-V920 Bedienungsanleitung

JVC

JVC GV-CB1U Kurzanleitung

JVC

JVC CU-V615U Bedienungsanleitung

JVC

JVC GV-CB1EG Bedienungsanleitung

JVC

JVC WR-DV1U Bedienungsanleitung

JVC

JVC LYT2112-003A Bedienungsanleitung

JVC

JVC VU-V856KIT Bedienungsanleitung

JVC

JVC CU-V615U-E Bedienungsanleitung

JVC

JVC QR-JVC7/14 HDV Bedienungsanleitung

JVC

JVC GY-HD250U - 3-ccd Prohd Camcorder Maßzeichnung

JVC

JVC CB-V91U Bedienungsanleitung

JVC

JVC GY-HD250U - 3-ccd Prohd Camcorder Bedienungsanleitung

JVC

JVC 0398AYV*UN*SW Bedienungsanleitung

JVC

JVC Streamproducer KA-DV300U Benutzerhandbuch

JVC

JVC CB-V910 Bedienungsanleitung

JVC

JVC KA-551 Bedienungsanleitung

JVC

JVC 0899FOV*UN*AP Bedienungsanleitung

JVC

JVC Studio Kit KA-F5602U Bedienungsanleitung

JVC

JVC 0898AYV*UN*AP Bedienungsanleitung

JVC

JVC CU-V4542U Bedienungsanleitung

JVC

JVC KA-DV300 Benutzerhandbuch

JVC

JVC LYT0002-0B7B Bedienungsanleitung

JVC

JVC CB-V240U Bedienungsanleitung

Beliebte Camcorder-Zubehör Handbücher anderer Marken

Panasonic

Panasonic AW-LZ14MD Bedienungsanleitung

Dynex

Dynex 09-0406 Bedienungsanleitung

Sony

Sony SPK-HCC Betriebsanleitung

Gitzo

Gitzo Centre Ball Head 1 G1177M G1177M G1177M Bedienungsanleitung

Sony

Sony SAL70400G2 Installationsanleitung

Gitzo

Gitzo Series 3 Mountaineer GT3530 Bedienungsanleitung

walimex

walimex Steadycam Cam-Flo-Pod Bedienungsanleitung

Sony

Sony HVL-IRH Bedienungsanleitung

TDK

TDK VCMS-150R Bedienungsanleitung

Canon

Canon VL-3 Bedienungsanleitung

Sony

Sony ND Filter Kit Bedienungsanleitung

Panasonic

Panasonic AWVF80 - VIEWFINDER Bedienungsanleitung

Sony

Sony VG-C70AM Installationsanleitung

Panasonic

Panasonic AWVF64N - 4" VIEWFINDER Bedienungsanleitung

Canon

Canon WD-43 Bedienungsanleitung

Gitzo

Gitzo Mountaineer Series 2 Reporter G1258 G1258... Bedienungsanleitung

juicedLink

juicedLink CX211 Bedienungsanleitung

Gitzo

Gitzo Series 3 Systematic GT3540XLS Bedienungsanleitung
